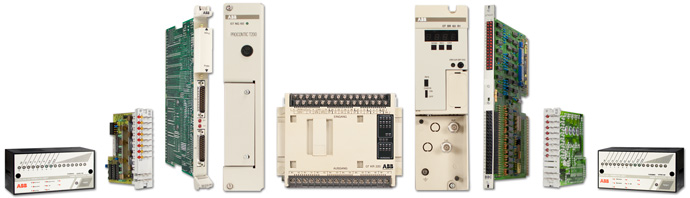

ABB Procontic

BASIC CONTROLLER

Power Supply Voltage:24 V DC ±10%
Power Consumption:4.5 W
Program Memory 32 kBytes
RAM (Data Memory):16 kBytes
Digital I/O Capacity:128 I/O max
Operating Temperature:0°C to +60°C
Storage Temperature:-25°C to +70°C
Humidity:5% to 95% (non-condensing)

Binary Input Unit

Input Channels:16
Input Type:Dry Contact or 24V DC Sourcing
Voltage Range:19–30 V DC
Input Current:3–5 mA per channel
Logic Levels:"1" (ON): +15–30 V DC
"0" (OFF): 0–5 V DC
Response Time:≤ 2 ms (ON/OFF)
Overvoltage Protection:60 V DC (continuous), 75 V DC (1s)
Isolation:1500 V AC

35 AA 92 Analog Output Module

Operating Voltage:24V DC (±10%)
Power Consumption:2.5W (typical)
Number of Channels:4
Output Type:0-20mA
Resolution:16-bit
Load Impedance:≤600Ω
Isolation:1.5kV AC

35 ZE 94 CPU Processor Board

Input Voltage:24V DC (±15%)
Power Consumption:25W (typical)
Processor:32-bit PowerPC @ 1.2GHz
Memory:1GB DDR4 RAM
Flash Storage:8GB eMMC
Execution Speed:0.02ms/1k instructions
I/O Capacity:Supports up to 16,384 I/O points
Task Handling:64 concurrent tasks
Scan Cycle:Configurable 1-100ms

Data Interface Board

Supply Voltage:24V DC (±10%)
Power Consumption:5W (typical)
Isolation Voltage:1500V AC
Serial Ports:2x RS-485 (Modbus RTU)
Ethernet Ports:2x 10/100BASE-TX (Modbus TCP)
Protocols Supported:Modbus, IEC 60870-5-104, DNP3.0
Baud Rate:300-115200 bps

Input/Output Unit

Analog Input Module - RTD

MT-91 Touch Screen Panel Keypad

MT91 Operator Panel

Digital I/O Unit

Digital Input Module

Digital Input Module

Remote Binary Output Unit

Digital Output Module

Digital Output Module

IV0790 Module

07KR228 Compact Controller

07 KR 240 R2 Controller-Basic Configuration 24Vdc

K200 Analog Output Unit

ABB Procontic Compact Configuration - 07KR220dR1

I/O Module

07KR228 Compact Controller

Operator Panel

07 MK 92 Serial Communications Processor

07KT94 CPU - Advant Controller 31
