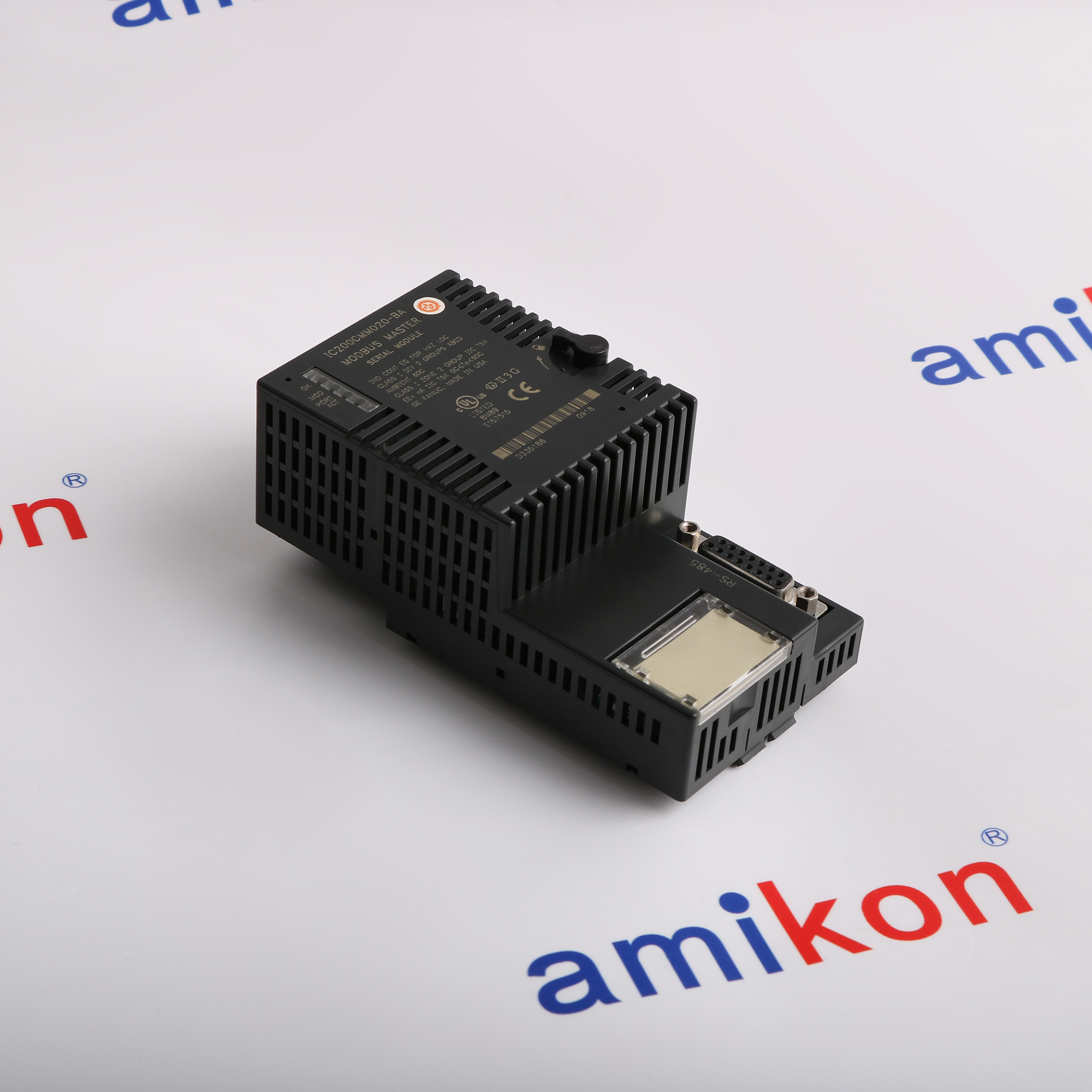

GE VersaMax

VersaMax CPUE05 with Ethernet Interfaces

Series:VersaMax
Part Number:IC200CPUE05
Description:CPU module
Modules:64
I/O points:2048
Serial ports:RS 232, RS 485
Boolean Execution Speed:0.8 milliseconds
Memory:64 K bytes
SRTP Server:8 connections
Ethernet Port:One (1) RJ45 port
Ethernet Transmission:10 Mbps, full / half duplex
EGD configuration:32 configurations

VersaMAx controller module

Series:VersaMax
Part Number:IC200CPUE05
Description:CPU module
Modules:64
I/O points:2048
Serial ports:RS 232, RS 485
Boolean Execution Speed:0.8 milliseconds
Memory:64 K bytes
SRTP Server:8 connections
Ethernet Port:One (1) RJ45 port
Ethernet Transmission:10 Mbps, full / half duplex
EGD configuration:32 configurations

DC power supply input module

Brand:GE Fanuc
Series:Versamax
Part Number:IC200PWR001
Product Type:DC Power Supply
Input Voltage:24 Volts DC
Output Voltage:5 Volts DC and 3.3 Volts DC
Input Power:11 Watts
Holdup Time:10 Milliseconds
Total Output:1.5 A maximum
3.3V Output Current:0.25 A maximum

Analog Input Module

Series:Versamax
Part Number:IC200ALG263
Product Description :Analog Input Module
Number of Inputs:15, single-ended
Input Voltage:-10 Volts to 10 Volts
Input Impedance:100K Ohms minimum
Resolution:+/- 15 bits
Update Rate:7.5 ms
LED Indicators:OK LED

VersaMax CPUE05 Controller

Program Storage:System flash, battery-backed RAM
Power Requirements:5V uses 220mA, 3.3V uses 570mA
Floating :Pointyes
Boolean Execution Speed:0.8 ms/K (typical)
Realtime Clock Accuracy (for timer functions):100ppm (0.01%) or +/- 9sec/day
Time of Day Clock Accuracy:100ppm at full temperature range
Embedded Communications:RS-232, RS-485, Ethernet
Configurable Memory:64K bytes maximum
Ethernet Data Rate:10Mbps (half- or full-duplex)
Ethernet Port:RJ-45, UTP
Number of SRTP Server Connections:8

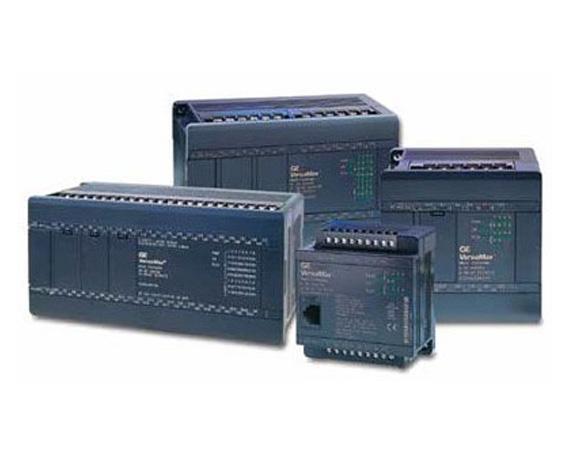

Micro Controller

DC Inputs: 16
DC Outputs: 1 (24 V)
Relay Outputs: 11 (Normally-Open), 2 A
Nominal Power Requirement: 100-240 V
Voltage Type: DC
Series: VersaMax

Discrete input module

Input voltage 0 to +30VDC,+24VDC nominal
On state voltage +15 to +30VDC
Off state voltage 0 to +5VDC
Off state current 2.0 to 5.5mA0 to 0.5mA
Off response time 0.5ms maximum
Configurable filtertime0 ms, 1.0ms (default), or 7.0ms
Input impedance 10kOhms maximum

INPUT MODULE

Series:VersaMax
Part Number:IC200ALG620
Description:Analog input module
Product Description:4-point RTD / Resistance input module
Resolution:16 bits
Update Rate:210 milliseconds
Compatible RTD Wiring type:3-wire and 4-wire RTDs
Bus Voltage:5 Volts DC
Resistance input range:0-500 Ohms; 0-3000 Ohms
Isolation (Input to Frame):1500 Volts AC
Digital Resolution:15 bits plus sign
Isolation (Input to Logic):250 Volts AC
Frequency:50-60 Hertz
Temperature:0-60 degrees Celsius
Maximum lead resistance:5 ohms per lead

Analog Input Thermocouple Module

Thermocouple types J, K, T, S, R, none (used for mV inputs)
Spans (+/–) 19.5mV, 39mV, 78.125mV, 156.25mV, 312.5mV,625mV
Converter resolution 15 bits + sign
Conformity error +/–0.3 degree Celsius, +/–0.5 degree Fahrenheit.
Normal mode rejection 60dB, at 50/60 Hz, 100% span
Common mode rejection 120 dB at 50/60Hz, 100 ohm imbalance
Common mode voltage 3 VDC maximum

Analog Output module

No. of channels: 4 single-ended, one group
Voltage Range: 18 - 30 VDC
Current Range: 4 - 20 mA
Update Rate: 0.3 ms
LED Indicators: FLD PWR, OK
Power Consumption:   50 mA from +5V bus

Discrete Output Module

Series:Versamax
Part Number:IC200MDL740
Number of Points:16 Outputs
Number of groups:1
Group to Group Isolation:None
Point to Point Isolation:None
Fuse:None

Analog input module

Manufacturer:GE Fanuc
Series:Versamax
Part Number:IC200ALG240
Product Type:Analog Input Module
Number of Inputs:8
Intelligent Module:Yes
Input Data:16-Bit Input Data
Operating Modes:Current Mode or Voltage Mode
Current Range:1 to 20 milliamps
Voltage Range:-10 to 10 Volts DC
