Allen-Bradley SLC 500

Flex I/O Terminal Base Unit

TERMINAL BASE
FLEX I/O
16 I/O TERMINALS
18 COMMON TERMINALS
18 +VOLTAGE TERMINALS
SCREW-CLAMP
CONFORMAL COATED
OPEN STYLE
DIN MOUNT

Flex I/O Relay Output Module

1794OW8XT
OUTPUT MODULE
FLEX I/O
DISCRETE
CONTACT
8 POINTS FORM A RELAY CONTACTS OUTPUT
EXTENDED TEMPERATURE -20 TO +70 DEG
OPEN STYLE
DINMOUNT
IP20

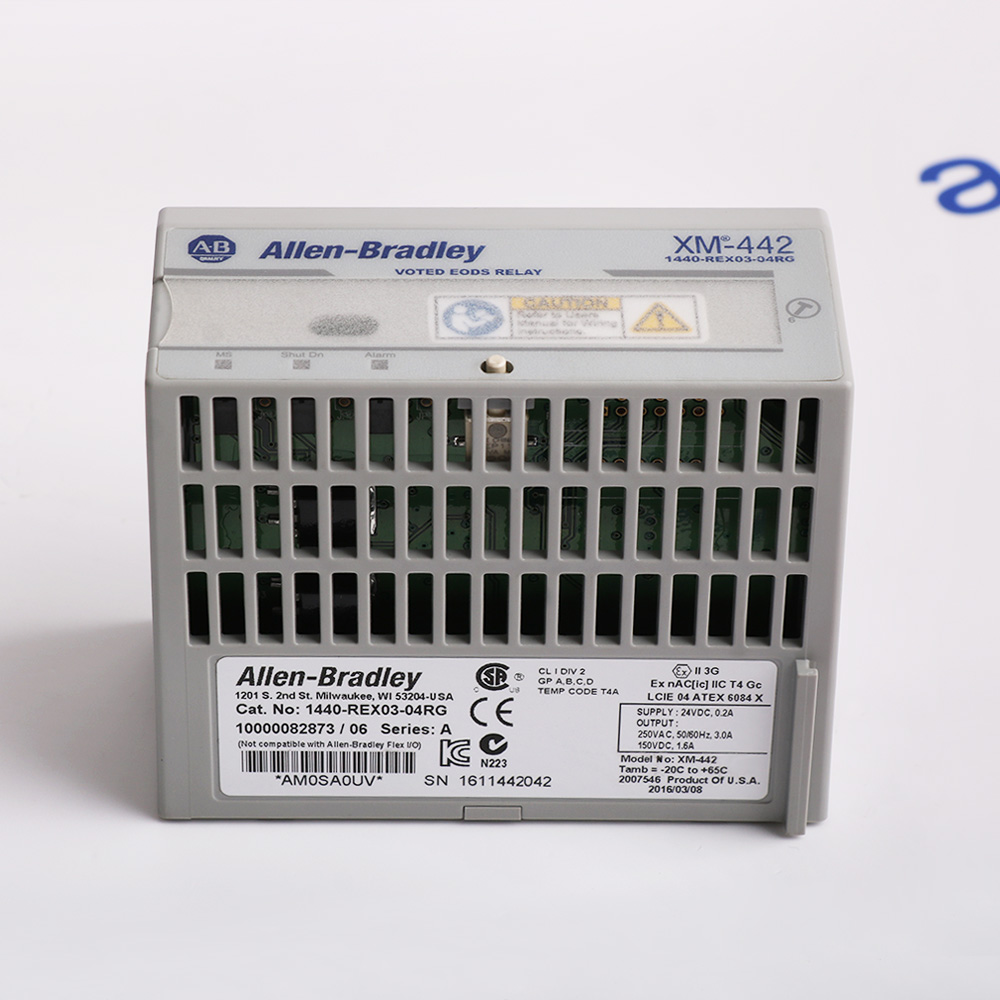

Voted EODS Relay Module

1440REX0304RG
RELAY MODULE
OVER SPEED
XM 442
OPEN STYLE
MOUNTABLE

POINT I/O Digital DC Sinking Output Module

Series:POINT I/O
Module Type:Digital DC Sinking Output Modules
Outputs:2
Output Voltage:24 Volts DC
Electronically Protected:Yes
POINTBus Current:75 milliamps
Output Current:2 amps/module
Power Dissipation:0.8 Watts
Thermal Dissipation:2.7 BTU/hour

POINT I/O Analog Output Module

Series:POINT I/O
Module Type:Analog Output Module
Outputs:4 Single Ended
Data Format:Signed Integer
External DC Supply Current:220 mA
Output Signal Range:4 to 20 mA, 0 to 20 mA
Output Resolution:16 bits across 0 to 21 mA
Conversion Type:Digital-Analog
Conversion Rate:20 microseconds
Resolution:14 bits

SLC 500 DeviceNet Scanner Module

Module Width:Single Slot
Compatible controllers:SLC 5/02 or later
Pass through: Supported
Communication Port:One (1) DeviceNet
Data Transfer speed:125Kbps
Linear Plug:1787-PLUG10R
Indicators:Mod/Net Status - red/grn; I/O Status - red/grn
Mounting:DIN Rail; Panel Mounting
Storage Temperature:-40 to 85 C (-40 to 185 F)

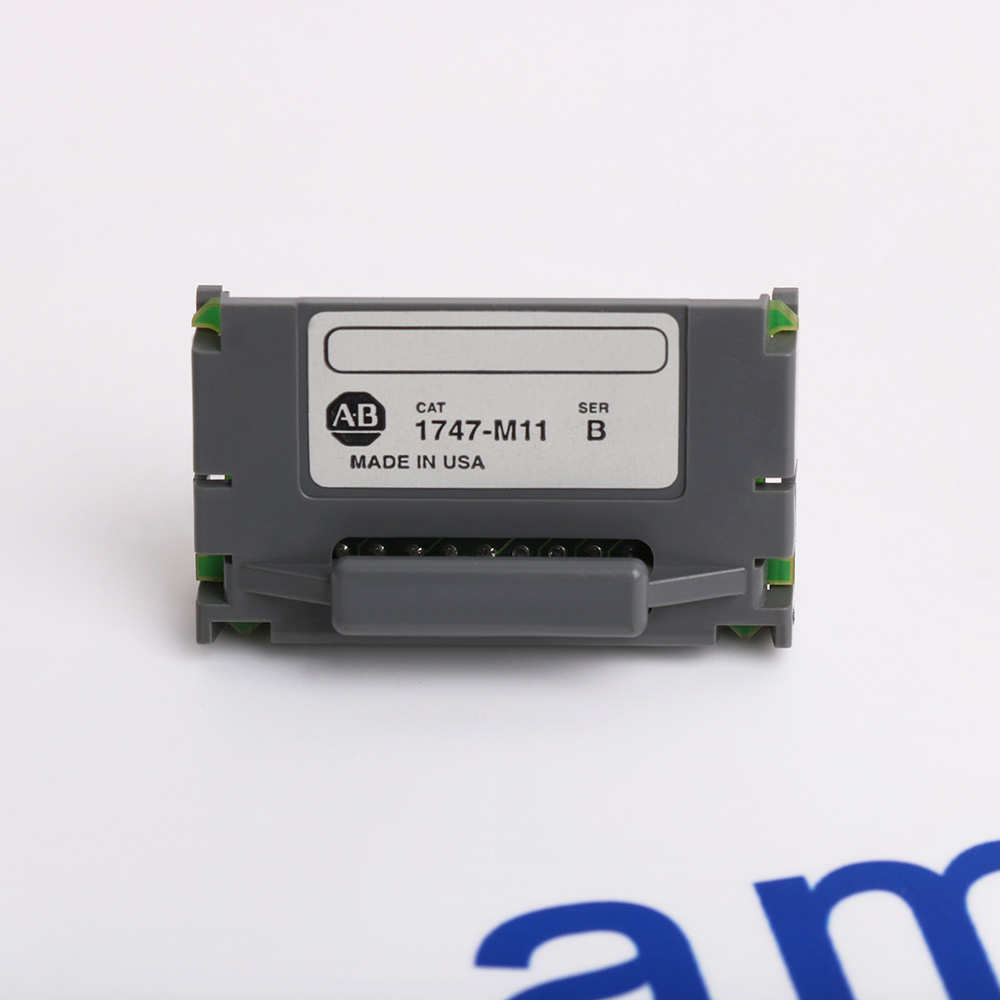

SLC 500 Memory Module

Module Type:Memory Module Adapter
Memory:8 kilobytes, 1,000 instructions
Memory Type:EEPROM
User Memory:64,000 Words
Program Scan Time:0.9 milliseconds
I/O Scan Time:0.225 milliseconds
I/O Chassis:3
Chassis Module Slots:30
Communication:Ethernet, RS-232

SLC 500 Backup Scanner Module

Series:SLC 500
Module Type:Backup Scanner Module
Compatible Processors:SLC 5/02, 5/03, 5/04, 5/05
Backplane Current (5 Volts):800 milliamps
Operating Temperature:0-60 Celsius
Cable:Belden 9463
Connectors:6-Pin Phoenix Connector
Weight:2.5 pounds (1.1 kilograms)

Input Module

Part Number/Catalog No.:1734sc-IF4U
Product Type:Input Module
Rockwell Compatible Series:Point I/O
Channels:4
Input Type:Analog
Resolution:18 bits
Input Impedance:253 ohm
Input Overcurrent Protection:32 mA cont
Thermal Dissipation:1 W min

Expansion Module Safety Relay

440REM4R2
EXPANSION MODULE
GUARDMASTER
GSR EM
MONITORING SAFETY RELAY
1 SINGLE WIRE SAFE INPUT
1 NC SOLID STATE AUX OUTPUT
24 VDC SUPPLY

Compact 5000 analog input module

Overvoltage protection, max:± 30V DC
Overcurrent protection, max:±30 mA
Open circuit detection time:2 seconds
Module Keying:Electronic
Number of Inputs:8 Differential Inputs
Number of Outputs:N/A
Voltage Category:N/A
Input Voltage Range:+/- 10 Volts, 0-10 Volts, 0-5 Volts
Output Voltage Range:N/A
Power Dissipation:2.1 Voltage Mode and 2.4 Current Mode
Enclosure Type:None (Open Style)

Thermocouple I/O Module

Product Type:FLEX Ex RTD Thermocouple I/O Module
Inputs:8
Input Type:Internal Bus Configurable
Signal Input Range:40 to 100 millivolts
Lead Resistance Compensation:15 Watts maximum
Settling Time:8 milliseconds
Module Field-side Power Consumption:1.6 Watts
Power Dissipation:1.6 Watts
Thermal Dissipation:5.46 BTU/hour maximum
Power Supply:9.5 Volts DC

Point IO-Link Master Module

COMBINATION MODULE
DISTRIBUTED I/O
24 VDC
4 CHANNEL
IO LINK

FLEX Ex HART I/O Module

Inputs :8
Input Type :Single-ended Non-isolated
Resolution :16 bits
Data Format :Configurable
Functional Data Range:15V at 22mA
Module Field-side Power Consumption:7.5 W
Power Dissipation:5.2 W
Thermal Dissipation:17.75 BTU/hour
Step Response:4 ms

Flex XT 8 Point Analog Input Module

1794IE8XT
ANALOG INPUT MODULE
FLEX I/O
CURRENT OR VOLTAGE
8 CHANNELS SINGLE ENDED INPUT
EXTENDED TEMPERATURE -20 TO +70 DEG
OPEN STYLE
DIN RAIL MOUNT
IP20
CONFORMAL COATED

Switching Power Supply

8002604406R
DISCONTINUED BY MANUFACTURER
POWER SUPPLY SWITCHING
10A
50VDC
OUT: 6 X 3A 20VDC

USB Interface Cable

I/O Ring Adapter Module

Power Supply - 3A

POWER SUPPLY
FLEX I/O
INPUT: 120/230 VAC / 0.62/0.42 AMP (50/60 HZ)
OUTPUT: 24 VDC / 1.3 AMP
31.2 W
DIN RAIL MOUNTABLE

NETWORK ADAPTER

NETWORK ADAPTER
FLEX I/O
ETHERNET/IP
DUAL MEDIA
EXTENDED TEMPERATURE -20 TO +70 DEG
24 VDC
OPEN STYLE
DIN MOUNT
IP20

SmartGuard 600 Safety Module

Program Storage Device

Hand Held Terminal

PC Interface Converter

PCI Interface Module
