Technical specifications for 1492-ACABLE010TB
-
Product Model1492-ACABLE010TB
-
Spare Model1492ACABLE010TB
-
Product ParametersANALOG CABLE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size22x20x5cm
-
ManufacturerAllen-Bradley
-
Weight0.4 kg
-
Length1.0 m ± 0.05 m
-
Conductors26 AWG
-
Voltage Rating300 V
-
Temperature Coefficient< 0.02 %
-
Operating Temp–20 °C to +105 °C
-
Storage Temp–40 °C to +125 °C
-
Humidity0 – 95 % RH, non-condensing
Description
1492ACABLE010TB
ANALOG CABLE
FOR I/O MODULES
1 METER CABLE
FOR BULLETIN 1756 ANALOGUE I/O /
RTD / THERMOCOUPLE INPUT MODULES
ANALOG CABLE
FOR I/O MODULES
1 METER CABLE
FOR BULLETIN 1756 ANALOGUE I/O /
RTD / THERMOCOUPLE INPUT MODULES
Information
Overview
Manuals
Technical notes
Need more info
Features:
- Pre-Wired Cables with I/O and IFM Connector
- 1492 Wiring Systems Accessories
- Pre-wired Cable for 1756-IF8

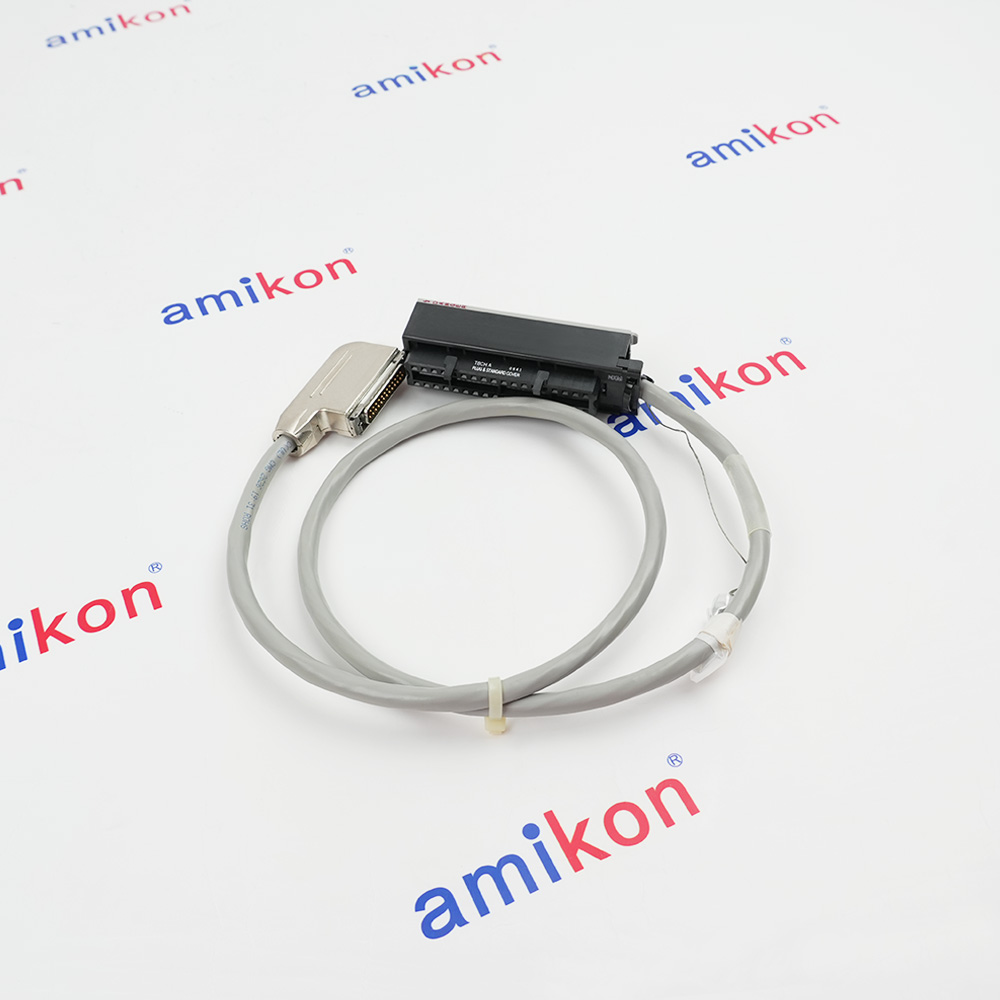

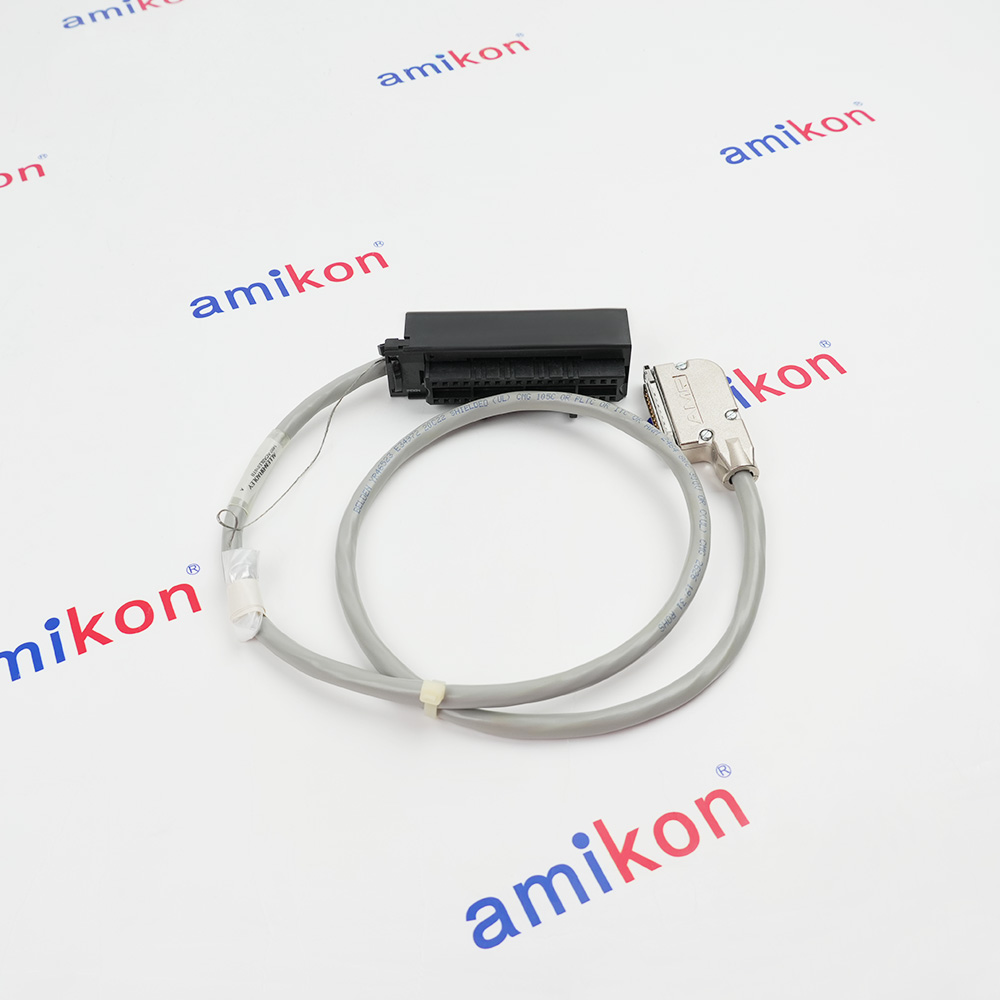

AB 1492-ACABLE010TB Pre-wired Cable for 1756-IF8 (S-ended current) Analog Input Module, 20 conductors, #22 AWG, shielded, w1756-TBCH connector & AIFM 25-Pin D-shell connector, length 1.0 meter (3.28 feet)
The 1492-ACABLE010TB Allen-Bradley Analog cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1492-ACABLE010TB Analog cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1492-ACABLE010TB from Allen Bradley is a specialized analog cable tailored for efficient signal transmission in automation systems. This cable is pre-wired, featuring a total of 20 conductors. It supports a voltage rating of 300 volts, making it robust for various electronic applications. With a length of 1.0 meter (3.28 feet), it provides adequate reach for most installations.
Designed with a wire gauge of 22 AWG, the cable strikes a balance between flexibility and durability. The cable color is black, which is commonly used in many settings for ease of identification. To prevent electromagnetic interference, this cable is shielded, enhancing signal integrity during transmission. It utilizes a TB type for terminations, ensuring factory pre-wired convenience for users.
We know that questions occur, and sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you're just a message away from clarity and confidence. Whether you have a specific question, need a particular image, video or more details, the request click puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQs
-
What is the 1492-ACABLE010TB?
+The Allen-Bradley 1492-ACABLE010TB is a 1-meter (3.28 feet) pre-wired, shielded analog input cable used in industrial automation for connecting a ControlLogix 1756-IF8 analog input module to a 1492 AIFM wiring termination module. -
What is the primary use of the 1492-ACABLE010TB cable?
+This cable is designed to provide a quick, error-free connection between an Allen-Bradley ControlLogix 1756-IF8 (S-ended current) analog input module and a 25-Pin D-shell AIFM (Analog Input Field Wiring Module). It is part of the Bulletin 1492 wiring system designed to reduce installation time and errors compared to traditional point-to-point wiring. -
Which PLC modules is it compatible with?
+It is specifically engineered for the ControlLogix 1756-IF8 analog input module when configured for single-ended current.
