PRODUCT DESCRIPTION

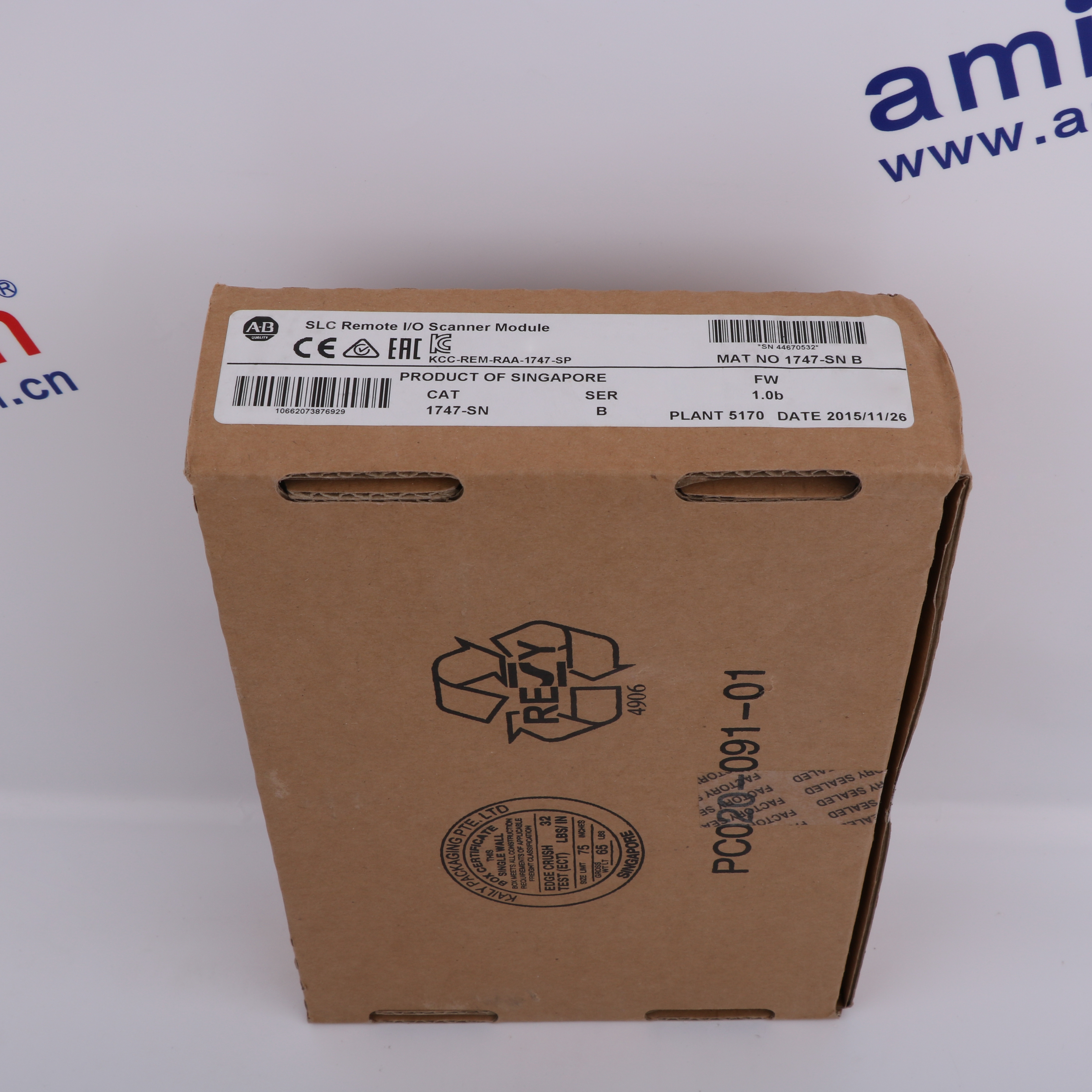

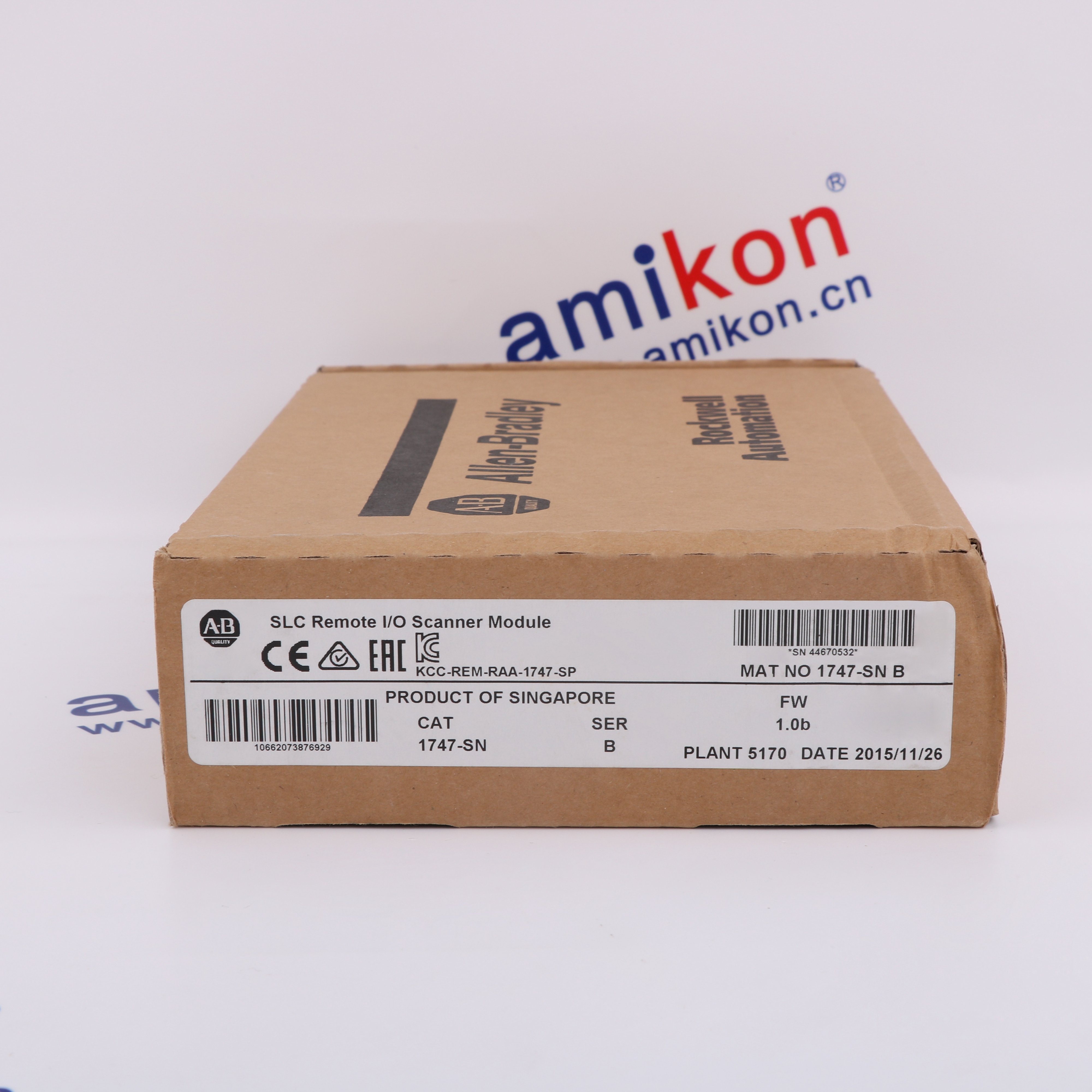

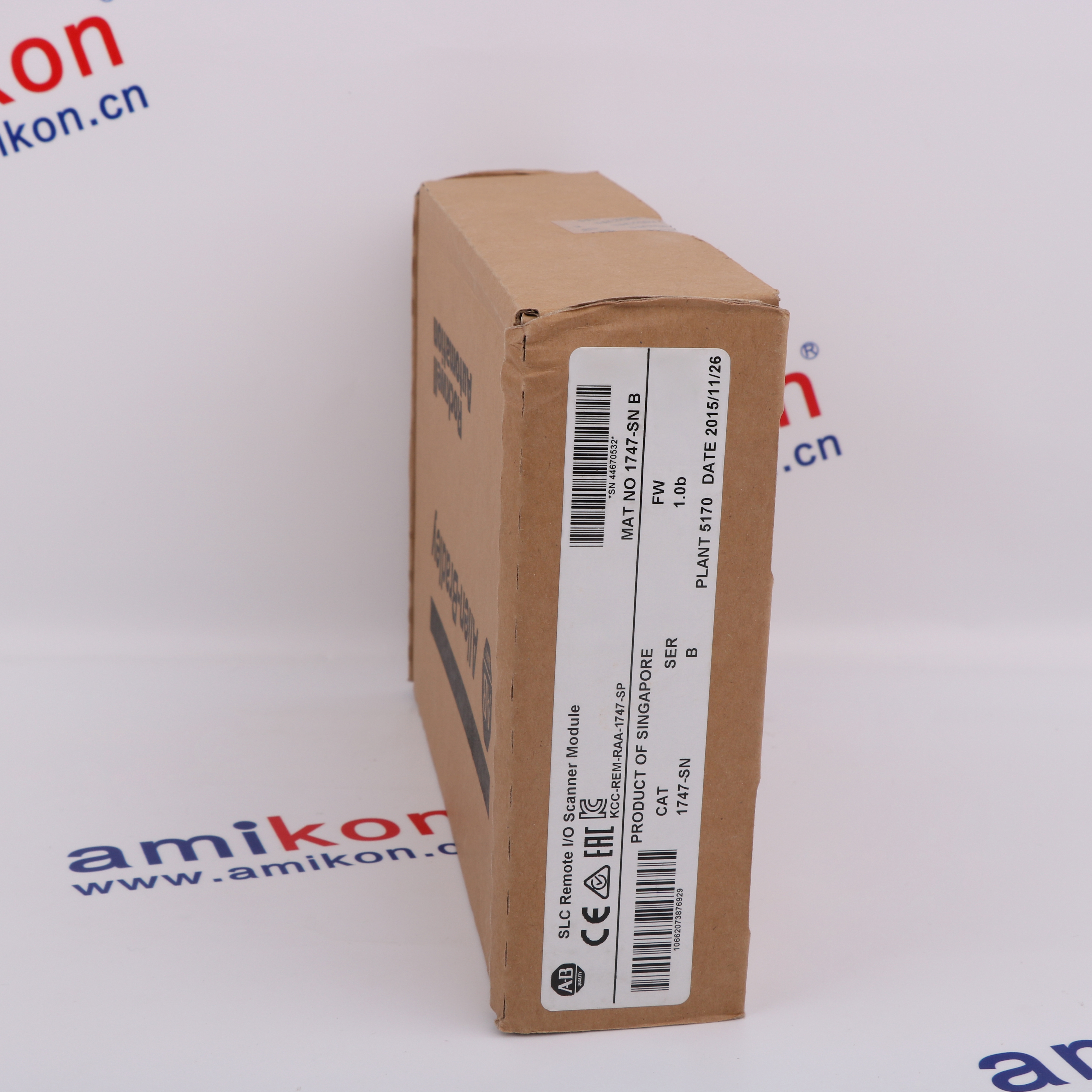

1747-SN Remote I/O Scanner
1747-SN is a Remote I/O scanner for the Allen-Bradley SLC 500 family. It connects a compatible SLC processor to remote I/O chassis and supported Remote I/O devices.
The scanner acts as the master of a daisy-chained Remote I/O link over shielded twisted-pair cable. DIP switches select the supported communication rate, and the controller configuration allocates the discrete I/O image. Up to four logical racks can be addressed; Series B or later scanners also support the documented block-transfer functions. Status indicators report link and module conditions.
The scanner acts as the master of a daisy-chained Remote I/O link over shielded twisted-pair cable. DIP switches select the supported communication rate, and the controller configuration allocates the discrete I/O image. Up to four logical racks can be addressed; Series B or later scanners also support the documented block-transfer functions. Status indicators report link and module conditions.
BEFORE YOU BUY
Confirm the complete remote i/o scanner
ACTUAL APPLICATIONS
Application context for 1747-SN
1747-SN connects compatible SLC 500 configurations to remote I/O used in manufacturing, food processing and chemical production. Processor support, scanner series, configured image size, communication rate and cable termination determine the applicable link arrangement.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Production Automation
Manufacturing Process AutomationIndustrial Production and Assembly -
02 · FOOD & BEVERAGE
Food Manufacturing and Beverage Processing
Food Processing and PackagingBeverage Production and Bottling -
03 · CHEMICAL PROCESSING
Chemical Manufacturing and Process Production
Chemical Production and ProcessingIndustrial Chemical Formulation Processes
Technical specifications for 1747-SN
-
Product Model1747-SN
-
Spare Model1747SN 1747-SN/A, 1747-SN/B
-
Product ParametersRemote I/O Scanner
-
In stock10 units
-
ManufacturerAllen-Bradley
-
RIO links1 master link
-
Logical racks4 maximum
-
Input image capacity32 words
-
Output image capacity32 words
-
RIO baud rates57.6, 115.2 or 230.4 kbaud
-
Cable limit at 57.6 kbaud3048 m
-
Cable limit at 115.2 kbaud1524 m
-
Cable limit at 230.4 kbaud762 m
-
5 V backplane current600 mA
-
RIO link cableBelden 9463
-
Operating temperature0 to 60℃
-
Storage temperature-40 to 85℃
-
Relative humidity5 to 95%, noncondensing
-
Noise immunityNEMA ICS 2-230
-
Series B block transfer64 words maximum per remote device
View all additional
Alternative Names
1747-SN
SLC 500 Remote I/O Scanner
500 1 master link rio links
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 1747-SN remote i/o scanner
1747-SN is a remote i/o scanner in the SLC 500 platform. Match the exact article and hardware revision to the installed backplane and controller configuration before allocating channels, connections or network resources.
Compare rio links (1 master link), logical racks (4 maximum) and input image capacity (32 words) with the project requirements. Use the applicable terminal assignments, power budget and grounding requirements from the manufacturer documentation.
Configure the supported operating modes for 1747-SN, then verify the affected signals or communications in the approved controller project. Record configuration changes, diagnostic results and the completed functional checks with the equipment record.
Features:
- RIO links: 1 master link
- Logical racks: 4 maximum
- Input image capacity: 32 words
The 1747-SN remote i/o scanner requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 1747-SN remote i/o scanner
Replace 1747-SN after comparing the complete label, hardware revision and SLC 500 role with the installed article. Confirm connector allocation and the supported controller configuration before exchanging the module.
Preserve the controller project and relevant channel or communication settings before removing 1747-SN. Photograph field connections and grounding, identify connected circuits, and isolate the required power supplies according to the manufacturer procedure.
Restore the approved configuration after fitting 1747-SN. Check module status indications, the affected I/O or network connections and the required operating responses, then retain the replacement identity and final acceptance results.
Features:
- RIO links: 1 master link
- Logical racks: 4 maximum
- Input image capacity: 32 words
The 1747-SN remote i/o scanner requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 1747-SN remote i/o scanner must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.5 × 13 × 14.5cm
-
Shipping weight0.20kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 1747-SN
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What role does the SLC scanner hold on a Remote I/O link?
The 1747-SN is the link master; supported adapters and devices are link slaves. -
What is the largest discrete image handled by one scanner?
It handles up to four logical racks, comprising 32 input words and 32 output words. -
Which Remote I/O communication rates are selectable?
The available rates are 57.6, 115.2 and 230.4 kbaud. -
How does the maximum link length change at 230.4 kbaud?
The maximum is 762 m at 230.4 kbaud, compared with 3048 m at 57.6 kbaud. -
Which scanner series supports a 64-word block transfer?
Series B or later supports block transfers of up to 64 words to a remote device. -
What current must the chassis power supply reserve for the scanner?
The scanner requires 600 mA from the 5 V DC backplane. -
Which Remote I/O link details should be provided for a scanner spare?
Provide the 1747-SN series, processor model, link rate, logical-rack configuration and quantity. -
What should be inspected when a Remote I/O scanner arrives?
Check the complete scanner label, connector, DIP switches and module condition against the order and configuration record.
