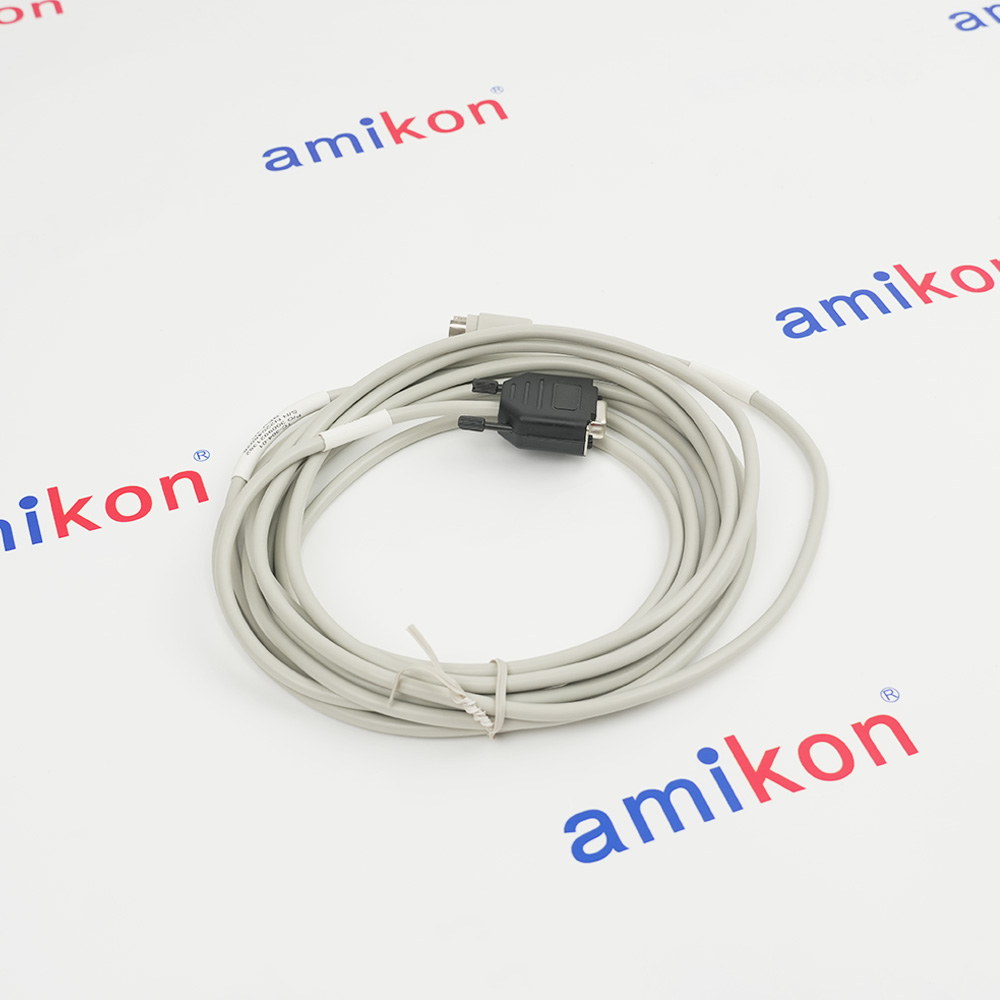

Trusted TMR Expander Interface Adapter Unit

Trusted TMR Expander Interface Adapter Unit
Allows easy inter-connection of
Controller and Expander Chassis.
Unit is fully shielded for
Electro-Magnetic Compatibility (EMC).
Version available for smaller Trusted Systems
up to four Expander Chassis.
Locking connectors for increased reliability

Digital Output Module

T8901
TMR 24V DC/48V DC
Digital Output Module
40 TMR output channels per Module

Trusted Expander Chassis

I/O Power Supply Chassis

19 inch x 1U chassis for up to 3 Power Packs.
Chassis Type:Main Chassis
Input Voltage:120V AC
Output Power:Distributes +5V DC

Power Distribution Module

Input Voltage:120V AC
Power Rating:120W
Motor Speed:3600 RPM
Airflow Capacity:20 CFM
Noise Level:35 dB

Trusted TMR Controller Chassis

CHASSIS TRUSTED CONTROLLER
Architecture:3-channel TMR
Safety Certification:SIL 3 (IEC 61508/61511)
Slots:12 slots
Backplane Bandwidth:100 Mbps dual-redundant TMR bus
Input: 24V DC (18–32V range)
Redundancy: N+1 hot-swap PSUs
Per PSU: 250W @ 24V DC

INPUT MODULE

Trusted CCoat TMR 24V 40Ch DI Module
INPUT MODULE
24 VDC
40 CHANNEL
DIGITAL

Trusted Expander Processor

Input Voltage: 24 VDC (Nominal)
Current Consumption: Typically 1.5 A
CPU Type: 32-bit microprocessor based
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)

CHASSIS TRUSTED CONTROLLER

CHASSIS TRUSTED CONTROLLER
Architecture:3-channel TMR
Safety Certification:SIL 3 (IEC 61508/61511)
Slots:12 slots
Backplane Bandwidth:100 Mbps dual-redundant TMR bus
Input: 24V DC (18–32V range)
Redundancy: N+1 hot-swap PSUs
Per PSU: 250W @ 24V DC

PROCESSOR MODULE

T8110B
DISCONTINUED BY MANUFACTURER
PROCESSOR MODULE
TRUSTED TMR
IRIG-B002 AND 122 TIME SYNCHRONISATION SIGNALS
TWO RS422/485 2/4 WIRE CONNECTIONS
ONE RS485 2 WIRE CONNECTION

DIGITAL INPUT MODULE

T8403
INPUT MODULE
24 VDC
40 CHANNEL
DIGITAL

Trusted TMR Expander Interface

Voltage Range : 20 to 32V dc
Heat Dissipation : 40W
Use with Chassis : T8300
Maximum Load : 40W
Module Clocks : 50MHz
Expander Bus Data Rate : 250Mbps
Manufacturer : ICS Triplex
I/O Interface : Expander Chassis backplane
Operating Temperature : -5°C to 60ºC (13°F to 140°F)
Non-operating Temperature : -25°C to 70ºC (-25°F to 158°F)
Operating Humidity : 5 to 95% RH

Communications Interface Module

Power Supply: +24V DC
Power Consumption: 5 Watts maximum
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% non-condensing
Vibration: 0.03 g rms per axis, 5 to 500 Hz
Shock: 15 g, half-sine, 11 ms duration

DIGITAL OUTPUT MODULE

T8461C
OUTPUT MODULE
40 CHANNEL DIGITAL
24/48 VDC

TrustedTM TMR 24/48V dc Digital Output

OUTPUT MODULE 40CHANNEL
DIGITAL 24/48VDC TRUSTED
Output Channels: 16
Output Voltage Range: 5-60V DC
On-State Resistance: <0.5Ω
Off-State Leakage: <10μA
Backplane Power: +5V DC
Field Power: 24V DC nominal
