DIGITAL COMPACT SERVO DRIVE

AX520100000200
DIGITAL COMPACT SERVO DRIVE
2-AXIS MODULE
100480 V AC
RATED OUTPUT CURRENT 2 X 1.5 A
ETHERCAT INTERFACE
OCT
HARDWARE VERSION 2.0
FIRMWARE VERSION 2.06

BUILD-IN CONTROL PANEL

CP680200000010
BUILD-IN CONTROL PANEL
15 INCH TFT DISPLAY
RESOLUTION 1024 X 768
2 PORT USB SOCKET INSIDE
THE CONTROL PANEL BACKPLANE
ALUMINIUM HOUSING
FRONT SIDE IP 65
REAR SIDE IP 20- FRONT LAMINATE
WITH SLIDE-IN LOGO
INTEGRATED DVI/USB INTERFACE
CONNECTION OVER

Servo Motor

AM30530K000000
400 VAC
4000 RPM
IP54,11.6 TORQUE
108MM FLANGE
ROTATABLE ANGULAR CONNECTORS

Control Panel

CP6802-0000-0000
CP6802 Control Panel
15.1″ Toshiba LTM15C428S

Control cabinet Industrial PC

CONTROL CABINET PC HOUSING
7 SLOT ATX INDUSTRIAL
PC FOR CONTROL CABINET INSTALLATION
ALL SLOTS FOR PLUG-IN CARDS WITH
A LENGTH OF UP TO 190 MM
DRIVES AND PLUG-IN CARDS

CANOPEN MASTER/SLAVE CARD

FC51020000
CANOPEN MASTER/SLAVE CARD
2 CHANNELS
PCI

DIGITAL SERVO DRIVE

AX51030000
SERVO DRIVE
DIGITAL
COMPACT
SINGLE CHANNEL
3-7.5 AMP
100-480 VAC
ETHERCAT INTERFACE
0 TO +50 DEGREE C
IP20

DIGITAL COMPACT SERVO DRIVE

AX52030000
DIGITAL COMPACT SERVO DRIVE
2-AXIS MODULE
100480 V AC
RATED OUTPUT CURRENT 2 X 3 A
ETHERCAT INTERFACE

DIGITAL COMPACT SERVO DRIVE

DIGITAL COMPACT SERVO DRIVE
RATED CURRENT 10 A
230/480VAC
ROD/SSI
ANALOG INTERFACE
CAN INTERFACE
INTEGRATED MAINS FILTER
IP20

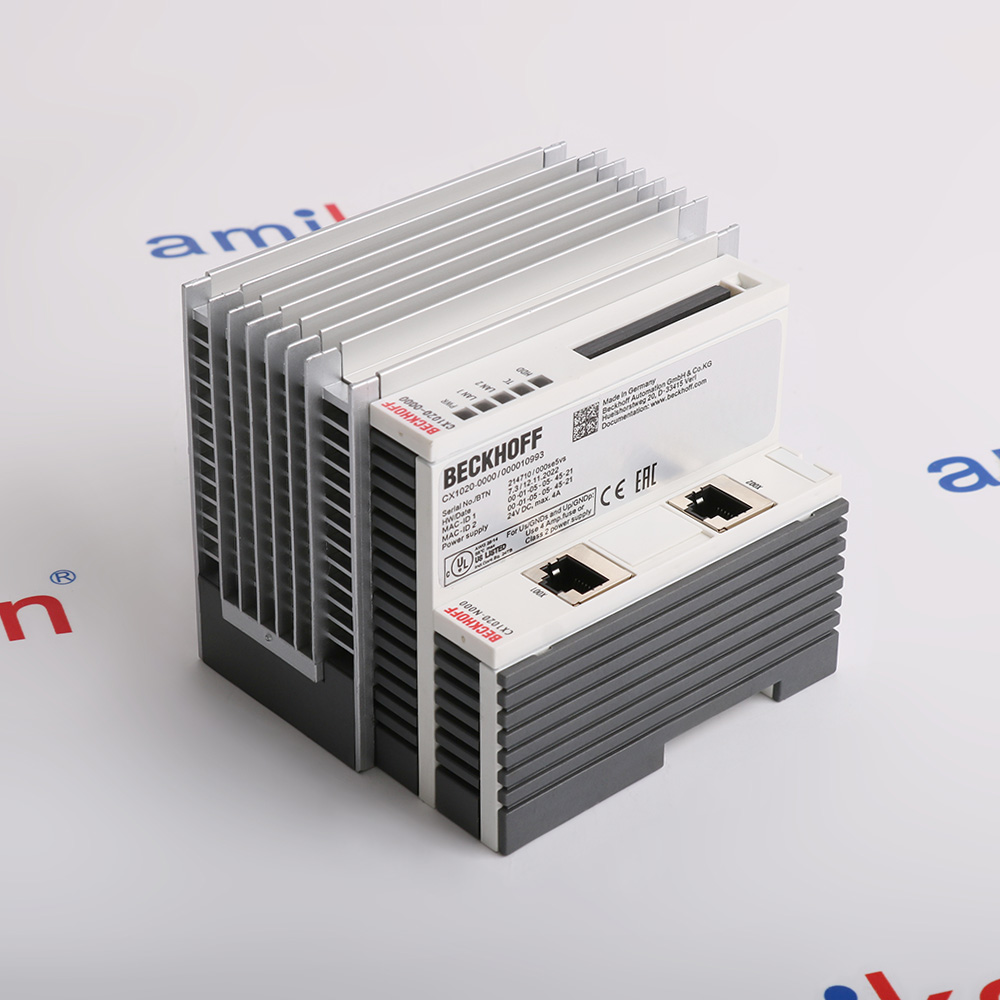

CPU Base Unit

CPU WITH 2 ETHERNET PORTS
WITHOUT OPERATING SYSTEM
WITHOUT TWINCAT
8 W
0 TO +50 DEGREES C
IP20

Servo Drive

AX2523B200
SERVO DRIVE
MODULAR SERVO SYSTEM
3 AMP
