Allen-Bradley PanelView

POWERFLEX CONTROL BOARD

POWERFLEX CONTROL BOARD
9 PIN CONNECTOR
Voltage Class: 240V AC Input
Drive Model: PowerFlex 700S

LOGIC MODULE

LOGIC MODULE
PANELVIEW PLUS
FOR USE WITH PANELVIEW PLUS 700-1500
SINGLE APPLICATION
VIEWPOINT COMPATIBLE
64 MB FLASH / 64 MB RAM
24 VDC

OPERATOR INTERFACE

OPERATOR INTERFACE
PANELVIEW PLUS 7
TOUCH SCREEN
12.1 INCH DISPLAY
1280 X 800 PIXELS
WIDE ASPECT-RATIO COLOR
EMBEDDED SWITCH/DLR
24 VDC INPUT
WINDOWS 10 IOT CORE

OPERATOR INTERFACE

OPERATOR INTERFACE

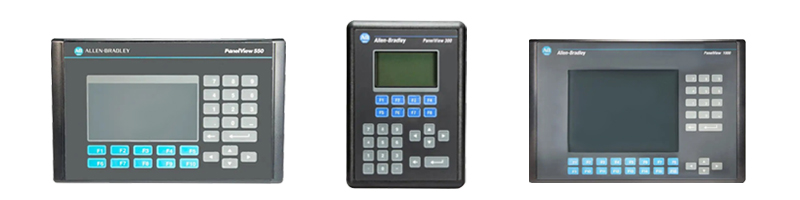

PANELVIEW STANDARD
KEYPAD & TOUCH
PANELVIEW 550
5.3 INCH DISPLAY
256 X 128 PIXELS
MONOCHROME DISPLAY
REMOTE I/O
RS-232
100-240 VAC INPUT
50/60 HZ

OPERATOR INTERFACE

OPERATOR INTERFACE
PANELVIEW PLUS 7
TOUCH SCREEN
12.1 INCH DISPLAY
1280 X 800 PIXELS
WIDE ASPECT-RATIO COLOR
EMBEDDED SWITCH/DLR
24 VDC INPUT
WINDOWS 10 IOT CORE

Panelview Plus 1000 Operator Terminal

Display Size:10.4 in
Manufacturer:Rockwell Automation
Product Family:PanelView Plus Operator Terminals
Operator Input:Touch
Resolution:640 x 480
Toiuchscreen:1 million presses
Input Voltage range:18-32VDC
Communication:Ethernet and RS-232
Input Power:18 to 32 VDC
Memory:64 MB

Operator interface terminal

Product Line:Panelview Plus 700
Display Size:6.5 in.
Display Color:Color
Input Type:Touchscreen
Communication:Ethernet and RS-232
Input Power:18-32 VDC
Memory:128 MB
Backlight:2711P-RL7C2

PanelView Plus 700 Operator Terminal

Resolution:640 x 480
Input Voltage range:18-32VDC
Part Number/Catalog No.:2711P-T7C4D1
Product Line:Panelview Plus 700
Display Color:Color
Input Type:Touchscreen
Communication:Ethernet and RS-232
Input Power:18-32 VDC
Memory:64 MB
Operator Input:Touch

PanelView Plus Graphic Terminals

Part Number:2711P-RDB7C
Description:Display Module
Resolution:640 x 480
Display colors:18-bit color graphics
Luminance:300 cd/m2 (Nits)(3)
Input interface:Touch / Keypad
Anti-Glare overlay:not included
Touch Input:8-wire analog resistive

Operator interface

Product Line:Panelview 6 Plus
Display Size:6.5 inches
Display Color:Color
Input Type:Touchscreen
Communication:Ethernet and RS-232
Input Power:100 to 240 Volts AC
Memory:512 MB RAM
Backlight:2711P-RL7C2
Communication Cable:2711-NC13

Display module

Display Size:5.5 in.
Operator Input:Touch
Shipping Weight:8 pounds
Display Color:Color
Input Type:Touchscreen
Communication:Ethernet and RS-232
Input Power:100 to 240 Volts AC
Memory:512 MB RAM
Backlight:2711P-RL7C2
Product Line:Panelview 6 Plus

Display module

Resolution:640 x 480
Display colors:18-bit color graphics
Luminance:300 cd/m2 (Nits)(3)
Anti-Glare overlay:not included
Touch Input:8-wire analog resistive
Touch interface lifespan:1 Million actuations
Actuation force:10-110 g
Part Number/Catalog No.2711P-RDT7C
Series:PanelView Plus
Input:Touch
Display:7-inch Color

Display module

Resolution:800x600 pixels
Display Size:12.1 inches
Display colors:18-bit color graphics
Anti-Glare overlay:not included
Luminance:300 cd/m2 (Nits)(3)
Product Type:Display Module
Accessory for:1250 Terminal
Input Type:Keypad/Touch
Display:12 in. Color

PanelView Plus

Part Number:2711P-RDT12C
Description:Display Module
Display Size:12.1 inches
Display Area:246 x 184 mm (9.7 x 7.2 in.)
Resolution:800 x 600
Display colors:18-bit color graphics
Luminance:300 cd/m2 (Nits)(3)
Input interface:Touch

15-inch TFT Display

2711 PanelView Plus 6 Terminal
1500 Model, Keypad/Touch
Color, Standard Communication - Ethernet & RS-232
AC Input, Windows CE 6.0 with Extended Features

OPERATOR INTERFACE

Part Number/Catalog No.:2711P-K4M5A
Product Line:Panelview Plus 400
Display Size:3.5 inch
Display Color:Grayscale
Input Type:Keypad
Communication:RS-232 Port
Input Power:AC
Memory:64 MB
Series:A, B, C, D, E

PanelView Plus 6 Operator Terminal

Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminal
Memory:512 MB Flash/ 512 MB RAM
Compatible Hardware:PanelView Plus 6 700-1500
Status indicators:Red and Green LED
Interfaces:Ethernet port, serial port, two USB ports
CompactFlash card slot
Marine Certified:Yes
Operating Temperature:0-55 Degree Celsius
Power input:24VDC
Power Dissipation:70 Watts

PanelView 800 Graphic Terminals

Operator Input:Touch /Keypad
Backlight:40,000 hours
Resolution:480 x 272
Integrated Memory: 256 MB Flash Memory; 256 MB DDR RAM
Input Voltage range:18-32VDC
Part Number/Catalog No.:2711R-T4T
Product Line:Panelview 800
Display Color:Color TFT
Input Type:Analog touch and function keys

Standard Operator Terminal

18…32V DC (24V DC nom)
Panelview 300
24 Volts DC
240 KB
PanelView 300 Standard Operator Terminals
Monochrome transflective LCD with LED backlight

PanelView Plus Terminal

PanelView Plus 7 Graphic Terminal

PanelView Plus Graphic Terminal

PanelView Plus 7 Graphic Terminal

PanelView Plus 7 Graphic Terminal

PanelView Plus 7 Standard Color Terminal
