- 2711P-T12W22D9P-B/B
In Stock
Ships by Sunday, August 16
Fast Shipping Available

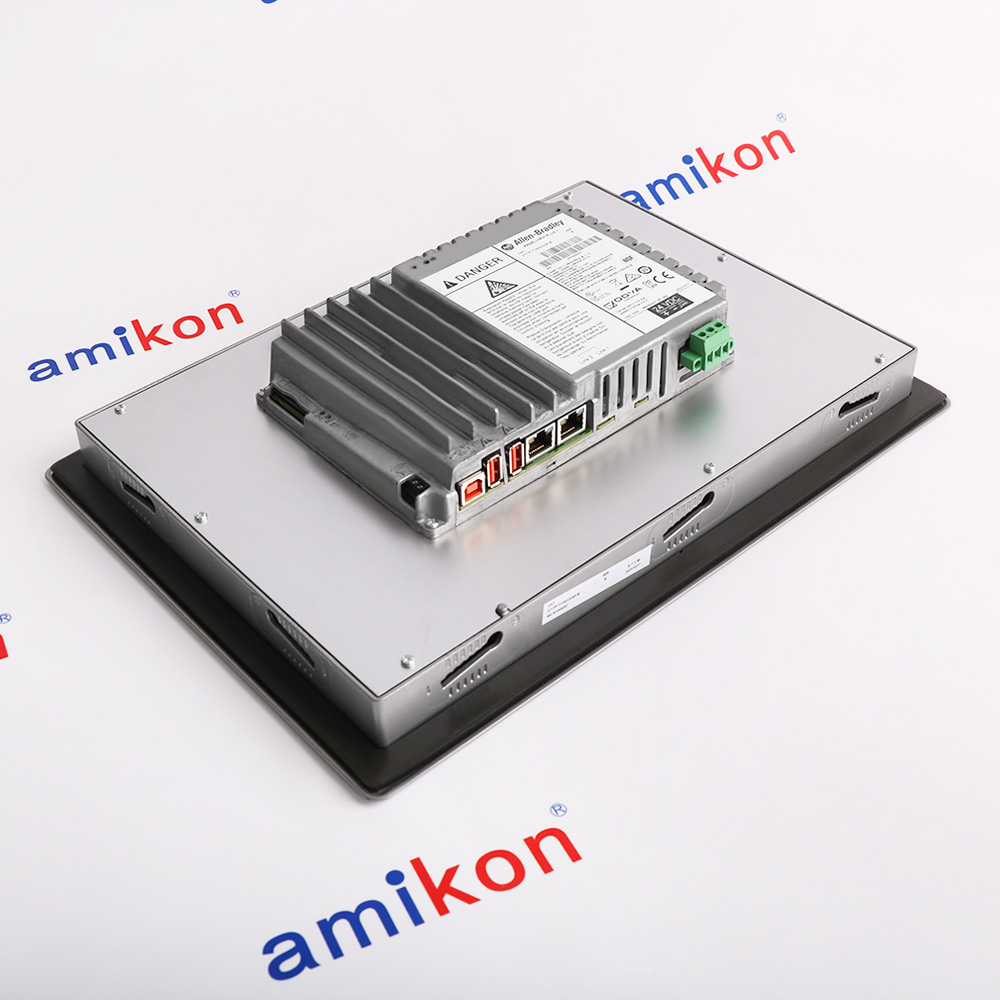

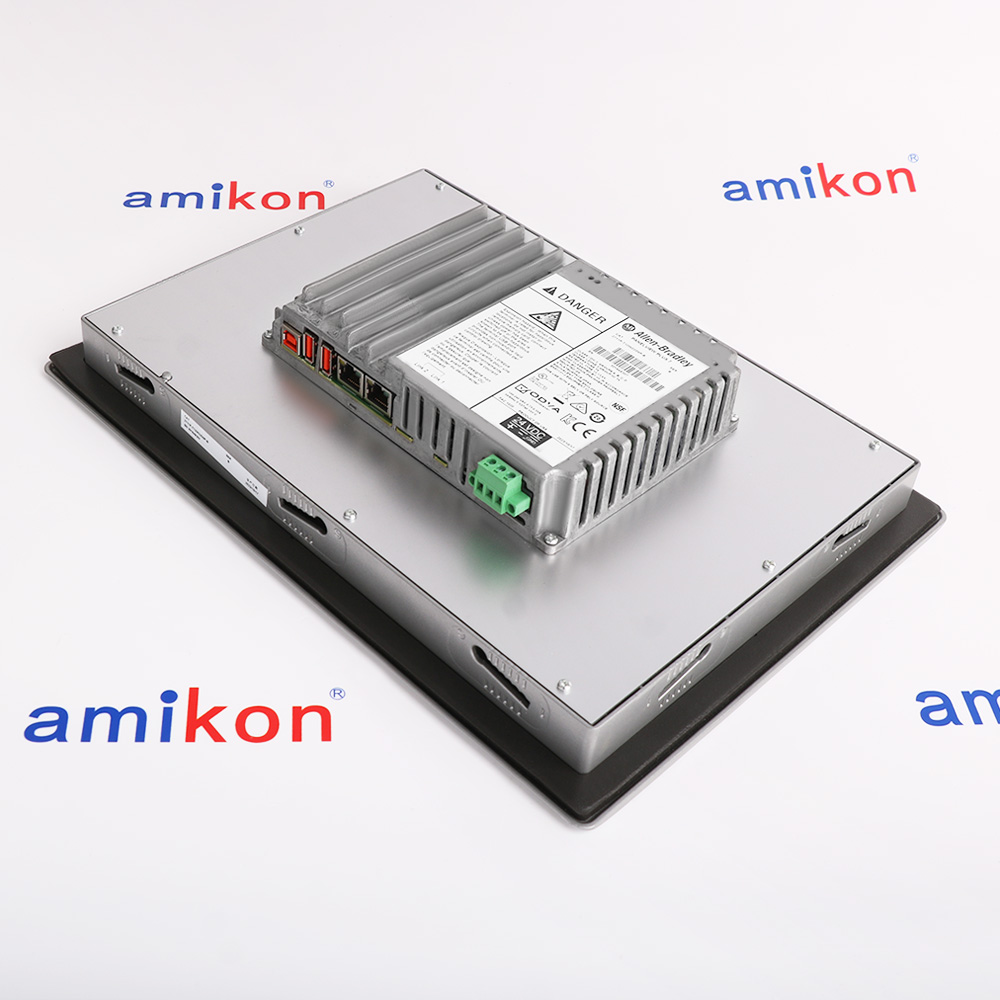

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 2711P-T12W22D9P-B/B
-
Product Model2711P-T12W22D9P-B/B
-
Product ParametersPanelView Plus 7 Performance operator terminal
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size34x24.5x7cm
-
ManufacturerAllen-Bradley
-
Weight2.45 kg
-
Product LinePanelview Plus 7
-
Input TypeTouchscreen
-
Display Size12.1 in
-
Memory512 Mb
-
Input Voltage24 VDC
Description
The 2711P-T12W22D9P-B is a PanelView Plus 7 Performance operator terminal designed by Allen-Bradley (Rockwell Automation) for industrial human-machine interface (HMI) applications. The 2711P-T12W22D9P-B is an operator interface device that monitors and controls devices attached to ControlLogix and CompactLogix 5370 controllers on an EtherNet/IP network. The 2711P-T12W22D9P-B provides animated graphic and text displays that give operators a comprehensive view into the operating state of a machine or process, while operators interact with the control system using the touch screen or keypad interface.
The 2711P-T12W22D9P-B uses FactoryTalk View Machine Edition software, which provides a familiar environment for creating HMI applications. This software integration allows engineers and developers to efficiently design and deploy operator interfaces tailored to specific application requirements. The 2711P-T12W22D9P-B supports Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies, providing flexibility in network architecture design and implementation.
The 2711P-T12W22D9P-B uses FactoryTalk View Machine Edition software, which provides a familiar environment for creating HMI applications. This software integration allows engineers and developers to efficiently design and deploy operator interfaces tailored to specific application requirements. The 2711P-T12W22D9P-B supports Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies, providing flexibility in network architecture design and implementation.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Electrical & Data Connections
Features:
- 12.1-inch WXGA widescreen HMI display
- PanelView Plus 7 Performance Series (Series B platform)
- Windows 10 IoT-based industrial runtime system
- Ethernet communication with DLR support
- FactoryTalk View Machine Edition compatibility
This model uses a 12.1-inch widescreen WXGA TFT display with high-color graphics (262K colors), providing clear visualization of process screens, alarms, trends, and machine status. Operator interaction is performed through a resistive touchscreen interface, suitable for glove operation in industrial environments.
The terminal runs on a Windows 10 IoT-based PanelView Plus 7 Series B platform, enabling advanced runtime capabilities such as FactoryTalk View Machine Edition applications, data logging, alarm management, and remote diagnostics
The 2711P-T12W22D9P-B/B Allen-Bradley PanelView Plus 7 Performance may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2711P-T12W22D9P-B/B PanelView Plus 7 PerformanceManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The terminal runs Windows CE 6.0 with Extended Features (Series A) or Windows 10 IoT Core (Series B), providing 512 MB to 1 GB RAM and 512 MB non-volatile memory with approximately 80 MB free user memory. Desktop capabilities include a web browser, remote desktop connection, media player, Microsoft Office file viewers, WordPad text editor, and PDF viewer. FactoryTalk View Machine Edition software is used for HMI application development.
Communication is handled through two 10/100Base-T Ethernet ports with Auto MDI/MDI-X for EtherNet/IP connectivity to ControlLogix and CompactLogix 5370 controllers. USB interfaces include two host ports (Series B: one USB 2.0 and one USB 3.0) for peripherals and removable storage. An SD/SDHC card slot provides external storage expansion. Audio output supports connection to 4 Ω or 8 Ω speakers or amplifiers.
- Robot Synchronization: Manages multiple robotic assembly, welding, and painting clusters from one visual plane
- Sanitation Monitoring: Tracks CIP status, temperature records, and batch processing cycle times
- Traceability Compliance: Maintains tight batch controls for strict regulatory oversight
- System Visualization: Provides macroscopic map of pumps, valves, flow rates, and chemical dosing
- Level Tracking: Monitors holding tanks and retention basins across large physical plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power (24V DC): Connect an appropriately rated DC power supply to the terminal. Series B terminals operate exclusively on DC power. Wire the power cable to the removable DC terminal block and plug it into the 24V DC port.
Warning: Never attempt to apply AC power or insert an AC terminal block (typically gray) into this unit.Network/Ethernet: Plug your network cable into one of the Ethernet ports on the bottom of the terminal. This model features embedded switch/DLR technology for ring or star topologies.
Peripherals: If you are using a keyboard or mouse, insert the connectors into the USB 2.0 host ports.
Alternative Names
2711P-T12W22D9P-8/B
2711PTI2W22D9PB/B
27I1PT12W22D9PB/B
27IIPTI2W22D9PB/B
2711P-TI2W22D9P-B/B
271IP-T12W22D9P-B/B
27IIP-TI2W22D9P-8/B
2711PT12W22D9P8/B
271IPT12W22D9PB/B
27IIP-TI2W22D9P-B/B
2711PT12W22D9PB/B
27I1P-T12W22D9P-B/B
27IIPTI2W22D9P8/B
Technical notes
The 2711P-T12W22D9P-B features a brandless design, indicated by the '-B' suffix in its catalog number, which excludes the Allen-Bradley brand marking from the terminal. This allows OEMs (Original Equipment Manufacturers) and system integrators to put their own brand labels on the 2711P-T12W22D9P-B, enabling private labeling and brand customization for their specific market needs. The 2711P-T12W22D9P-B is part of the PanelView Plus 7 Performance terminal family that includes various screen sizes and configurations to meet diverse application requirements.
FAQs
-
What is this 2711P-T12W22D9P-B/B?
+The Allen-Bradley 2711P-T12W22D9P-B is a PanelView Plus 7 Performance HMI. It features a 12.1-inch widescreen touchscreen, two Ethernet ports for DLR networks, and a brandless front bezel. -
Does the 2711P-T12W22D9P-B terminal have a built-in backup battery?
+Yes, it has a built-in lithium button battery for the real-time clock. The battery life is approximately 4 years at a standard operating temperature of 25°C. -
Why isn't the terminal communicating over Ethernet?
+On Series B terminals, the Ping (ICMP) service is disabled by default for cybersecurity reasons. You can enable it via the terminal settings: navigate to Settings → Services and toggle the PING service to on. -
What is the display size and aspect ratio?
+It features a 12.1-inch widescreen thin-film transistor (TFT) color display with a 16:10 wide aspect ratio.
