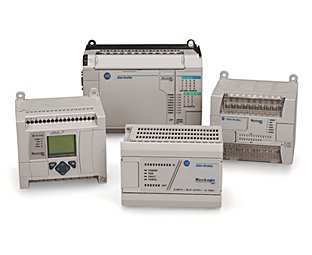

Allen-Bradley MicroLogix

MicroLogix 1000 Controller

PLC MODULE
MICROLOGIX 1000
(10) DIGITAL INPUTS
24 VDC
(6) RELAY OUTPUTS
RS-232
1 KB

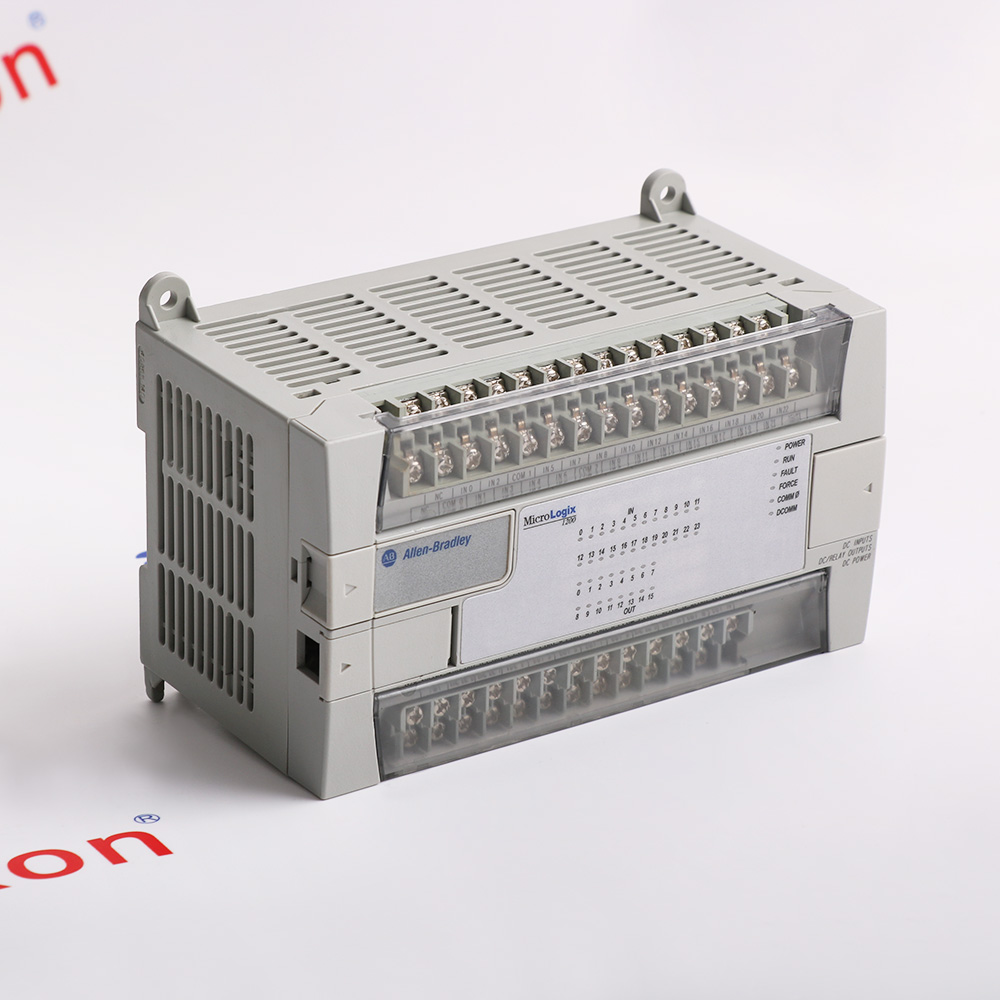

MICROLOGIX 1200

MICROLOGIX 1200
24V DC POWER
(20) STANDARD 24V DC AND (4) FAST 24V DC DIGITAL INPUTS
(8) RELAY OUTPUTS
(7) STANDARD 24V DC FETOUTPUTS
(1) FAST 24V DC FET OUTPUT

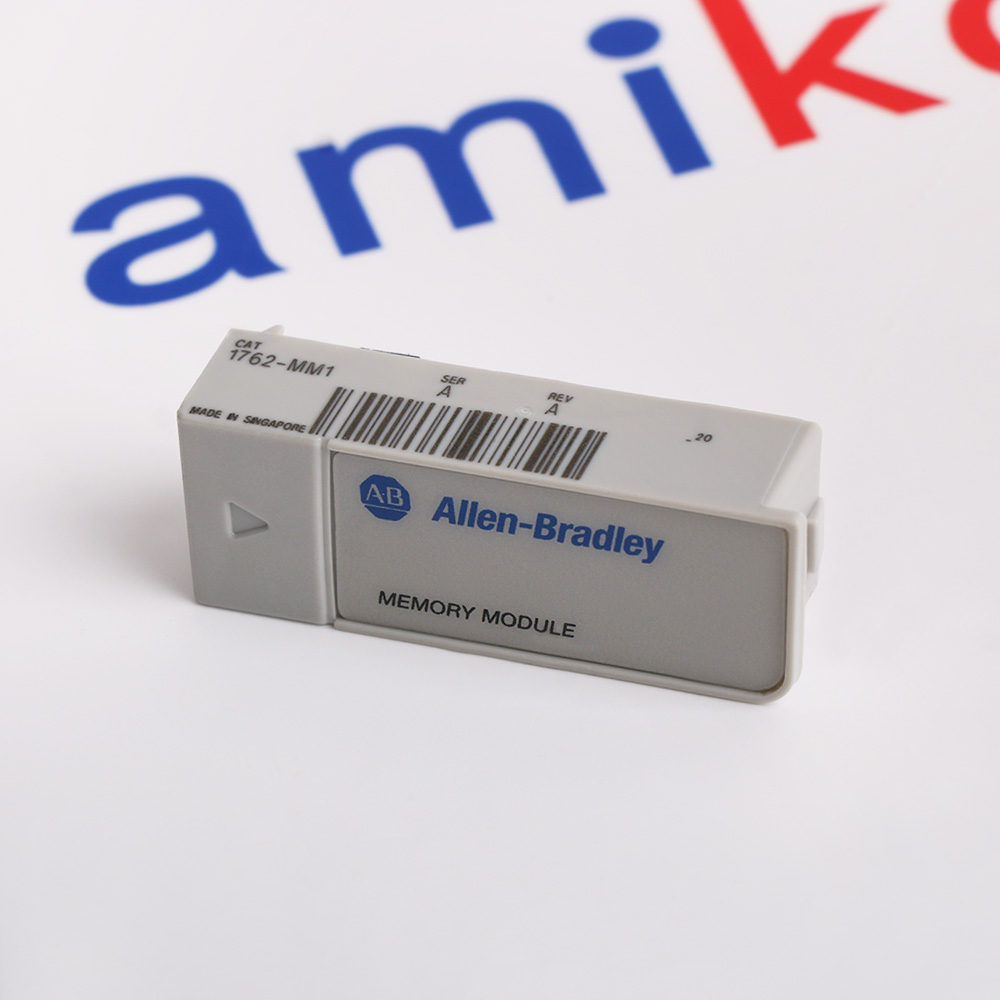

MicroLogix 1200 Memory Module

1762MM1
MEMORY MODULE
MICROLOGIX 1200
8K-WORD
PROGRAM & DATA BACK-UP
PROGRAM COMPARE
DATA FILE DOWNLOAD PROTECTION
WRITE PROTECTION
REMOVE/INSERT UNDER POWER

EtherNet Interface Module

Number or ports:2; 1 (RS232); 1 Ethernet I/P
Ports:RS-232
Protocol:DF1 Full-Duplex; Ethernet
Ethernet Transmission speed:Series A and B: 10 mbps Series C and D: 10/100 mbps
Safety Feature:Master Control Relay
Mounting:DIN Rail or Panel
Power Supply: 20.4 to 26.4V dc
24 Volts DC Current Draw:50 mA typical, 100 mA maximum
Item weight:1 pound

Plug in module

Product Type:Isolated Serial Port
Mounting Torque:0.2 Nm
Terminal Screw Torque:0.22-0.25 Nm
Isolated Voltage:500V AC
Surrounding Air Temperature max:65* C

Analog Plug-in Module

Part Number/Catalog No.:2080-IF2
Product Type:Analog Plug-in Module
Module Type:Analog
Number of Single-Ended Inputs:2
Data Range:0-65535
Repeatability:+/- 0.1%
Update Time:180ms per Enabled Channel
Operating Altitude:2000m

I/O MODULE

2080IF4
I/O MODULE
MICRO800
4 CHANNEL VOLTAGE/CURRENT ANALOG INPUT
0-20 MA
0-10 V

Programmable control module

Series:Micro870
Part Number:2080-L70E-24QBB
Product Type:Programmable Controller
CONTROLLER
PROGRAMMABLE
MICRO 820
12 INPUTS
24 VOLT DC
8 OUTPUTS: 7 RELAY AND 1 ANALOG
0 - 10 VOLT DC
4 ANALOG INPUTS
0 - 10 VOLT DC INPUT
SHARED WITH DC INPUTS
FIXED TERMINALS

Programmable Controller

2080LC2020QWB
CONTROLLER
PROGRAMMABLE
12 INPUT-24 VOLT DC
7 RELAY OUTPUTS AND 1 ANALOG OUTPUT
4 ANALOG INPUTS W/THERMISTOR VOLT REF OUT
EMBEDDED ETHERNET PORT
RS-232/485 NON-ISOLATED SERIAL PORT
EMBEDDED RTC
MICROSD CARD SUPPORT
2 PLUG-IN SLOTS

Programmable controller

Power Supply:24VDC
No. of Inputs:(10) 24V dc; (4) fast 24V dc
Input Circuit Type:24 VDC
Output Circuit Type Relay; FET
Relay Contact Rating:24-125VDC; 120-240VAC
Power Supply Usage:82 VA
Input Power:24V DC
Inputs:(10) 24V DC and (4) Fast 24V DC

MicroLogix 1100 Small Logic Controller

Micro800 4 Point Analog Input Module

MicroLogix 1100 Battery

Resistance Module

Converter Type:Sigma-Delta
Product Family:MicroLogix
Inputs:4
Heat Dissipation:1.5 Watts
Product Type:RTD / Resistance Input Module
No. of Inputs:Four (4)

MicroLogix 1400 PLC

MicroLogix Programming Cable

CompactLogix EtherNet Controller Ser B

MicroLogix 1400 Memory Module

MicroLogix 1400 PLC

MicroLogix 1400 PLC

MicroLogix 1400 PLC

MicroLogix 1400 PLC

MicroLogix 1400 PLC

MicroLogix 1400 PLC

MicroLogix 1400 PLC
