Technical specifications for 1766-L32BWAA
-
Product Model1766-L32BWAA
-
Spare Model1766L32BWAA
-
Product ParametersMicroLogix 1400 PLC
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size18x11x9cm
-
ManufacturerAllen-Bradley
-
Weight0.95 kg
-
Power consumption120 VA
-
Voltage input range0…10.0V DC - 1 LSB
-
Type of data12-bit unsigned integer
-
Voltage input impedance>199 kΩ
-
Input resolution12 bit
-
Non-linearity±1.0% of full scale
-
Voltage input overvoltage protection10.5 V DC
-
Step response2.5 ms @ 95%
Description
1766L32BWAA
MICROLOGIX 1400 CONTROLLER
12 DIGITAL FAST 24 V DC INPUTS
8 DIGITAL NORMAL 24 V DC INPUTS
12 RELAYS OUTPUTS
4 ANALOG (12 BITS) INPUTS
2 ANALOG (12 BITS) OUTPUTS
110/240 VAC POWER
MICROLOGIX 1400 CONTROLLER
12 DIGITAL FAST 24 V DC INPUTS
8 DIGITAL NORMAL 24 V DC INPUTS
12 RELAYS OUTPUTS
4 ANALOG (12 BITS) INPUTS
2 ANALOG (12 BITS) OUTPUTS
110/240 VAC POWER
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Wiring Instructions
Features:
- Panel and DIN Rail
- MicroLogix 1400
- MicroLogix 1400 Controller
The 1766-L32BWAA Allen-Bradley MicroLogix 1400 Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1766-L32BWAA MicroLogix 1400 Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

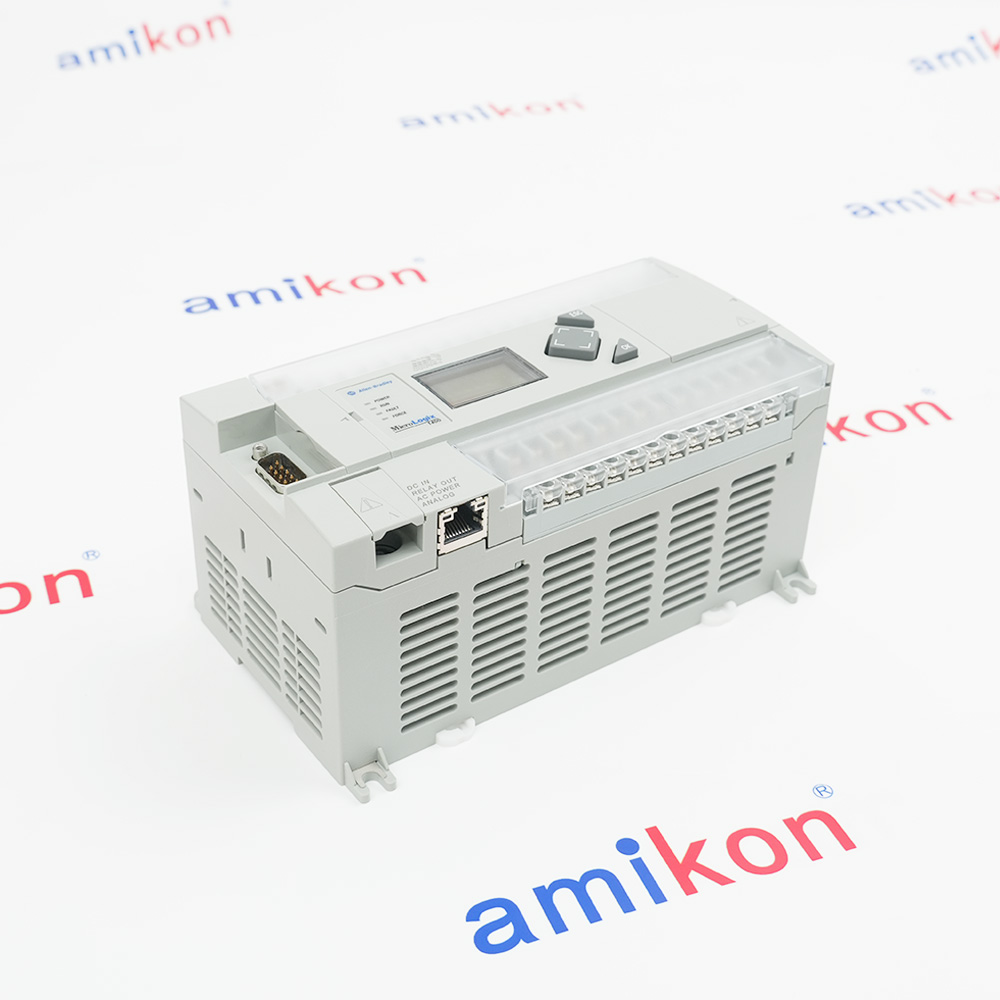

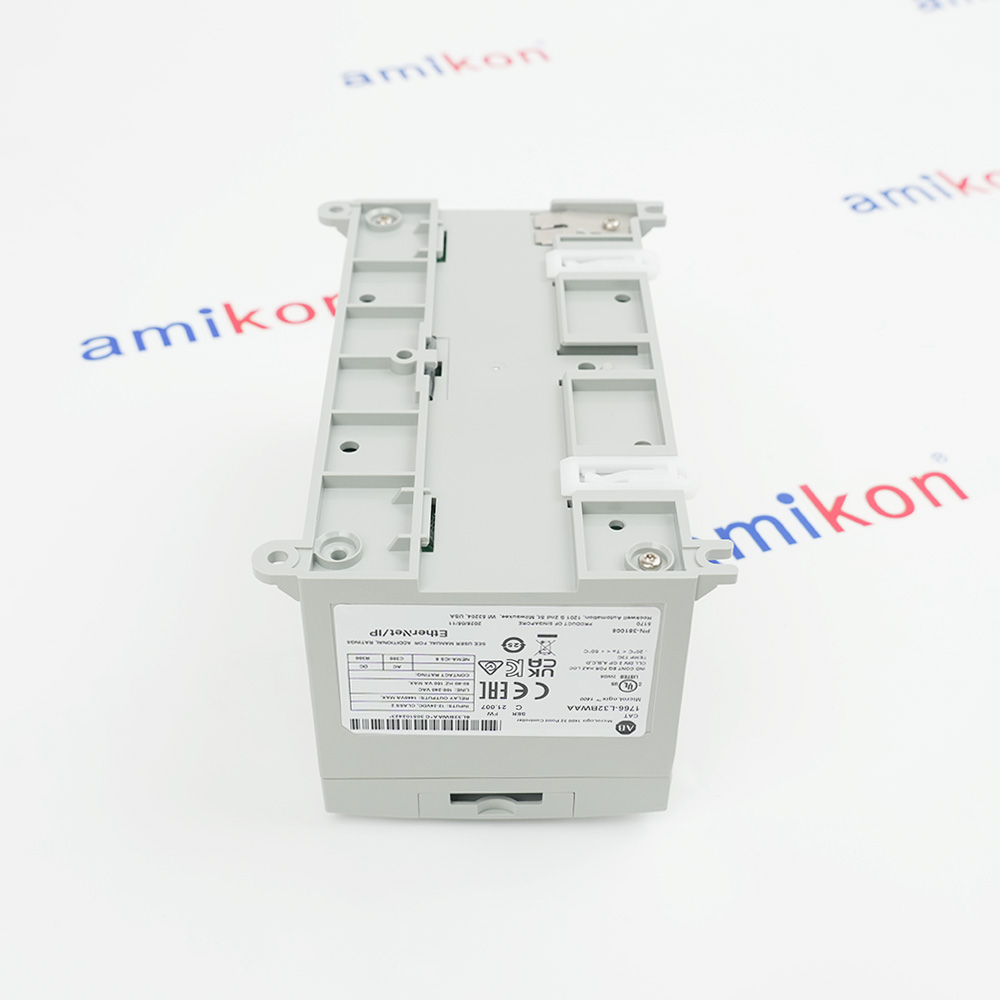

The Allen-Bradley 1766-L32BWAA is a MicroLogix 1400 Programmable Logic Controller. It comes with the EtherNet/IP network, online editing capabilities, and a built-in LCD with enhanced network capabilities. There is also a backlight on the LCD to set the network configuration and view the controller and I/O status. The 1766-L32BWAA controller requires 120 to 240 Volts AC input power and it has battery-backed RAM. It supports 32 digital I/O points that consist of 12 digital fast 24 Volts DC inputs, 8 digital normal 24 Volts DC inputs, 12 relay outputs, and 6 analog (12 bits) I/O points with 4 inputs, 2 outputs. It can be expanded with as many as seven 1762 expansion I/O modules.
- General Industrial Machinery:Packaging, material handling, conveyors, assembly & printing
- Process Control:PID loops for chemical, oil/gas & manufacturing via analog inputs
- Water and Wastewater Treatment:SCADA for pumps, valves & pH/flow monitoring
- Food & Beverage / Pharmaceutical:Batch mixing & automation with digital/analog sensors
- HVAC and Building Automation:Manages HVAC, lighting panels & small-scale energy
- Commercial Machinery:Industrial washers, dryers & vending machines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Operates on 100/240V AC. Ensure to use an isolating transformer for AC power.
Wiring: Connect 0V DC to the neutral terminal and use 24V DC for input common connections. The 1766-L32BWAA includes a 24V DC user power terminal for field devices.
Environmental Protection: Keep the protective debris strip on top of the controller until wiring is complete.
Mounting: Can be panel-mounted or DIN-rail mounted. Maintain adequate spacing for ventilation.
Communication: Features an RJ45 Ethernet port, an 8-pin mini DIN (Port 0), and a 9-pin D-shell (Port 2).
Programming: Requires RSLogix 500 software (version 8.1 or higher recommended)
FAQs
-
What is the 1766-L32BWAA？
+The Allen-Bradley 1766-L32BWAA is a MicroLogix 1400 programmable logic controller (PLC) widely used for small to medium automation applications. -
What does
+It signifies a MicroLogix 1400 (1766) with 32 points, AC power (100–240V AC), Relay outputs, and Analog capabilities. -
What I/O does 1766-L32BWAA have?
+20 Digital Inputs (12 Fast, 8 Normal), 12 Relay Outputs, and 4 Analog Inputs/2 Analog Outputs. -
What 1766-L32BWAA communication ports does it have?
+It features an Ethernet port (supporting EtherNet/IP), an isolated RS-232/485 port, and a non-isolated RS-232C serial port. -
What is the difference between 1766-L32BWAA and 1766-L32BWA?
+The "AA" suffix indicates Analog Capability. The 1766-L32BWAA includes 4 embedded analog inputs and 2 analog outputs, whereas the standard 1766-L32BWA does not have built-in analog I/O.
