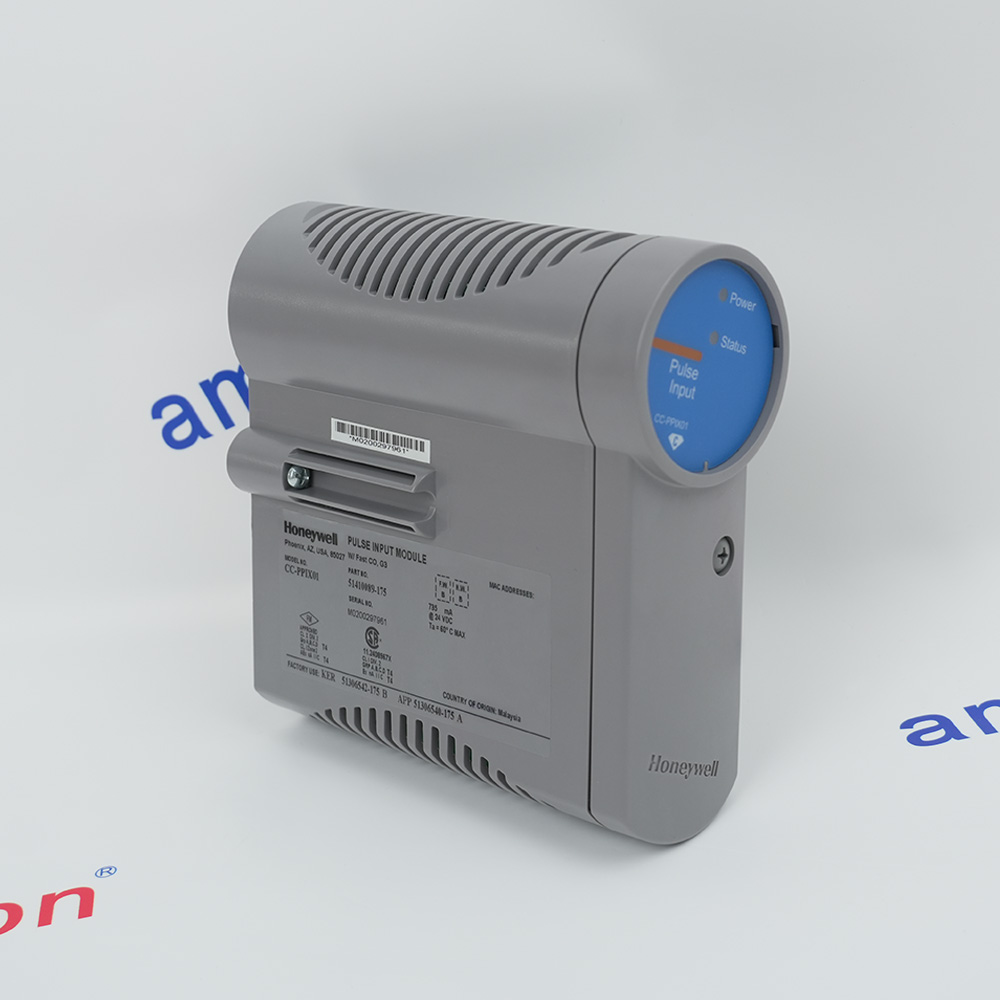

 PULSE INPUT MODULE



                                                        TKMDP081
INPUT MODULE
PULSE
CLASS I / DIVISION 2
8 POINT / ISOLATION
.004 AMP @ 1.2 VDC
0.5 AMP @ 5.1 VDC
.002 AMP @ 24 VDC


Digital Input Field Termination Assembly



                                                        FCTSGASH1624P
INDUSTRIAL FIELD TERMINATION ASSEMBLY MODULE
16-CHANNEL ANALOG INPUT WITH COMMON 0V
SUPPORTS 0-25 MA CURRENT INPUTS
LINEAR DIRECT CONVERSION OF
FIELD SIGNALS TO 0-4 VDC FOR SAI-1620M
SCREW TERMINALS

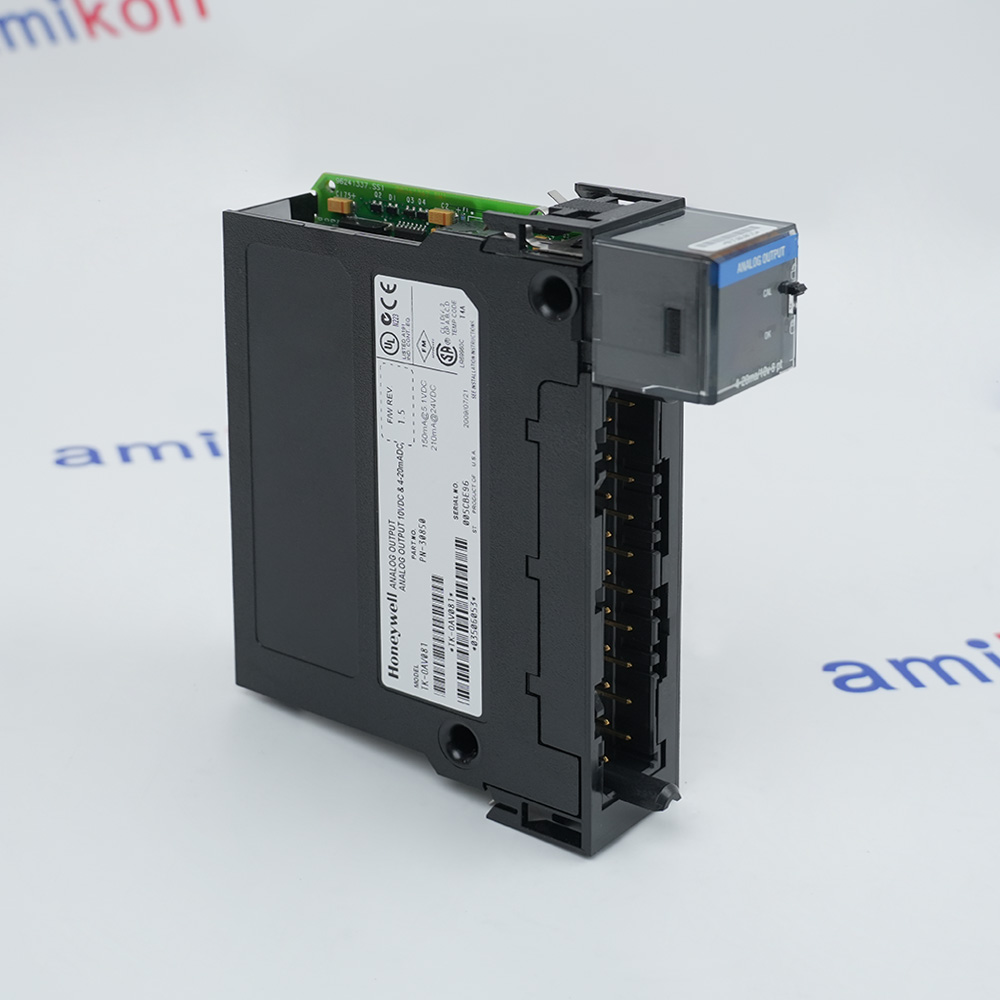

Analog Output Module



                                                        Extensive self-diagnostics
Optional redundancy
Open Wire Detection
Supplies non-incendive field power
Non-incendive Power


Control Interface Premium



                                                        HCiRP-20D
Controller Interface (HCi)
Process Module
Control Interface Premium


Proximity Detector



                                                        HCiRD15-20X
Proximity Detector
15 IN DISP CAM PROX DETECT
Controller Interface Premium


Proximity Detector



                                                        HCiRD12-20S
Proximity Detector
12.1 IN DISP CAM PROX DETECT
Analog Output Module


POWER SUPPLY MODULE



                                                        POWER SUPPLY MODULE
MASTERLOGIC-200
170-264 VAC INPUT
50/60 HZ
5 VDC OUTPUT VOLTAGE
8.5 AMP OUTPUT CURRENT


Power supply module



                                                        Dual built-in over-voltage protection
supporting SIL3 applications
DC under-voltage alarm (<23.5V)
AC under-voltage alarm (<80V)
>50ms holdup time
Inrush current limited (<60A)
Supports 10A type C circuit breakers


Control Board



                                                        51153456-320 Control Board
16 × 24 V DC DI
12 × 24 V DC / 0.5 A
AQ 0-10 V / 0-20 mA, 12-bit


120V Cabinet Fan Assembly



                                                        Supply Voltage:120V AC (±10%), 50/60 Hz
Power Consumption:20 - 40 W
typical for a multi-fan assembly
Motor Type:Single-Phase
Brushless DC or AC Induction


Redundant Power Supply



                                                        AC-Only
Redundant Power Supply
120 Vac (16 A) MU
32-channel digital-input processor


DIGITAL OUTPUT RELAY



                                                        DIGITAL OUTPUT RELAY
125-240 VAC
16 POINT
COMPATIBLE IOP - MU/MC-PDOY22

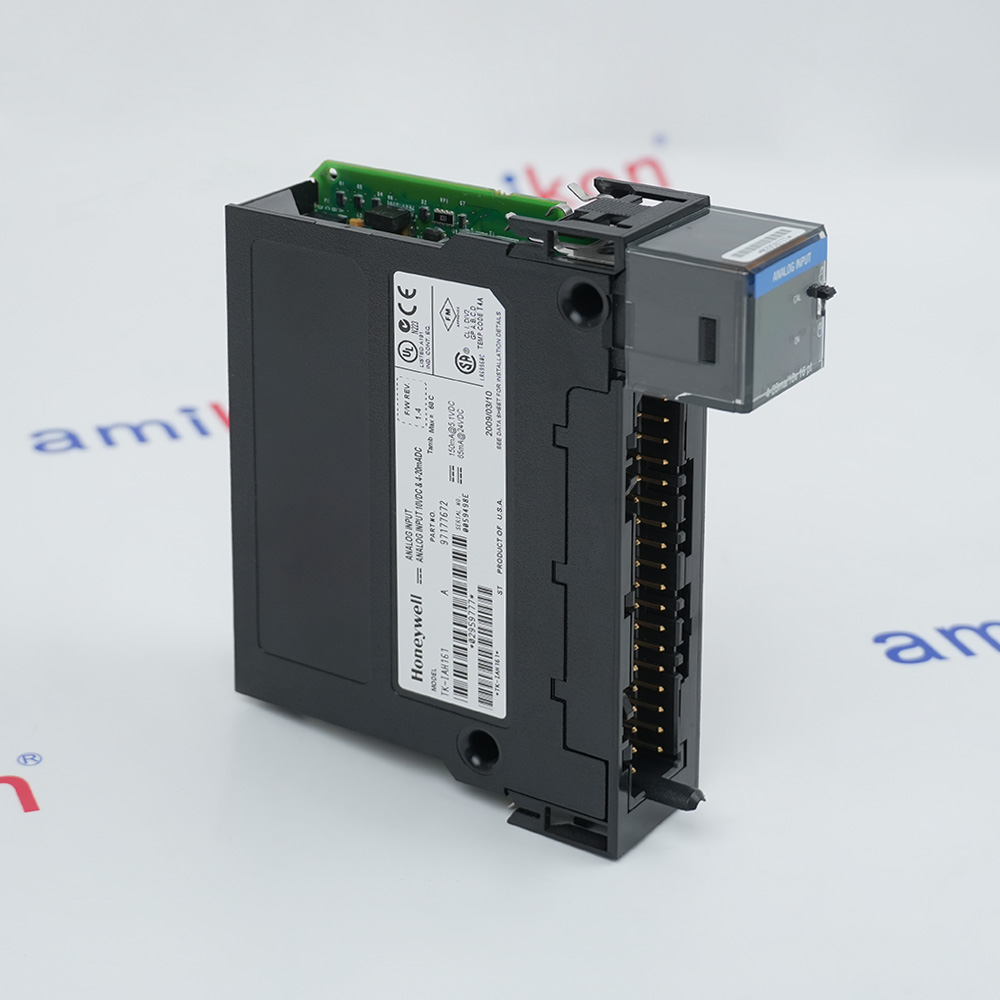

HIGH LEVEL ANALOG INPUT MODULE



                                                        PLC MODULE
SIZE A
HIGH LEVEL ANALOG INPUT
16 INPUTS
SCREW TERMINALS
USED W/ MU-PAIH03/ MC-PAIH03 IOP
