- FS-PDC-MB24-IP
In Stock
Ships by Friday, July 10
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FS-PDC-MB24-IP
-
Product ModelFS-PDC-MB24-IP
-
Product ParametersPower Distribution Cable (24Vdc)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size22x18x4cm
-
ManufacturerHoneywell
-
Weight0.35 kg
-
Cable TypeCC600 2 × 6 mm²
-
Length145 cm (57.1 in / 1.45 m)
-
Input Voltage24 VDC
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5–95% RH, non-condensing
Description

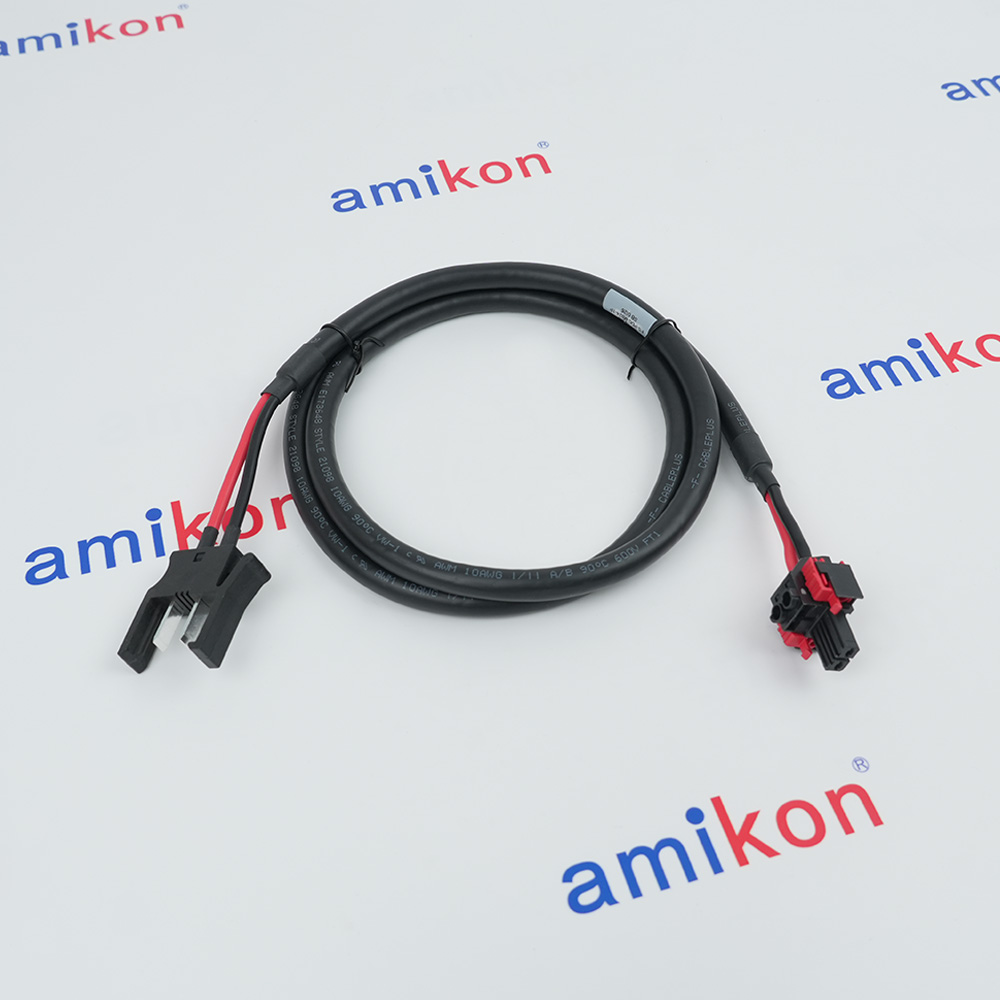

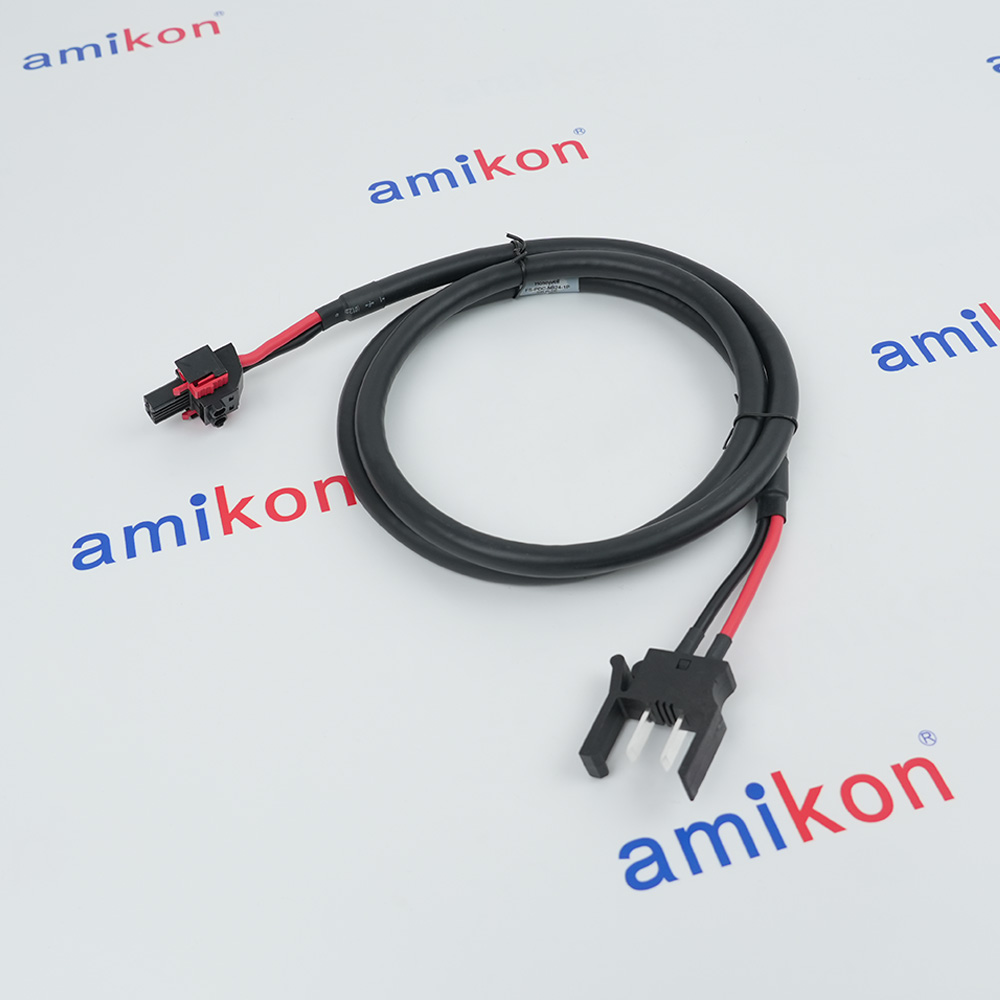

The Honeywell FS-PDC-MB24-1P is a 24 V DC power distribution cable for Honeywell's Safety Manager and Experion PKS distributed control systems. It is designed to transfer regulated 24 V DC power from the main power rail (type FS-MB-0001) to power distribution boards such as the FC-PDB-0824P and to Field Termination Assemblies (FTAs) equipped with a Weidmüller SV 7.62HP/02/180F power connector.
The cable is constructed with CC600 2 × 6 mm² conductors, rated for industrial power distribution applications. The 145 cm length (57.1 inches) is suitable for standard cabinet installations where the power rail and distribution board are mounted in close proximity.
The mains power bar side features a 2-pole Squeeze To Release connector (type D-TAB-200-STR) that plugs into the FS-MB-0001 power busbar. The FTA / board side uses a Weidmüller BVZ 7.62HP/02F SN 2-pole header with 24 V DC keying to prevent accidental connection of incorrect voltage levels. Two red locking slides on the cable connector ensure secure retention when inserted into the FTA or power distribution board.
The cable is constructed with CC600 2 × 6 mm² conductors, rated for industrial power distribution applications. The 145 cm length (57.1 inches) is suitable for standard cabinet installations where the power rail and distribution board are mounted in close proximity.
The mains power bar side features a 2-pole Squeeze To Release connector (type D-TAB-200-STR) that plugs into the FS-MB-0001 power busbar. The FTA / board side uses a Weidmüller BVZ 7.62HP/02F SN 2-pole header with 24 V DC keying to prevent accidental connection of incorrect voltage levels. Two red locking slides on the cable connector ensure secure retention when inserted into the FTA or power distribution board.
Alternative Names
FS-PDC-MB24-1P
FS-PDC-MBZ4-IP
FS-POC-MB24-IP
FS PDC MB24 IP
FS PDC MB24 1P
FS PDC MBZ4 IP
FS POC MB24 IP
FSPDCMB24IP
Information
Overview
Manuals
Application Notes
Product Applications
Connecting to the Main Power Rail
Features:
- 24Vdc Power Distribution from MB-0001 Main Bus Bar
- CC600 2×6 mm² Heavy-Duty Cable
- Dual-Connector Design with Keyed Safety
- Orange Locking Slide Mechanism
The cable construction of the HONEYWELL FS-PDC-MB24-IP utilizes CC600 2×6 mm² wire, providing heavy-duty current carrying capacity for reliable power transmission inside cabinet enclosures. The HONEYWELL FS-PDC-MB24-IP is engineered to distribute power to individual 24Vdc devices such as fan units, field termination assemblies, and other control system components that require stable DC power supply.
The FS-PDC-MB24-IP HONEYWELL Power Distribution Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL FS-PDC-MB24-IP Power Distribution Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell FS-PDC-MB24-IP Power Distribution Cable (24 VDC) is an internal power distribution accessory developed for the Honeywell Safety Manager platform. It provides a dedicated connection between the FS-MB-0001 main power rail and compatible power distribution boards or Field Termination Assemblies, ensuring consistent 24 VDC power delivery throughout the safety system.
The cable is manufactured with industrial-grade copper conductors and factory-installed keyed connectors that simplify installation and help maintain correct polarity. Designed for installation inside control cabinets, it supports dependable operation in industrial environments while reducing wiring complexity during commissioning and maintenance.
- Oil/Gas Processing: Deployed in ESD and fire/gas systems
- Chemical/Petrochemical: Powers control logic in harsh industrial environments
- Industrial Automation: Supplies steady current to prevent voltage drops in complex modules
- Building Automation: Provides low-voltage distribution for building management and telemetry nodes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Locate the target 24Vdc power bar terminal on the FS-MB-0001 rail.Take the Squeeze-To-Release (D-TAB-200-STR) end of the cable.Compress the built-in side tabs with your fingers, align the connector firmly onto the power rail tab, and push it inward.Release the tabs. Give the wire a gentle tug to verify that the connector has mechanically locked onto the rail.
Technical notes
The HONEYWELL FS-PDC-MB24-IP series is available in multiple standard lengths to accommodate various installation requirements. The HONEYWELL FS-PDC-MB24-IP (or FS-PDC-MB24-1) provides a length of 145 cm (57.1 in), the FS-PDC-MB24-2 offers 245 cm (96.5 in), and the FS-PDC-MB24-3 extends to 325 cm (128.0 in). This range of lengths ensures that the HONEYWELL FS-PDC-MB24-IP can be deployed in cabinets of various sizes while maintaining proper cable management and routing practices.
FAQs
-
What is the FS-PDC-MB24-IP?
+The Honeywell FS-PDC-MB24-1P is a durable, RoHS-compliant power distribution cable designed to transmit 24 VDC power from the MB-0001 controller rail to the PDB-0824 power distribution board in industrial automation systems -
What devices does this cable connect?
+It connects the MB-0001 main power rail/controller to power distribution boards (such as the PDB-0824) or FTAs (Field Terminal Assemblies) in industrial environments -
What is the maximum current capacity?
+The cable is rated for 1 A. It is important not to exceed this to prevent hardware damage. -
What is the standard physical length?
+The standard variant measures 145 cm (approximately 1.5 meters).
