Foxboro

I/A Series Baseplate

BASEPLATE
I/A SERIES
MODULAR
8 SLOT
DIN RAIL MOUNT

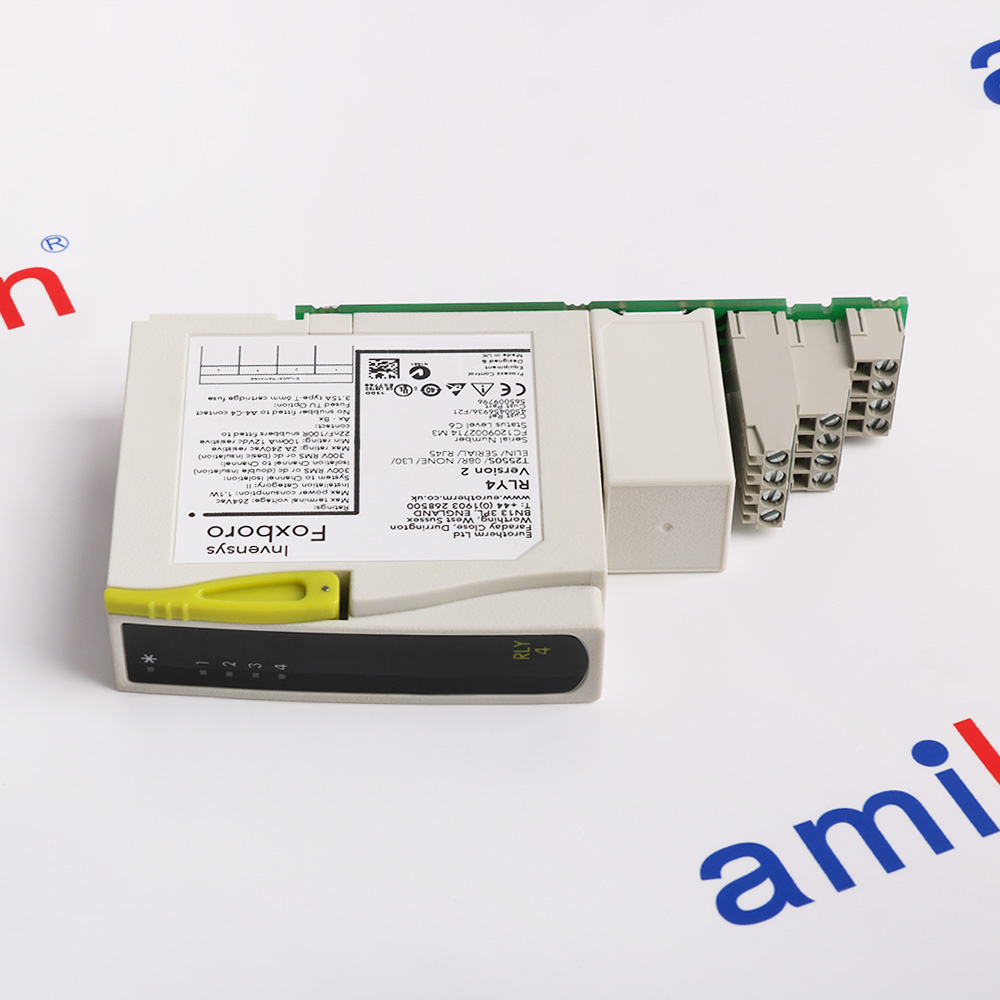

4 Channel Relay Output Module

Channel-to-Channel: 1500 VAC
Field-to-System: Reinforced isolation :2500 VAC
Per Channel: 1–2 W
Total: ≤ 8 W
Operating Temperature: -40°C to +70°C (industrial-grade)
Storage Temperature: -50°C to +85°C
Humidity: 0–95% (non-condensing)

USB annunciator/numeric keyboard

Power Requirements 5 VDC, ± 5% a
USB Annunciator Keyboard: 300 mA (max)
Output Impedance: 1200 Ohms Nominal
Nominal Level: 0.437 to 0.133
Peak to Peak Amplitude, Vpp: 0.872
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -40 to +70°C (-40 to 158°F)
Humidity range, storageand operating:
20% to 80%, non-condensing

DNBT Dual Nodebus Module

Series: Foxboro I/A Series
Power Supply: Typically 24V DC
Operating Temperature:  0°C and 60°C
Storage Temperature:  -20°C and 70°C
Humidity: 5% and 95%  (non-condensing)

NODE BUS INTERFACE MODULE

Highly Intuitive Design Environment
Graphical Configuration
Live Updating Loop Drawings
One-Spot Engineering Environment
Common Database Integrating System,
Control, Display and Field Device
Configuration in One Tool

POWER CABLE

24 VDC
POWER CABLE
28" - LAMBDA
P/N - P0916GX

TERMINAL CABLE

TERMINAL CABLE
CABLE ASSEMBLY
FBM2XX
TYPE 4
3M LENGTH

Term Cable

FBM 2xx
TYPE 1
TERM CABLE
3 METERS
P/N - P0916DC

Termination assembly

32 channel
voltage monitor132 V AC or 150 V DC
maximumLogic Zero - 0 to 20 V AC; 0to 20 V DC
Logic One - 80 to 132 V AC;75 to 150 V DC
Input Current for Logic One;2.6 mA
maximumChannel isolation provided by
termination assembly

TERMINATION ASSEMBLY

VOLTAGE MONITOR TERMINATION ASSEMBLY
SCREW TERMINAL
EXTERNAL SWITCH
CABLE TYPE 4
FBM 241 125V
VMON, +5A
RELAY OUT
P/N - P0916AS

Bus Connector

I/A Series
Bus Connector
Distributed Control Systems

4 Channel I/O Module

Channel Isolated 4 input
4 channel isolated output
Field bus base
0-20mA
Control system (DCS)

BASEPLATE HORIZONTAL

P0914XA
BASEPLATE HORIZONTAL
200SERIES
DINRAIL
MT FIELDBUS

Channel Isolated 16-input 24vdc

Manufacturer: Foxboro
Model: P0914XB0C SF0627B894
Type: Channel Isolated 16-input Module
Input Type: Digital Inputs
Input Voltage: 24 VDC
Operating Temperature Range: 0°C to 60°C

CONTACT/DC INPUT MODULE

CM400YH
CONTACT/DC INPUT MODULE
FBM07
CONTACT DC INPUT

Terminal Block Connector Assembly

P0916SR0B
TERMINAL BLOCK CONNECTOR ASSEMBLY

Temperature Module

P0916JT
COMPRESSION TERM ASSEMBLY
FBM211
EXT POWERED (I/A PLANT)

COMPRESSION TERM ASSEMBLY

P0916JT
COMPRESSION TERM ASSEMBLY
FBM211
EXT POWERED (I/A PLANT)

INPUT MODULE

P0916KP0B
INPUT MODULE
NUMBER OF COMMUNICATION INPUTS: 16
NUMBER OF TERMINATIONS: 32 - SCREW
CABLE TYPE: 4
CABLE CONNECTION: 37 PIN [M] CONNECTION

Terminal Board

P0916SA0A
DISCONTINUED BY MANUFACTURER
PLC MODULE WITH DIN MOUNT
8 SCREW TERMINALS
CABLE TYPE 4 INPUT
120 VAC
125 VDC

CABLE ASSEMBLY

P0916FH
DISCONTINUED BY MANUFACTURER
CABLE ASSEMBLY
TYPE 4
1 METER LENGTH
FBM2XX
TERMINAL CABLE
