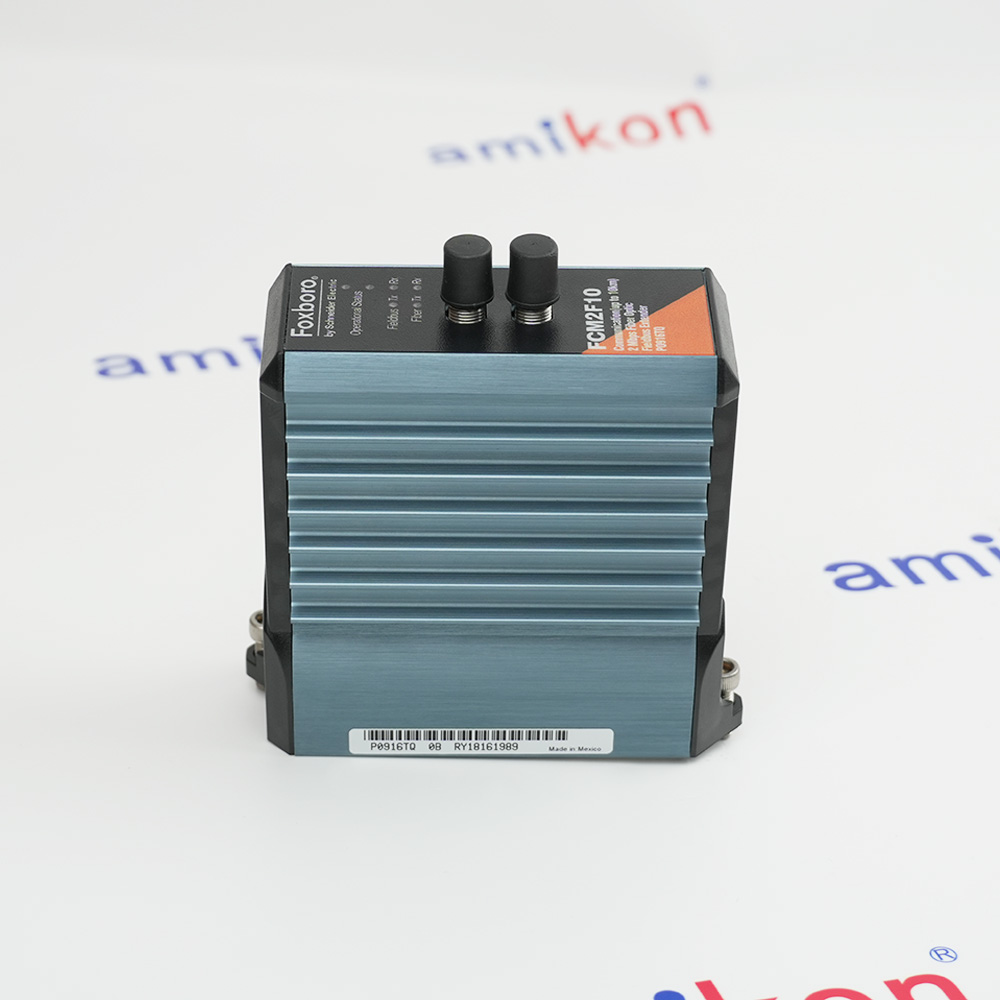

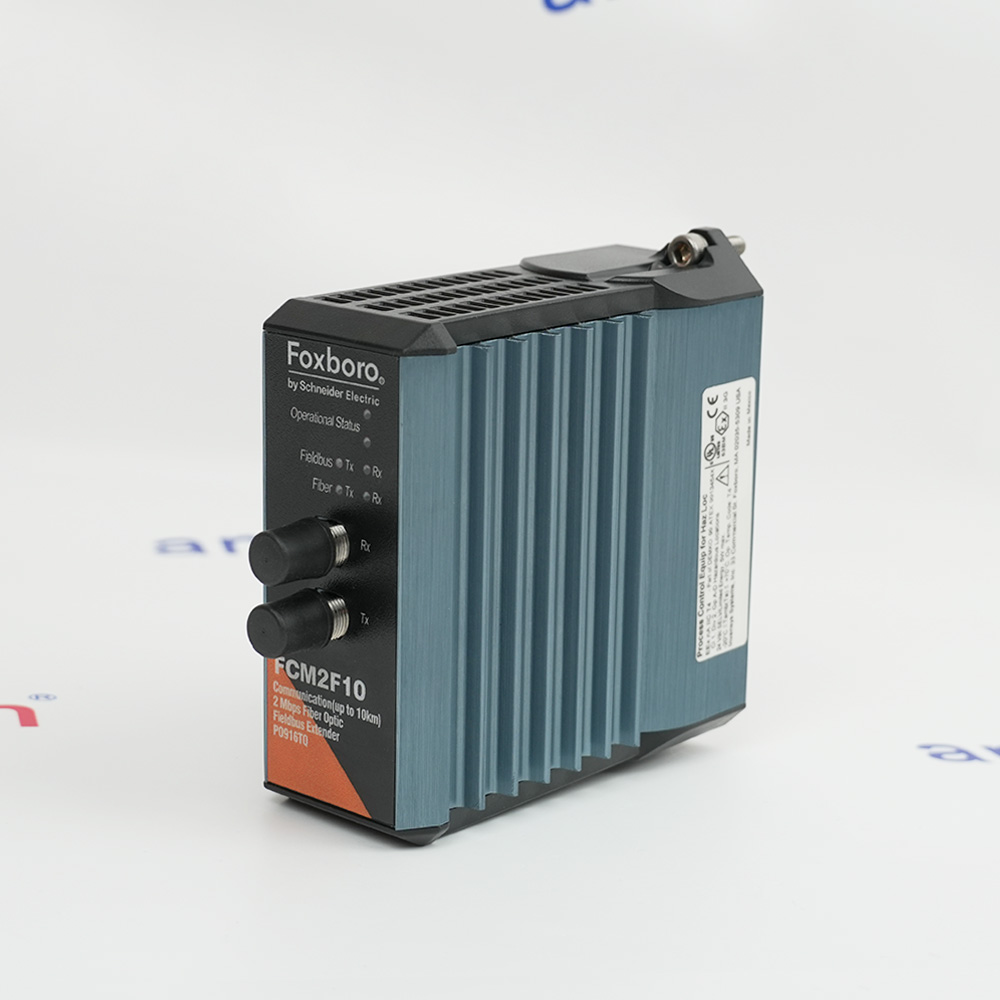

- FCM2F10 P0916TQ
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FCM2F10 P0916TQ
-
Product ModelFCM2F10 P0916TQ
-
Product ParametersFiber Optic Fieldbus Extender
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x12.3x11.5cm
-
ManufacturerInvensys
-
Weight0.25 kg
-
Power Supply24 V DC
-
Power Consumption5-10 W
-
Operating Voltage24 V DC logic
-
Isolation1500-2500 V AC
-
Data RateUp to 100 Mbps
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Humidity5-95% RH (non-condensing)
Description
I/A Series
FCM2F 10KM
24 V dc +5%, -10%
Fiber Optic Fieldbus Extender
FCM2F 10KM
24 V dc +5%, -10%
Fiber Optic Fieldbus Extender
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- 10 km Single-Mode Fiber Optic Fieldbus Extension
- Complete Immunity to EMI, RFI & Lightning
- Hot-Swappable Design with Front-Panel LED Diagnostics
- Electrical Isolation & Ground Loop Protection
The FCM2F10 P0916TQ Foxboro Fiber Optic Fieldbus Communications Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro FCM2F10 P0916TQ Fiber Optic Fieldbus Communications Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At its core, the FCM2F10 provides baseplate-to-baseplate fiber optic extension of the module Fieldbus with a maximum nominal distance of 10 kilometers (6.21 miles) between any two baseplates. This is achieved using standard single-mode fiber optic cable terminated with ST-type connectors, ensuring compatibility with widely available industrial fiber infrastructure. The module supports complex network topologies where up to four baseplates can be interconnected using up to three fiber optic segments, with the total fiber cabling distance across all segments not exceeding 20 km (12.42 mi). Baseplates located within 60 meters (196.85 ft) of each other can alternatively be linked using standard shielded twisted-pair or twinax-pair cable without requiring FCM modules, offering flexibility for both local and remote I/O clustering
- Rotating Machinery:Large pumps/compressors/turbines/motors with heavy EMI
- Heavy Welding Equipment:Arc welders/robotic lines causing voltage spikes & noise
- High-Voltage Systems:Power lines, switchgear & MCCs sharing cable trays
- Outdoor Infrastructure:Remote tanks/pipelines/skids vulnerable to lightning/ground loops
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Baseplate Compatibility: Install the module into a dedicated slot on a 200 Series Fieldbus Module (FBM) baseplate.
Alignment: Align the module with the guide slots on the baseplate.
Insertion: Slide the module firmly into the slot until the connectors fully engage with the baseplate backplane.
Securing: Tighten the two captive screws at the top and bottom of the module faceplate to secure it to the baseplate.
