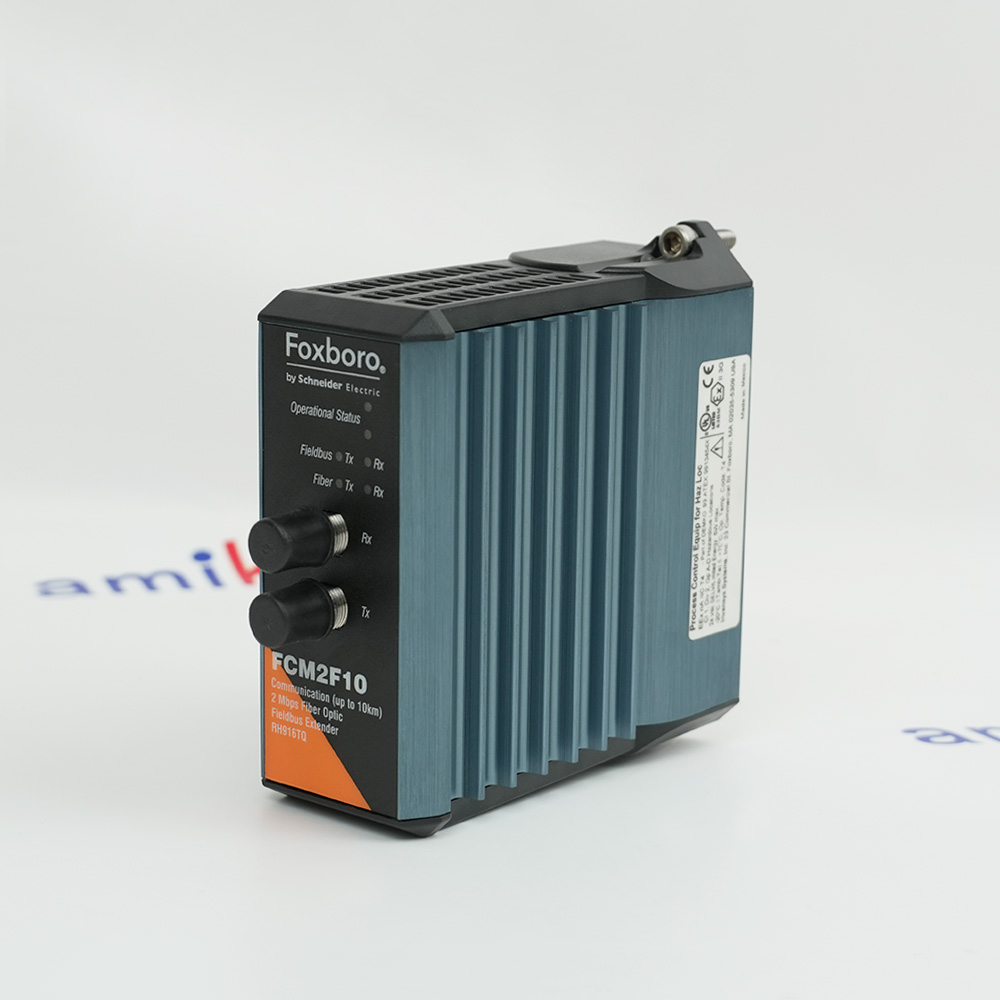

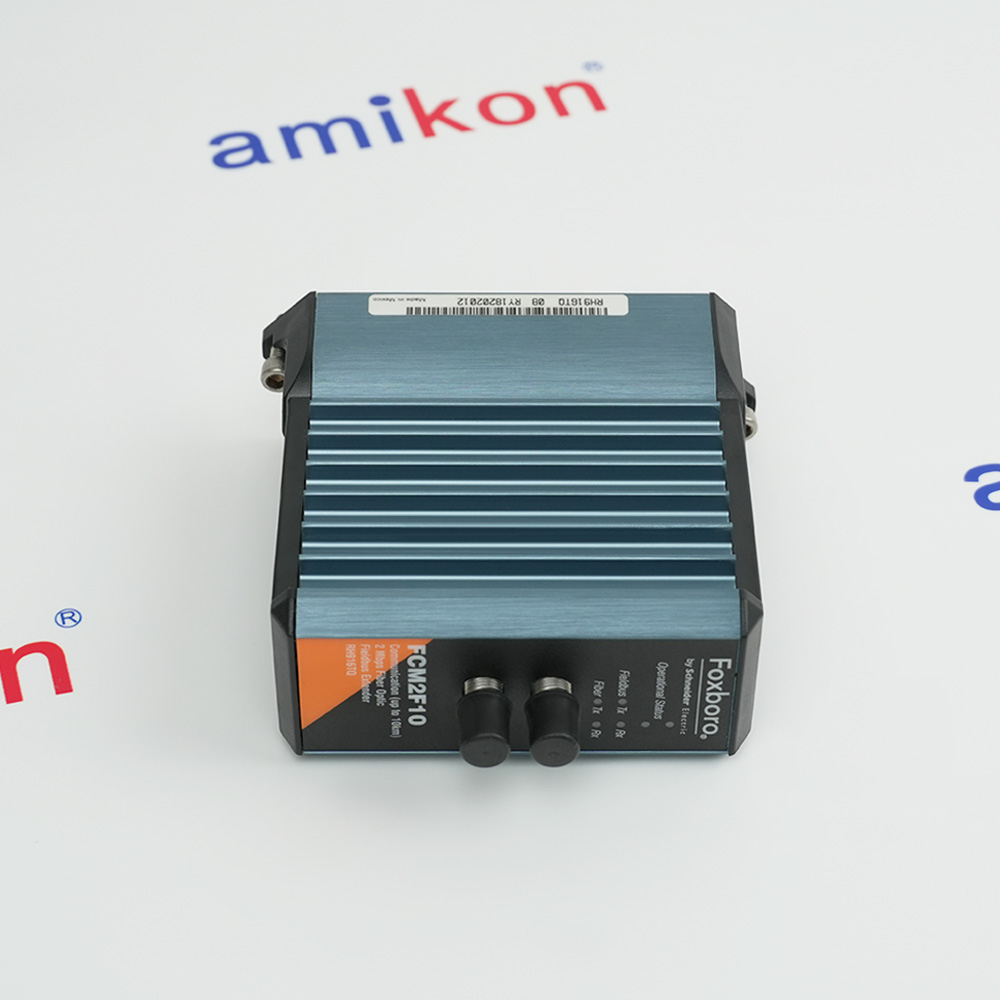

- FCM2F10 RH916TQ
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for FCM2F10 RH916TQ
-
Product ModelFCM2F10 RH916TQ
-
Product ParametersFieldbus Communications Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x12.3x11.5cm
-
ManufacturerInvensys
-
Weight0.25 kg
-
Input Voltage Range24 V dc +5%, -10%
-
Consumption5 W (maximum) at 24 V dc
-
Heat Dissipation5 W (maximum) at 24 V dc
-
Vibration5 to 200 Hz
-
Temperature-20 to +70°C (-4 to +158°F)
-
RelativeHumidity5 to 95% (noncondensing)
Description
FCM2F10 RH916TQ
Foxboro I/A Series
Fieldbus Communications Module
Foxboro I/A Series
Fieldbus Communications Module
Information
Overview
Manuals
Technical notes
Product Applications
Pre-Installation Framework & Slot Placement
Features:
- 10 km Single-Mode Fiber Optic Fieldbus Extension
- Complete Immunity to EMI, RFI & Lightning
- Redundant & Non-Redundant Configuration Flexibility
- Hot-Swappable Design with Front-Panel LED Diagnostics
- Rugged Extruded Aluminum Construction for Harsh Environments
The FCM can be removed/replaced from the baseplate without removing power. Sixlight-emitting diodes (LEDs) incorporated into the front of the FCMs indicate the statusof network activity to/from the module Fieldbus and fiber link, and the FCMsoperational status.
The FCM2F10 RH916TQ Foxboro Fieldbus Communications Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro FCM2F10 RH916TQ Fieldbus Communications Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Reliability and availability are central to the FCM2F10 design. The module supports both redundant and non-redundant configurations. In redundant setups, a pair of FCM2F10 modules is installed in adjacent slots on each baseplate—one serving the "A" Fieldbus cable and one serving the "B" Fieldbus cable—providing automatic failover capability. For less critical applications, a single FCM2F10 per baseplate delivers cost-effective non-redundant operation. A strict pairing rule applies: FCMs at either end of a fiber optic link must be identical types (e.g., two FCM2F10s), ensuring signal compatibility and predictable performance across the entire link. Redundant FCM pairs must be mounted in the first or last adjacent slots on the baseplate to maintain proper Fieldbus topology.
- Oil & Gas Refineries:Connects remote tanks/pipelines/columns to central control
- Chemical & Petrochemical Plants:Integrates hazardous areas with mandatory electrical isolation
- Power Generation Facilities:Manages remote coal/ash/water subsections from main control
- Water & Wastewater Treatment:Links distant pump houses/filtration/dosing stations
- Mining & Metal Processing:Data trunking for long conveyors, crushers & smelters
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Identical Pair Matching: Ensure modules on both ends of the single-mode fiber optic cable run are matching. You cannot mix a Foxboro FCM2F10 with an FCM2F2 or FCM2F4 module.Redundancy Mapping: Install redundant module pairs exclusively in the first or last adjacent slots of the Foxboro Modular Baseplate (e.g., positions 1 and 2, or positions 7 and 8).Non-Redundant Mapping: Insert a single module into any available valid FCM slot position designated by your system topology map
FAQs
-
What is the main purpose of the FCM2F10 (P0916TQ)?
+The FCM2F10 is for baseplate-to-baseplate fiber optic extension of the module Fieldbus. It enables Din-rail mounted Fieldbus Modules (FBMs) to be placed remotely or locally, facilitating the distribution of I/O points in different locations. -
What type of fiber optic cable does the FCM2F10 use?
+Unlike the FCM2F2/FCM2F4 models, the FCM2F10 (RH916TQ) specifically requires standard single-mode fiber cable with ST-type connectors. -
What is the maximum transmission distance of the FCM2F10?
+The FCM2F10 has the longest transmission distance in this series, with a maximum transmission distance of up to 10 kilometers (6.2 miles). -
What connectors are used?
+The module requires ST-type connectors for its fiber optic terminations.
