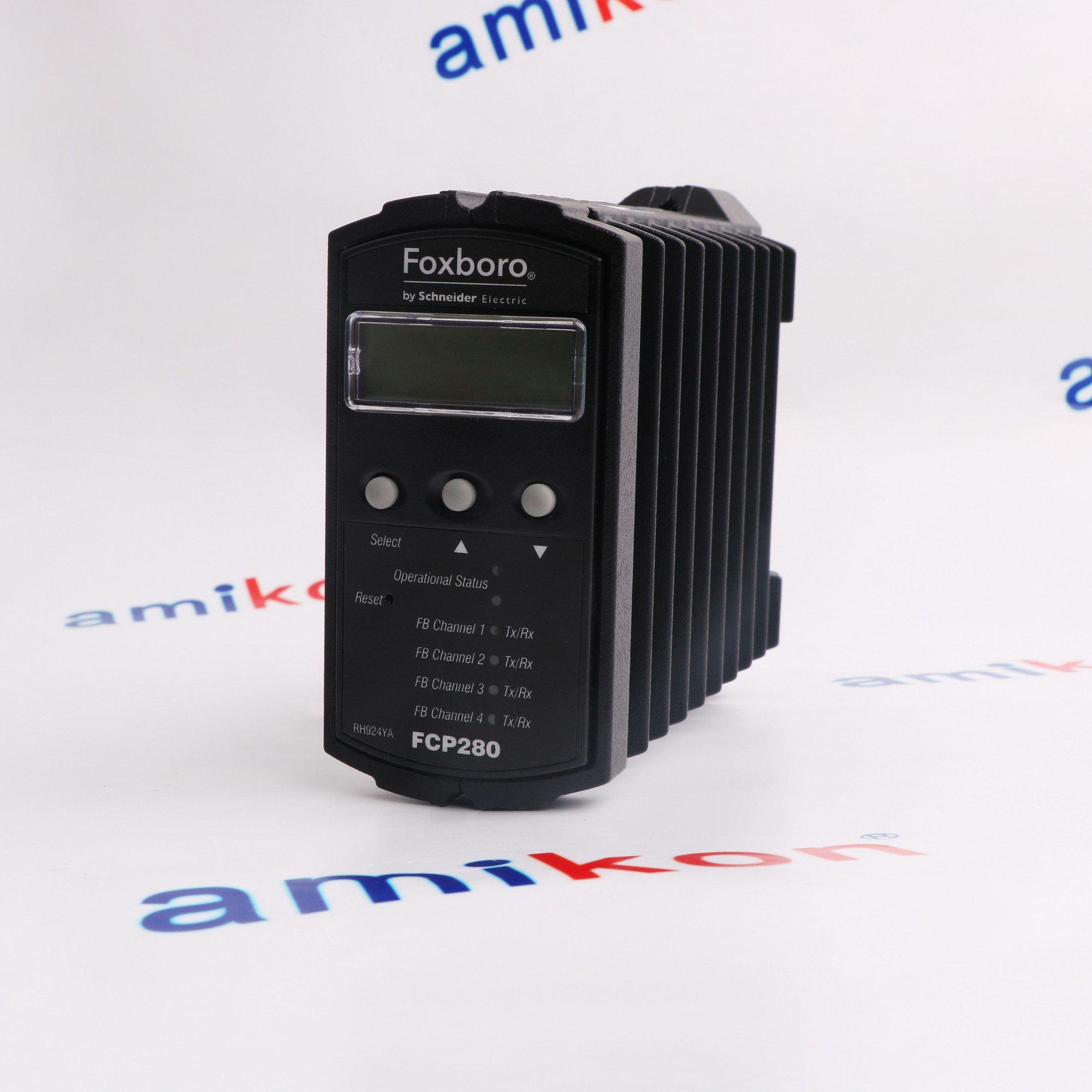

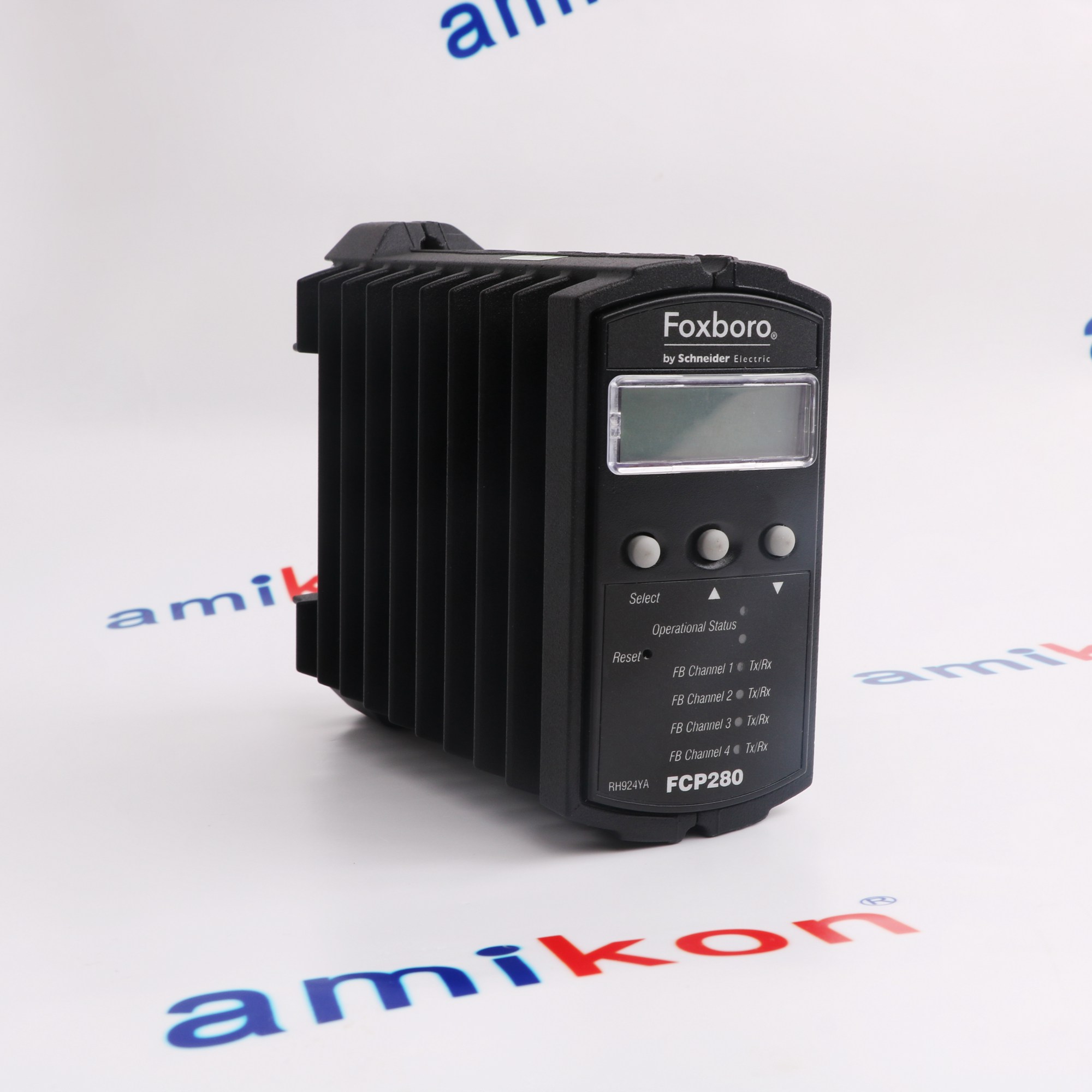

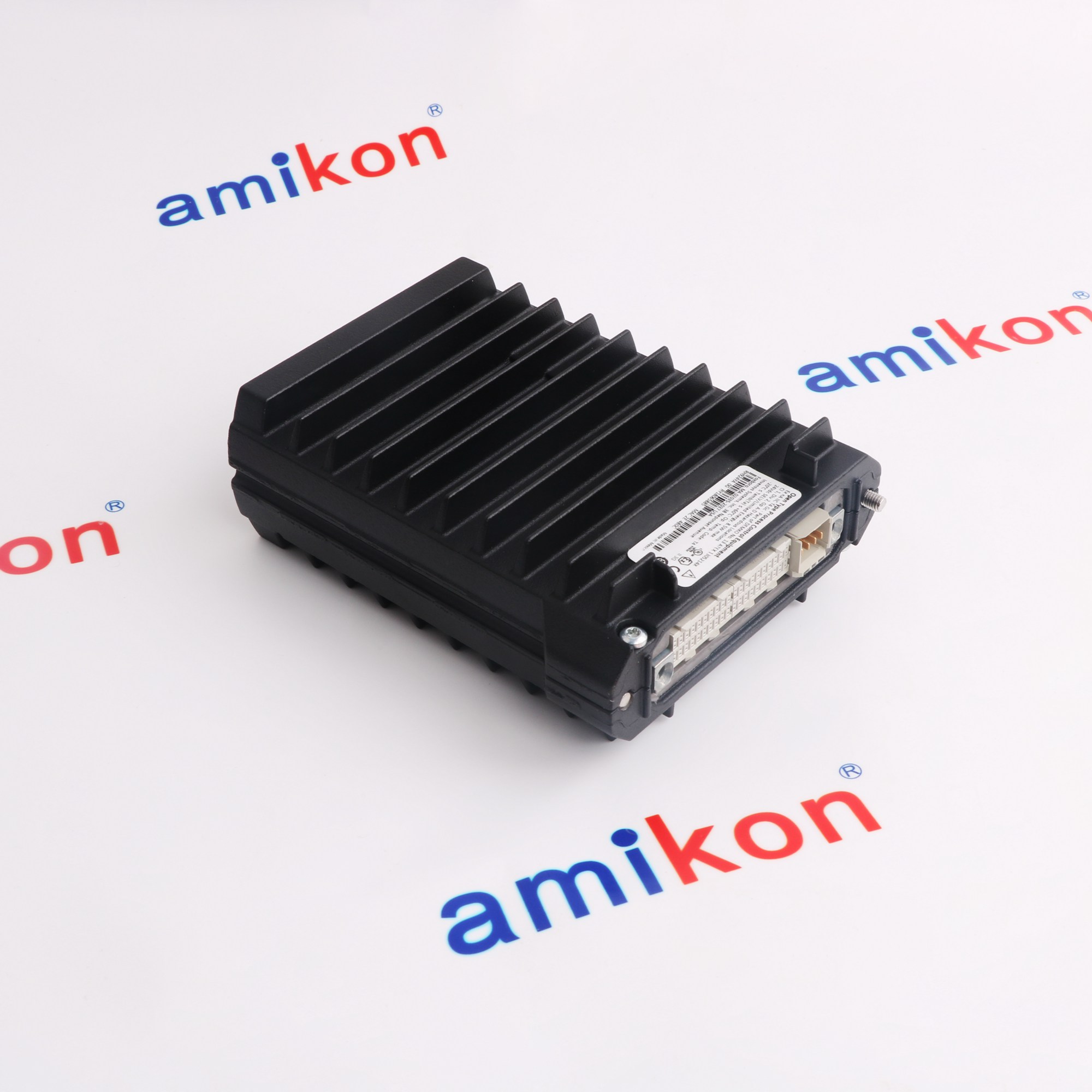

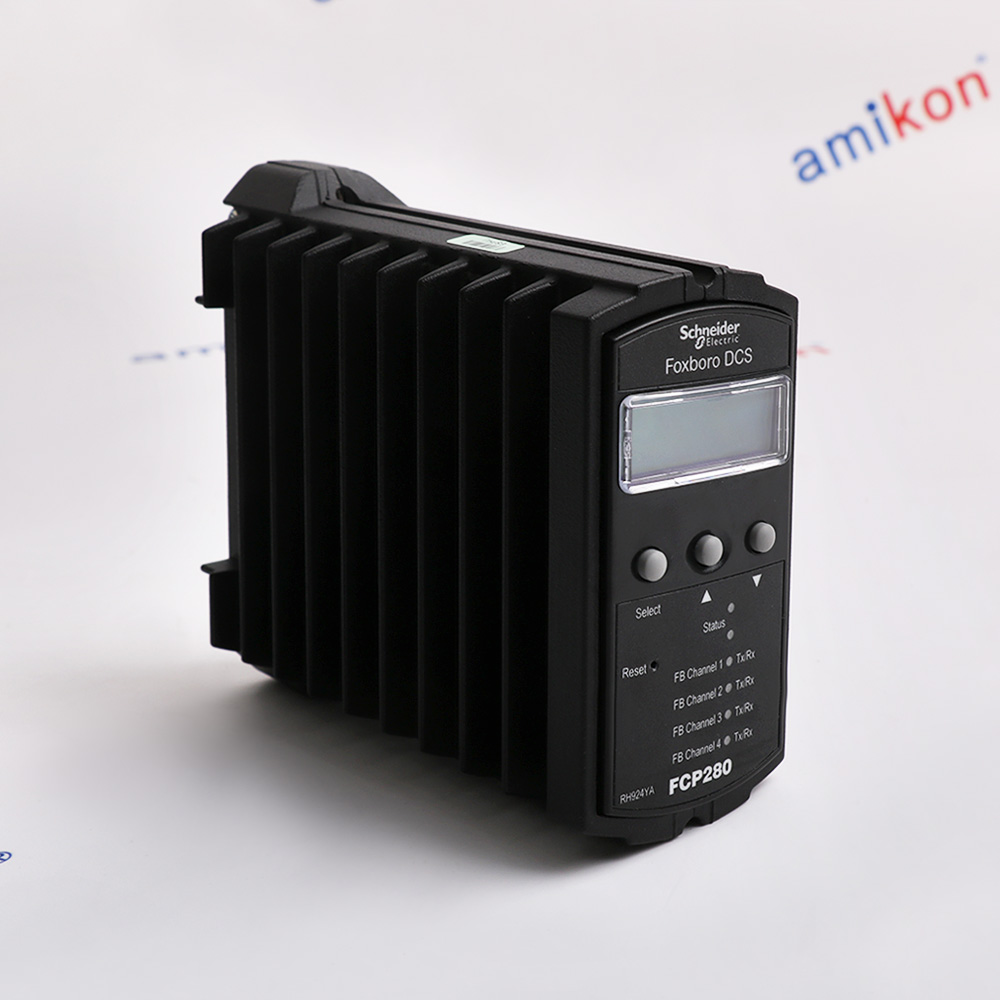

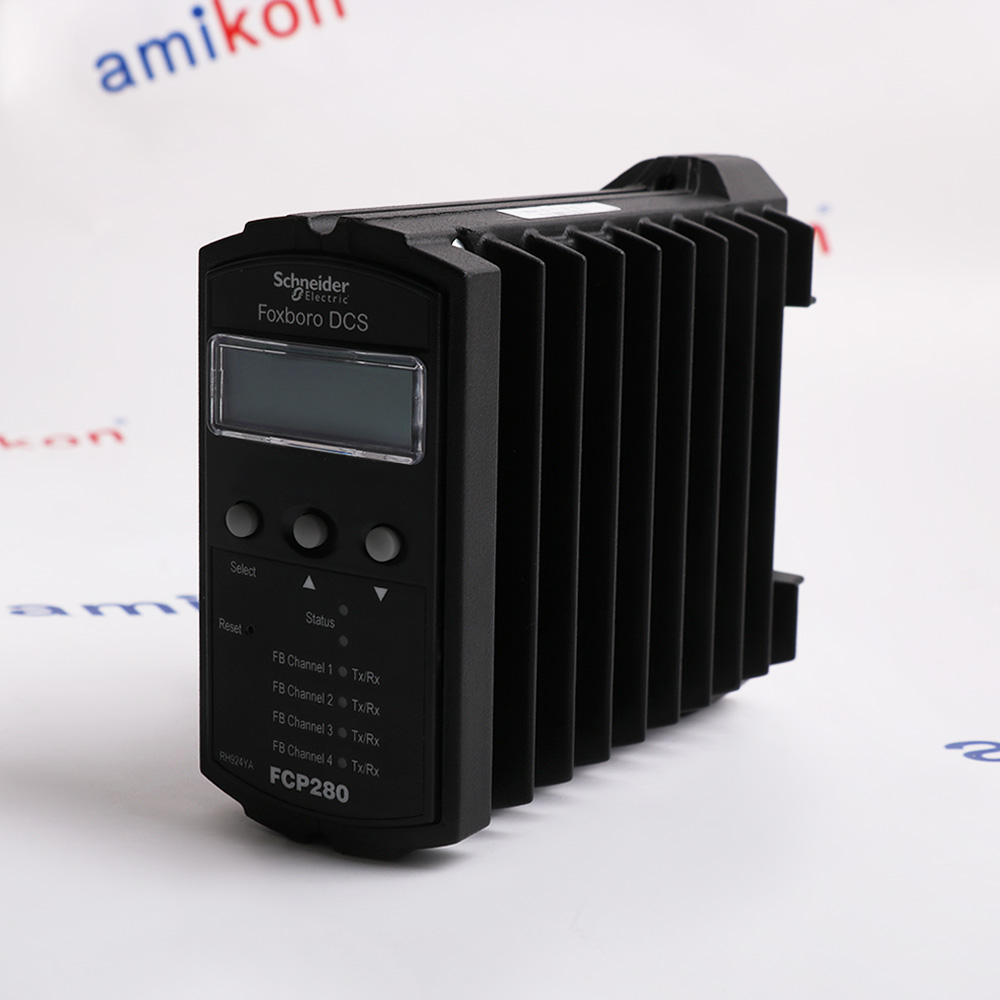

Foxboro RH924YA FCP280 is a distributed field control processor for regulatory, logic, timing and sequential control with connected Foxboro DCS Fieldbus Modules.
It supports four HDLC Fieldbus ports, data acquisition and alarm processing in single or fault-tolerant configurations. Verify the Control Core Services level, baseplate, network adapters, Fieldbus loading and controller configuration before replacement.
It supports four HDLC Fieldbus ports, data acquisition and alarm processing in single or fault-tolerant configurations. Verify the Control Core Services level, baseplate, network adapters, Fieldbus loading and controller configuration before replacement.
Technical specifications for RH924YA FCP280
-
Product ModelRH924YA FCP280
-
Spare ModelRH924YA
-
Product ParametersField Control Processor Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5.2x14.8x11.6cm
-
ManufacturerInvensys
-
Weight0.8 kg
-
ProcessorARM System on a Chip
-
Memory128 MB SDRAM and 128 MB flash
-
Module FieldbusHDLC
-
Transmission Rate2 Mbps or 268 Kbps
-
Fieldbus Ports4 PIO channels
-
Process I/O CapacityUp to 128 FBMs subject to sizing
-
Configured Blocks8,000 maximum
-
Minimum BPC50 ms
-
Power Input24 V DC typical, redundant
-
Power Consumption11 W maximum, single module
View all additional
Alternative Names
RH924YA FCP280
Foxboro DCS Field Control Processor 280
CP280 Distributed Fault-Tolerant Controller
Technical notes
Confirm Control Core Services version 9.0 or later, RH924YA identification, baseplate, network adapters, Fieldbus rates and loading. Preserve checkpoint and fault-tolerant roles, then validate network paths, all four PIO channels and configured control blocks.
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- Regulatory, logic, timing and sequential control
- Distributed data acquisition and alarm processing
- Four HDLC Fieldbus ports
- Single or fault-tolerant controller operation
- Control Core Services version 9.0 or later
The processor provides four HDLC PIO channels at documented Fieldbus rates and can be deployed in single or fault-tolerant configurations. Verify RH924YA identification, software level, baseplate, network adapters, loading and checkpoint configuration before commissioning.
RH924YA FCP280 Foxboro: Verify the exact controller identification, software release, baseplate, network adapters, Fieldbus loading and controlled Foxboro documentation before installation or replacement.
Invensys Foxboro RH924YA FCP280 Field Control Processor Module Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
- Regulating continuous refining and petrochemical process loops
- Executing fault-tolerant sequences for hydrocarbon gathering and transport equipment
- Coordinating batch logic and timing in chemical production
- Acquiring operating data and managing alarms in power-generation processes
- Integrating plant-wide control for water and wastewater treatment operations
Use RH924YA FCP280 only with the compatible Foxboro DCS architecture identified by the complete processor part number.
Confirm Control Core Services version 9.0 or later.
Match the installed baseplate and copper or fiber network adapters.
Verify each HDLC Fieldbus port rate, loading and attached modules.
Check single or fault-tolerant controller roles and checkpoint configuration.
Do not substitute another controller generation without controlled Foxboro migration verification.
Confirm Control Core Services version 9.0 or later.
Match the installed baseplate and copper or fiber network adapters.
Verify each HDLC Fieldbus port rate, loading and attached modules.
Check single or fault-tolerant controller roles and checkpoint configuration.
Do not substitute another controller generation without controlled Foxboro migration verification.
Capture the running software release, controller role and checkpoint status before shutdown.
Record Control Network A and B adapters and all four Fieldbus port assignments.
Export approved configuration and alarm records through site procedures.
Inspect the baseplate connectors, module latches and redundant power feeds.
Validate synchronization, network redundancy, I/O communication and control execution after replacement.
Contact Amikon with RH924YA FCP280 for availability and replacement support.
Record Control Network A and B adapters and all four Fieldbus port assignments.
Export approved configuration and alarm records through site procedures.
Inspect the baseplate connectors, module latches and redundant power feeds.
Validate synchronization, network redundancy, I/O communication and control execution after replacement.
Contact Amikon with RH924YA FCP280 for availability and replacement support.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about RH924YA FCP280
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does RH924YA require a particular Foxboro software level?
The FCP280 documentation specifies Control Core Services version 9.0 or later. Verify the installed system release and approved upgrade path before introducing the processor. -
How is a single FCP280 distinguished from a fault-tolerant pair?
Check the baseplate, paired processor positions, network adapters, checkpoint status and configured primary or shadow roles. The RH924YA label alone does not define the complete architecture. -
Can all four Fieldbus ports mix 2 Mbps and 268 Kbps devices?
Each Fieldbus port is configured for one documented rate. Do not mix both rates on the same port; review every attached segment and any Fieldbus expansion equipment. -
Is the stated capacity of 128 Fieldbus Modules automatic?
No. The supported count depends on Fieldbus loading, block execution period, data volume and system sizing. The system integrator should validate the actual configuration. -
Which network hardware should MRO procurement match with FCP280?

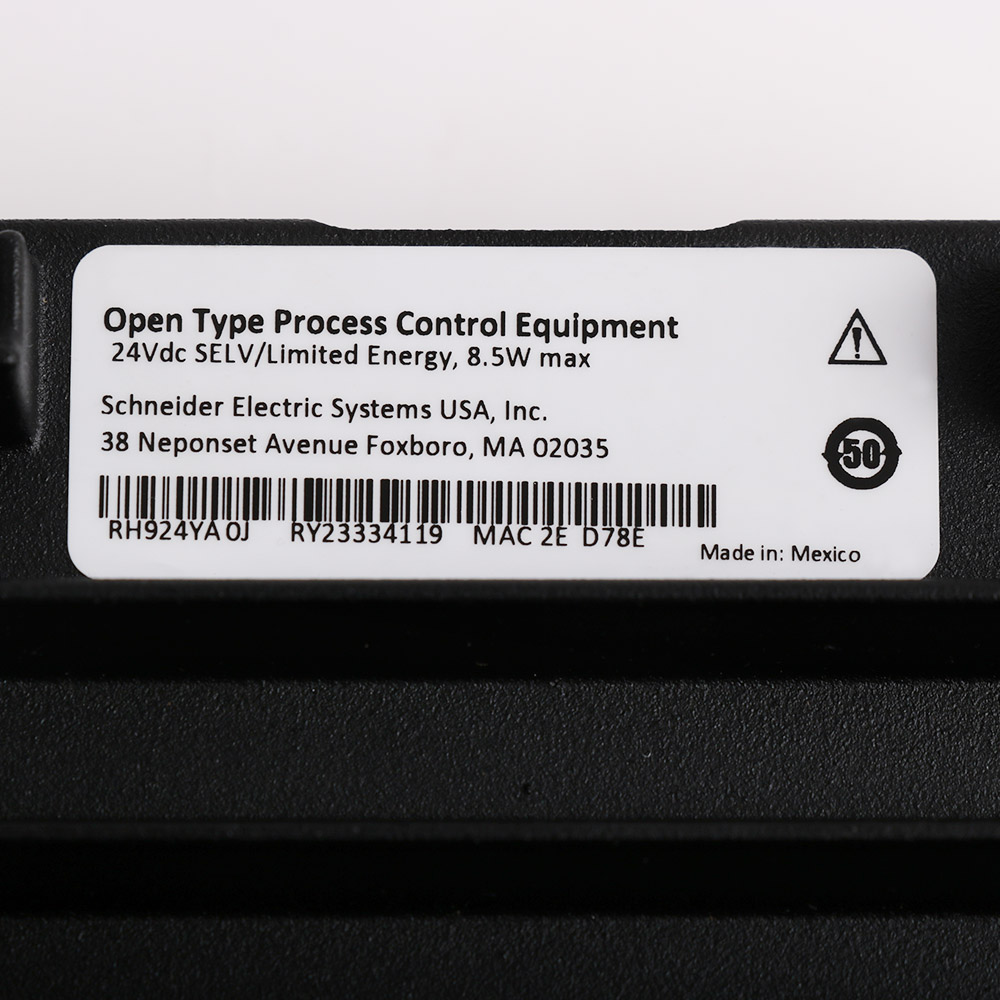

Provide the RH924YA nameplate, baseplate part number and the exact copper or fiber network adapters. Connector appearance alone is not sufficient for a replacement decision. -
What information supports an urgent FCP280 quotation?
Send the installed controller role, software release, baseplate, adapter labels, Fieldbus map and fault-tolerant arrangement. These details reduce the risk of receiving a mechanically correct but unusable spare. -
What commissioning evidence should be collected after installation?
Verify primary and shadow status, Control Network A and B, all four PIO channels, checkpoint synchronization, block execution, alarms and controller diagnostics before process handover.
