Technical specifications for FC-CPCHAS-0001
-
Product ModelFC-CPCHAS-0001
-
Product ParametersController chassis
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size48.3x30.5x17.8cm
-
ManufacturerHoneywell
-
Weight5.8 kg
-
ApprovalsCE, UL, CSA, TUV, FM
-
Housing Standard19-inch rack-mountable
-
Internal Power Rails+5V-1: 0.05 A; +5V-2: 0.05 A
-
Supply Voltage Options24 VDC
-
Operating Temperature−5°C to +70°C
-
Storage Temperature−25°C to +80°C (−13°F to +176°F)
-
Relative Humidity5% to 95% RH (non-condensing)
Description

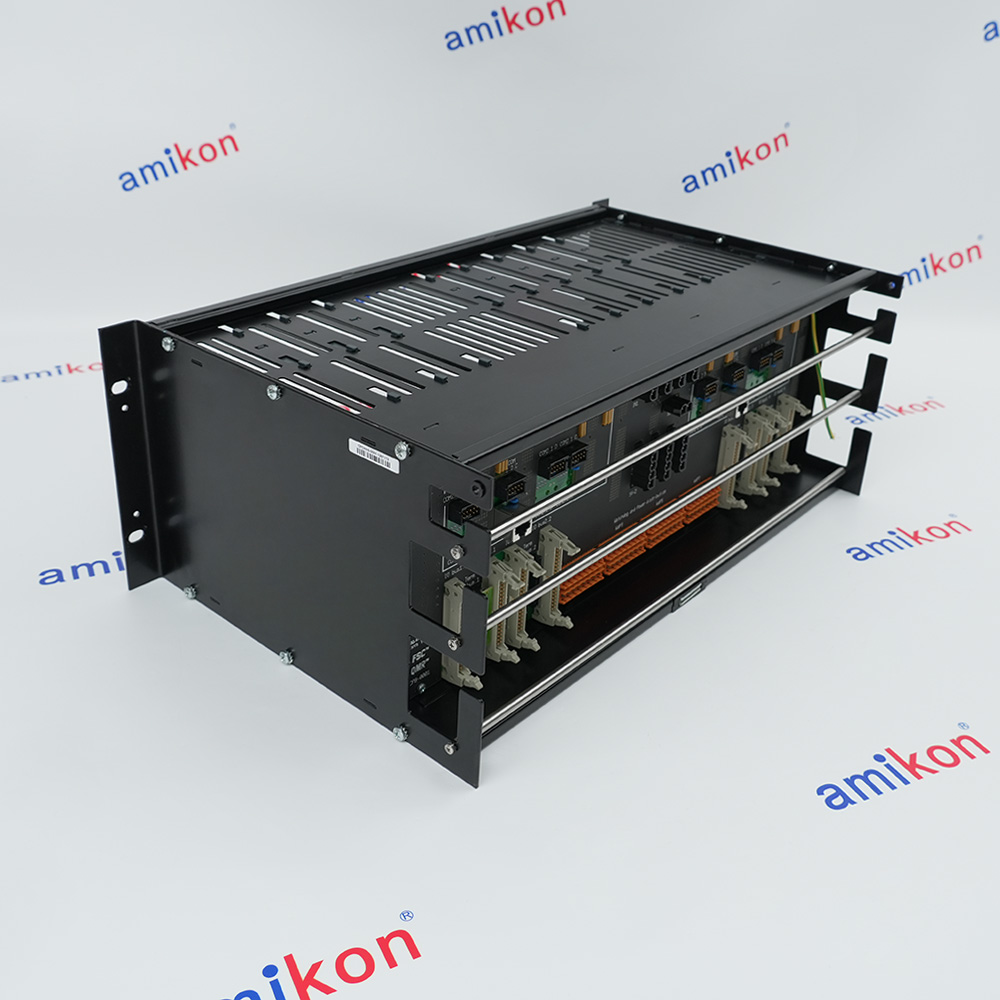

The Honeywell FC-CPCHAS-0001 is a Controller Chassis designed for the Honeywell Safety Manager™ Safety Instrumented System (SIS). The chassis serves as the mechanical housing and backplane platform for installing Control Processor modules, providing secure mounting, power distribution, communication connectivity, and system integration within Safety Manager architectures. It supports both redundant and non-redundant controller configurations, making it suitable for high-availability safety applications.
Typically installed at the top of a Safety Manager cabinet, the FC-CPCHAS-0001 houses the Control Processor modules while I/O chassis are installed below. The chassis incorporates a dedicated controller backplane that provides electrical connections, communication paths, and module interfacing required for reliable operation of safety-critical systems.
Typically installed at the top of a Safety Manager cabinet, the FC-CPCHAS-0001 houses the Control Processor modules while I/O chassis are installed below. The chassis incorporates a dedicated controller backplane that provides electrical connections, communication paths, and module interfacing required for reliable operation of safety-critical systems.
Alternative Names
FC-CPCHAS-000I
FC-CPCHAS-OOO1
FC CPCHAS 0001
FC-CPCHAS-OOOI
Information
Overview
Manuals
Application Notes
Product Applications
Step-by-Step Installation Process
Features:
- Supports redundant and non-redundant controller architectures
- Standard 19-inch rack-mounted chassis
- Secure quarter-turn module locking system
- Supports Safety Integrity Level (SIL) applications
To facilitate orderly cabinet wiring, the FC-CPCHAS-0001 incorporates multiple rear cable management bars for separating power, communication, watchdog, and signal wiring. This design improves maintainability and helps ensure reliable operation in complex control system installations. The chassis supports both single-controller and redundant-controller configurations, allowing users to design systems that meet specific availability and safety requirements.
The FC-CPCHAS-0001 HONEYWELL Controller chassis may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL FC-CPCHAS-0001 Controller chassis Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Environmental specifications reflect industrial-grade construction for continuous operation in demanding process environments. The chassis operates from −5°C to +70°C ambient temperature and withstands storage temperatures from −25°C to +80°C. It meets IEC 60068-2-6 for sinusoidal vibration (1 G at 57–150 Hz, 0.075 mm at 10–57 Hz), IEC 60068-2-27 for shock (15 G for 11 ms on 3 axes), and comprehensive electromagnetic compatibility standards including IEC 61000-4-2 Level 4 electrostatic discharge (15 kV), IEC 61000-4-4 Level 3 fast transient/burst, and IEC 61000-4-5 Level 3 surge immunity. The chassis also meets CISPR 11 and CISPR 22 for conducted and radiated emissions.
The FC-CPCHAS-0001 is certified by CE, UL, CSA, TÜV, and FM, confirming compliance with international safety and electromagnetic compatibility standards. It carries ISA Secure Level 2 certification, indicating built-in cybersecurity features that eliminate the need for additional firewall modules in many installations.
- Industrial Compressors:Prevents gas surges & over-pressurization
- Steam and Gas Turbines:Halt fuel, prevent overspeed
- Heavy-Duty Process Pumps:Shuts down during downstream leak/fire
- Process Heaters and Furnaces:cuts fuel on flame/ventilation loss
- Industrial Boilers:Prevents over-pressurization & dry-boiler explosions
- Emergency Flare Systems:Safety loops for pressure relief valves
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Insert Module: Guide the module along the sub-rack rails until the rear Eurocard connectors sit firmly against the backplane.
Secure Fasteners: Tighten the two front panel retention screws to a torque of 0.4 Nm to ensure mechanical stability.
Connect Batteries: If replacing the internal backup battery pack, plug the battery lead into the internal molex connector before sliding the module into the live rack.
Technical notes

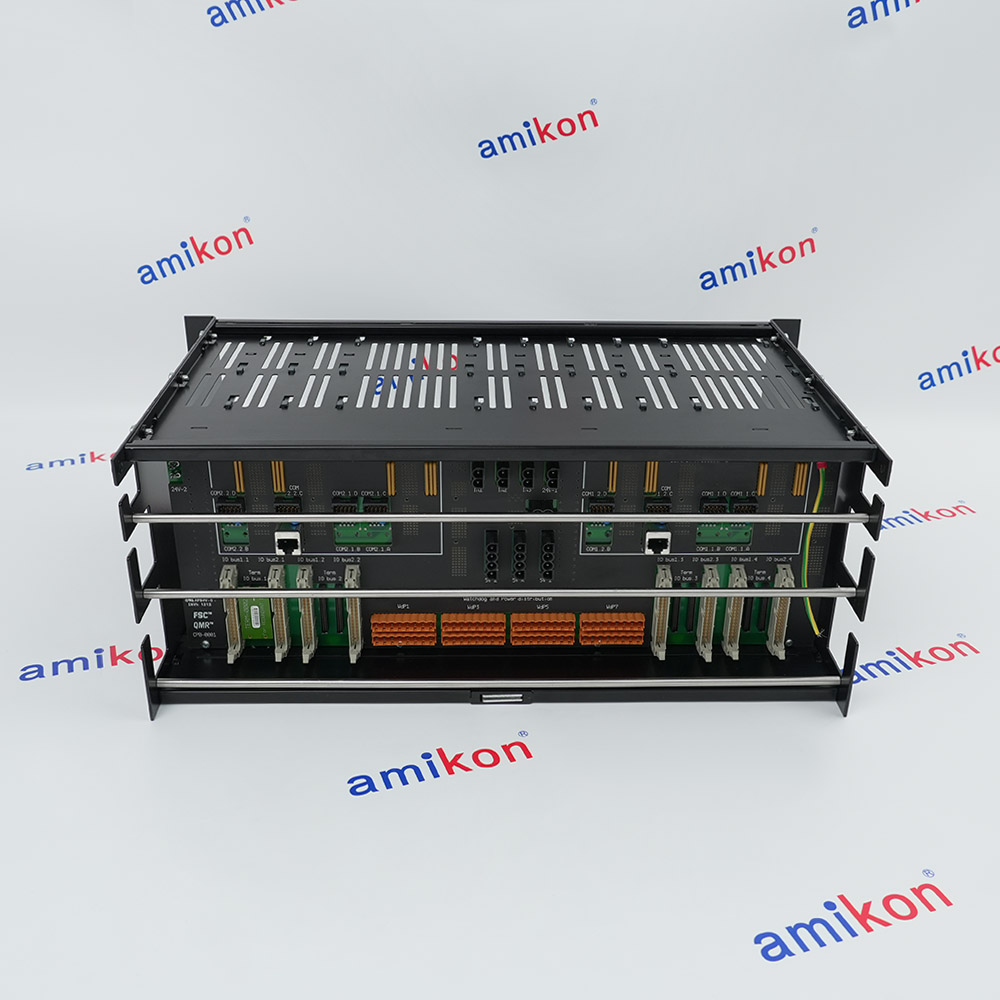

The rear of the chassis features three horizontal cable management bars for tie-wrapping and routing cables. The top bar is reserved for 24 VDC supply and 24 VDC signal wires. The middle bar accommodates communication cables. The bottom bar is dedicated to 5 VDC power and Watchdog cables (WdPx and 5V-x). This organized cable routing minimizes electromagnetic interference and simplifies troubleshooting by separating power, communication, and control signals into distinct physical zones.
FAQs
-
What is the FC-CPCHAS-0001?
+The Honeywell FC-CPCHAS-0001 is a 19-inch controller housing and chassis designed for the Honeywell Safety Manager platform -
Does it support redundant processor configurations?
+Yes, the open-front physical layout and internal bus support the insertion of dual, redundant Honeywell control processor modules to ensure high-speed, fault-tolerant execution. -
What is the current status of this chassis?
+The FC-CPCHAS-0001 (along with the FS-CPCHAS-0001) has been officially withdrawn from the Honeywell Safety Manager product line. Because some of its electronic components became obsolete, Honeywell phased out this hardware. -
What are the power requirements?
+The chassis draws basic internal power rated at 5V-1: 0.05 A and 5V-2: 0.05 A.
