PRODUCT DESCRIPTION

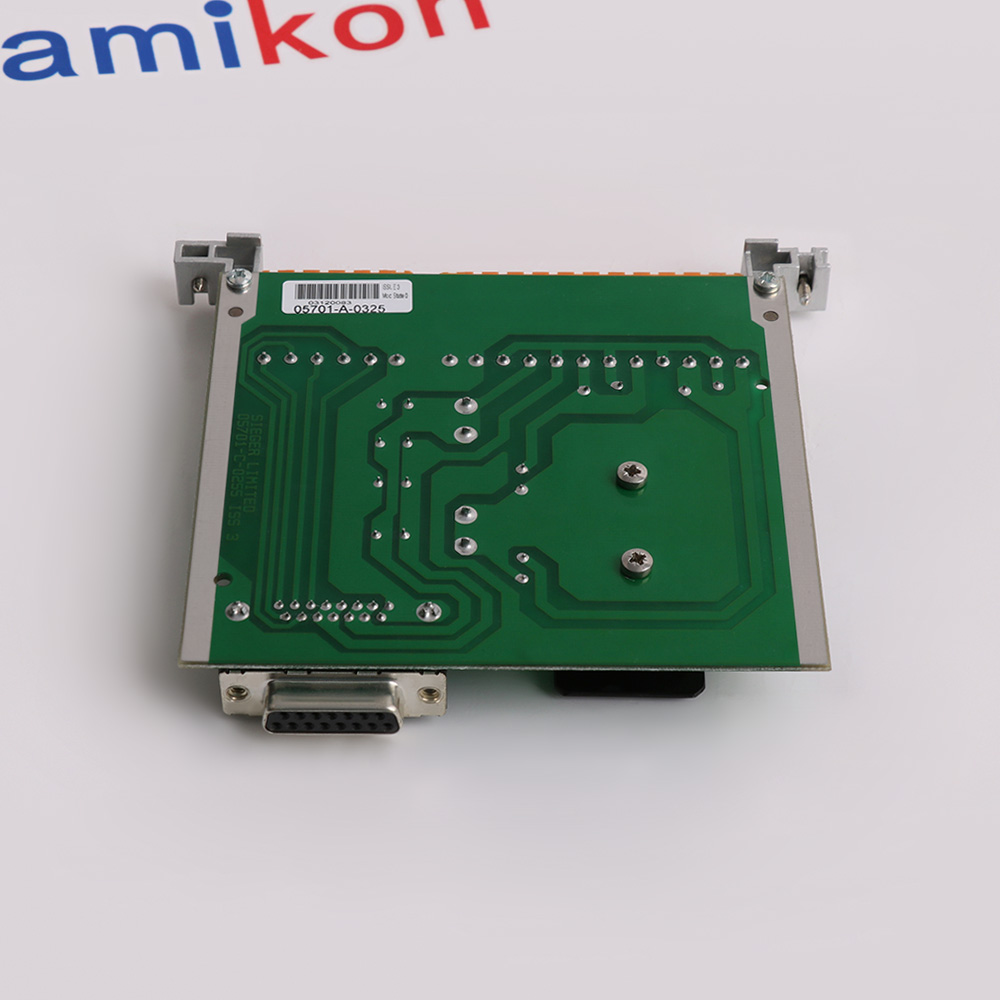

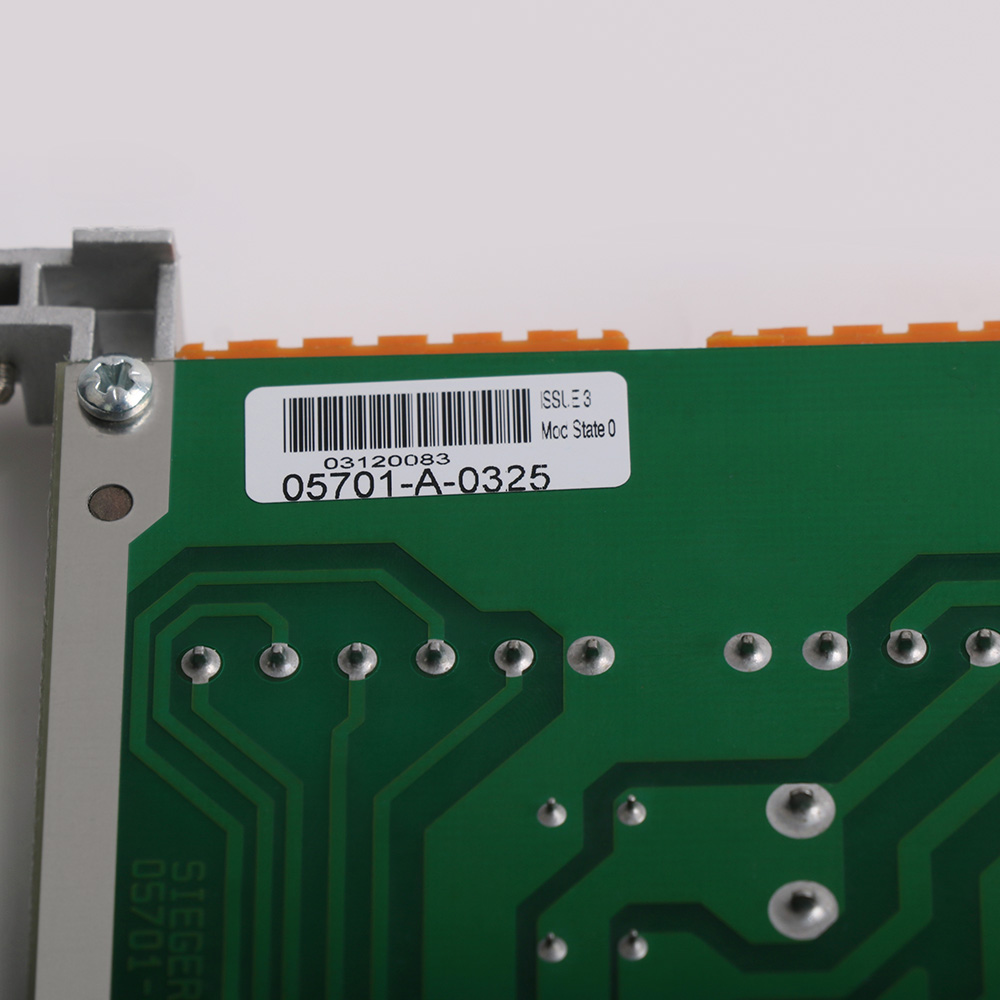

05701-A-0325 System 57 DC Input Card
Honeywell 05701-A-0325 is the DC input card for the System 57 fire and gas control platform. It brings nominal 24 V DC power into the rack and provides the connection interface for the Engineering Card and associated backplane supply.
The card has a removable two-part TB1 power terminal block, diode-isolated primary and auxiliary supply paths, RFI filtering and reverse-polarity protection. It also provides a fused ancillary output and a six-terminal TB2 interface whose functions depend on the fitted Engineering Card option.
The card has a removable two-part TB1 power terminal block, diode-isolated primary and auxiliary supply paths, RFI filtering and reverse-polarity protection. It also provides a fused ancillary output and a six-terminal TB2 interface whose functions depend on the fitted Engineering Card option.
BEFORE YOU BUY
Confirm the complete system 57 dc input card
ACTUAL APPLICATIONS
Application context for 05701-A-0325
05701-A-0325 distributes DC power in compatible Honeywell System 57 racks. These fire and gas systems serve oil and gas, chemical processing and industrial production. The card supports separate primary and auxiliary sources; rack loading and the installed Engineering Card option determine the wiring arrangement.
-
01 · OIL & GAS
Petroleum Production and Natural Gas Processing
Petroleum Refining and ProcessingNatural Gas Production -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Petrochemical Production
Industrial Chemical ProductionPetrochemical Production and Processing -
03 · INDUSTRIAL PRODUCTION
Industrial Manufacturing and Energy Production
Industrial Process ManufacturingIndustrial Energy Production
Technical specifications for 05701-A-0325
-
Product Model05701-A-0325
-
Product ParametersSystem 57 DC Input Card
-
In stock7 units
-
ManufacturerHoneywell
-
Nominal DC supply24 V DC
-
Permitted DC supply range18 to 32 V DC
-
Power terminal blockTB1, 12 terminals
-
Engineering-option interfaceTB2, 6 terminals
-
Fuse rating10 A anti-surge
-
Field terminal conductor capacity2.5 mm² (14 AWG)
-
Primary supply input terminalsTB1: 12 (+24 V), 11 (0 V)
-
Auxiliary supply input terminalsTB1: 8 (+24 V), 7 (0 V)
-
Primary supply through terminalsTB1: 10 (+24 V), 9 (0 V)
-
Auxiliary supply through terminalsTB1: 6 (+24 V), 5 (0 V)
-
Fused ancillary output terminalsTB1: 4 (+24 V), 3 (0 V)
-
Earth terminalsTB1: 2 and 1
-
Supply-path isolationDiodes between PSU and AUX paths
-
Polarity protectionReverse-polarity protection
-
Interference protectionRFI filtering
View all additional
Alternative Names
05701-A-0325
System 57 System 57 DC Input Card
05701-A-0325 rack DC power entry card
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 05701-A-0325 system 57 dc input card
05701-A-0325 supplies the Engineering Card and backplane of a compatible System 57 rack. Identify the rack version and fitted Engineering Card option before allocating TB1 and TB2 wiring.
Use an 18–32 V DC source within the complete rack power budget. TB1 provides diode-isolated primary and auxiliary paths, through-wiring pairs and a fused ancillary output.
Check source compatibility, protective earth, polarity, fuse coordination and ancillary loading. Validate the optional TB2 interface against the option-specific Honeywell instructions.
Features:
- 18–32 V DC rack power entry
- Diode-isolated primary and auxiliary supply paths
- Option-dependent six-terminal TB2 interface
The 05701-A-0325 system 57 dc input card requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 05701-A-0325 system 57 dc input card
Compare the full 05701-A-0325 identity and the installed System 57 rack. Do not select an analog-input card based on a generic third-party description.
Record primary and auxiliary wiring, through connections, the fuse and the Engineering Card option. Retain the applicable wiring map and earth connections.
After fitting, confirm correct power distribution and the configured standby arrangement. Verify Engineering Card operation and any TB2 option interface before returning the rack to service.
Features:
- Exact System 57 DC card and rack identity
- Preserved TB1 source, earth and ancillary wiring
- Fuse and Engineering Card option comparison
The 05701-A-0325 system 57 dc input card requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Honeywell MAN0443 DC input card section
- TB1/TB2 terminal allocation and supply diagram
- 10 A anti-surge fuse and conductor capacity
Documentation for the 05701-A-0325 system 57 dc input card must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size11.2 × 2.5 × 10.2cm
-
Shipping weight0.13kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 05701-A-0325
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does 05701-A-0325 measure an analog DC input signal?
No. Honeywell identifies it as the System 57 DC power-input card. Its purpose is rack power entry and distribution, not analog signal conversion. -
What DC range may be applied to this System 57 card?
Section 5.7 specifies 18–32 V DC, with a nominal 24 V supply. Verify polarity and the complete system power budget. -
Why are PSU and AUX supply pairs provided?
The two paths permit a main DC source and an auxiliary or standby source. Diodes isolate the paths; the highest-voltage source normally supplies the load. -
Which terminals provide the fused ancillary supply?
TB1 terminals 4 and 3 provide the combined fused +24 V and 0 V output. The specified fuse is 10 A anti-surge. -
What does the six-terminal TB2 interface connect?
TB2 interfaces with supported Engineering Card optional modules. The terminal functions depend on the installed option, so use its specific documentation. -
Can source inputs be paralleled without checking their compatibility?
No. The manual requires PSU1/PSU2 and AUX1/AUX2 to be compatible with parallel connection. Verify the source arrangement and power budget. -
What information is needed to source the DC input card?
Provide 05701-A-0325, the System 57 rack identity, Engineering Card option, power-source arrangement, label photographs and quantity. -
Which parts should be inspected on receipt of 05701-A-0325?
Check the exact card label, TB1 and TB2 connectors, fuse holder, PCB condition and signs of handling damage. Compare the installed rack wiring before fitting.
