PRODUCT DESCRIPTION

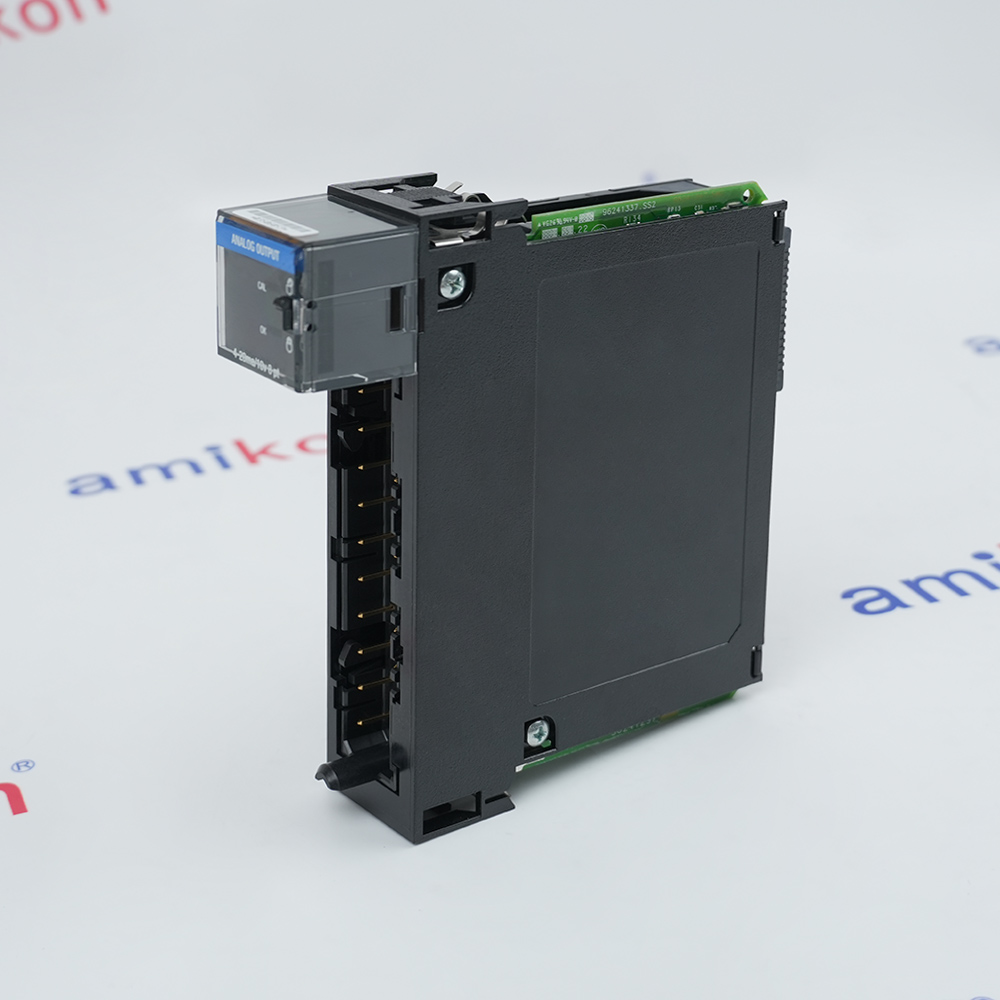

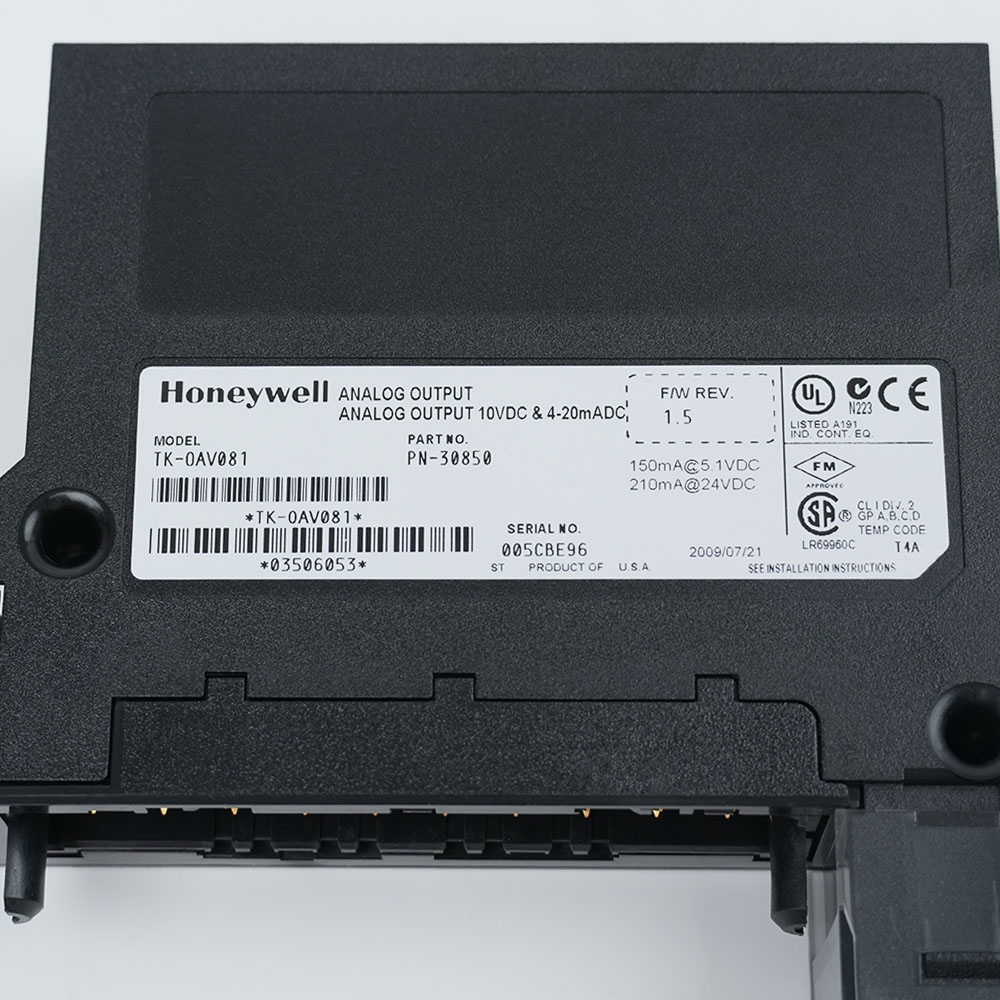

TK-OAV081 Eight channel analog output module
Honeywell TK-OAV081 is a conformally coated eight channel analog output module for Experion LS I/O installations. Its nonisolated channels deliver either bipolar voltage signals up to plus or minus 10.4 V or current signals up to 21 mA, providing the controller with direct interfaces for compatible actuators, positioners, converters, and indication equipment.
The module updates its channels every 25 ms and settles to 95 percent of a commanded value in less than 2 ms. Documented load limits, current limiting, accuracy, power dissipation, isolation testing, and the TC-TBNH terminal assembly must be considered together when assigning field devices and engineering each output loop.
The module updates its channels every 25 ms and settles to 95 percent of a commanded value in less than 2 ms. Documented load limits, current limiting, accuracy, power dissipation, isolation testing, and the TC-TBNH terminal assembly must be considered together when assigning field devices and engineering each output loop.
BEFORE YOU BUY
Confirm the complete Eight channel analog output module
ACTUAL APPLICATIONS
Application fields for TK-OAV081
TK-OAV081 is used across compatible installations in the following broad industrial application fields, subject to verified system design and operating requirements.
-
01 · OIL & GAS
Petroleum Production and Natural Gas Processing
Upstream and downstream petroleum productionNatural gas processing and transmission -
02 · CHEMICAL PROCESSING
Chemical and Petrochemical Manufacturing
Industrial chemical productionPetrochemical production and processing -
03 · POWER GENERATION
Thermal, Hydroelectric and Renewable Power Generation
Thermal and hydroelectric power productionRenewable generation and energy integration
Technical specifications for TK-OAV081
-
Product ModelTK-OAV081
-
Product ParametersEight channel analog output module
-
In stock1 unit
-
ManufacturerHoneywell
-
Analog outputs8
-
Output isolationNonisolated channels
-
Voltage range±10.4 V
-
Current range0 to 21 mA
-
Voltage resolution320 µV
-
Current resolution650 nA
-
Current limiting21 mA maximum
-
Voltage loadGreater than 2000 Ω
-
Current load0 to 750 Ω
-
Accuracy at 25 °CBetter than 0.05 percent
-
Channel update25 ms
-
Settling timeLess than 2 ms to 95 percent
-
Power dissipation6.9 W
-
Isolation test2550 V DC for 1 second
-
Terminal blockTC-TBNH, 20 position
View all additional
Alternative Names
Honeywell Experion LS I/O
Eight channel analog output module
Honeywell Eight channel analog output module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate TK-OAV081 Eight channel analog output module
Install TK-OAV081 in a documented Experion LS I/O assembly with the compatible TC-TBNH terminal block and controller hardware definition. Configure each channel for its assigned voltage or current signal and confirm the connected load remains within the applicable impedance range.
Maintain the common reference and shielding required by the nonisolated channel design and separate analog cables from power conductors. Controller scaling, output limits, fallback behavior, and engineering units must correspond to each actuator or converter connected to the eight output circuits.
After configuration, command traceable values across every used channel and measure the resulting current or voltage at the terminal block. Verify polarity, scaling, settling, load response, diagnostics, and actuator direction before returning the affected process loops to automatic control.
Features:
- Exact identity: TK-OAV081
- Family: Honeywell Experion LS I/O
- Documented integration and testing
TK-OAV081 requires documented system integration before energising the installation.
INTERCHANGEABILITY
Verify TK-OAV081 before replacement
Match TK-OAV081 in full because Honeywell analog output modules can differ in channel count, isolation, range, terminal block, coating, and controller family. Confirm the Experion LS hardware definition, TC-TBNH termination, and connected load requirements before replacement.
Record channel mode, output scaling, fallback value, field common, shield, terminal number, and actuator assignment before removal. Label all eight circuits and isolate process devices as required so the replacement reconnects to the same configured output path.
Following replacement, review module diagnostics and test each connected channel with calibrated measurement equipment. Confirm the 25 ms update behavior, correct current or voltage range, actuator direction, and controller response before restoring normal process control.
Features:
- Match TK-OAV081 exactly
- Record connections and settings before removal
- Complete controlled post-installation tests
TK-OAV081 requires replacement verification against the installed hardware and configuration.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Match documents to the complete product identity
- Use the applicable manufacturer family instructions
- Additional documents are supplied only when quoted
Documentation for TK-OAV081 must be checked against the installed configuration before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product size3.5 × 14.2 × 14.5 cm
-
Net weight0.20 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about TK-OAV081
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is TK-OAV081?
TK-OAV081 is a Eight channel analog output module for the Honeywell Experion LS I/O. -
Which identity must be used when ordering TK-OAV081?
Use the complete TK-OAV081 marking and compare it with the installed label and project records. -
Can a similar family item replace TK-OAV081?
Do not confirm substitution from a family name or similar appearance. Verify the complete code, interfaces, revision and approved configuration. -
What should be recorded before removing TK-OAV081?
Record the installed position, connections, cable labels, settings and diagnostic state. -
What should be inspected when TK-OAV081 arrives?
Inspect the label, housing, connectors, terminals and packaging for correct identity and condition. -
Which checks follow installation?
Restore the approved configuration and complete controlled power-up, diagnostic and functional tests. -
What information should accompany a quotation?
Provide the complete model, quantity, clear label photographs, destination and required delivery date. -
Which documentation applies?
Use the manufacturer documentation for Honeywell Experion LS I/O and confirm that its scope covers the installed configuration.
