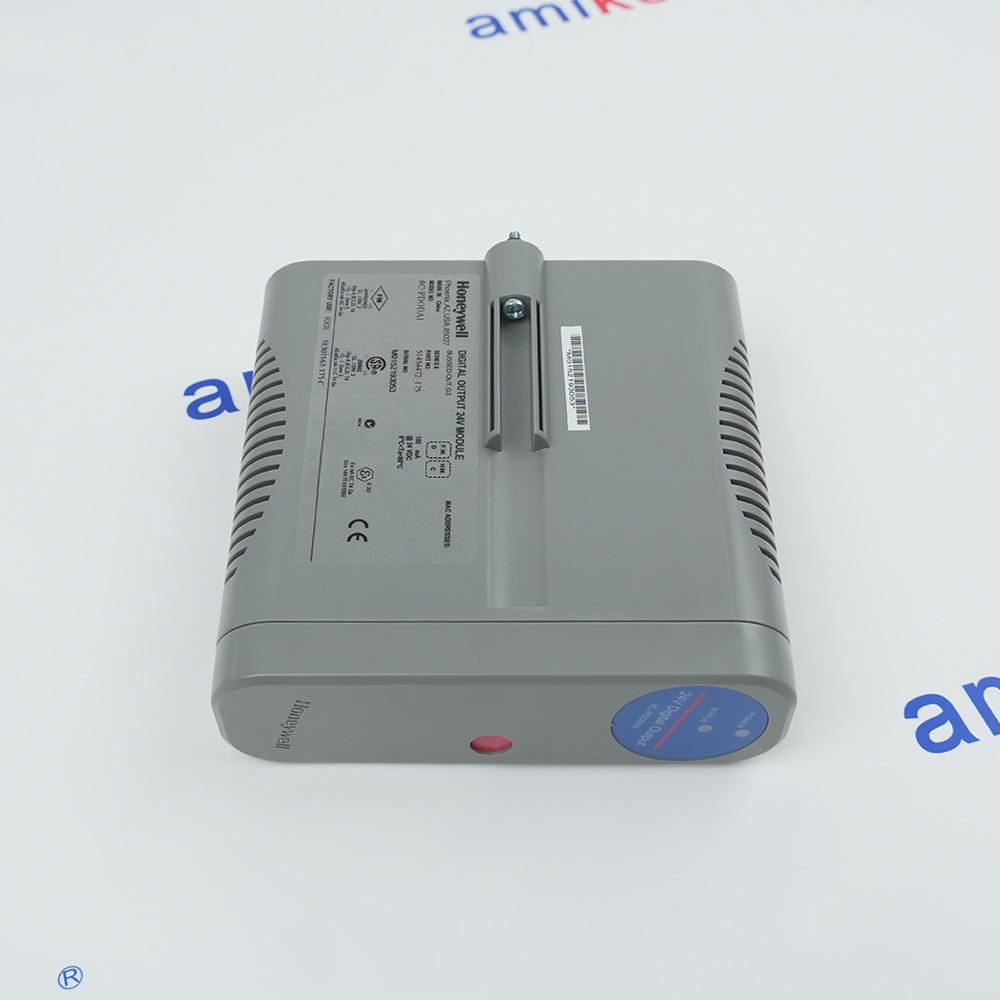

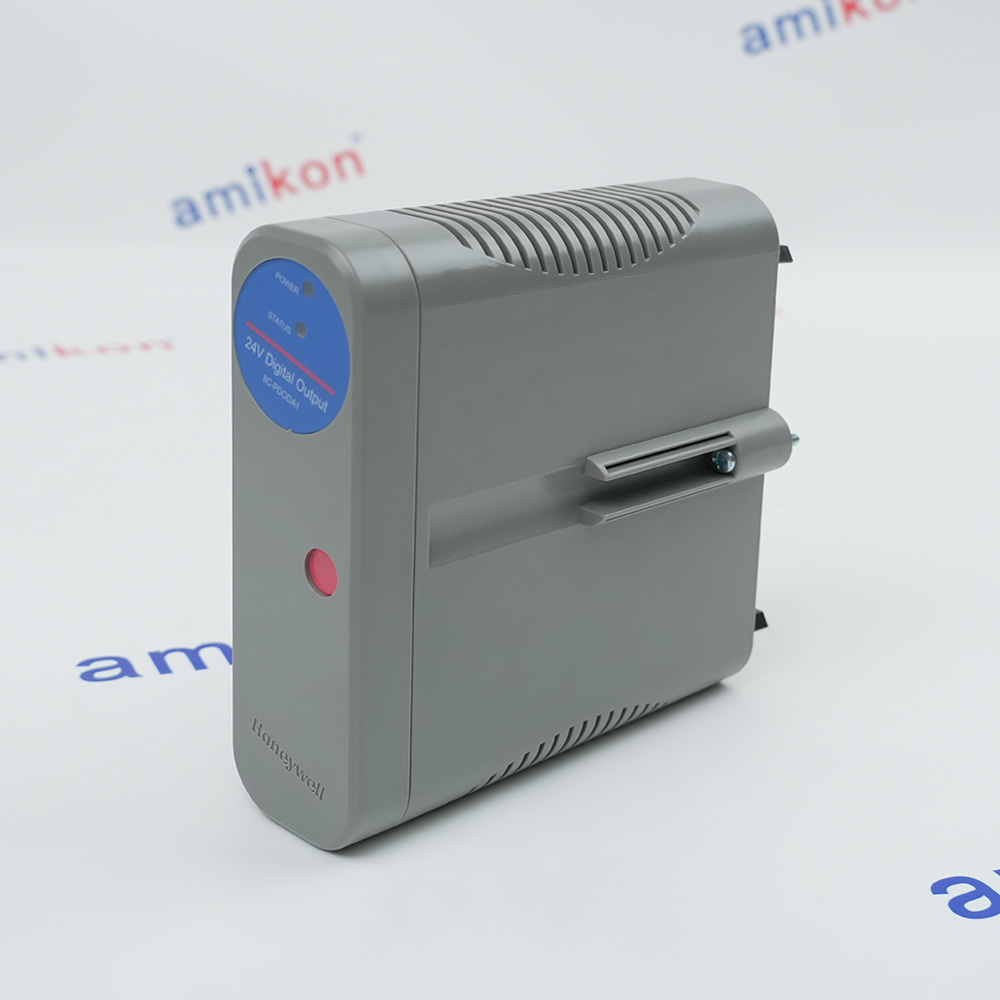

- 8C-PDODA1 51454472-175
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8C-PDODA1 51454472-175
-
Product Model8C-PDODA1 51454472-175
-
Spare Model51454472-175
-
Product ParametersDigital Output 24 VDC, Field Isolated, Bussedoutput, Coated
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.1x15.3x14.4cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
Output Channels32
-
Voltage Rating24 VDC
-
Module current rating105mA
-
OperatingTemperature0 to 60 ℃
-
Storage temperature-40 to 85 ℃
-
Load Voltage30 VDC Maximum
-
On-State Voltage24 VDC (typ)
-
Off-State Leak Current5 µA (max)
-
Turn-On/Turn-Off Time10 ms (max)
Description
The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussedoutput device, all of the outputs share a common return (ground). All outputs get their power from the same source,which can be either the system power supply or an externally connected 24V power supply. When selection is from anexternal source, outputs can be galvanically isolated from the Series 8 power system. A wiring option on the IOTAdetermines if outputs are referenced to the Series 8 system power or an external field power source
Alternative Names
8C-PDODA1
8C PD0DA1
5I454472 175
8C-PDODAI
8C-PD0DAI
Information
Overview
Manuals
Redundancy & High Availability
Product Applications
Physical Mounting into the Rack
Features:
- 32-Point Current Sinking Digital Output
- Bussed 24VDC Output with Common Return
- Configurable FAILOPT Safe-State Behavior per Channel
- Multiple Output Modes: Latched, Pulsed, or Pulse-Width Modulated
- Extensive Internal Diagnostics for Data Integrity
The 8C-PDODA1 51454472-175 Honeywell Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-PDODA1 51454472-175 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Single-Point Failure Risks: If a single SPIIT13 fails, communication between the separate INFI-NET rings drops instantly. For critical 24/7 continuous processes (like power plant turbines), engineers must deploy redundant transfer modules using companion termination units designed to failover seamlessly.
Isolation Boundaries: Ensure that electrical noise, ground loops, or localized power surges on one network loop cannot cross through the transfer module backplane to damage the adjacent ring infrastructure.
- Power Generation Plants:Turbine/substation/DCS data routing
- Chemical Processing Facilities:Fail-safe telemetry for hazardous/non-hazardous areas
- Oil and Gas Refineries:Pipeline, subsystem data & ESD integration
- Pulp and Paper Mills:Wet/dry end comms prevents downtime
- Water Treatment Stations:Local PLCs to master for distribution tracking
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Align Guide Rails: Align the top and bottom card edges of the SPIIT13 module carefully with the plastic guide rails of the designated slot in the module mounting unit (MMU).
Firm Seat Placement: Gently push the module back into the slot until the rear circuit card connectors firmly mate with the backplane or multi-bus plate assembly.
Secure Fasteners: Tighten the faceplate captive screws by hand or with an insulated screwdriver to lock the module into the chassis frame and establish an integrated chassis ground.
Technical notes
Series 8 DO module will support FAILOPT parameter on a per channel basis. The output can be directed byconfiguration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured bythe user.
