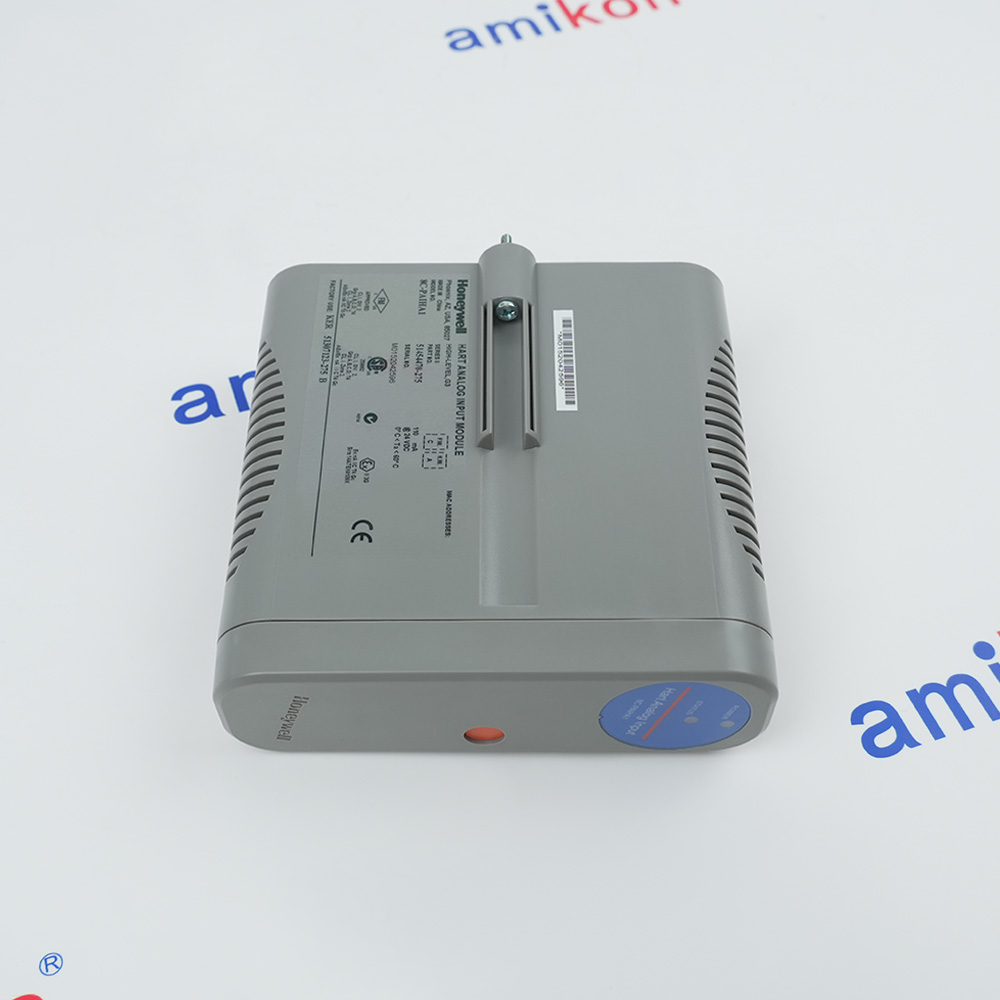

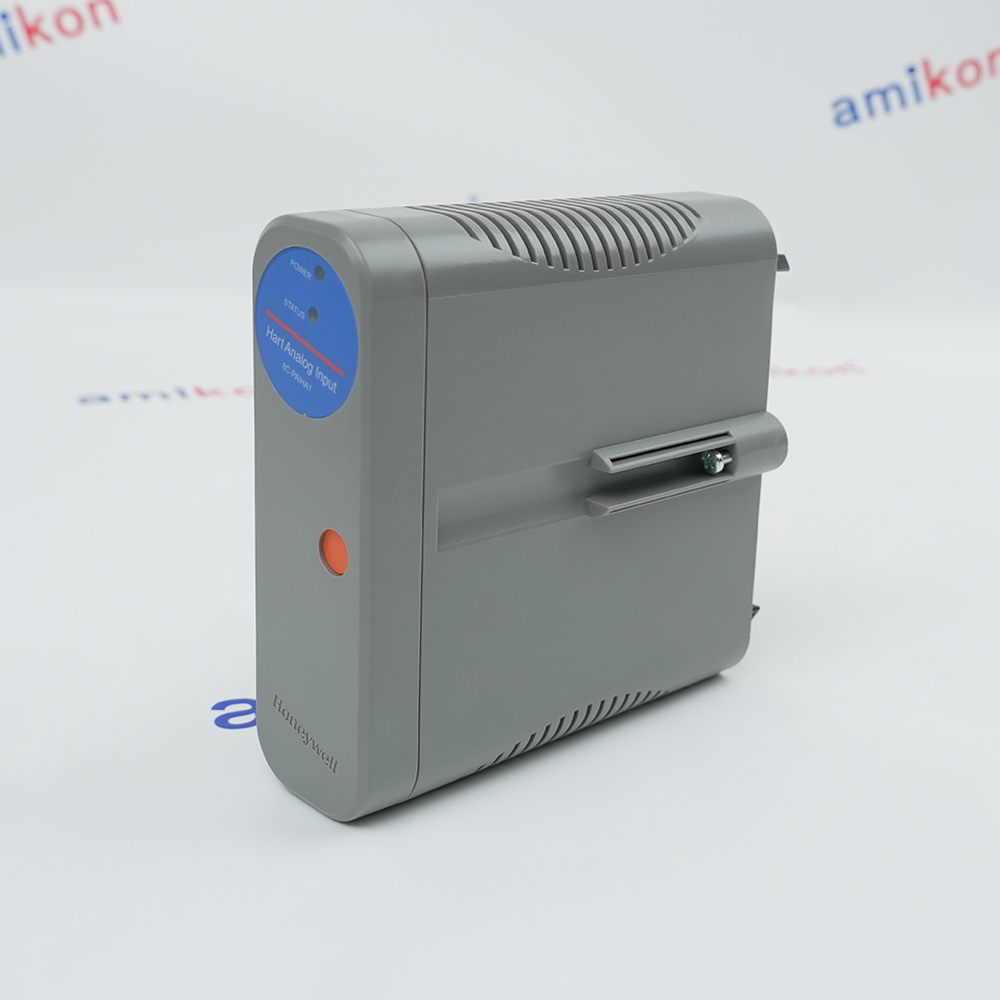

- 8C-PAIHA1 51454470-275
In Stock
Ships by Tuesday, June 9
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8C-PAIHA1 51454470-275
-
Product Model8C-PAIHA1 51454470-275
-
Spare Model51454470-275
-
Product ParametersAnalog Input with HART – Single Ended
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x15.6x14.3cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
Input Typecurrent
-
Input Channels16 Channels
-
A/D Converter Resolution16 bits
-
Voltage Rating24 VDC
-
Module current rating110 mA
-
Input Range4-20 mA (through 250 Ω)
-
Normal Mode Rejection Ratio, at 60 Hz19 dB
-
Input Scan Rate50 ms
Description
The Honeywell 8C-PAIHA1 is an Analog Input with HART – Single Ended module in the Honeywell Series 8 I/O family. The Honeywell 8C-PAIHA1 accepts current inputs from transmitters and sensing devices. The Honeywell 8C-PAIHA1 is a coated module, indicated by the "8C" prefix in the model number, with conformal coating applied to electronic circuitry for protection against moisture, dust, chemicals, and temperature extremes.
The Honeywell 8C-PAIHA1 supports analog inputs which are typically 4-20 mA DC inputs for traditional devices such as transmitters. The Honeywell 8C-PAIHA1 also supports HART inputs. Analog inputs on the Honeywell 8C-PAIHA1 are typically 4-20 mA DC for both traditional and HART devices. HART data on the Honeywell 8C-PAIHA1 can be used for status and configuration. HART data such as the secondary and tertiary variables on the Honeywell 8C-PAIHA1 can also be used as process control variables.
The Honeywell 8C-PAIHA1 supports analog inputs which are typically 4-20 mA DC inputs for traditional devices such as transmitters. The Honeywell 8C-PAIHA1 also supports HART inputs. Analog inputs on the Honeywell 8C-PAIHA1 are typically 4-20 mA DC for both traditional and HART devices. HART data on the Honeywell 8C-PAIHA1 can be used for status and configuration. HART data such as the secondary and tertiary variables on the Honeywell 8C-PAIHA1 can also be used as process control variables.
Alternative Names
8C PAIHA1
8C-PAIHAI
51454470 275
5145447O-275
5I454470-275
8C PAI1HAI
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mounting and Hardware Setup
Features:
- Extensive self diagnostics
- Optional redundancy
- HART-capable
- Fast loop scan
- Internal or external field power selection
The Honeywell 8C-PAIHA1 uses two-level detachable terminals for landing the field wiring in the enclosure. These terminals on the Honeywell 8C-PAIHA1 provide easier plant installation and maintenance. The Honeywell 8C-PAIHA1 is mounted vertically, allowing for more effective wiring since most field wiring applications require entry from the top or bottom of the systems cabinet.
The 8C-PAIHA1 51454470-275 Honeywell Analog Input with HART – Single Ended may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-PAIHA1 51454470-275 Analog Input with HART – Single Ended Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell 8C-PAIHA1 supports internal or external field power selection. The Honeywell 8C-PAIHA1 has on-board excitation power. No marshalling power is needed for the Honeywell 8C-PAIHA1. The Honeywell 8C-PAIHA1 features galvanic isolation.
The Honeywell 8C-PAIHA1 plugs into the Input Output Termination Assembly (IOTA). The IOTA for the Honeywell 8C-PAIHA1 holds the module and the connections for field wiring. The Honeywell 8C-PAIHA1 receives power from the IOTA. Field power for the Honeywell 8C-PAIHA1 is supplied through the IOTA, with no need for extra power supplies to power the field devices and the associated craft wired marshalling.
- Power Generation Plants:Turbine/substation/DCS data routing
- Chemical Processing Facilities:Fail-safe telemetry for hazardous/non-hazardous areas
- Oil and Gas Refineries:Pipeline, subsystem data & ESD integration
- Pulp and Paper Mills:Wet/dry end comms prevents downtime
- Water Treatment Stations:Local PLCs to master for distribution tracking
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
IOTA Matching: Mount the module onto its corresponding IOTA block (such as the Honeywell 8C-TAIXA1 non-redundant assembly).
DIN Rail Installation: Secure the assembly onto a standard industrial DIN rail within a certified Series 8 Cabinet.
Hot-Swapping: The hardware supports hot-swapping under power. You can insert or remove the module without killing system power if necessary.
Technical notes
The Honeywell 8C-PAIHA1 incorporates extensive self-diagnostics. The Honeywell 8C-PAIHA1 supports optional redundancy. Redundancy for the Honeywell 8C-PAIHA1 is accomplished directly on the IOTA without any external cabling or redundancy control devices, by simply adding a second IOM to an IOTA. The Honeywell 8C-PAIHA1 provides fast loop scan capability.
FAQs
-
What is the 8C-PAIHA1 (51454470-275) ?
+The Honeywell 8C-PAIHA1 (51454470-275) is an analog input module with HART communication, for the Experion PKS Series 8 Distributed Control System (DCS). -
Does the module support HART protocol?
+Yes. The module supports HART communication, allowing for remote device configuration, calibration, and continuous diagnostic monitoring directly through the DCS. -
How many input channels are available?
+The unit contains 16 single-ended channels. -
What are its power requirements?
+The unit runs on a standard 24 VDC voltage rating and draws a current of 110 mA.
