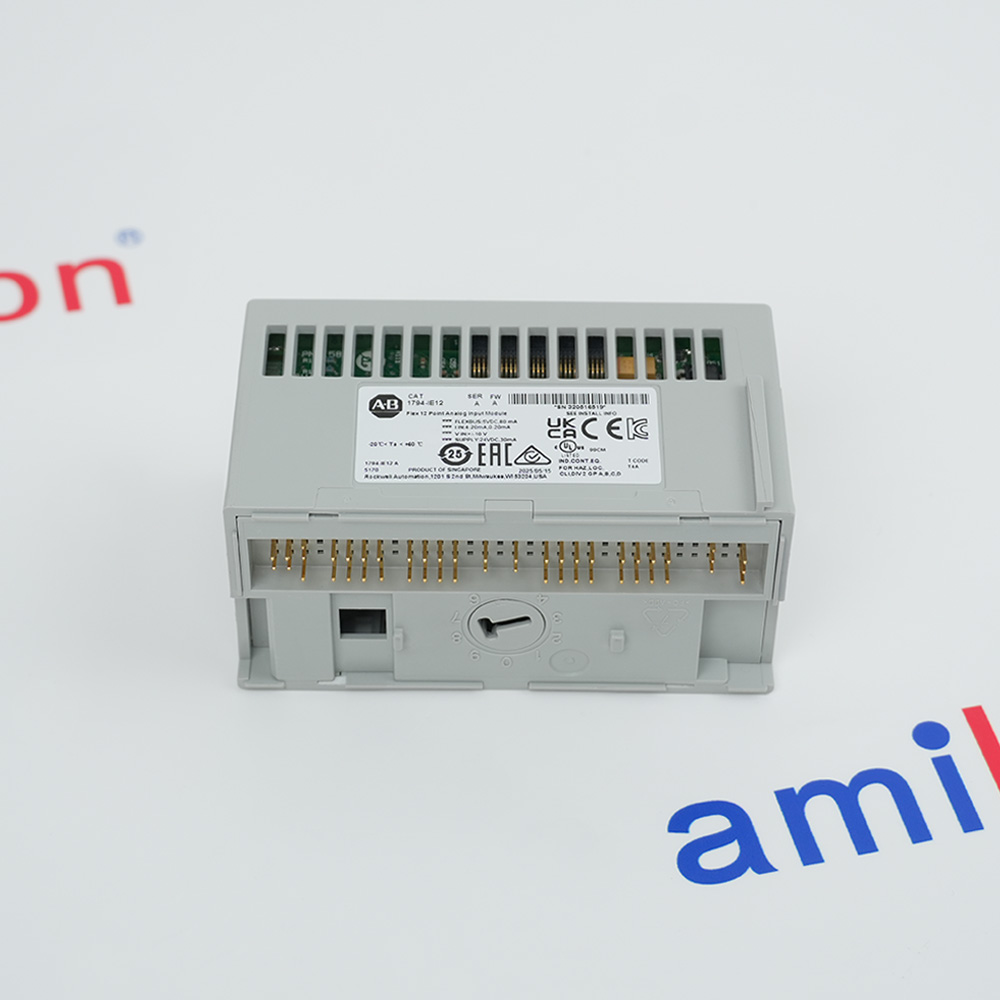

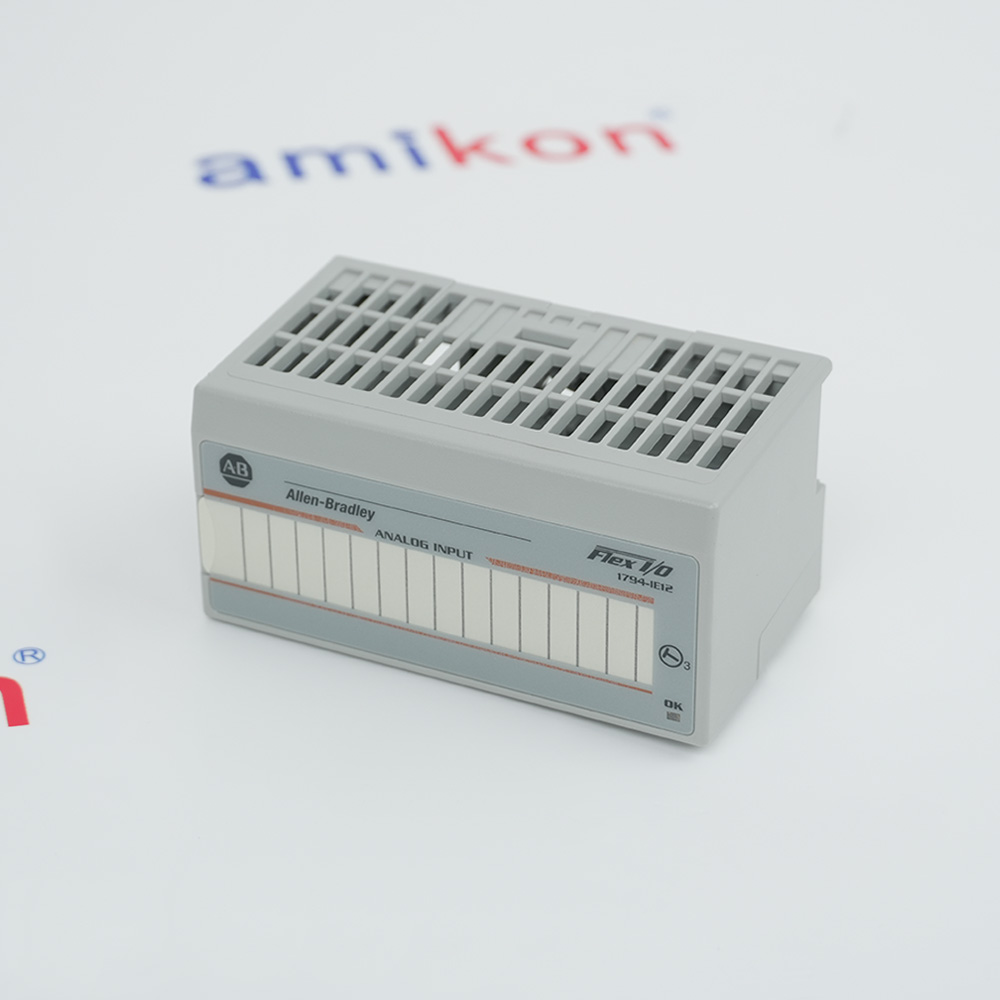

1794-IE12
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
1794IE12
INPUT MODULE
FLEX I/O
IP20
ANALOG
CURRENT OR VOLTAGE
12 CHANNEL
SINGLE ENDED INPUT
OPEN STYLE
DIN MOUNT
INPUT MODULE
FLEX I/O
IP20
ANALOG
CURRENT OR VOLTAGE
12 CHANNEL
SINGLE ENDED INPUT
OPEN STYLE
DIN MOUNT
Technical specifications for 1794-IE12
-
Product Model1794-IE12
-
Spare Model1794IE12
-
Product ParametersINPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.2x5.4x4.8cm
-
ManufacturerAllen-Bradley
-
Weight0.1 kg
-
Number of inputs12 single-ended, nonisolated from channel to channel
-
Input resolution16 bits
-
Voltage terminal320 µV/cnt
-
Current terminal0.641 µA/cnt
-
Data format Left-justified16-bit
-
Input conversion rate8.0 ms all channels
-
Input voltage terminal+10V
-
Specification4…20 mA
-
Certification0…20 mA
-
Voltage overload, max30V continuous, one channel at a time
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 1794-IE12?+The Allen-Bradley 1794-IE12 is a 12-channel high-density analog input module used in the FLEX I/O platform.
-
Is it hot-swappable?+Yes, the 1794-IE12 supports hot-swapping, allowing replacement while the system is powered.
-
What signal ranges are supported?+The module supports three main signal types: 0-20 mA, 4-20 mA, and +/- 10V DC (though some software versions may lack specific 0-10V configurations)
-
Can I configure channels individually?+No. Channels on the 1794-IE12 are configured in pairs (e.g., 0 and 1, 2 and 3) rather than independently.
Get a quick price fo 1794-IE12
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Mounting Steps
Features:
- High-Density 12-Channel Design
- Selectable Input Ranges
- High-Resolution Conversion
- Removal and Insertion Under Power (RIUP)
- Configurable Digital Filtering
The 1794-IE12 Allen-Bradley INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1794-IE12 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Designed for precision and reliability, the 1794-IE12 utilizes advanced circuitry to maintain signal accuracy across its wide operating temperature range. Each channel is individually configurable via software, allowing engineers to mix voltage and current signals on the same module. The module also features a robust isolation barrier between the field-side signals and the system backplane, protecting the controller from ground loops and electrical transients common in heavy industrial settings.
- Packaging & Bottling Lines:Flow meters for filling; temp sensors for sealing
- Assembly Automation Systems:Torque/vibration/temp data for auto/electronics assembly
- Fluid Handling & Chemical Dosing Systems:pH & flow monitoring for water/pharma plants
- Remote Wellhead Equipment:Pressure & flow analog signals from remote oil/gas sites
- Industrial HVAC Units:Analog inputs for large-scale climate control machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Set the Keyswitch: On your 1794-TB3G or 1794-TB3GS terminal base, rotate the keyswitch clockwise to position 3 specifically for the 1794-IE12.
Align Connectors: Ensure the FLEXBus connector is pushed fully to the left to link with the adjacent adapter or base. Check that the pins on the bottom of the module are straight.
Seat the Module: Align the module's alignment bar with the groove on the terminal base and press down firmly until the latching mechanism clicks into place.
