AMIKONG EXCESS CONTROL SYSTEM PARTS
Specializing In:Automation Spares(DCS, PLC, CNC) Servo Drives HMI Power supplies Controllers
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
In Stock
Ships by Friday, August 7
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 1761-L16BWB
-
Product Model1761-L16BWB
-
Product ParametersMicroLogix 1000 series controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12x8x4cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
Input Type24V dc
-
I/O Count16 points
-
Digital Outputs6 Contact Outputs
-
Input Voltage Type14 - 30V dc
-
Operating Frequency47-63 Hz
-
Input Power5W
Description

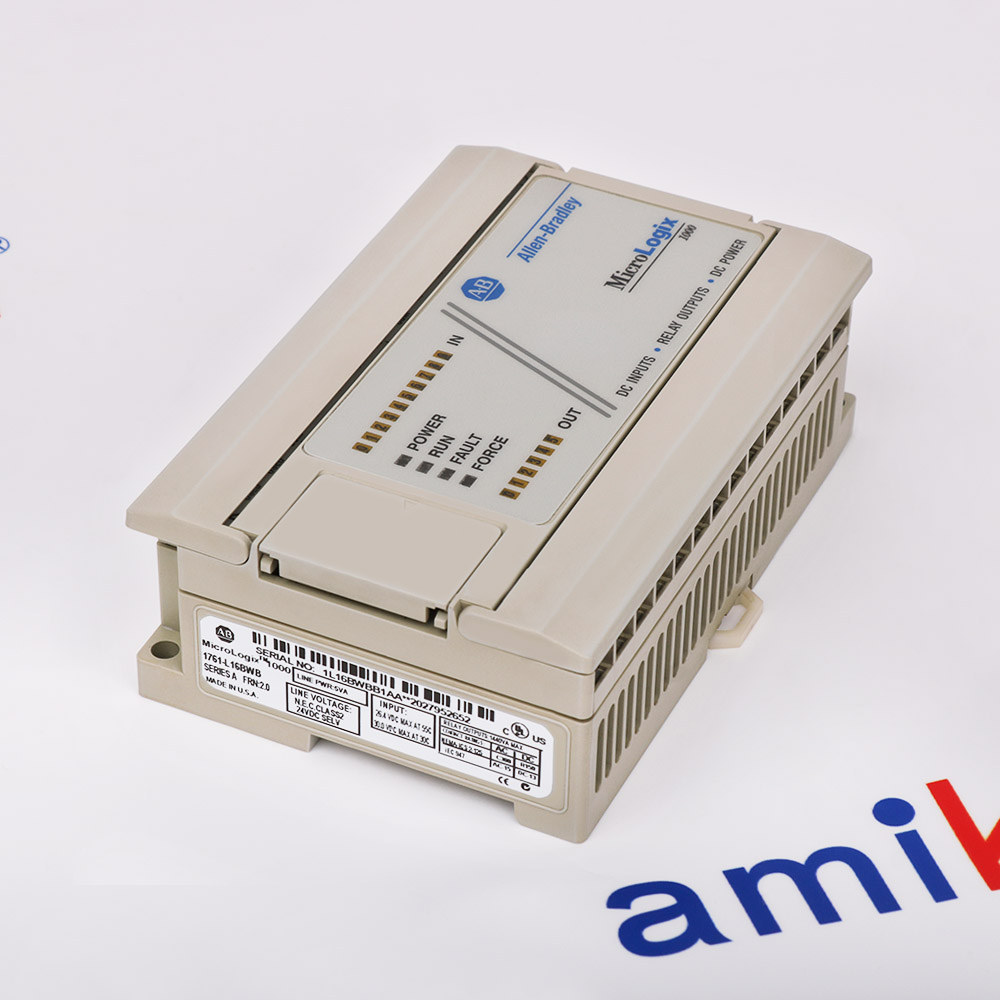

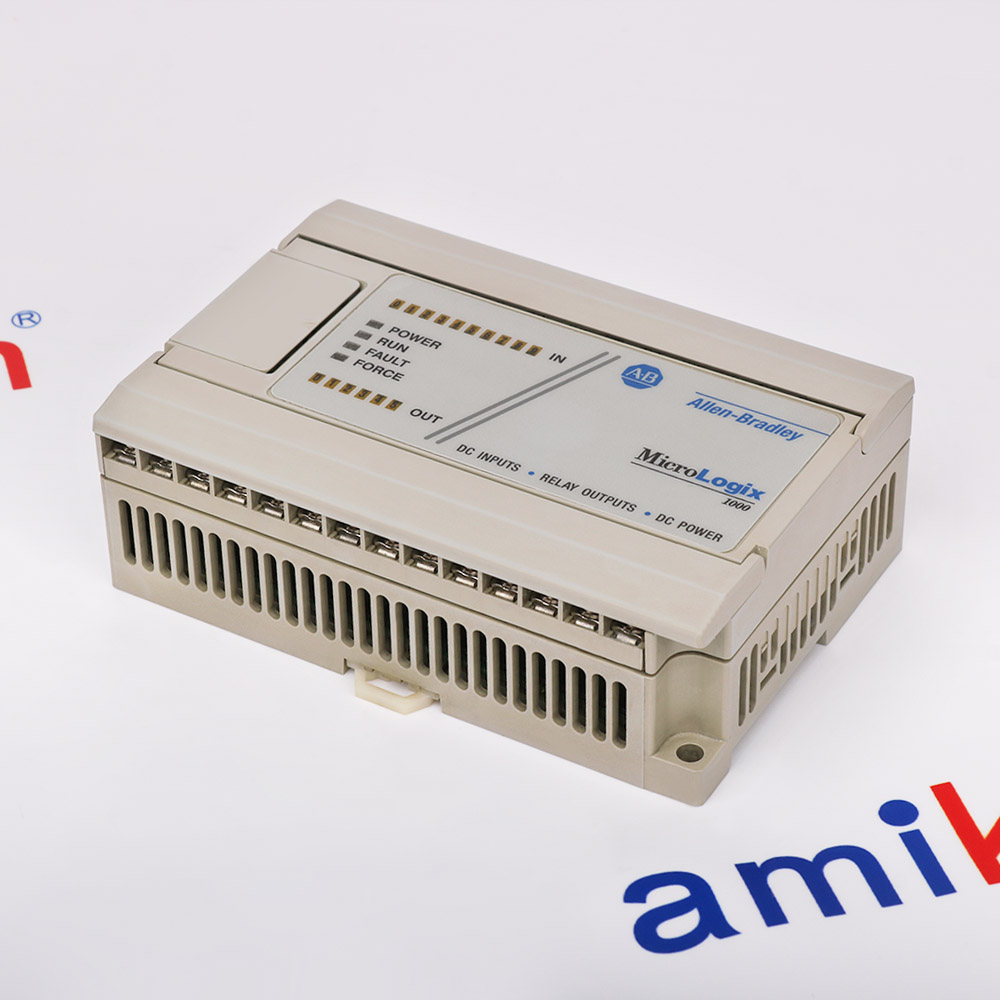

The Allen-Bradley 1761-L16BWB is a MicroLogix 1000 Programmable Controller designed for compact automation applications requiring discrete I/O control. The 1761-L16BWB is part of the Bulletin 1761 controller family, providing a packaged controller containing a power supply, input circuits, output circuits, and a processor in a single compact unit.
The Allen-Bradley 1761-L16BWB features a 16-point I/O configuration with 10 DC inputs and 6 relay outputs. The 1761-L16BWB input circuits operate at 24V DC with a voltage range of 14 to 30V DC (14 to 26.4V DC at 55°C), and support both sinking and sourcing configurations. The 1761-L16BWB relay outputs operate over a range of 5 to 125V DC and 5 to 264V AC, with a continuous current rating of 2.0A per point at 24V DC and 2.5A at 120V AC / 240V AC.
The Allen-Bradley 1761-L16BWB operates from a 24V DC power supply with an acceptable voltage range of 20.4 to 26.4V DC. The 1761-L16BWB has a nominal power consumption of 10W and an inrush current of 30A for 4 ms. The 1761-L16BWB is designed for a minimum of 50,000 power cycles, ensuring reliable long-term operation
The Allen-Bradley 1761-L16BWB features a 16-point I/O configuration with 10 DC inputs and 6 relay outputs. The 1761-L16BWB input circuits operate at 24V DC with a voltage range of 14 to 30V DC (14 to 26.4V DC at 55°C), and support both sinking and sourcing configurations. The 1761-L16BWB relay outputs operate over a range of 5 to 125V DC and 5 to 264V AC, with a continuous current rating of 2.0A per point at 24V DC and 2.5A at 120V AC / 240V AC.
The Allen-Bradley 1761-L16BWB operates from a 24V DC power supply with an acceptable voltage range of 20.4 to 26.4V DC. The 1761-L16BWB has a nominal power consumption of 10W and an inrush current of 30A for 4 ms. The 1761-L16BWB is designed for a minimum of 50,000 power cycles, ensuring reliable long-term operation
Revisions
Revision Part #
Also known as
Alternative Names
1761-L168W8
1761L168W8
1761LI6BWB
I761L16BWB
I76ILI6BWB
1761-L168WB
1761L168WB
176I-L16BWB
I76I-LI68W8
1761-L16BW8
1761L16BW8
176IL16BWB
I76I-LI6BWB
1761-LI6BWB
1761L16BWB
I761-L16BWB
I76ILI68W8
Technical notes
The Allen-Bradley 1761-L16BWB supports high-speed counter operation on inputs 0-3 with a maximum frequency of 6.6 kHz at 50% duty cycle. The 1761-L16BWB allows configurable input filter settings with unique settings for each of the three input groups: inputs 0-1, inputs 2-3, and inputs 4-9. The 1761-L16BWB input filter settings range from 0.075 ms to 16 ms for high-speed inputs 0-3, and from 0.5 ms to 16 ms for standard inputs 4-9.
FAQs
-
What is the 1761-L16BWB?
+The Allen-Bradley 1761-L16BWB is a discontinued MicroLogix 1000 programmable logic controller featuring 16 discrete I/O points (10 inputs, 6 relay outputs), a 24V DC power supply, and an RS-232 communication port. -
What are the power requirements?
+This unit requires a 24V DC power supply (operating range 20.4 – 26.4V DC). You cannot use it interchangeably with "AWA" or "BWA" models, which require 120/240V AC power. -
What is the memory type and size?
+It features a 1K EEPROM memory, which translates to roughly 737 instruction words or 437 data words. The minimum number of power cycles rated for this memory is 50,000. -
What are the input and output ratings?
+Ten (10) 24V DC inputs (sinking or sourcing) and six (6) relay outputs rated for 0–125V DC or 0–240V AC
