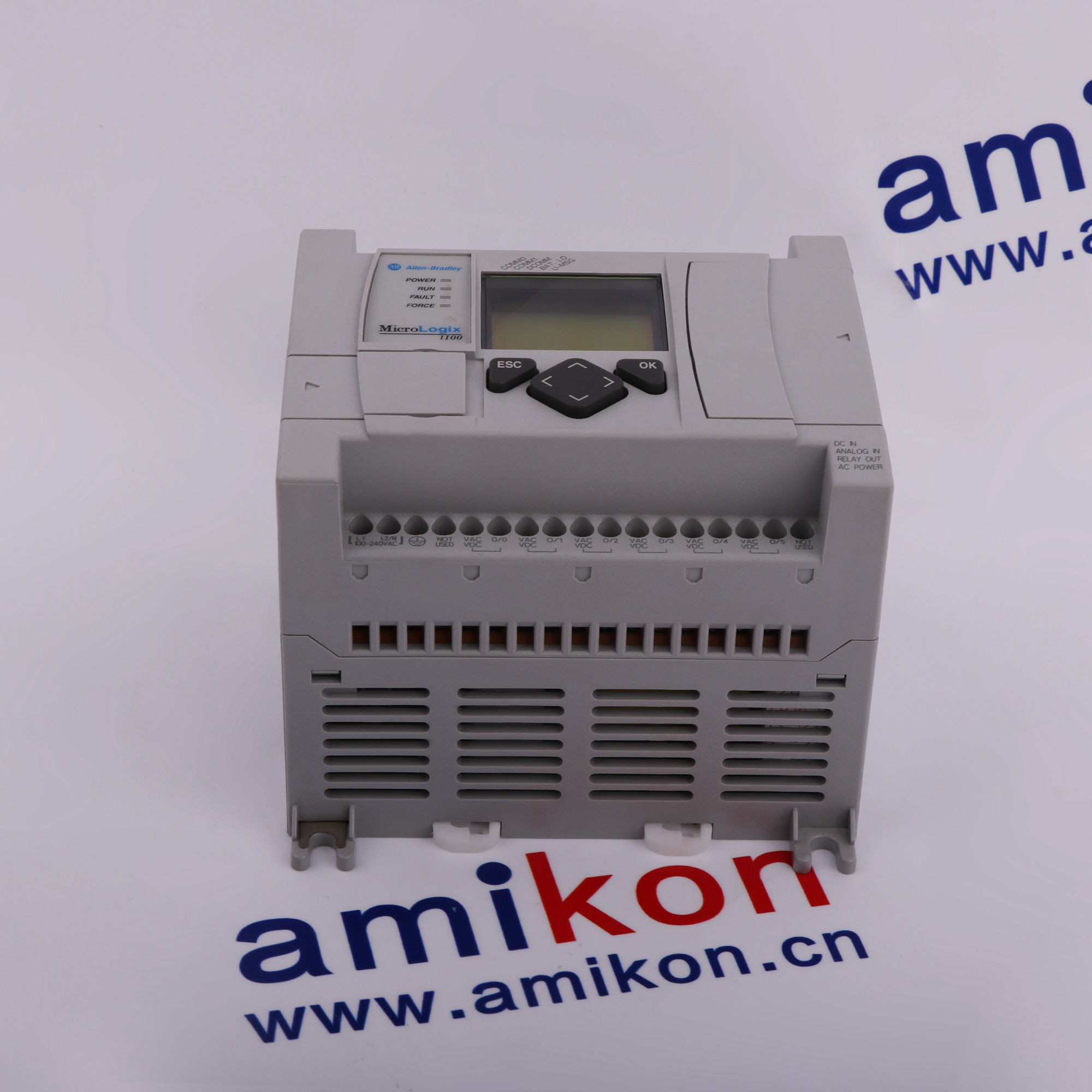

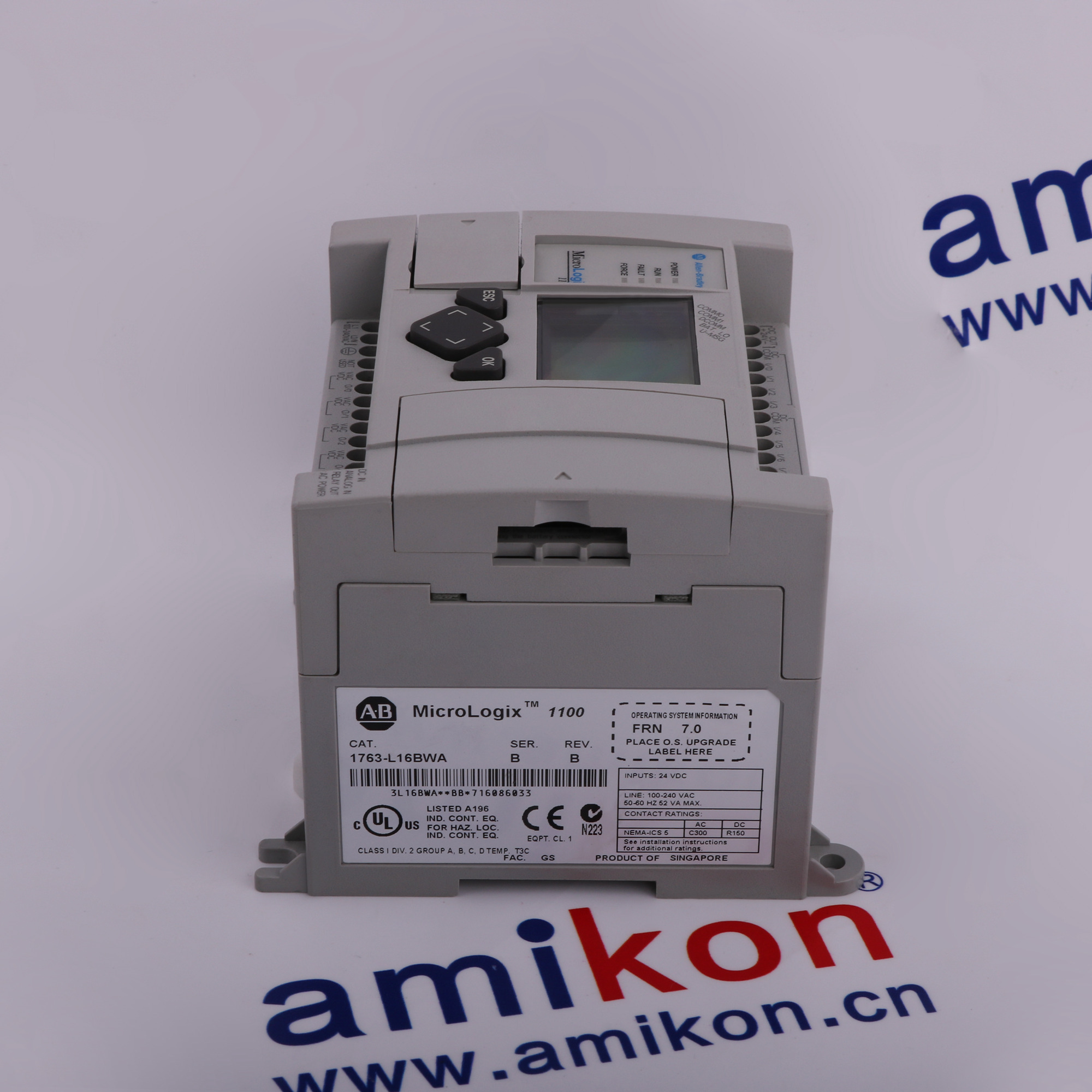

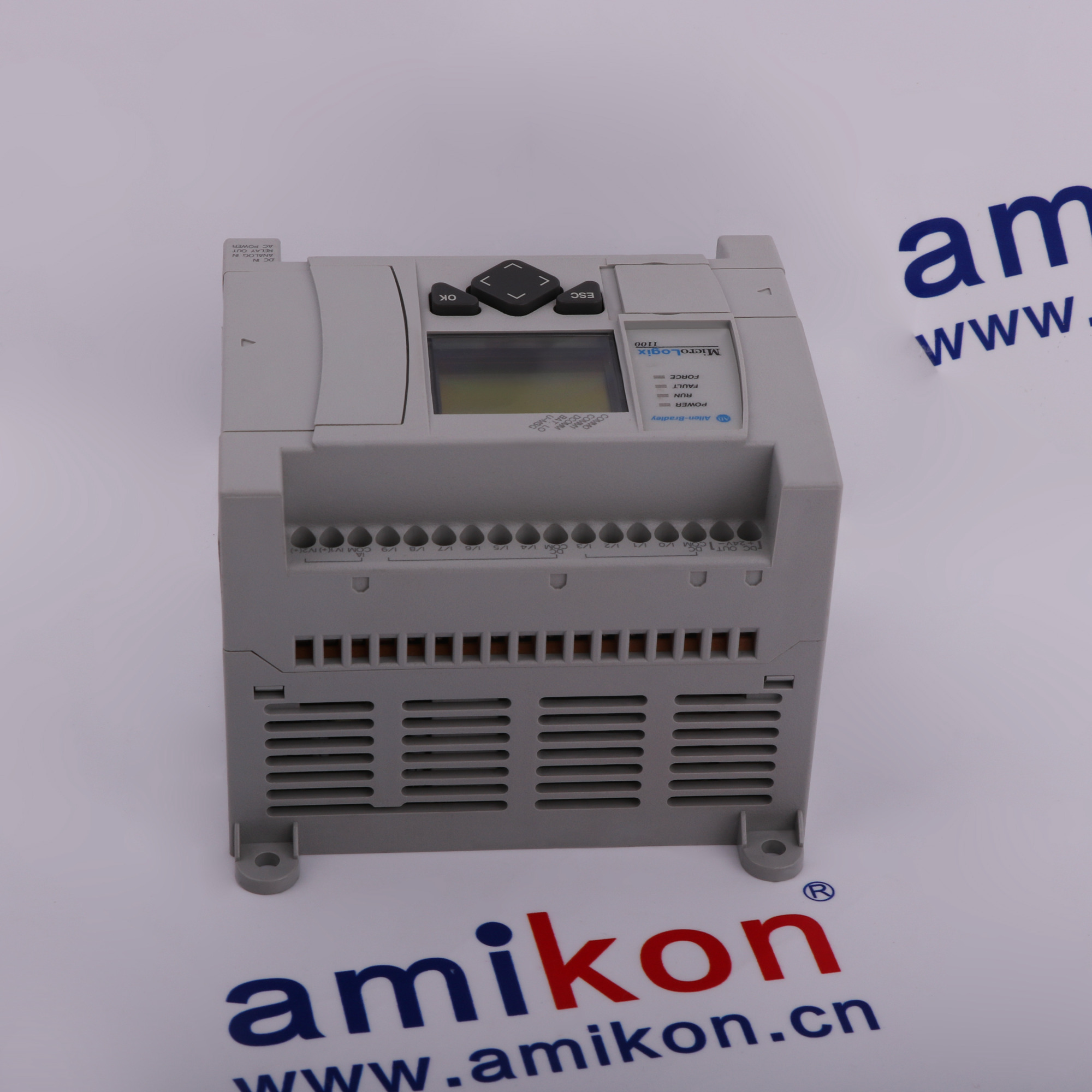

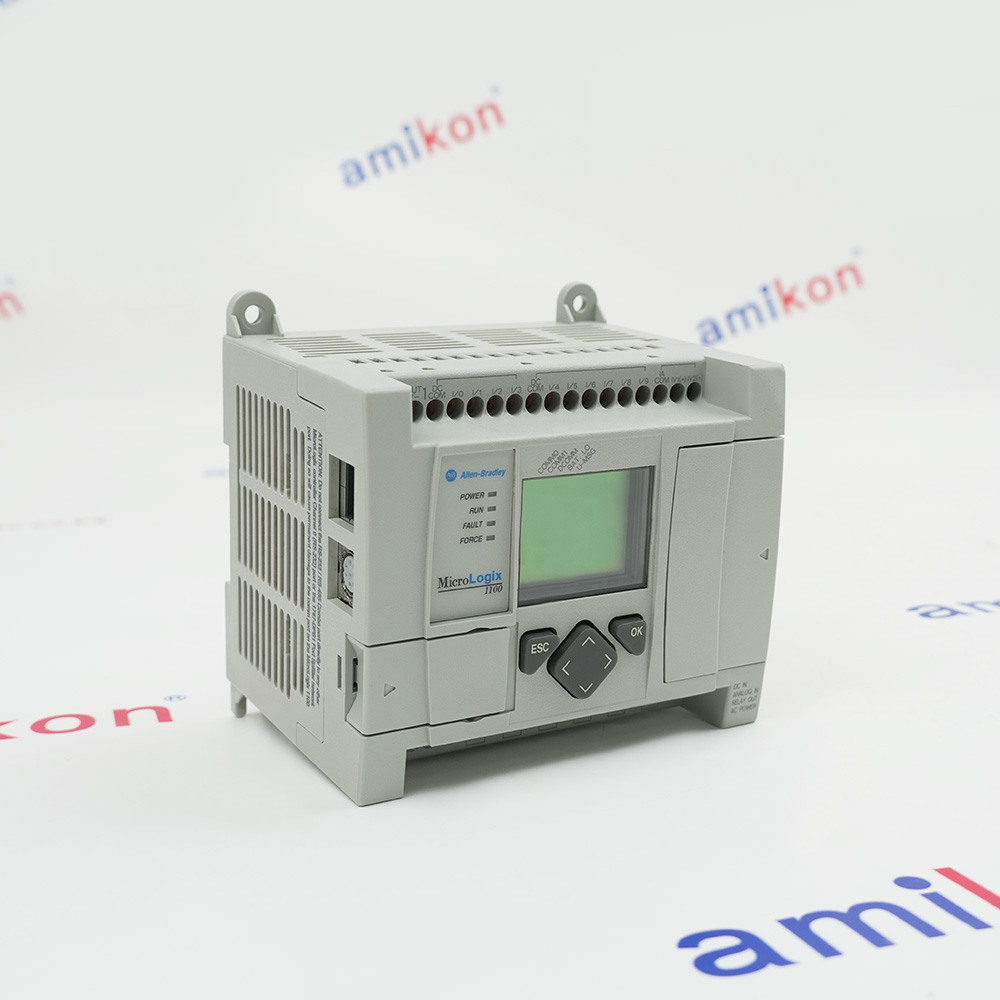

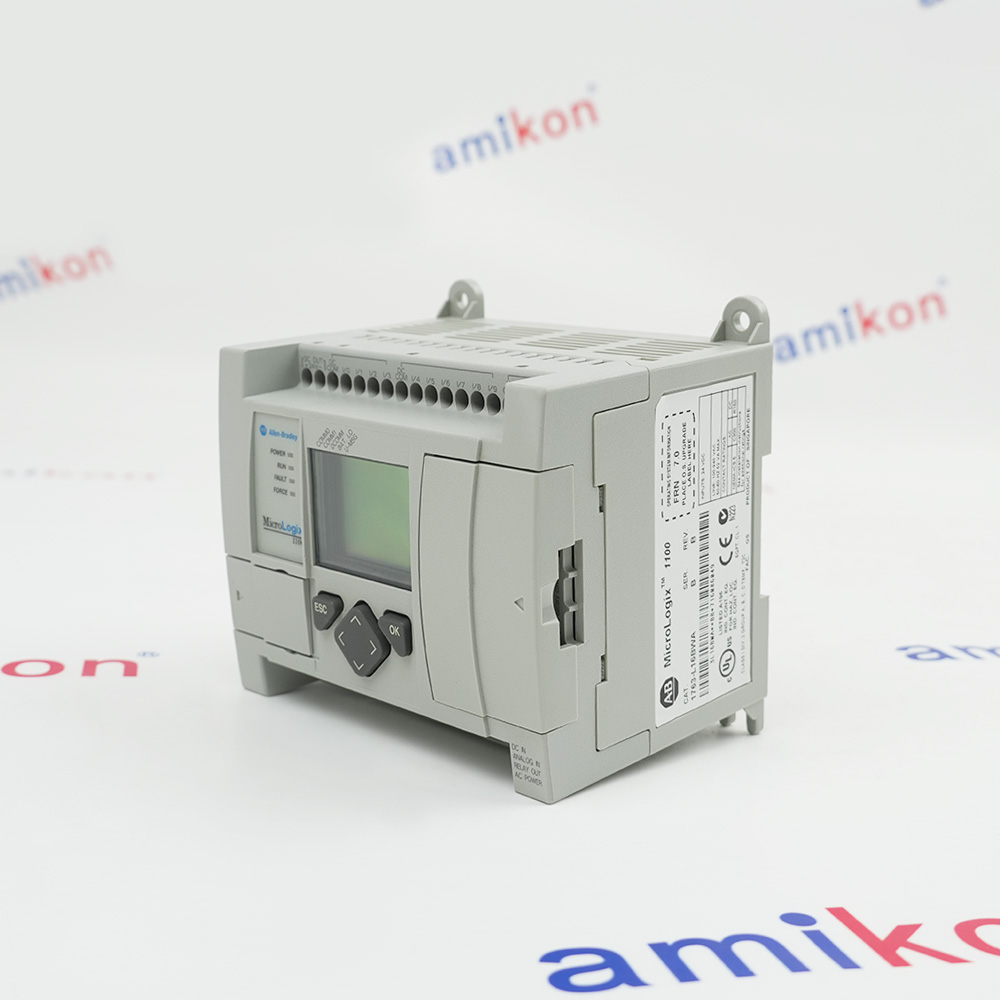

      Allen-Bradley 1763-L16BWA
      i
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Information

      Product Describe
      763L16BWA
      SMALL LOGIC CONTROLLER
      MICROLOGIX 1100
      120-240 VAC
      (10) 24 VDC DIGITAL INPUT
      (2) 10 V ANALOG INPUT
      (6) RELAY OUTPUT

      Technical specifications for 1763-L16BWA

      • Product Model
        1763-L16BWA
      • Spare Model
        1763L16BWA
      • Product Parameters
        MicroLogix 1100 16 Point Controller
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        10.8x11x8.6cm
      • Manufacturer
        Allen-Bradley
      • Weight
        0.6 kg
      • Input Power
        120/240V ac
      • Digital Inputs
        24V dc
      • Voltage input
        0 ...10V dc
      • Digital Outputs
        All individuallyisolated
      • On-State Voltage Range
        14...24V dc
      • Off-State VoltageRange
        0...5V dc
      • Operating Frequency
        0 Hz...20 kHz
      • Off-State Leakage Current
        1.5 mA max.
      • Nominal Impedance
        3.1 kΩ

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is the 1763-L16BWA?+
        It is a compact programmable logic controller (PLC) from the MicroLogix 1100 family, featuring built-in I/O, Ethernet/IP communication, and expansion capabilities.
      • How many inputs/outputs does it have?+
        It has 10 digital inputs (24V DC), 2 analog inputs (0-10V DC), and 6 relay outputs.
      • Is this product brand new?+
        Yes, AB 1763-L16BWA is brand new, original, unused, and factory sealed
      Get a quick price fo 1763-L16BWA
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Revisions

      Revision Part #

      Also known as

      1763-L16BWA/A
      1763-L16BWA-A Rev A
      Get Parts Quote >>
      1763-L16BWA/B
      1763-L16BWA-B Rev B
      Get Parts Quote >>
      Product

      MORE INFORMATION

      Overview Manuals Technical notes Product Applications Specialized Hardware Instructions

      Features:

      • MicroLogix 1100 series
      • Programmable Controller
      • Non-Volatile Battery Backed RAM
      The Allen-Bradley/Rockwell Automation 1763-L16BWA controller is part of the MicroLogix 1100 series and it comes with inputs and outputs. All 10 of the digital inputs on the controller are rated for 24 Volts DC voltage and 4 of the inputs are high-speed digital inputs. The 1763-L16BWA controller also has 2 analog inputs rated at 0 to 10 Volts DC and 6 digital relay outputs that are all individually isolated. The input power rating of this controller is 120/240 Volts AC. The 1763-L16BWA controller can be grounded for protection against EMI or electromagnetic interference.

      The 1763-L16BWA MicroLogix 1100 Programmable Controller by Allen-Bradley is an industrial programmable controller with a total of Eighteen (18) I/O points. It consists of Ten (10) 24VDC sinking or sourcing digital inputs, Two (2) Analog Inputs and Six (6) relay outputs. This controller requires an input power supply of 100-240VAC.

      The 1763-L16BWA Allen-Bradley MicroLogix 1100 Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Allen-Bradley 1763-L16BWA MicroLogix 1100 Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The input channel has an OFF-state voltage range between 0 and 5 Volts DC with a 1.5 mA maximum OFF state leakage current and a Nominal impedance of 3.1 k?. The Analog inputs s compatible for 0 to 10 VDC, with an input resolution of 10 bits. The 1763-L16BWA’s analog input also has +/-0.5% full-scale non-linearity, +/-0.5% accuracy, 210 k voltage impedance and a 10.5 Volt DC input voltage protection. The 1763-L16BWA’s outputs are Six (6) isolated relay outputs with a 3A current per group and a maximum OFF/ON and ON/OFF response time of 10 millimeters. The relay output has a relay contact with a rating of 1.2 MAKE current capacity, 1.0A continuous current, and 28VA make power output. Overall, the 1763-L16BWA has an inrush current of 25A for 8 milliseconds at 120 Volts AC and 40A for 4 milliseconds at 240 Volts AC with 52 VA overall power consumption. The module’s ambient operational temperature ranges between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. It is built to withstand an operational shock of 30G and a vibration of 15G at 50 Hertz.
      • Material Handling Systems:Manages conveyors, sorting systems & automated storage/retrieval
      • Packaging Machinery:Controls wrapping, labeling & filling with high-speed inputs for precision
      • HVAC & Building Automation:Monitors HVAC via integrated analog inputs for sensors
      • Metals & Steel:Manages rolling mills, cooling fans & water pumps for high-torque operation
      • Water & Wastewater:Regulates flow in large-scale pumping stations
      • Remote Monitoring & SCADA RTU:RTU gathering remote site data via EtherNet/IP for supervisory systems
      • OEM Equipment:Cost-effective compact control with built-in LCD for custom machinery
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      HSC (High-Speed Counter): Configures the 4 high-speed inputs for tasks like pulse-train counting from encoders or flow meters.
      PWM (Pulse Width Modulation): While this specific BWA model has Relay Outputs (not typically used for high-speed switching), the software supports PWM for DC-output models.
      MSG (Messaging): Critical for the 1100's networking. It allows the PLC to "read" or "write" data to other controllers or HMIs over EtherNet/IP or Serial.
      PID (Proportional Integral Derivative): Used for closed-loop control, such as maintaining a specific temperature or pressure using the 2 embedded analog inputs.
