Technical specifications for 2711P-RP1X
-
Product Model2711P-RP1X
-
Product ParametersLOGIC MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20.6x13.8x4cm
-
ManufacturerAllen-Bradley
-
Weight0.65 kg
-
Compatible HardwarePanelView Plus 700-1500
-
Memory64 MB
-
Status indicatorsRed and Green LED
-
Power input24VDC
-
Power Dissipation70 Watt
Description

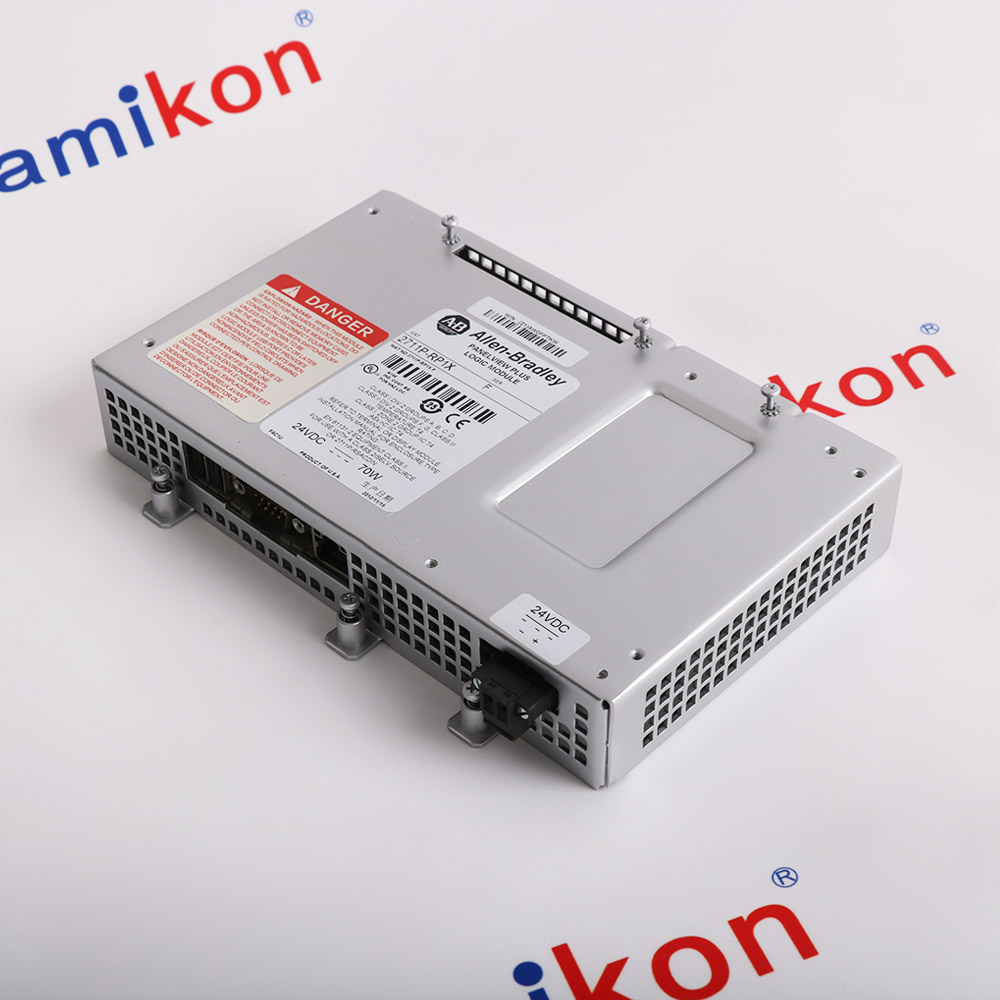

The Allen Bradley 2711P-RP1X is a Logic Module designed for the PanelView Plus operator terminals, serving as the core computing unit for PanelView Plus 700 to 1500 series terminals. The 2711P-RP1X combines processing power, memory, and multiple communication interfaces in a single compact module that mounts directly to the back of compatible display modules.
The Allen Bradley 2711P-RP1X features 64 MB of RAM for running terminal applications and 64 MB of Flash memory for storing backups, logs, recipes, reports, and manuals. The 2711P-RP1X provides reliable runtime performance and adequate data storage for typical HMI applications in industrial automation environments.
The Allen Bradley 2711P-RP1X operates from a 24V DC power supply with a power dissipation of approximately 70W. The 2711P-RP1X is designed for installation in industrial control panels with proper grounding, as sensitive components can be affected by static discharge during installation.
The Allen Bradley 2711P-RP1X features 64 MB of RAM for running terminal applications and 64 MB of Flash memory for storing backups, logs, recipes, reports, and manuals. The 2711P-RP1X provides reliable runtime performance and adequate data storage for typical HMI applications in industrial automation environments.
The Allen Bradley 2711P-RP1X operates from a 24V DC power supply with a power dissipation of approximately 70W. The 2711P-RP1X is designed for installation in industrial control panels with proper grounding, as sensitive components can be affected by static discharge during installation.
Information
Overview
Manuals
Application Notes
Product Applications
Communication Module & Peripherals
Features:
- 64 MB RAM and 64 MB Flash Memory
- 24V DC Power Input with 70W Power Dissipation
- Multiple Communication Interfaces
- CompactFlash Card Slot for Storage Expansion

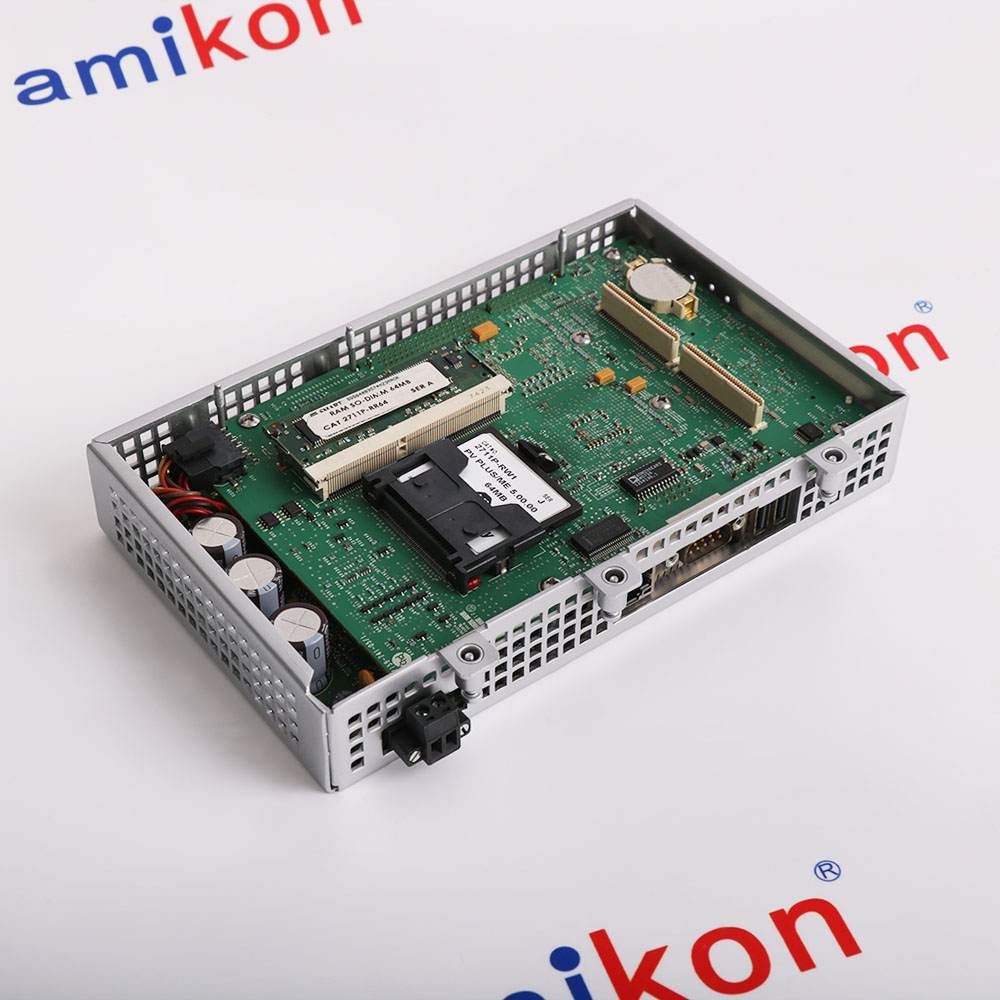

The logic module serves as the processing and communication core of the PanelView Plus operator terminal system. It attaches to a compatible display module (700, 1000, 1250, or 1500 series) via a PCI interface, forming the base-configured unit. The module contains the SDRAM and Flash memory, 10/100BaseT Ethernet port, RS-232 serial port, two USB host ports, CompactFlash card slot, and battery-backed real-time clock.
The 2711P-RP1X Allen-Bradley Logic Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2711P-RP1X Logic Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 24 VDC power input accepts a nominal range of 18 to 32 VDC with maximum power consumption of 70 W (2.9 A at 24 VDC). The power supply is non-isolated; an external SELV (Safety Extra-Low Voltage) or PELV (Protective Extra-Low Voltage) isolated power supply is required. The recommended power supply is the 1606-XLE120E Class 2 / SELV unit. The earth/ground terminal must be connected to a low-impedance earth/ground for noise immunity, reliability, and EMC compliance.
Communication capabilities include one 10/100BaseT Ethernet port for network connectivity to PLCs and enterprise systems, one RS-232 serial port for file transfers, printing, and direct PLC communications, and two USB host ports for connecting keyboards, mice, printers, and USB flash drives. An IrDA infrared data port enables wireless data and application transfers.
- Manufacturing/Assembly: Provides real-time control, process monitoring, and data logging for production efficiency
- Food/Beverage: Facilitates recipe management, quality checks, and sanitation tracking on bottling/packaging lines
- Water/Wastewater: Integrates with SCADA to monitor pump stations, water levels, and chemical dosing
- Oil/Gas: Used in pipelines/well control for data logging and safe operation in hazardous environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Attach Comm Modules: If using a communication module, align its bottom connector with the top of the logic module and press to touch. Secure it using the provided screws to the same 0.58 N⋅m torque.
USB Devices: Insert any connected keyboards, mice, or USB drives into the USB host ports located at the bottom of the logic module.
Memory Cards: Insert an SD card into the memory slot for firmware upgrades, backups, or data logging.
Alternative Names
2711P-RPIX
271IPRP1X
27IIPRPIX
2711PRP1X
27I1P-RP1X
2711PRPIX
27I1PRP1X
271IP-RP1X
27IIP-RPIX
Technical notes
The Allen Bradley 2711P-RP1X features integrated red and green LED status indicators that provide quick visual confirmation of system health and operation. The 2711P-RP1X operates in ambient temperatures from 0°C to 55°C, making it suitable for standard industrial environments.
FAQs
-
What is the 2711P-RP1X?
+The Allen-Bradley 2711P-RP1X is an older-generation Logic Module for PanelView Plus terminals. -
What is the 2711P-RP1X used for?
+It acts as the primary computing unit for PanelView Plus operator terminals. It runs the Windows CE operating system and executes FactoryTalk View Machine Edition (ME) applications. -
What are the primary communication ports?
+Depending on the specific series, it generally includes an RS-232 serial port, an Ethernet port, and USB ports for connecting keyboards, mice, or flash drives. -
What is the input power requirement?
+This logic module requires a 24V DC power input. You must use a Class 2 or safety extra-low voltage (SELV) isolated power supply to avoid ground loop currents that could damage the hardware.
