PRODUCT DESCRIPTION
PanelView Plus 6 operator control with extended desktop features

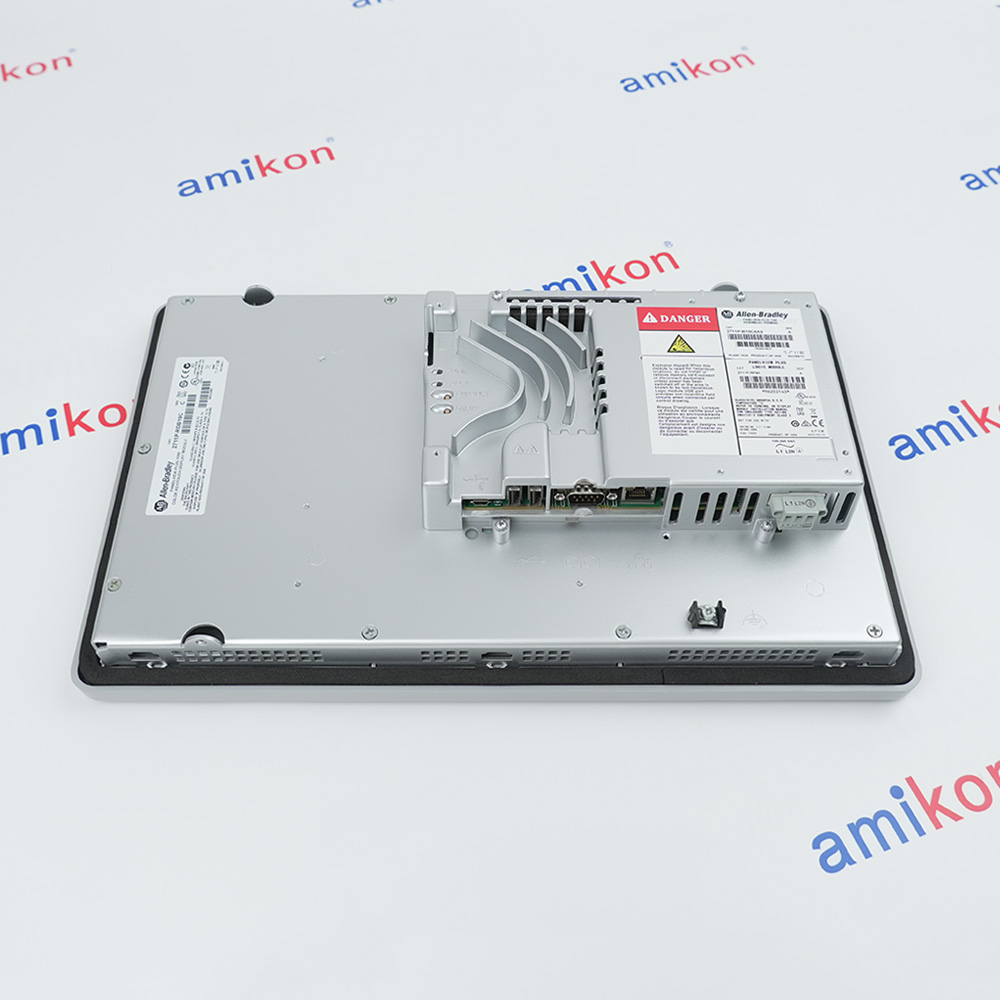

Allen-Bradley 2711P-B10C4A9 is a PanelView Plus 6 1000 operator terminal combining a 10.4-inch color display, resistive touchscreen and physical keypad. The AC-powered assembly provides standard Ethernet and RS-232 communications for a configured FactoryTalk View Machine Edition application.
This catalog number includes Windows CE 6.0 with Extended Features and a modular display-and-logic arrangement. Preserve the original HMI project, communication settings and installed options before maintenance, and treat migration to a newer PanelView generation as an engineering change requiring compatibility checks.
This catalog number includes Windows CE 6.0 with Extended Features and a modular display-and-logic arrangement. Preserve the original HMI project, communication settings and installed options before maintenance, and treat migration to a newer PanelView generation as an engineering change requiring compatibility checks.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
PanelView Plus 6 machine and process visualization
The official technical data identifies graphical monitoring and operator control as the PanelView Plus 6 role. The examples below describe configurable terminal functions within an engineered system, not proof that this exact stock unit contains a particular application.
-
01 · Operator stations
Physical keys for repetitive machine commands
A machine HMI project can assign frequently used commands to the physical function keys while displaying status on the color screen. Validate each key assignment and touchscreen action against the controller program. -
02 · Process displays
Viewing live process information
The terminal can display the process information communicated by the configured controller connection. Engineers must retain the application tags, scaling and screen configuration so that displayed values and permitted actions remain correct. -
03 · Service interfaces
Application diagnostics and file access
The extended-feature platform supports the documented desktop and file-viewing functions alongside HMI operation. Confirm the required software features and network access when restoring a service interface or planning a migration.
Technical specifications for 2711P-B10C4A9
-
Product Model2711P-B10C4A9
-
Product ParametersAC keypad touchscreen HMI
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Display diagonal10.4 inches
-
Display formatColor TFT; 640 by 480 pixels; 18-bit graphics
-
Active display area211 by 158 mm
-
Operator interfaceEight-wire analog resistive touch and membrane keypad
-
Function-key layout32 keys: F1 to F16 and K1 to K16
-
Typical luminance300 cd/m2
-
Input power100 to 240 V AC; 50 to 60 Hz
-
AC consumption160 VA maximum; 65 VA typical
-
System memory512 MB RAM and 512 MB nonvolatile memory; approximately 79 MB free user memory
-
Standard communicationsOne 10/100 Ethernet interface and RS-232
-
USB peripheral connectionsTwo USB host ports
-
Operating systemWindows CE 6.0 with Extended Features
-
External storageSupported SD/SDHC cards and USB flash drives
-
HMI runtime platformFactoryTalk View Machine Edition; verify version compatibility
-
Panel opening224 mm high by 375 mm wide for keypad configuration
View all additional
Alternative Names
Allen-Bradley 2711P-B10C4A9 HMI
PanelView Plus 6 1000 2711P-B10C4A9
2711P-B10C4A9 AC keypad touch terminal
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
PANELVIEW PLUS 6 1000
Check the AC terminal, modular hardware and legacy communications
Identify the installed display, logic and optional communication modules. The B10C4A9 assembly is a keypad/touch, AC-powered terminal with extended operating-system features; these attributes must remain part of the replacement assessment.
Retain the FactoryTalk View ME application and Ethernet or RS-232 configuration. Confirm supported drivers, runtime compatibility and any optional network connection before changing the HMI hardware.
Check the keypad panel opening, mounting, protective earth and AC supply. Test screen operation, physical keys, controller connections and permitted commands after maintenance.
Features:
- AC power and keypad assembly
- Ethernet and RS-232 compatibility
- Modular hardware and runtime checks
The Allen-Bradley 2711P-B10C4A9 requires application-specific checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
2711P-B10C4A9 was discontinued on September 30, 2022. The official record names 2711P-B10C22A9P as an Engineering Replacement, not a direct mechanical and software substitute.
The named AC successor was itself discontinued on November 30, 2021 and points to 2711P-B10C22D9P. Review the latest exact-model record rather than treating the older migration chain as a current availability guarantee.
A further migration can require DC power, interface changes and HMI application adaptation. Compare panel cutout, keypad functions, communication drivers, software and installed options before approving a replacement.
Features:
- Discontinued September 30, 2022
- Engineering replacement chain requires review
- Check AC-to-DC and interface changes
The Allen-Bradley 2711P-B10C4A9 requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon is an independent supplier. Consult the applicable Rockwell Automation documentation and installed configuration before selection, installation or replacement.Features:
- Exact-model reference documents
- Hardware and system compatibility checks
- Accessories are supplied only when listed in the quotation
Documentation for the Allen-Bradley 2711P-B10C4A9 supports document applicability checks before installation or replacement.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceClassification unconfirmed
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 2711P-B10C4A9
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this the AC or DC version of the 1000 terminal?
The A in this complete catalog identifies the AC-powered configuration. Its specified input is 100 to 240 V AC at 50 to 60 Hz; a DC-input version is a different catalog number. -
Are Ethernet and RS-232 fitted as standard?
Yes. The standard communication arrangement includes Ethernet and RS-232, with two USB host ports. Other industrial-network interfaces require the appropriate optional module and configuration. -
What does the final 9 mean compared with a final 8?
The manufacturer selection table identifies 9 as Windows CE 6.0 with Extended Features. A final 8 identifies the non-extended configuration, so the required software functions must be checked. -
Can I keep the existing keypad cutout when selecting another terminal?
Measure and verify the replacement drawing. This keypad configuration uses a 224 by 375 mm opening, which differs from the touch-only model and can differ from newer PanelView generations. -
Does the old RS-232 connection transfer directly to the listed successor?
Do not assume so. Migration to a PanelView Plus 7 terminal requires review of its available interfaces, supported drivers, application and any required communication changes. -
Is the catalog-listed replacement still current?
The original product lists 2711P-B10C22A9P as an engineering replacement, but that AC successor is also discontinued. Its product record points to 2711P-B10C22D9P, requiring a further assessment that includes the change to DC power. -
Can I repair the display without changing the complete control application?
The Plus 6 platform has modular display and logic components. Verify the exact replacement display and logic compatibility, preserve the application and test the restored operator interface before reuse.
