PACSystemsRXi

RSTi-EP CPE100 Standalone Controller

Part Number:EPSCPE100
Storage:1MB
I/O:2k Bits Discrete I/O, 32k Words for Analog I/O
Media Redundancy Protocol (MRP)
SRTP Client/Server (Max 8 Connections)
Modbus TCP/IP (Max 8 Connections)
OPC-UA Server (Max 8 Clients)
EDG (Max 16 Exchanges)
PROFINET (Max 8 IO Devices)
Ethernet Port:1x 10/100, 1x 3-port switch 10/100

PACSystem RX7i power supply module

Series:PACSystem RX7i
Description:Power supply module
Part Number:IC698PSA100
Voltage:120/240 Volts AC, 125 Volts DC
Product Description:Power Supply module
Mounting:Leftmost slot
Input Voltage Range:85 to 264 VAC; 100-150VDC
Power Rating:125 Watts
Output Voltage:5/12, -12 Volts DC
AC Input Frequency:47-63 Hz
Power Factor:0.99 min

Control Memory Xchange Module

Data Transmission Rate: 2.12 Gbaud
Reflective Memory Capacity: 16 MB SDRAM
Access Time: 200 to 400 nanoseconds
Node Capacity: Supports up to 256 nodes in a network
Connectors: Fiber optic LC type, conforming to IEC 61754-20
Operating Voltage: +5 VDC (from power supply)
Current Requirements: 1.8 Amperes

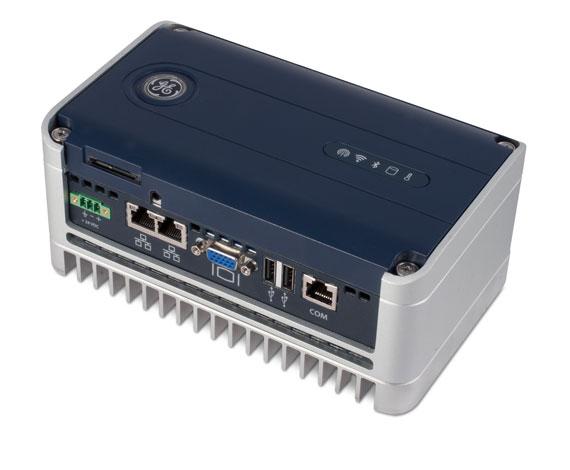

RXI CONTROLLER

Dual Core COM Express CPU Module
Fanless Design
(2) Gigabit Ethernet Connectors
Operating Temperature Range of -25°C to +65°C

POWER INTERFACE BOARD

24V DC
Operating Temperature Range:
-20°C to 60°C
Storage Temperature:
-40°C to 85°C
PIB100 G SLASTOM
