The thinner cable is the signal cable.
It connects theSEMD or MEMD to the mastering box.
The thicker cableis the EtherCAT cable.
It is connected to the mastering boxand to the robot at X32.

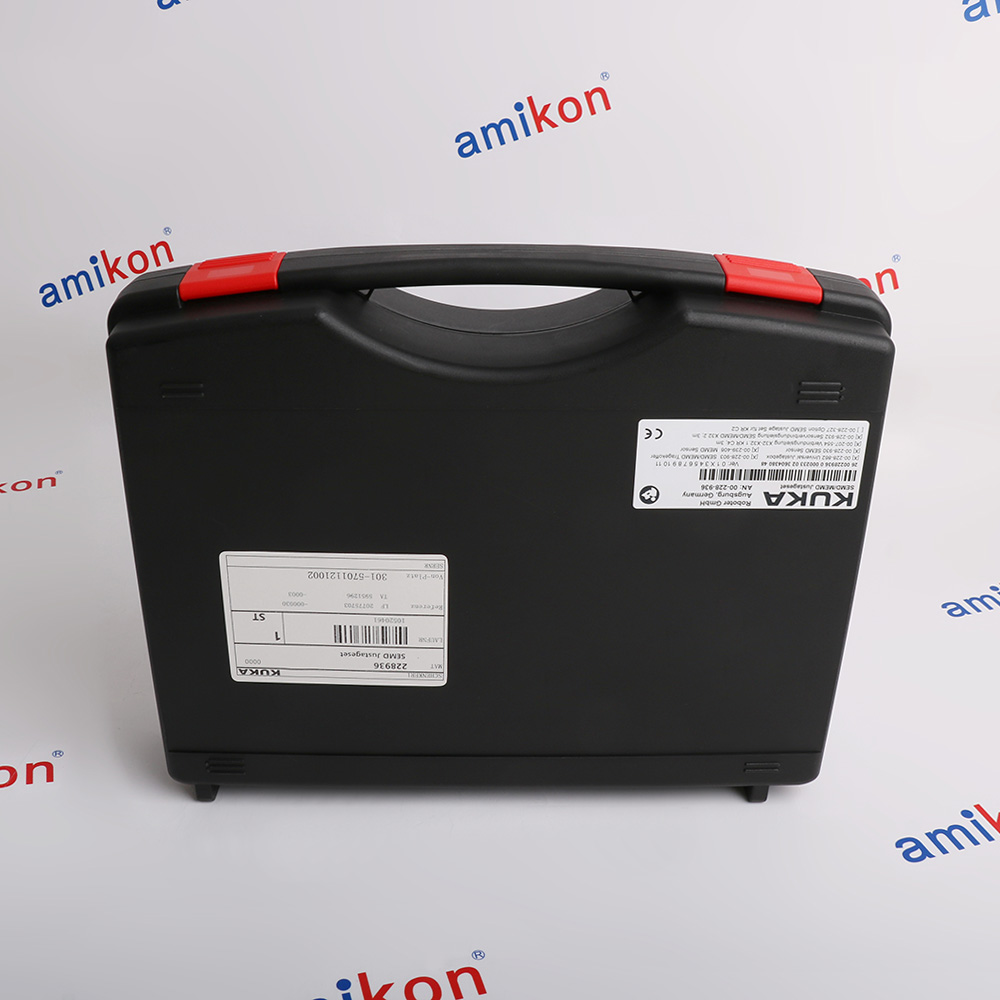

Description of adjusting set withSEMD and MEMD
(Micro Electronic Mastering Device)
