PRODUCT DESCRIPTION
00-228-936 Electronic robot mastering kit
KUKA 00-228-936 is the combined SEMD/MEMD electronic mastering kit used to establish the mechanical reference position of compatible robot axes. The kit covers both standard and micro mastering cartridges and supports the documented robot mastering workflow in automotive, metal-processing and electronics production.

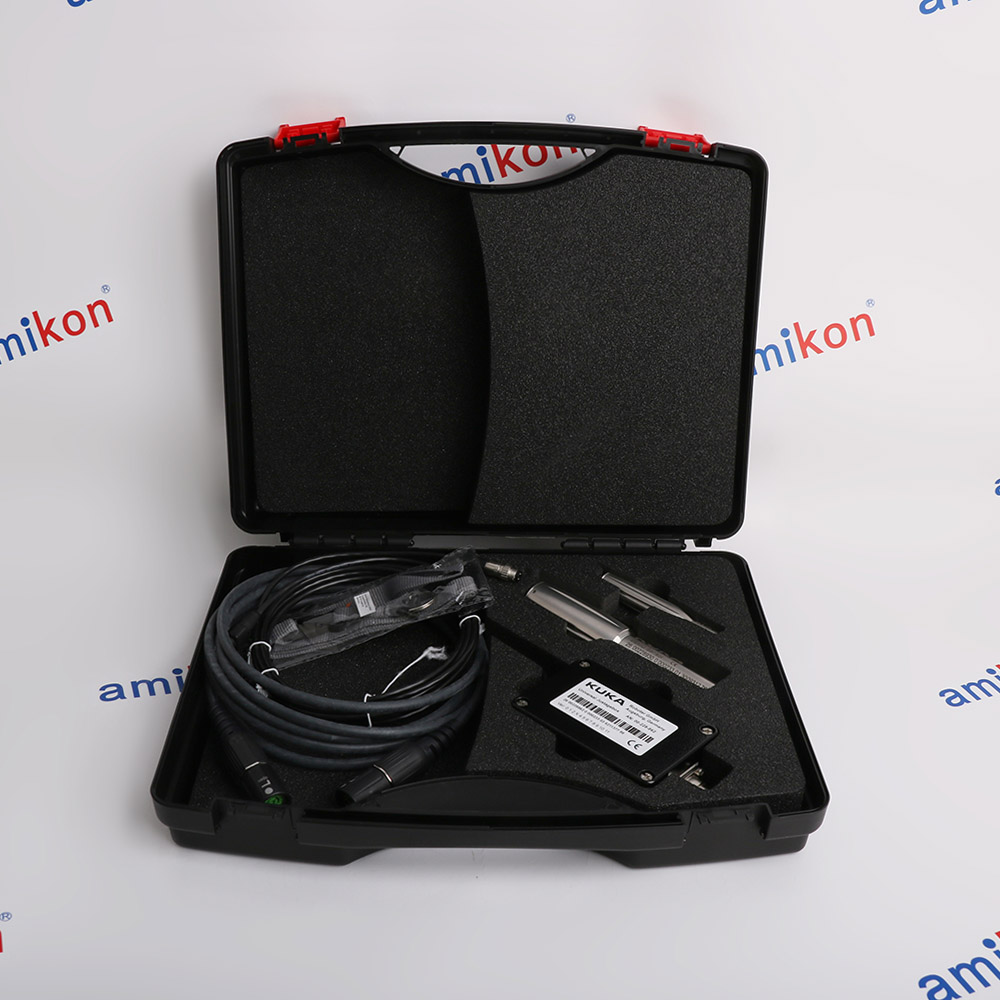

The modular set combines a universal mastering box, separate SEMD and MEMD sensors, connecting cables and a carrying case. The standard sensor fits M20 fine-thread cartridges, while the micro sensor fits M8 fine-thread cartridges. The matching controller and sensor connections link the selected probe to the robot; older controller configurations require the specified adapter rather than a direct cable substitution.
The modular set combines a universal mastering box, separate SEMD and MEMD sensors, connecting cables and a carrying case. The standard sensor fits M20 fine-thread cartridges, while the micro sensor fits M8 fine-thread cartridges. The matching controller and sensor connections link the selected probe to the robot; older controller configurations require the specified adapter rather than a direct cable substitution.
BEFORE YOU BUY
Confirm the complete electronic robot mastering kit
ACTUAL APPLICATIONS
Application context for 00-228-936
00-228-936 is a combined SEMD/MEMD electronic mastering kit for compatible robot mastering cartridges. It establishes mechanical axis reference positions on robots used in automotive, metalworking and electronics manufacturing. Robot type, cartridge size and controller connections determine the required kit arrangement.
-
01 · AUTOMOTIVE
Automotive Manufacturing and Vehicle Component Production
Automotive Body ManufacturingVehicle Component Assembly -
02 · METAL INDUSTRY
Metal Fabrication and Component Manufacturing
Industrial Metal FabricationPrecision Component Manufacturing -
03 · ELECTRONICS
Electronics Manufacturing and Component Assembly
Electronic Component AssemblyConsumer Electronics Manufacturing
Technical specifications for 00-228-936
-
Product Model00-228-936
-
Product ParametersElectronic robot mastering kit
-
In stock3 units
-
ManufacturerKUKA
-
SEMD cartridge threadM20 fine thread
-
MEMD cartridge threadM8 fine thread
-
Mastering sensors supplied2: SEMD and MEMD
-
Mastering interface boxes1 universal box
-
Controller cable length3 m, X32–X32.1
-
Sensor cable connectionX32.2
-
Sensor cable length3 m
-
Optional KR C2 adapter cable2 m, adapter set 00-228-327
View all additional
Alternative Names
00-228-936
SEMD/MEMD mastering kit
Combined electronic mastering set
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 00-228-936 electronic robot mastering kit
KUKA 00-228-936 is the combined SEMD/MEMD electronic mastering kit used to establish the mechanical reference position of compatible robot axes. The kit covers both standard and micro mastering cartridges and supports the documented robot mastering workflow in automotive, metal-processing and electronics production.
Match the documented semd cartridge thread (M20 fine thread) and memd cartridge thread (M8 fine thread) to the installed SEMD/MEMD robot mastering tools configuration. Preserve the complete suffix, hardware interfaces and required mating components.
Use the applicable KUKA mounting, connection and commissioning instructions. Save the existing configuration and validate the affected functions before returning the equipment to operation.
Features:
- SEMD cartridge thread: M20 fine thread
- MEMD cartridge thread: M8 fine thread
- Mastering sensors supplied: 2: SEMD and MEMD
The 00-228-936 electronic robot mastering kit requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 00-228-936 electronic robot mastering kit
Before exchanging 00-228-936, verify the complete article identification, installed hardware revision and documented electronic robot mastering kit role. Matching appearance alone does not establish interchangeability.
Record the installed SEMD/MEMD robot mastering tools connections and settings. Preserve the applicable configuration, application records and diagnostic information before disconnecting the current item.
After installing the verified 00-228-936, restore the controlled configuration and perform the manufacturer-defined functional checks. Record the completed inspection and test results before release.
Features:
- SEMD cartridge thread: M20 fine thread
- MEMD cartridge thread: M8 fine thread
- Mastering sensors supplied: 2: SEMD and MEMD
The 00-228-936 electronic robot mastering kit requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 00-228-936 electronic robot mastering kit must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size34.00 × 8.00 × 27.50 cm
-
Shipping weight1.55kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 00-228-936
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does 00-228-936 contain both mastering sensor sizes?
KUKA 00-228-936 is the combined kit with SEMD and MEMD sensors for the documented standard and micro mastering cartridges. -
Which threads are used by the 00-228-936 probes?
The SEMD probe in 00-228-936 fits M20 fine-thread mastering cartridges, while the MEMD probe fits M8 fine-thread cartridges. -
What is the universal box used for in 00-228-936?
The universal box in 00-228-936 interfaces the selected sensor and connecting cable with the compatible robot mastering connection. -
Which cables are listed for the combined mastering kit?
The documented 00-228-936 kit guide lists a 3 m X32–X32.1 controller connection and a separate 3 m sensor connection at X32.2. Verify the supplied cable article numbers. -
Can 00-228-936 be connected directly to KR C2?
The KUKA handbook lists adapter set 00-228-327 for SEMD use with KR C2. The 00-228-936 kit alone does not establish a direct older-controller cable connection. -
Is mastering the same as external robot calibration?
00-228-936 is a mastering tool for the robot mechanical reference position. Its kit description does not establish an external absolute-position calibration capability. -
What must accompany a mastering-kit quotation request?
For 00-228-936, state the robot type, controller generation, cartridge sizes, required cable lengths and whether the older-controller adapter is needed. -

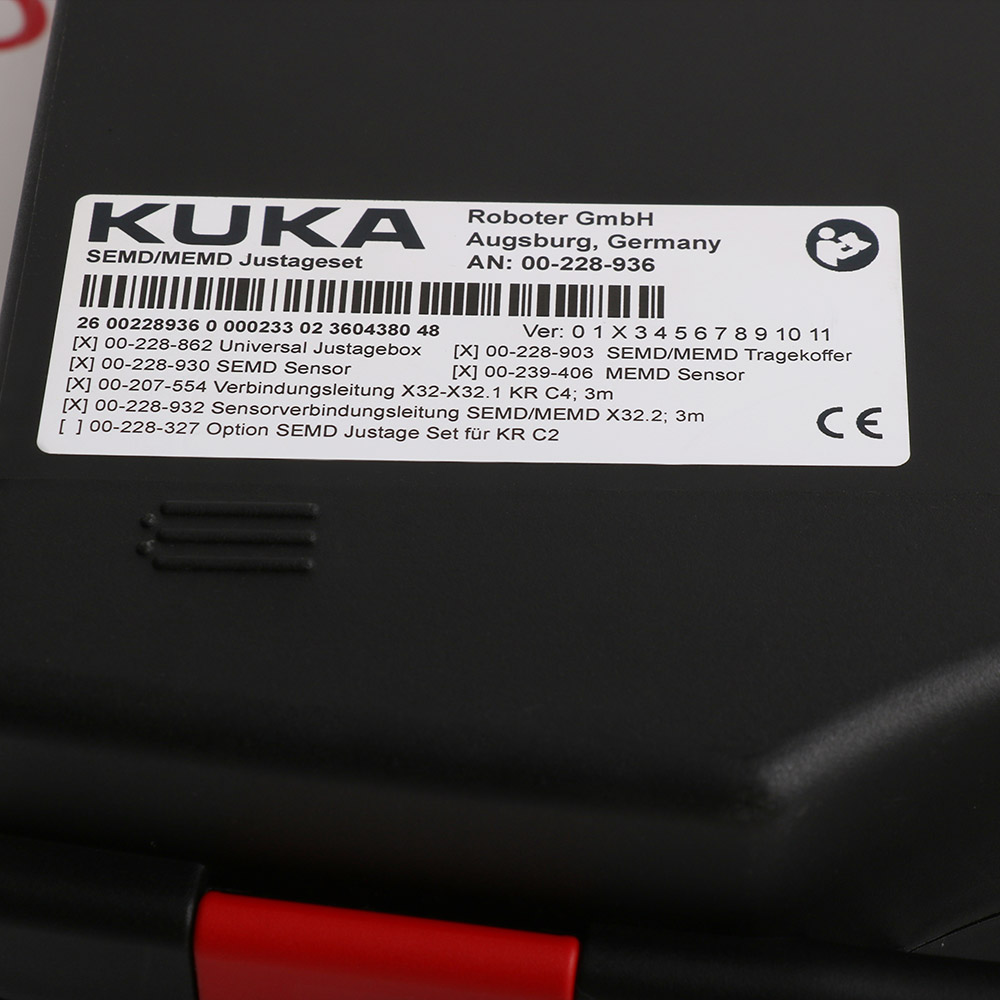

How can the delivered mastering kit be inspected?
For 00-228-936, compare the combined kit label and supplied sensors, universal box, cables and carrying case with the itemized order. Inspect the fine threads and connections for damage.
