PRODUCT DESCRIPTION
Conformal-coated 40-channel digital output for 24/48 V DC duties

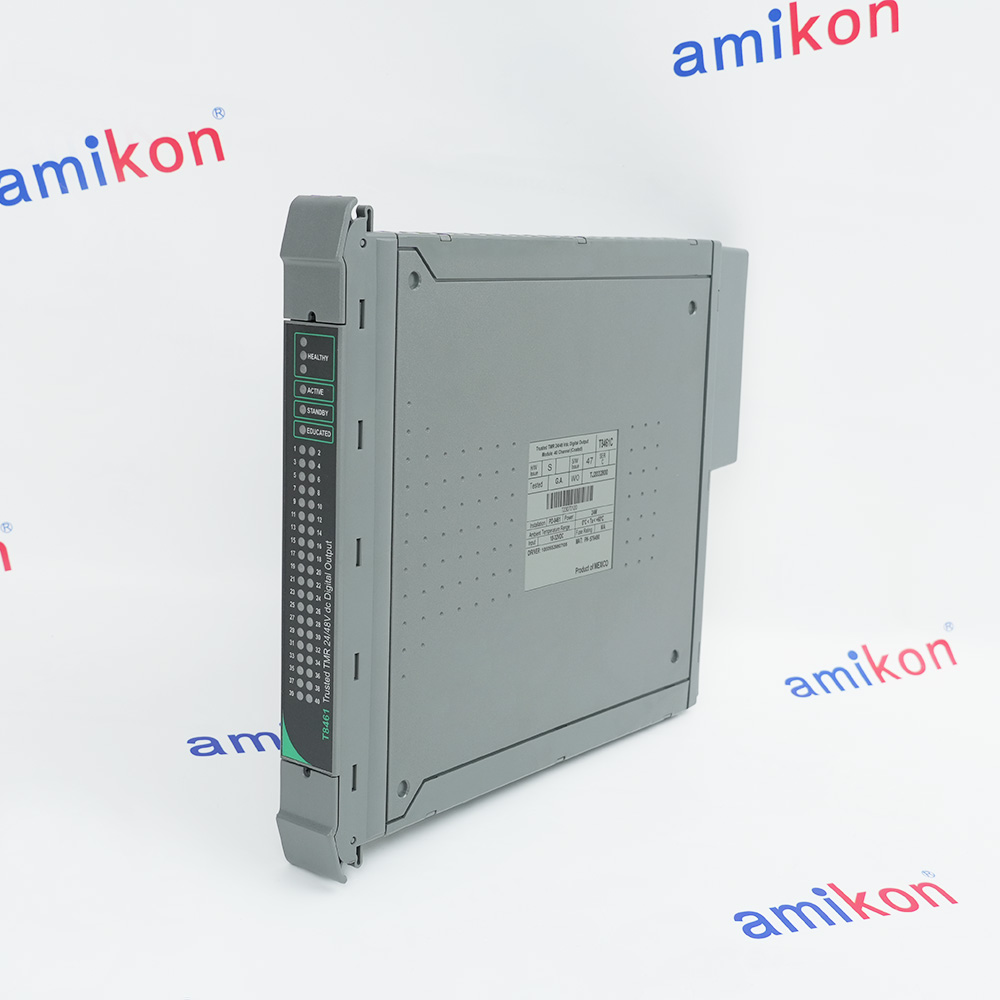

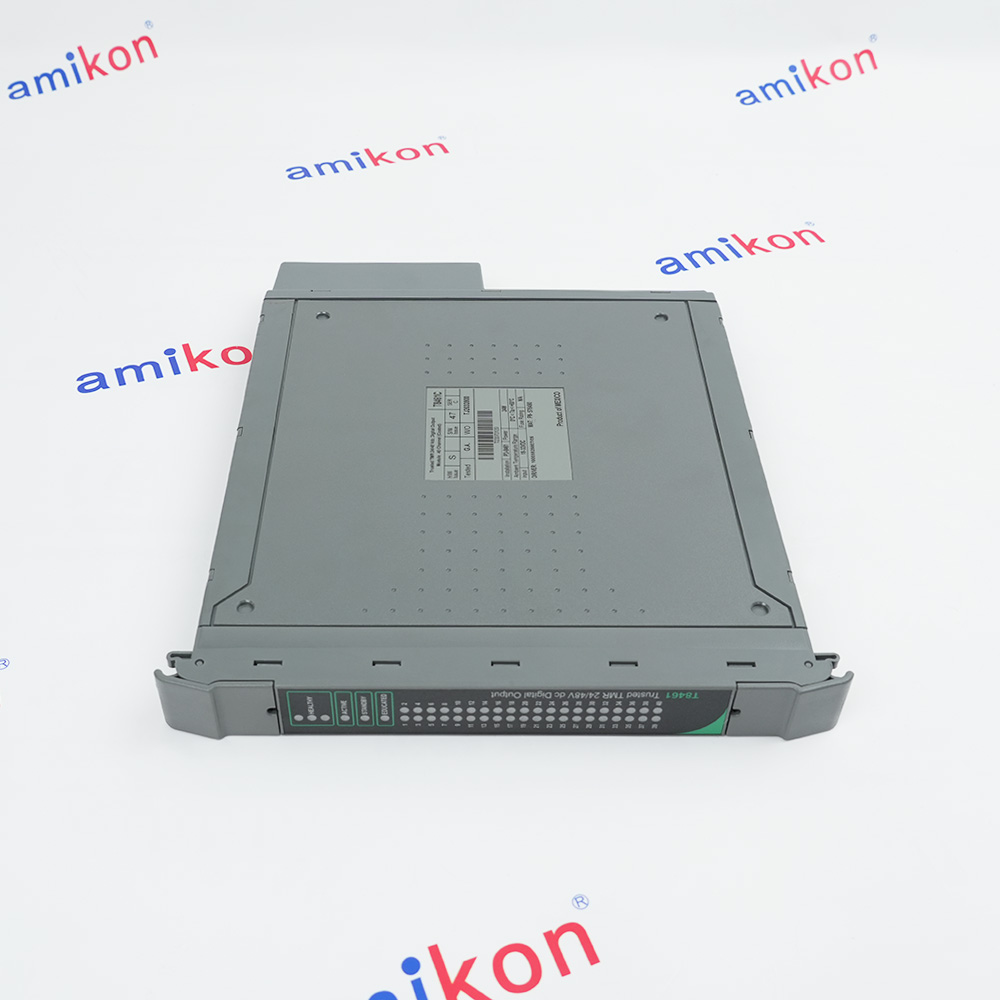

ICS Triplex T8461C is a conformal-coated Trusted TMR digital output module with 40 channels arranged in five power groups. It drives compatible field loads and checks output current and voltage to report wiring and load faults within the configured safety application.
The current specification separates the 20 to 32 V DC backplane supply from the 18 to 58 V DC field supply. Verify load current, group wiring, minimum load and configured changeover arrangements before replacement; output ratings are not interchangeable with input-module specifications.
The current specification separates the 20 to 32 V DC backplane supply from the 18 to 58 V DC field supply. Verify load current, group wiring, minimum load and configured changeover arrangements before replacement; output ratings are not interchangeable with input-module specifications.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8461C Fits Across Industrial Application Areas
Industrial uses span process plants and utilities, subject to compatible interfaces, verified operating conditions and approved safety configurations.
-
01 · POWER GENERATION
Gas Turbine Generation and Thermal Power Facilities
Gas turbine power plants supporting continuous utility electricity production.Thermal generation facilities integrating turbine operation and plant equipment. -
02 · OIL & GAS
Oilfield Production and Downstream Hydrocarbon Processing Operations
Offshore production facilities handling crude oil and natural gas.Downstream petroleum processing plants and associated product transportation facilities. -
03 · CHEMICAL PROCESSING
Chemical Production Plants and Specialty Batch Manufacturing
Industrial chemical production equipment serving continuous manufacturing plant operations.Specialty chemical batch facilities preparing controlled recipes and formulations.
Technical specifications for T8461C
-
Product ModelT8461C
-
Product ParametersConformal-coated TMR digital output module
-
ManufacturerICS Triplex
-
Output channels40 TMR digital outputs
-
Power groups5 groups, 8 channels per group
-
Backplane supply20 to 32 V DC
-
Backplane power26 W
-
Field supply18 to 58 V DC
-
Maximum field-supply current30 A per module
-
Continuous channel current0.75 A per channel
-
Minimum on-state load25 mA
-
On-state resistance1.6 ohms
-
Maximum load capacitance500 microfarads
-
Short-circuit protectionElectronic latching
-
SOE event resolution1 ms
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Humidity10 to 95%, non-condensing
View all additional
Alternative Names
T8461C
ICS Triplex T8461C
Trusted T8461C Conformal-coated TMR digital output module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8461C to the documented Trusted configuration
T8461C drives compatible digital field loads through 40 output channels. Five power groups each contain eight channels, and field-power wiring must be checked separately from the module backplane supply and configured safety logic.
Use the current field-supply range of 18 to 58 V DC and the documented channel-load limits when reviewing the installation. Check minimum load, capacitance, wiring voltage drop and power-group allocation; do not substitute the older page values without verification.
Select the documented termination and Companion Slot or SmartSlot cable arrangement. Validate output states and current/voltage diagnostics under the approved commissioning plan. Connection to hazardous-area circuits requires the applicable engineered barriers and installation conditions.
Features:
- Five field-power groups of eight outputs
- Separate field supply and backplane checks
- Configured output diagnostics and changeover
The ICS Triplex T8461C conformal-coated tmr digital output module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
A replacement must retain the complete T8461C catalog identity and match the installed revision, output rating and configuration. Conformal coating does not authorize substitution for a different output voltage or another Trusted I/O type.
Record power-group wiring, field supply, load characteristics, unused-channel treatment and cable polarization. Keep the controlled configuration and inspect connectors before fitting. Installation and testing must be performed by trained personnel under the approved safety plan.
Do not remove a module while it remains active. Follow the configured Companion Slot or SmartSlot transfer procedure, confirm the relevant indications and test each affected output path. A mechanical fit alone does not verify a safe replacement.
Features:
- Match the complete output and coating option
- Check power groups and connected loads
- Never remove a module still active
The ICS Triplex T8461C conformal-coated tmr digital output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8461C conformal-coated tmr digital output module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8461C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the T8461C output arrangement?
It has 40 TMR digital outputs arranged into five power groups of eight channels. The C suffix identifies the conformal-coated catalog option. -
Are the backplane and field supplies the same?
No. The manual specifies 20 to 32 V DC for the backplane and 18 to 58 V DC for the field supply. Backplane power is 26 W; field-load power must be assessed separately. -
What load limits must be checked?
The continuous current rating is 0.75 A per channel, with a minimum on-state load current of 25 mA and maximum load capacitance of 500 microfarads. Check the complete power-group and wiring design. -
Does every output have separate galvanic isolation?
No. The specification lists no channel-to-channel isolation. The documented power-group and field-common insulation ratings have their own conditions and are not per-channel isolation ratings. -
How does the module handle an output short circuit?
The module provides electronic latching short-circuit protection and reports channel status. Follow the manufacturer fault-finding procedure; do not treat a latched output as permission to bypass protection. -
What does the manual say about unused outputs?
Unused outputs should be commanded off and connected through the specified 10 kohm, 0.5 W resistor to zero volts. Apply the complete approved wiring procedure rather than using this FAQ as a wiring drawing. -
Can an active output module simply be pulled out?
No. The manual states that an active module should not be removed. Use the configured Companion Slot or SmartSlot changeover procedure and confirm the transfer state before removal. -
What must match when replacing T8461C?
Check the complete catalog number and revision, field supply, load characteristics, power-group connections, keyed cable and configured spare arrangement. Review current manufacturer notices and validate affected outputs before service.
READY TO VERIFY YOUR PART?
