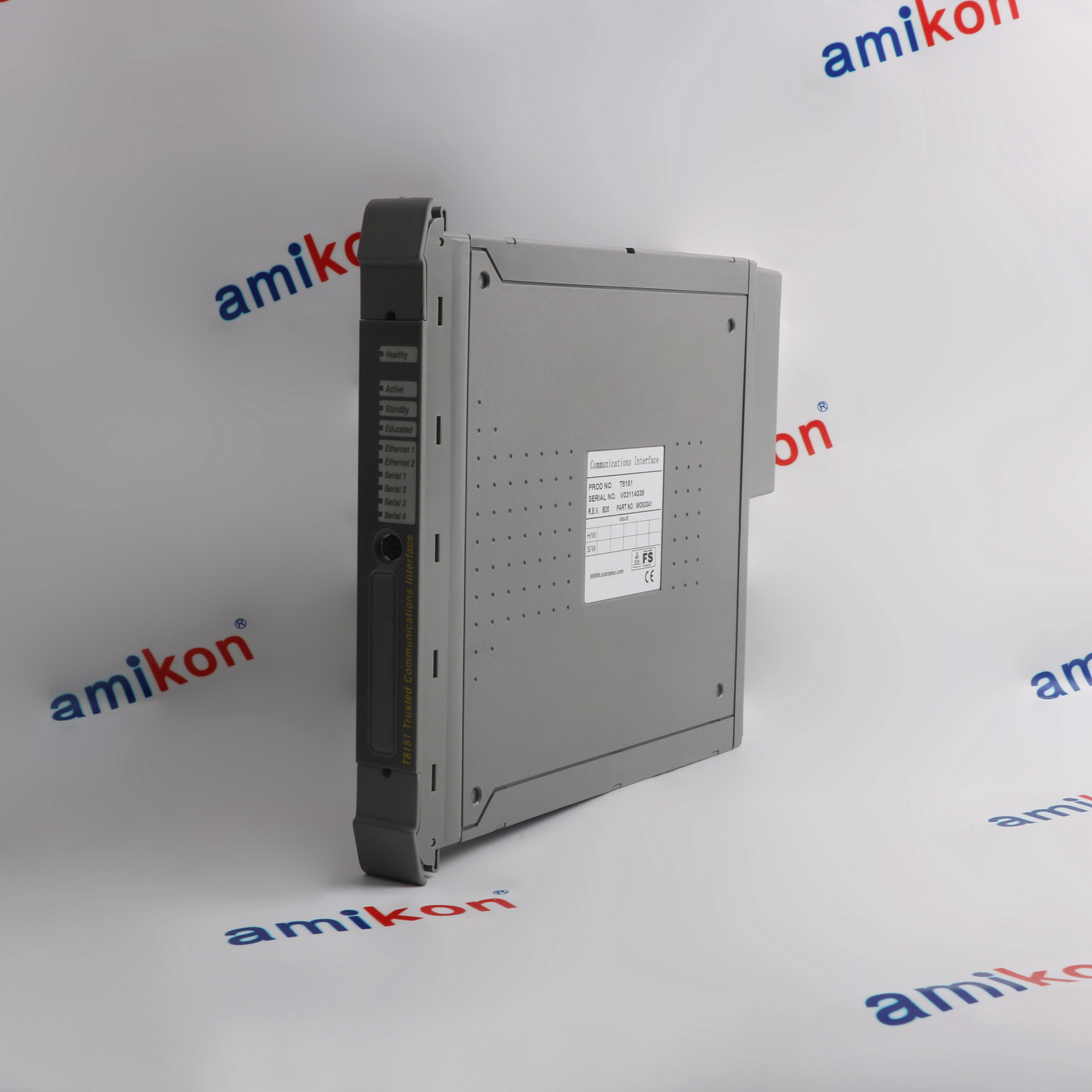

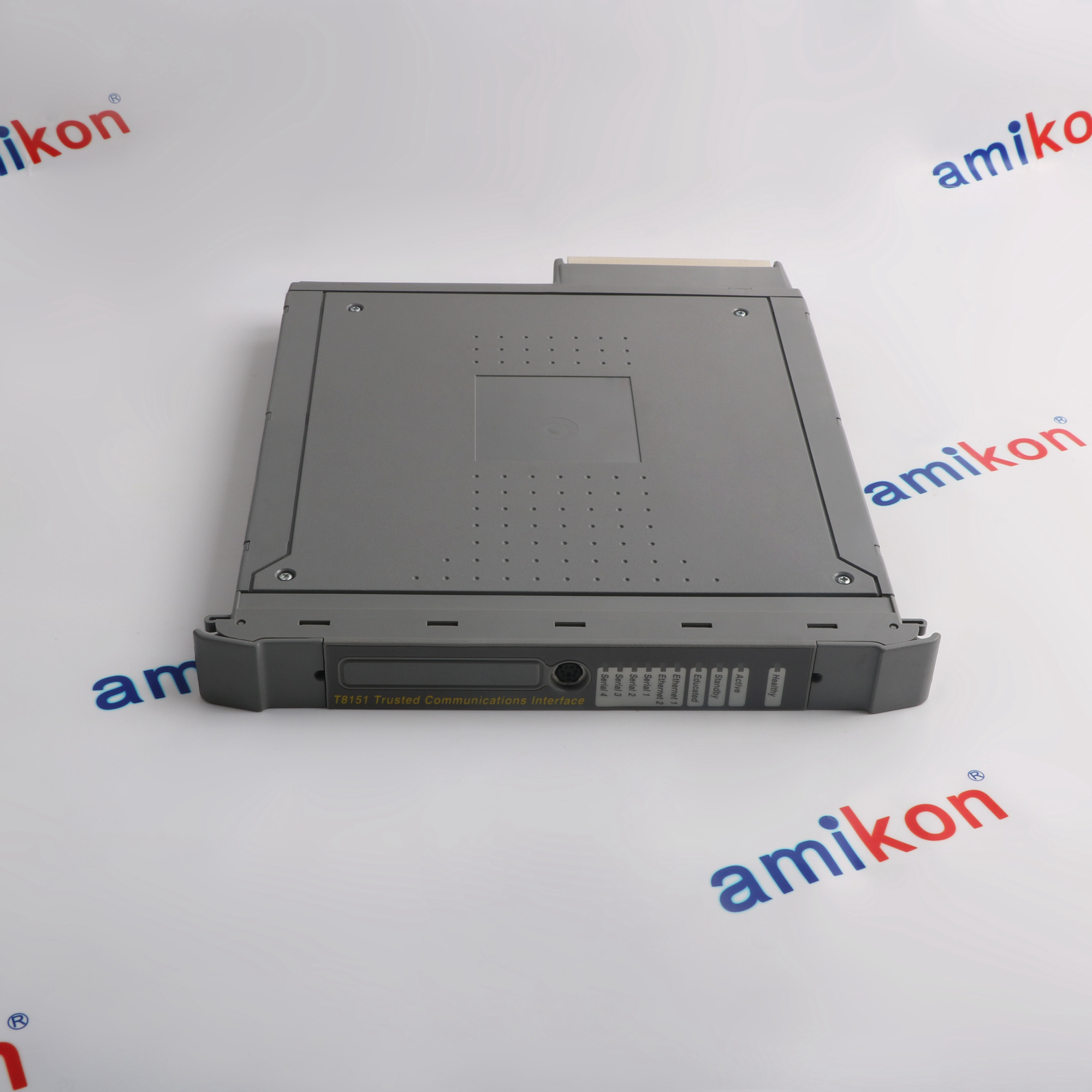

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Legacy Trusted interface for external Ethernet and serial connections
ICS Triplex T8151 is an earlier Trusted communications interface that handles external communication services and reduces the communications workload on the TMR processor. The manufacturer version table identifies two Ethernet interfaces, four isolated rear serial ports and an isolated front diagnostic connection.
For T8151 through revision H, the documented Ethernet hardware supports 10Base2 and 10BaseT, not the later 100BaseT arrangement. Match the actual revision, firmware and adapter before replacement; supported protocol settings depend on the firmware scope stated in the applicable manufacturer manual.
For T8151 through revision H, the documented Ethernet hardware supports 10Base2 and 10BaseT, not the later 100BaseT arrangement. Match the actual revision, firmware and adapter before replacement; supported protocol settings depend on the firmware scope stated in the applicable manufacturer manual.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8151 Fits in Industrial Production Facilities
Used across power, petroleum and chemical facilities, with suitability governed by installed hardware, firmware and communications configuration.
-
01 · POWER GENERATION
Gas Turbine Generation and Power Station Operations
Gas turbine generating units serving utility electricity production facilities.Gas fired power plants with integrated plantwide process operations. -
02 · OIL & GAS
Oil Production and Gas Pipeline Transportation Facilities
Crude oil production facilities and pipelines transporting petroleum products.Gas processing installations and storage terminals for hydrocarbon handling. -
03 · CHEMICAL PROCESSING
Chemical Formulation, Mixing and Industrial Production Facilities
Chemical mixing and blending equipment preparing industrial product formulations.Continuous chemical production lines and associated batch processing equipment.
Technical specifications for T8151
-
Product ModelT8151
-
Product ParametersTrusted communications interface module
-
ManufacturerICS Triplex
-
Ethernet hardware2 x 10Base2 / 10BaseT; T8151 through revision H
-
Rear serial interfaces2 x RS-232/422/485 plus 2 x RS-422/485; isolated
-
Front diagnostic interface1 x isolated RS-232 port
-
Rear serial board arrangementDaughter board on the documented early hardware
-
Maximum communications interfaces4 per Trusted system
-
Permitted chassis positionController or expander chassis I/O slot
-
Peer-to-peer location constraintController chassis only
-
Port access adapterT8153 Communications Interface Adapter
-
Diagnostic cableTC-304-01 maintenance cable
-
Diagnostic port baud rate19200 baud; verify applicable firmware scope
-
Rear serial baud range1200 to 115200 baud; verify applicable firmware scope
-
Open Modbus TCP roleSlave only on port 502; firmware scope applies
-
Modbus RTU master prerequisiteT8122 or T8123 Processor Interface Adapter
View all additional
Alternative Names
T8151 Trusted Ethernet and serial interface
ICS Triplex legacy communications interface
T8151 processor communications offload module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8151 to the documented Trusted configuration
T8151 exchanges external Ethernet and serial information for a Trusted controller. Match the early 10Base2/10BaseT hardware and four-port serial arrangement to the installed adapters; the later 100BaseT hardware is not a property of every communications interface.
Use the documented T8153 adapter or TC-305-01 cable arrangement, and retain the required electrical modes and communications configuration. Select protocol instructions for the actual firmware; the current manual explicitly redirects older firmware to an earlier issue.
A controller or expander I/O slot may hold the interface, but peer-to-peer operation requires the controller chassis. Verify the complete configured data path and diagnostics before returning an installation to service.
Features:
- Legacy Ethernet media matched
- Firmware-specific protocols verified
- Peer-to-peer placed in controller chassis
The ICS Triplex T8151 trusted communications interface module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record T8151, its actual revision, serial number and firmware. The manufacturer identifies changes between early T8151 hardware, later T8151B revisions and T8151C; a shared communications-interface name does not establish an unrestricted replacement.
Compare the existing adapter, cable connections, serial electrical modes, port addressing and engineering configuration. Preserve ESD precautions, inspect the housing and connectors, and reject damaged hardware instead of straightening bent pins.
Use the controlled manufacturer procedure and approved maintenance plan. Check interface health and the required external communications after fitting; do not infer that port settings, firmware or application configuration transfer automatically to a different hardware generation.
Features:
- Full label and firmware retained
- Adapters and port configuration checked
- No unconditional cross-version substitution
The ICS Triplex T8151 trusted communications interface module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8151 trusted communications interface module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8151
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is T8151 a processor or a communications interface?
It is a communications interface for the Trusted platform. It handles external communications for the controller; it is not the TMR application processor and does not add analog or digital process channels. -
Does the original T8151 provide 100BaseT Ethernet?
The manufacturer version table lists dual 10Base2/10BaseT for T8151 through revision H. The 10BaseT/100BaseT entry belongs to later T8151B hardware and T8151C; do not transfer that rating to this legacy part. -
Which serial connections are isolated?
Table 1 identifies four isolated rear serial ports and one isolated RS-232 diagnostic port. The rear allocation is two RS-232/422/485 ports and two RS-422/485 ports on the documented daughter-board arrangement. -
Which manual applies to the installed firmware?
Issue 26 names firmware 52020 build 3 onwards, 353570 and 10006090837. For firmware through version 2.04 it directs users to Issue 6. Confirm the actual firmware before applying current configuration instructions. -
Can peer-to-peer communication run from an expander chassis?
The installation section allows controller or expander I/O slots but restricts peer-to-peer operation to the controller chassis. Verify that the physical position agrees with the engineering configuration. -
What provides access to the rear communication ports?
The manual identifies the T8153 Communications Interface Adapter or the documented TC-305-01 flying-lead communications cable. Select the arrangement from the installed revision and controlled connection drawings. -
Can Open Modbus TCP be configured as a master?
The protocol section describes Open Modbus TCP on port 502 as slave-only. The separately documented Modbus RTU master service requires T8122 or T8123 and must be checked against the installed firmware. -
Can a T8151C be fitted without checking the existing installation?
No unconditional exchange is established here. Compare hardware generation, Ethernet media, firmware, adapters, chassis position and protocol configuration before using a different catalog suffix.
