PRODUCT DESCRIPTION

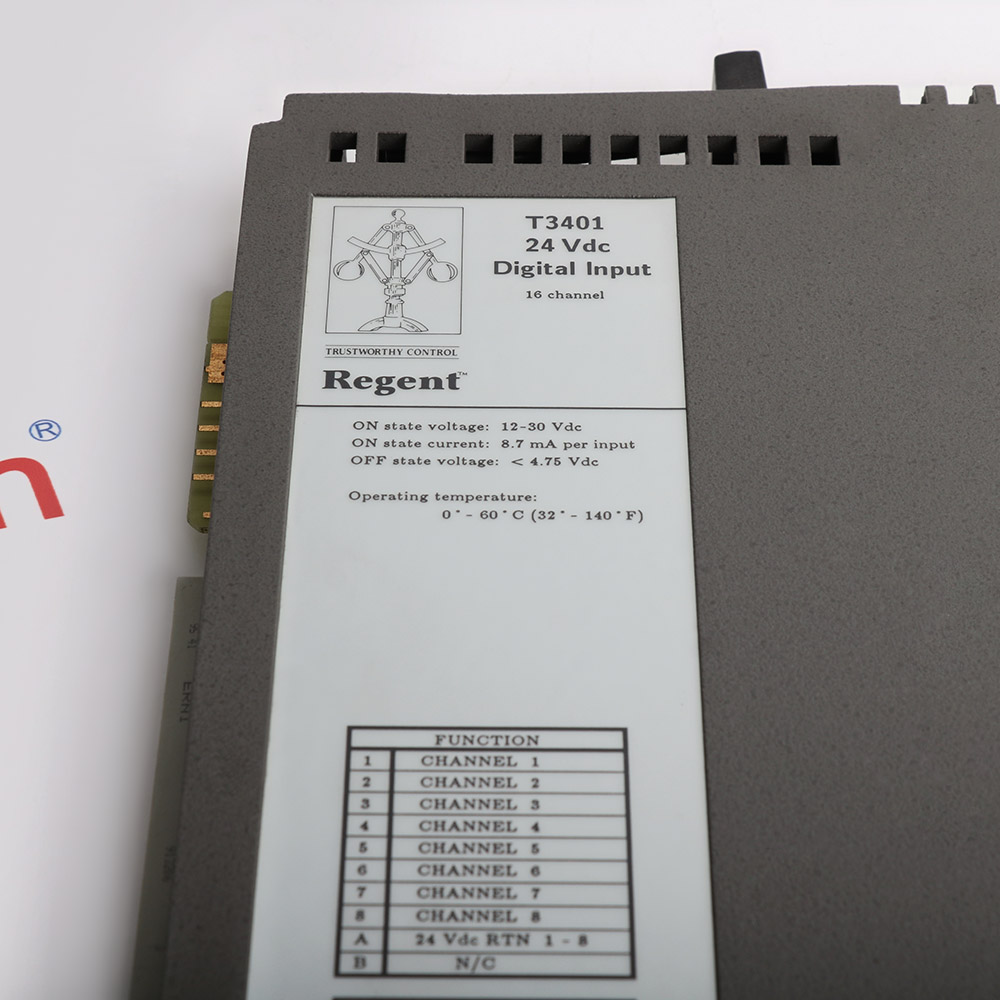

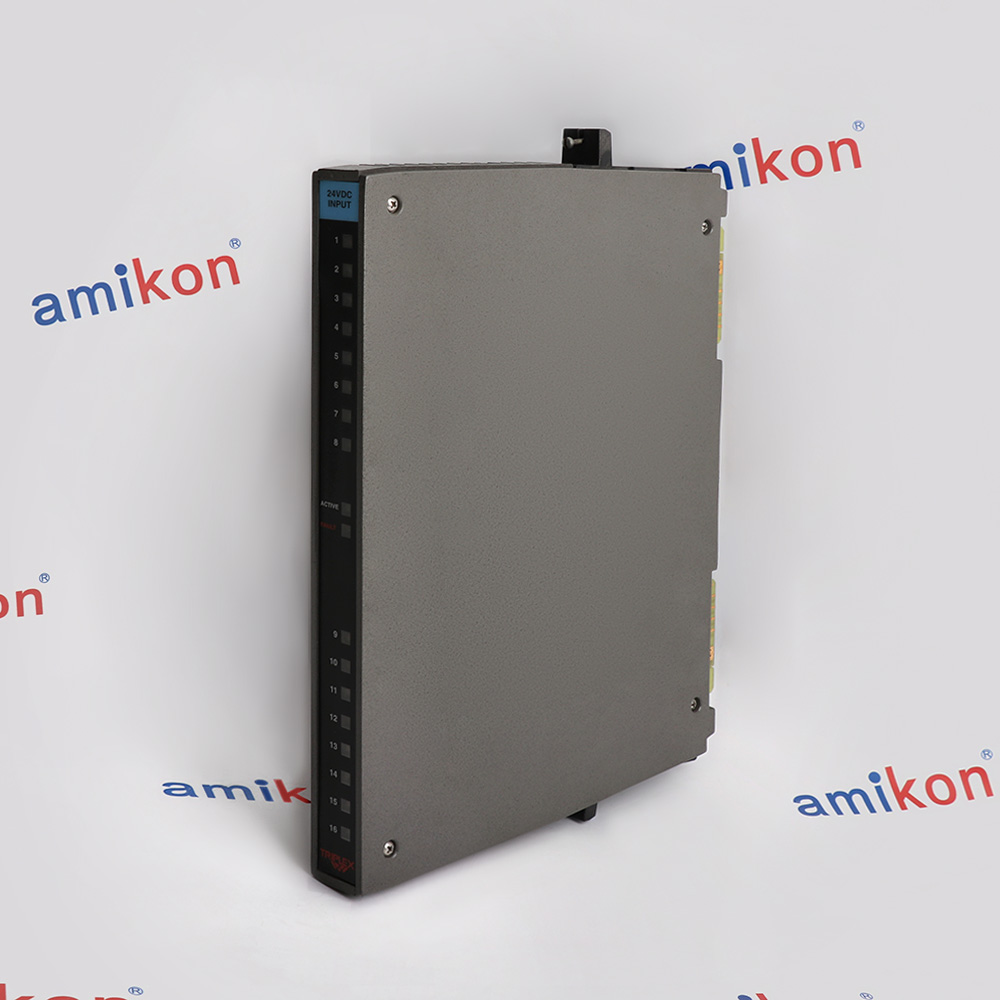

T3401 DC Digital Input Module
ICS Triplex T3401 is a dc digital input module in the Regent T3401 DC Input range. It detects compatible DC switch states through sixteen inputs in a configured Regent system.
Sixteen DC inputs are split into two isolated groups and transferred through the Regent I/O Safetybus. Optical isolation separates field signals from logic. T3401 uses the documented 14–30 V input execution; T3402 and T3408 have different voltage limits and are not interchangeable solely because their housings are similar.
Sixteen DC inputs are split into two isolated groups and transferred through the Regent I/O Safetybus. Optical isolation separates field signals from logic. T3401 uses the documented 14–30 V input execution; T3402 and T3408 have different voltage limits and are not interchangeable solely because their housings are similar.
BEFORE YOU BUY
Confirm the complete dc digital input module
ACTUAL APPLICATIONS
Application context for T3401
T3401 is a dc digital input module for Regent T3401 DC Input. Relevant industries include oil and gas, chemical processing, food and beverage. Match the supplied revision and installed configuration.
-
01 · OIL & GAS
Oil Refining and Natural Gas Processing
Petroleum Refining Process ControlNatural Gas Processing Production -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Industrial Process Production
Industrial Chemical Process ControlPetrochemical Processing and Production -
03 · FOOD & BEVERAGE
Food Processing and Beverage Production
Food Processing and ProductionBeverage Production and Packaging
Technical specifications for T3401
-
Product ModelT3401
-
Product ParametersDC Digital Input Module
-
In stock5 units
-
ManufacturerICS Triplex
-
DC input allocation16 circuits, 2 groups of 8
-
Permitted input voltage14–30 V DC
-
Turn-on threshold12 V DC minimum
-
Turn-off threshold4.7 V DC maximum
-
Input current8.7 mA
-
Turn-on delay0.2–1.8 ms
-
Turn-off delay0.5–2.6 ms
-
Continuous overvoltage withstand50 V AC
-
Burst overvoltage withstand80 V AC for 5 s
-
Heat dissipation10 W
-
Safetybus power loading1.15 load units
-
Field/logic isolation2500 V minimum
-
Operating temperature0–60 ℃
-
Storage temperature−40–85 ℃
-
Operating humidity0–95%, non-condensing
View all additional
Alternative Names
T3401
Regent T3401 DC Input DC Digital Input Module
Regent sixteen-point 24 V DC input interface
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate T3401 dc digital input module
Match T3401 to the installed Regent T3401 DC Input equipment, connectors and accepted configuration before integration.
Sixteen DC inputs are split into two isolated groups and transferred through the Regent I/O Safetybus. Optical isolation separates field signals from logic. T3401 uses the documented 14–30 V input execution; T3402 and T3408 have different voltage limits and are not interchangeable solely because their housings are similar.
Use the applicable controlled documents for T3401. Validate the affected circuits and retain the final configuration and test record.
Features:
- DC input allocation: 16 circuits, 2 groups of 8
- Permitted input voltage: 14–30 V DC
- Turn-on threshold: 12 V DC minimum
The T3401 dc digital input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify T3401 dc digital input module
Confirm the complete T3401 article and installed Regent T3401 DC Input execution before exchange. Similar housings do not establish electrical or functional interchangeability.
Record the dc digital input module connections, associated parts and project settings. Isolate affected circuits under the site procedure and preserve the accepted configuration.
After fitting T3401, restore the verified configuration and test the affected functions. Keep the supplied-part identity and acceptance results with the Regent T3401 DC Input equipment record.
Features:
- DC input allocation: 16 circuits, 2 groups of 8
- Permitted input voltage: 14–30 V DC
- Turn-on threshold: 12 V DC minimum
The T3401 dc digital input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the T3401 dc digital input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size32 × 3.2 × 25.7cm
-
Shipping weight1.40kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited Kingdom
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T3401
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How are the sixteen Regent DC inputs grouped?
The documented dc input allocation for T3401 is 16 circuits, 2 groups of 8. -
Which field-voltage range belongs to T3401?
The documented permitted input voltage for T3401 is 14–30 V DC. -
What minimum voltage turns a T3401 input on?
The documented turn-on threshold for T3401 is 12 V DC minimum. -
What maximum voltage defines its off state?
The documented turn-off threshold for T3401 is 4.7 V DC maximum. -
What input current is documented for Regent T3401?
The documented input current for T3401 is 8.7 mA. -
How long can the T3401 turn-on delay be?
The documented turn-on delay for T3401 is 0.2–1.8 ms. -
Which identification helps quote the Regent T3401 DC Input spare?
Supply T3401, quantity, the installed Regent T3401 DC Input arrangement and label photographs. Specify any connector, cable or companion assembly required by the accepted configuration. -
What should be inspected on the received dc digital input module?
Inspect the T3401 label, connector condition and physical assembly against the accepted offer. Compare the Regent T3401 DC Input configuration and included accessories before a controlled replacement test.
