PRODUCT DESCRIPTION

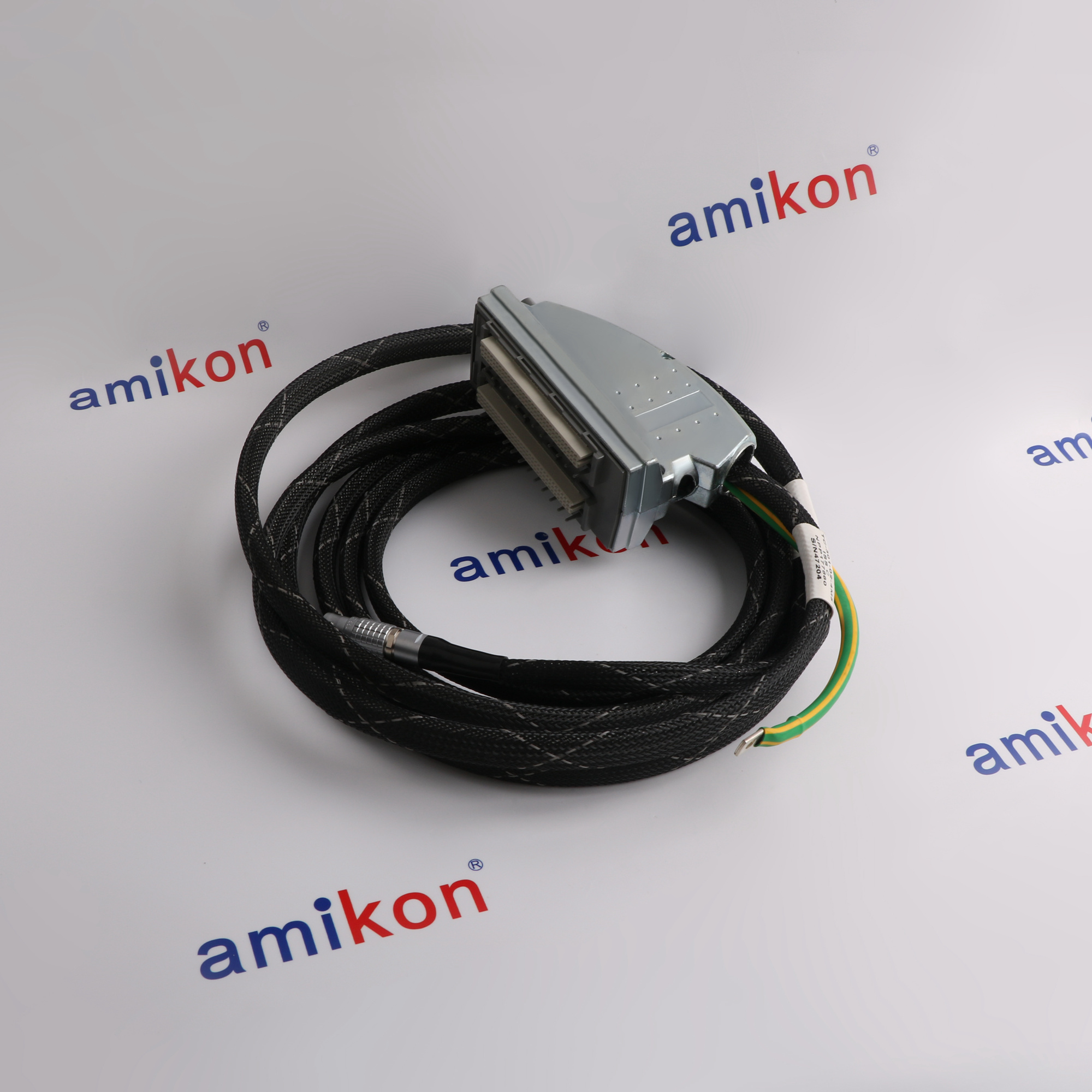

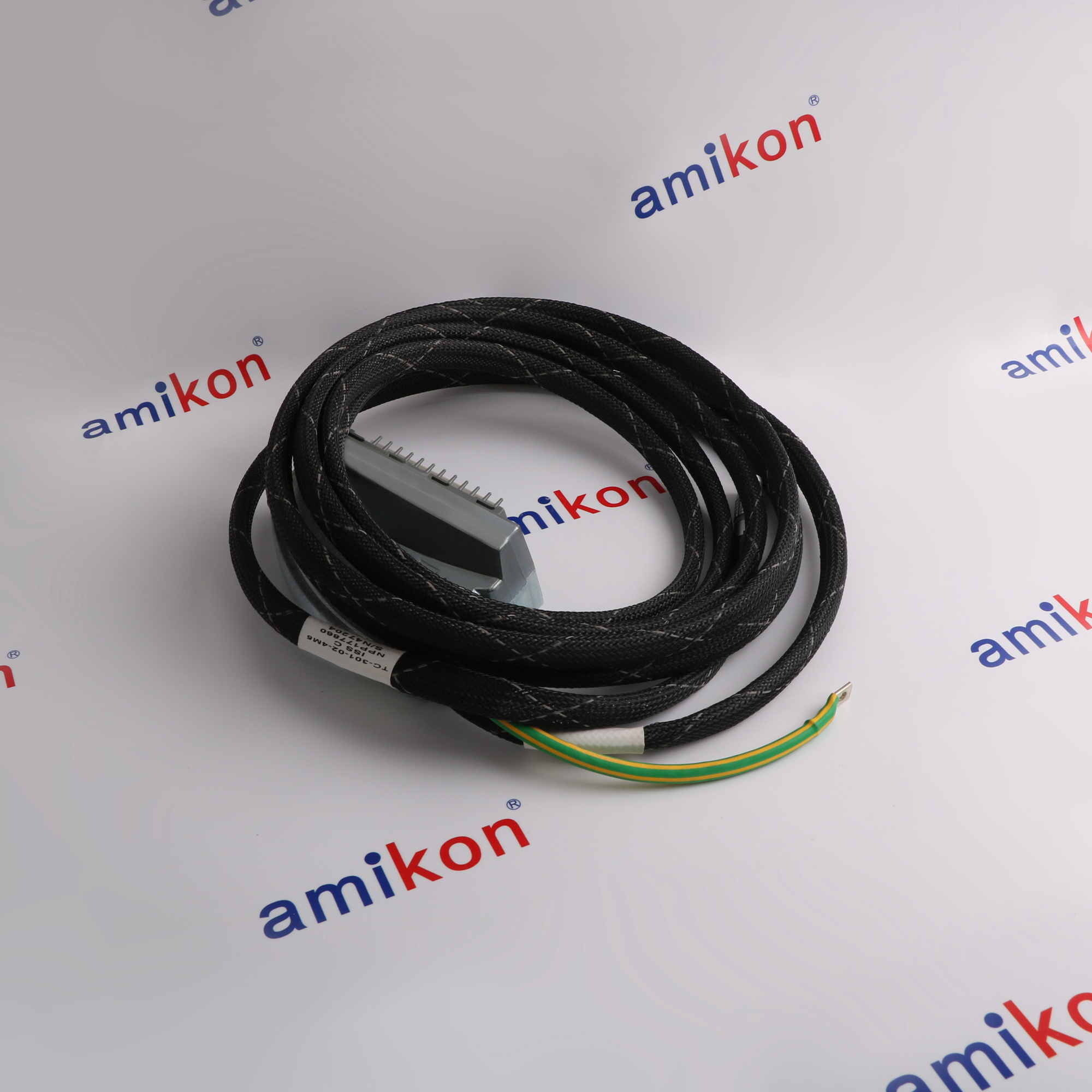

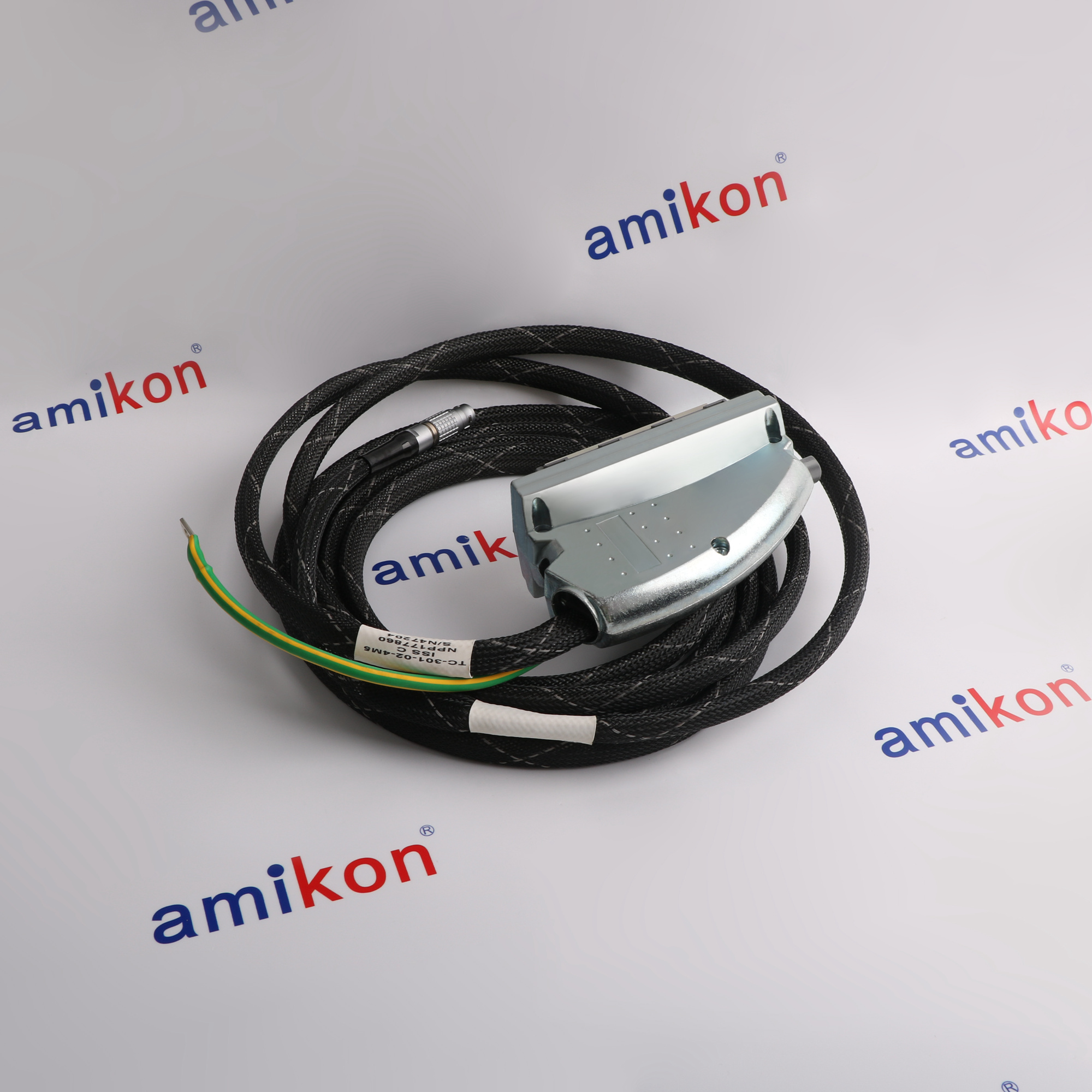

TC-301-02-4M5 4.5-meter Trusted local expansion cable
TC-301-02-4M5 is the 4.5-meter local expansion cable connecting a Trusted TMR Expander Processor to the appropriate position on an Expander Interface Adapter. The assembly uses a screened Cat 6 Plus cable with a low-smoke, zero-halogen sheath.
The processor end uses a 96-way type C connector in a double-width hood with an earth braid. A 12-way LEMO plug forms the adapter connection, completing the screened local-expansion link between the controller-side adapter and expander processor.
The processor end uses a 96-way type C connector in a double-width hood with an earth braid. A 12-way LEMO plug forms the adapter connection, completing the screened local-expansion link between the controller-side adapter and expander processor.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where TC-301-02-4M5 Fits Across Industrial Production Fields
Used in oil, chemical and power operations where the installed equipment and approved controller configuration are compatible.
-
01 · POWER GENERATION
Electricity Generation at Gas Fired and Combined Cycle Facilities
Gas fired generating stations supplying electricity for industrial consumers.Combined cycle generating facilities producing power for utility networks. -
02 · OIL & GAS
Petroleum Extraction, Gas Treatment and Hydrocarbon Processing Facilities
Offshore petroleum platforms handling extraction and initial production processing.Natural gas treatment plants and refineries processing hydrocarbon feedstocks. -
03 · CHEMICAL PROCESSING
Bulk Chemical Manufacturing and Specialty Product Production Areas
Continuous chemical manufacturing lines producing basic industrial chemical feedstocks.Batch blending facilities preparing formulated chemicals and specialty products.
Technical specifications for TC-301-02-4M5
-
Product ModelTC-301-02-4M5
-
Product ParametersTrusted Local Expansion Cable
-
ManufacturerICS Triplex
-
Nominal cable length4.5 m; 4M5 order-code suffix
-
Documented endpointsT8312 Expander Interface Adapter to T8310 TMR Expander Processor
-
Processor-end connector96-way type C; double-width hood
-
Adapter-end connector12-way LEMO plug
-
Cable constructionCat 6 Plus, screened
-
Sheath materialLow smoke zero halogen; -02 variant
-
Earth connectionBraid on the processor-end connector hood
-
Documented maximum length30 m for the TC-301 cable family
-
Minimum bend radius4 times the cable diameter
-
Straight entry at connectorAt least 100 mm before any bend
-
Catalog electrical limit60 V / 2 A maximum per channel
-
Flame-retardant referenceIEC 60332-3 Category A for -02 cables
View all additional
Alternative Names
Trusted TC-301-02-4M5 expansion cable
TC-301-02 4.5 meter cable
ICS Triplex TC-301 local expander cable
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match TC-301-02-4M5 to the documented Trusted configuration
TC-301-02-4M5 forms the documented local link between a T8312 Expander Interface Adapter and a T8310 TMR Expander Processor. Confirm the exact adapter position and expander chassis.
The -02 construction is screened Cat 6 Plus with an LSZH sheath. The processor and adapter ends use different connectors and must be oriented according to the original drawing.
The 4.5-meter route must accommodate the minimum bend radius and straight connector entry. Avoid lateral LEMO loading and excessive pulling force; preserve the documented earth-braid arrangement.
Features:
- T8312 to T8310 local link
- Complete length and insulation suffix
- OEM connector routing limits
The ICS Triplex TC-301-02-4M5 trusted local expansion cable requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match TC-301-02-4M5, the original expansion endpoints and the intended cable route. A fibre expansion cable, SmartSlot jumper or Ethernet lead is not an assumed substitute.
Record both connections and inspect the LEMO plug, type C connector, hood, screen and earth braid. Preserve the original orientation and cable support arrangement.
Follow the approved isolation and maintenance plan. After installation, verify the expansion communication and affected I/O under the controlled commissioning procedure.
Features:
- Preserve exact expansion topology
- Inspect connector and earth condition
- Verify expander communication
The ICS Triplex TC-301-02-4M5 trusted local expansion cable requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex TC-301-02-4M5 trusted local expansion cable must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromShip-from location unconfirmed
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8544421100
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about TC-301-02-4M5
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does TC-301-02-4M5 connect?
It connects a T8310 Trusted TMR Expander Processor to the appropriate T8312 Expander Interface Adapter position. It is a local expansion assembly, not a general Ethernet patch lead. -
Does 4M5 mean the maximum permitted length?
No. The 4M5 suffix specifies this assembly as 4.5 meters. The manual separately gives a 30-meter maximum for the TC-301 family; the installed topology must also follow the complete manufacturer requirements. -
What distinguishes the -02 and -03 versions?
The manual specifies screened Cat 6 Plus with an LSZH sheath for -02, and screened Cat 5e with a UL-certified sheath for -03. Preserve the complete suffix instead of treating these cable constructions as identical. -
Are both ends the same connector?
No. The processor end uses a 96-way type C connector in a double-width hood with an earth braid. The adapter end uses a 12-way LEMO plug. -
What routing limits does the manufacturer specify?
Keep the bend radius at least four times the cable diameter and retain at least 100 mm of straight cable at the connector before a bend. Avoid lateral strain on LEMO connectors and excessive pulling force during routing. -
Can this replace a fibre expansion cable?
Not simply on the basis of length or connector appearance. Fibre expansion uses different documented cable families and endpoints. Match the complete installed expansion arrangement. -
Can the assembly be removed while operating?
Do not infer permission from the expansion function. Follow the manufacturer warnings, qualified-personnel requirements and approved isolation and maintenance procedure before disturbing the connection.
