PRODUCT DESCRIPTION

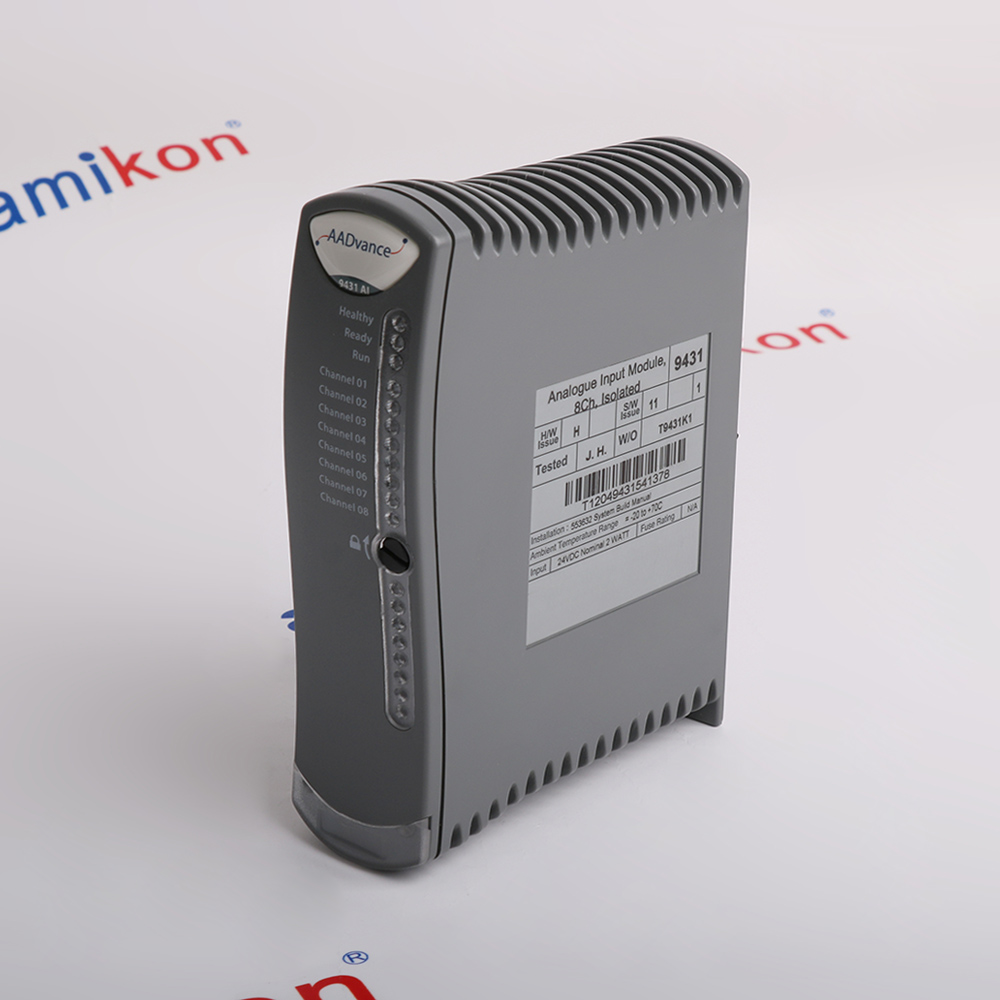

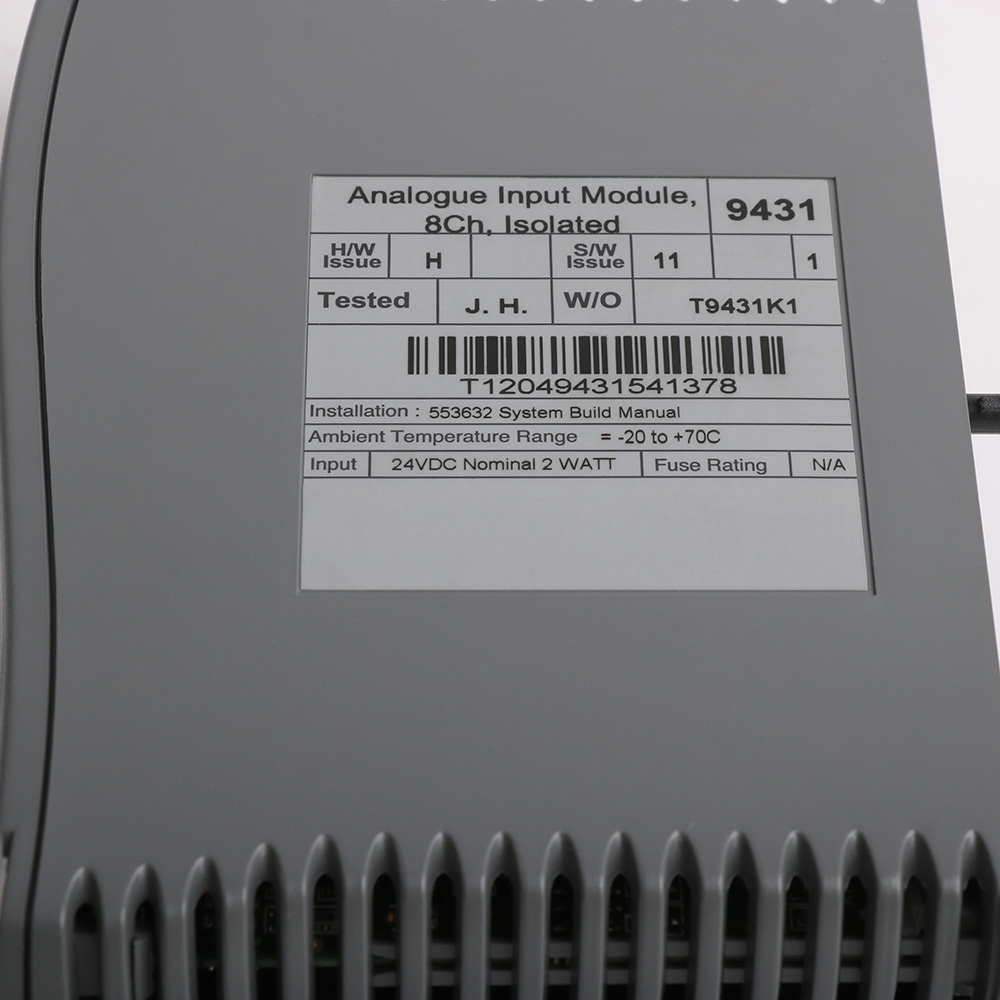

T9431 Eight-channel analog input module
ICS Triplex T9431 is an eight-channel analog input module for the AADvance safety-control platform. It acquires 4 to 20 mA field signals for process monitoring and safety functions in the documented controller configuration, with isolated channels and support for compatible analog-input termination assemblies.
The module provides a 0 to 24 mA maximum measurement range, fifteen-bit resolution and a six-millisecond unfiltered sample interval. Signal and power isolation separate each channel from the rest of the system, while configurable line-monitoring bands, channel status indicators and an independent watchdog support diagnostics. HART command 03 provides access to field-device process information through the supported platform configuration.
The module provides a 0 to 24 mA maximum measurement range, fifteen-bit resolution and a six-millisecond unfiltered sample interval. Signal and power isolation separate each channel from the rest of the system, while configurable line-monitoring bands, channel status indicators and an independent watchdog support diagnostics. HART command 03 provides access to field-device process information through the supported platform configuration.
BEFORE YOU BUY
Confirm the complete eight-channel analog input module
ACTUAL APPLICATIONS
Application context for T9431
T9431 is a eight-channel analog input module in the AADvance safety controllers. It supports oil and gas, chemical processing, power generation where the documented electrical limits, connected signals and equipment configuration are satisfied.
-
01 · OIL & GAS
Oil and Natural Gas Production and Processing
Oil Production and ProcessingNatural Gas Processing -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Petrochemical Production Processing
Chemical Production and ProcessingPetrochemical Process Production -
03 · POWER GENERATION
Electricity Generation and Industrial Energy Production
Thermal Electric Power GenerationIndustrial Energy Production
Technical specifications for T9431
-
Product ModelT9431
-
Product ParametersEight-channel analog input module
-
In stock8 units
-
ManufacturerICS Triplex
-
Analog input channels8
-
Nominal input range4–20 mA DC
-
Maximum measurement range0–24 mA DC
-
Converter resolution15 bits
-
Least significant bit0.98 µA
-
Unfiltered sample interval6 ms
-
Calibrated accuracy at 25 ℃±0.05 mA
-
Temperature drift0.01% + 0.3 µA per ℃
-
Safety accuracy limit200 µA
-
Module supplyRedundant 24 V DC nominal
-
Module power dissipation3.3 W
-
Channel isolation withstand±1.5 kV DC for 1 minute
-
Default normal current band3.8–22.0 mA
-
Self-test interval<1 hour, system dependent
-
HART command supportCommand 03
View all additional
Alternative Names
T9431
AADvance safety controllers Eight-channel analog input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate T9431 eight-channel analog input module
ICS Triplex T9431 is an eight-channel analog input module for the AADvance safety-control platform. It acquires 4 to 20 mA field signals for process monitoring and safety functions in the documented controller configuration, with isolated channels and support for compatible analog-input termination assemblies.
Compare the documented analog input channels (8) and nominal input range (4–20 mA DC) with the installed configuration. Match the complete order code, terminal arrangement and required mating components before connection.
Follow the ICS Triplex instructions for mounting, wiring and configuration. Retain the existing parameter record, inspect connections and validate every affected signal before returning the equipment to operation.
Features:
- Analog input channels: 8
- Nominal input range: 4–20 mA DC
- Maximum measurement range: 0–24 mA DC
The T9431 eight-channel analog input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify T9431 eight-channel analog input module
Replace T9431 only after confirming the complete article number, product family and installed revision. The replacement must match the documented eight-channel analog input module role and the connected equipment.
Record the installed AADvance safety controllers configuration, terminal assignments and cable connections before removal. Preserve the applicable program, parameter settings and diagnostic records for restoration.
After fitting T9431, restore the approved configuration and perform the manufacturer-defined functional checks. Confirm the connected signal or power paths and record the final test results before release.
Features:
- Analog input channels: 8
- Nominal input range: 4–20 mA DC
- Maximum measurement range: 0–24 mA DC
The T9431 eight-channel analog input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the T9431 eight-channel analog input module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size16.60 × 4.20 × 11.80 cm
-
Shipping weight0.28kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited Kingdom
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T9431
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is T9431 used for?
ICS Triplex T9431 is an eight-channel analog input module for the AADvance safety-control platform. It acquires 4 to 20 mA field signals for process monitoring and safety functions in the documented controller configuration, with isolated channels and support for compatible analog-input termination assemblies. -
What is the documented analog input channels?
8. -
What nominal input range applies to T9431?
4–20 mA DC. -
Which maximum measurement range is specified?
0–24 mA DC. -
What is the converter resolution specification?
15 bits. -
Which documentation covers T9431?
ICS Triplex AADvance safety controllers official technical documentation. -
What should be confirmed before ordering T9431?
Confirm the complete T9431 label, quantity, condition and compatibility with the installed AADvance safety controllers equipment. -
What warranty applies to the quoted T9431?
The quoted T9431 is covered by the AMIKON twelve-month warranty under the agreed sale and return terms.
