PRODUCT DESCRIPTION
Selectable analogue inputs with 60 Hz interference rejection

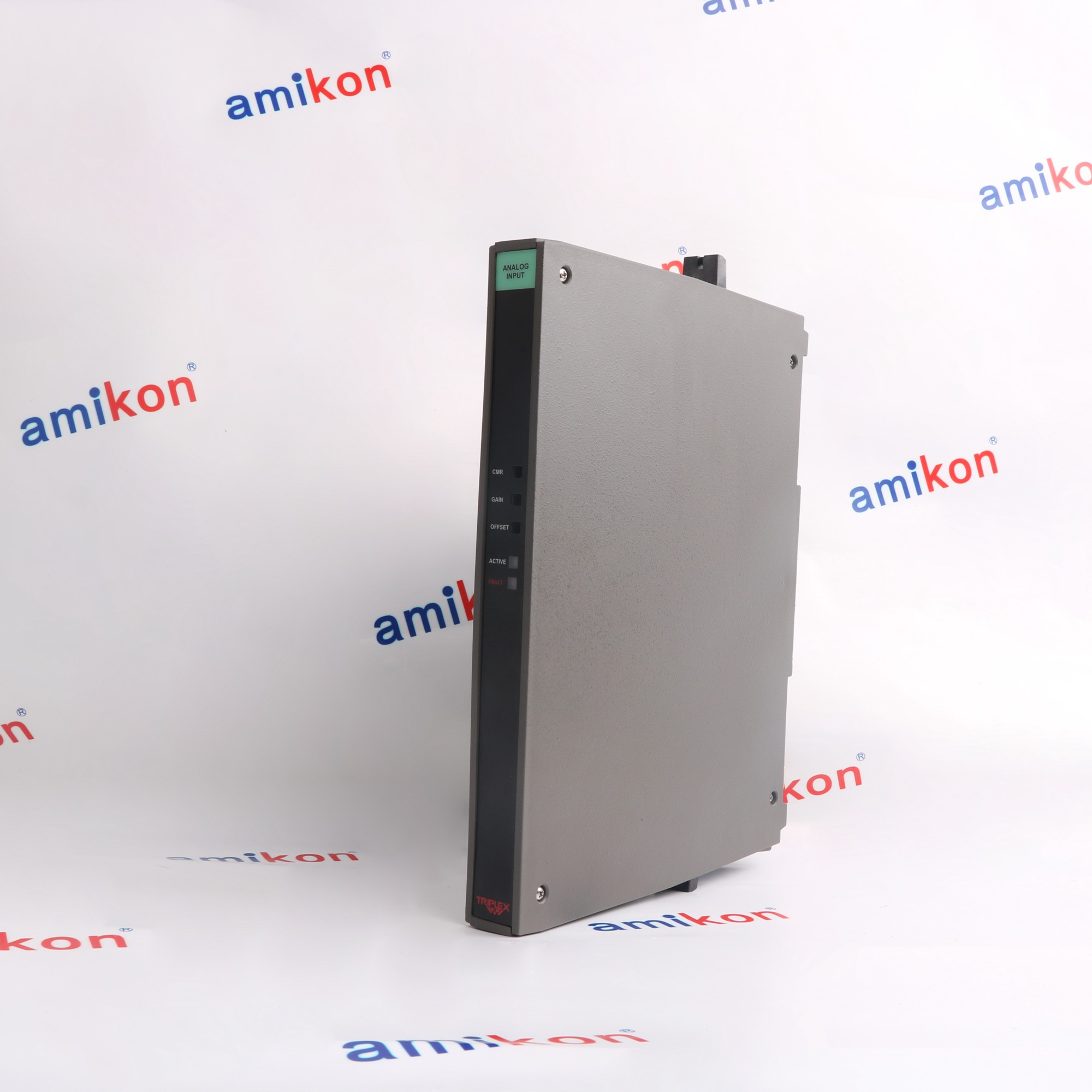

ICS Triplex T3420A is the Regent analogue input module with 60 Hz rejection. It accepts sixteen single-ended or eight differential voltage signals, conditions and multiplexes them, and converts the measurements into twelve-bit data for the controller I/O interface.
Input range and operating mode are selected by internal jumpers and the matching software definition. Current signals require external precision conversion resistors, and transmitter loop power is supplied separately. Calibration must match the selected range and mode before the module enters service.
Input range and operating mode are selected by internal jumpers and the matching software definition. Current signals require external precision conversion resistors, and transmitter loop power is supplied separately. Calibration must match the selected range and mode before the module enters service.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T3420A Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · CHEMICAL PROCESSING
Chemical Processing Plants and Continuous Material Production Facilities
Chemical processing plants with reactors and process feed equipment.Continuous material production facilities with blending vessels and heaters. -
02 · WATER & WASTEWATER
Water Treatment Facilities and Municipal Distribution Pumping Areas
Water treatment facilities with dosing pumps and filtration equipment.Municipal distribution pumping areas with storage tanks and pipelines. -
03 · POWER GENERATION
Electricity Generation Plants and Power Station Process Equipment
Electricity generation plants with steam boilers and cooling circuits.Power station process equipment handling feedwater and turbine auxiliaries.
Technical specifications for T3420A
-
Product ModelT3420A
-
Product ParametersRegent analogue input module
-
ManufacturerICS Triplex
-
Input mode16 single-ended or 8 differential; jumper selectable
-
Inputs per group8 single-ended or 4 differential
-
Voltage ranges0-5 V, 1-5 V, +/-5 V, 0-10 V or +/-10 V
-
Current signal conversionExternal precision 250 ohm resistors; 4-20 mA uses the 1-5 V range
-
Analogue resolution12 bits; 1 part in 4096
-
Full-channel update3.60 ms single-ended; 1.80 ms differential
-
Frequency response at -3 dB7.23 Hz single-ended; 3.62 Hz differential
-
Attenuation at 60 Hz18.4 dB single-ended; 24.4 dB differential
-
Safetybus load1.85 load units
-
Field loop powerNot supplied by the module
-
Field-to-logic isolation2500 V minimum
-
Heat dissipation9 W
-
Slot keysUpper connector 9; lower connector 15
-
Operating temperature0 to +60 degrees C
-
Storage and humidity-40 to +85 degrees C; 0-95% RH, noncondensing
View all additional
Alternative Names
T3420A Regent analogue input module
ICS Triplex T3420A 16-channel analogue input module
T3420A Regent 60 Hz rejection input unit
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
REGENT EQUIPMENT
Match T3420A to the documented Regent configuration
This Regent module measures analogue voltage inputs; current signals require the documented external resistor arrangement. Match the configured channel mode, voltage range, termination, references and external transmitter supply.
Match sixteen single-ended or eight differential inputs, the appropriate termination assembly and upper 9/lower 15 keys. Verify the selected voltage range, external current-conversion resistors and separate transmitter loop supply.
Select the standard-response module and correct single-ended or differential mode in WINTERPRET; verify scaling and voting.
Features:
- Sixteen single-ended or eight differential inputs
- Twelve-bit analogue conversion
- Selectable unipolar and bipolar voltage ranges
The ICS Triplex T3420A regent analogue input module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T3420A identity and compare its hardware revision with the installed item. Retain T3420A rather than assuming equivalence to the fast-response T3420AF. Check range and filter jumpers, software mode, field references and calibration together.
Match sixteen single-ended or eight differential inputs, the appropriate termination assembly and upper 9/lower 15 keys. Select the standard-response module and correct single-ended or differential mode in WINTERPRET; verify scaling and voting.
Use the controlled manufacturer procedure and the approved maintenance plan. The NOSIG indication has range-specific thresholds; not every out-of-range signal sets it. Use the correct manufacturer threshold table and site alarm logic.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T3420A regent analogue input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T3420A regent analogue input module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
