PRODUCT DESCRIPTION
Sixteen guarded outputs with field wiring fault monitoring

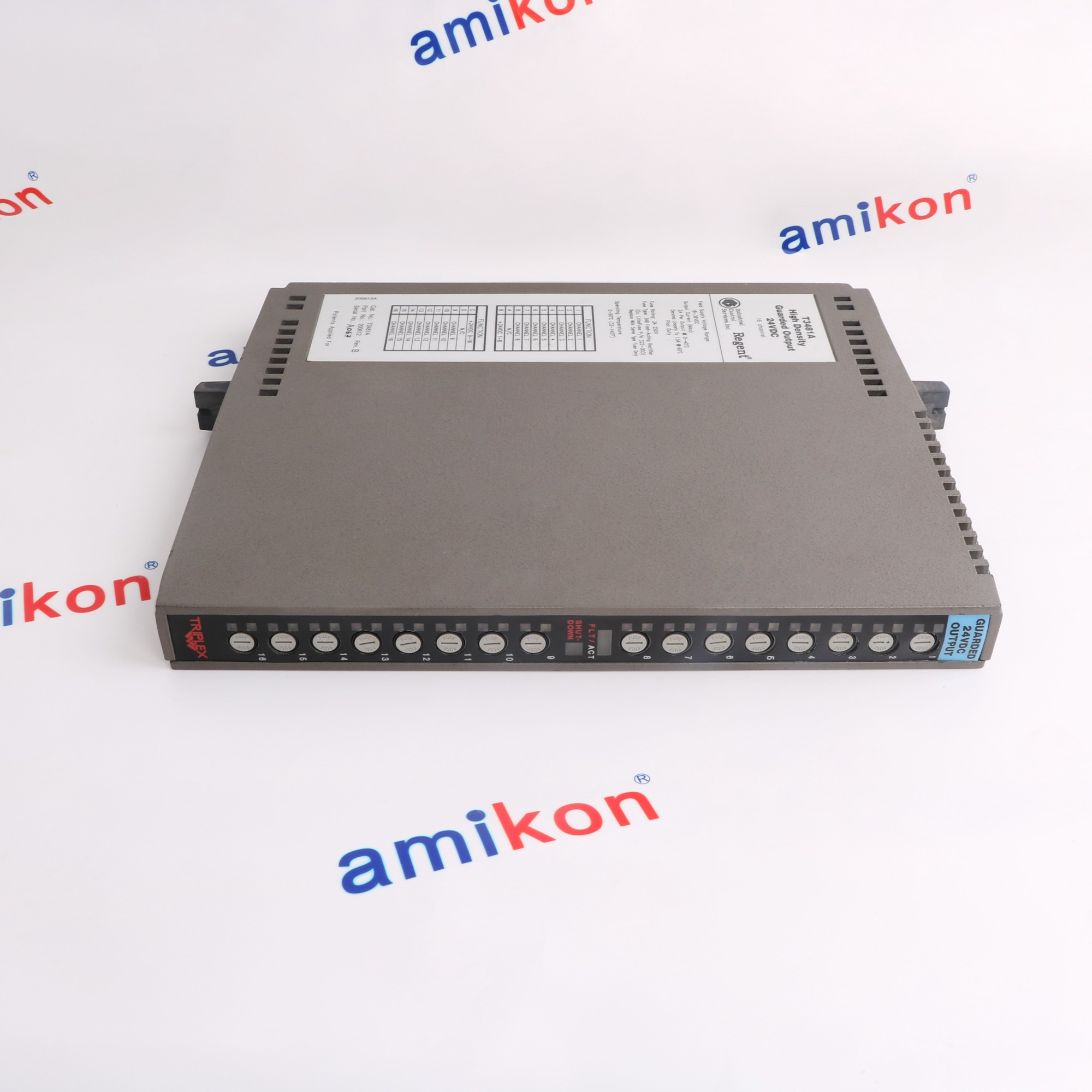

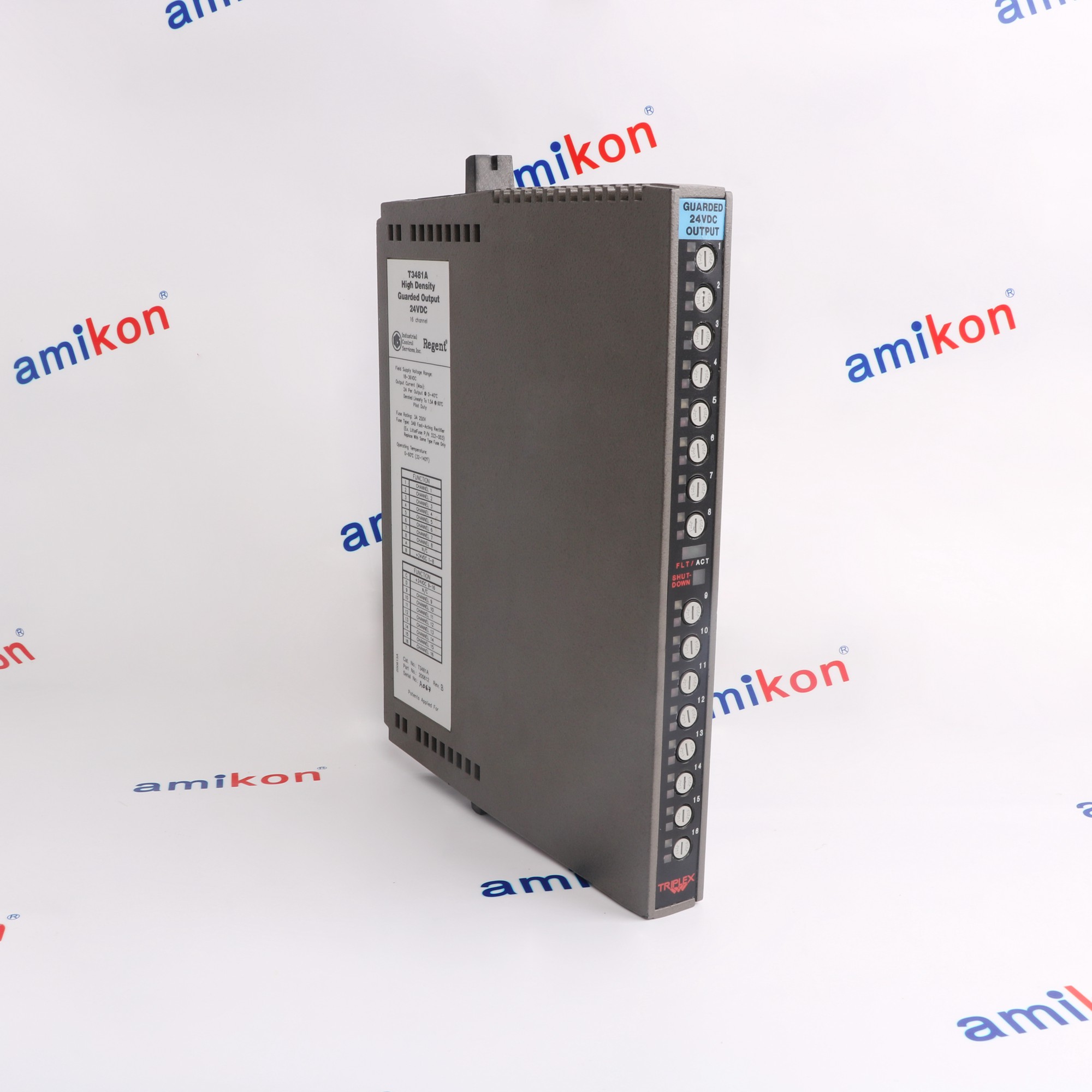

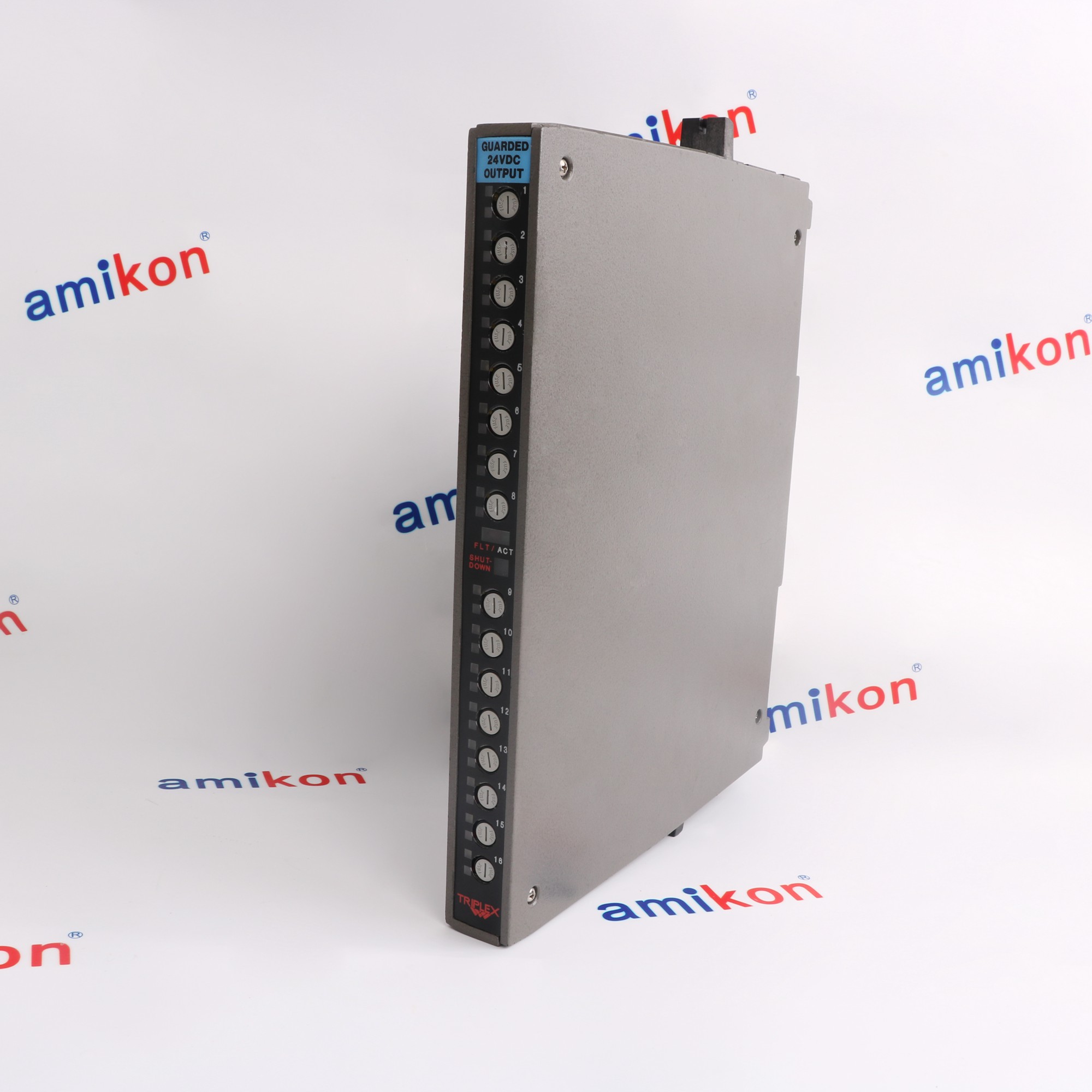

ICS Triplex T3481A is a Regent monitored guarded output module for sixteen DC field loads arranged in two isolated groups. Independent series switches control each output, while automatic diagnostics report output circuit faults and monitor field wiring for load and fuse problems.
The module uses an external 18-36 V DC field supply. Its A-version supports a lower minimum load than the earlier version. Fault-tolerant operation requires a properly wired and configured parallel pair, with load compatibility, fault reporting and the approved maintenance procedure checked.
The module uses an external 18-36 V DC field supply. Its A-version supports a lower minimum load than the earlier version. Fault-tolerant operation requires a properly wired and configured parallel pair, with load compatibility, fault reporting and the approved maintenance procedure checked.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T3481A Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · OIL & GAS
Petroleum Production Areas and Hydrocarbon Processing Plant Facilities
Petroleum production areas with wellhead valves and separation equipment.Hydrocarbon processing plants with pumping equipment and loading facilities. -
02 · POWER GENERATION
Power Generation Facilities and Station Fuel Preparation Areas
Power generation facilities with boiler burners and turbine auxiliaries.Station fuel preparation areas with feeding equipment and conveyors. -
03 · CHEMICAL PROCESSING
Chemical Manufacturing Facilities and Batch Material Handling Areas
Chemical manufacturing facilities with reaction vessels and transfer pumps.Batch material handling areas with dosing equipment and mixers.
Technical specifications for T3481A
-
Product ModelT3481A
-
Product ParametersRegent monitored guarded output module
-
ManufacturerICS Triplex
-
Output circuits16 outputs in two isolated groups of 8
-
Field voltage range18 to 36 V DC
-
Output load rating2 A at 0-40 degrees C; derated to 1.5 A at 60 degrees C
-
Minimum load5 mA for the T3481A version
-
On-state voltage drop1.0 V maximum
-
Off-state leakage700 microamp maximum for one module; 1 mA maximum for a dual pair
-
Output fuseOne 3 A, 250 V, fast-acting 3AB rectifier fuse per output; specified type Littelfuse 322-003
-
Turn-on and turn-off delays0.5 ms each
-
Safetybus load1.5 load units
-
Heat dissipation30 W
-
Isolation2500 V minimum: field-to-logic and between output groups
-
Slot keysUpper connector 4; lower connector 3
-
Operating temperature0 to +60 degrees C
-
Storage temperature-40 to +85 degrees C
-
Relative humidity0-95%, noncondensing
View all additional
Alternative Names
T3481A Regent monitored guarded output module
ICS Triplex T3481A 16-channel guarded DC output
T3481A Regent monitored field output module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
REGENT EQUIPMENT
Match T3481A to the documented Regent configuration
T3481A connects Regent control logic to compatible DC solenoids, actuators and process interlock loads. Match the two field supply groups, load limits, off-state leakage and configured line-fault reporting.
Use the original single or parallel wiring diagram and the upper 4/lower 3 mechanical keys. Check 18-36 V DC supplies, temperature derating, minimum load and guaranteed-off behavior with the specified leakage.
Check module type, single or Dual Mode, partner assembly/slot, output logic, fault variables and chassis fault-mode jumper.
Features:
- Sixteen guarded DC output circuits
- Two electrically isolated output groups
- Field load and fuse fault monitoring
The ICS Triplex T3481A regent monitored guarded output module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T3481A identity and compare its hardware revision with the installed item. Retain the A suffix and verify the external DC supply, load derating, fuse type and upper 4/lower 3 keys. A parallel pair requires reciprocal Dual Mode definitions and coordinated control logic.
Use the original single or parallel wiring diagram and the upper 4/lower 3 mechanical keys. Check module type, single or Dual Mode, partner assembly/slot, output logic, fault variables and chassis fault-mode jumper.
Use the controlled manufacturer procedure and the approved maintenance plan. Open load, shorted load, blown fuse or missing field power can mask a switch fault. Address load/fuse faults through the approved maintenance process.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T3481A regent monitored guarded output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T3481A regent monitored guarded output module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T3481A
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What changes with the A suffix?
The shared manufacturer table specifies a 5 mA minimum load and reduced off-state leakage for T3481A. Do not copy the earlier T3481 minimum-load and leakage values. -
Can every output carry two amps at all temperatures?
No. The documented rating is 2 A at 0-40 degrees C and is derated to 1.5 A at 60 degrees C. Check the actual enclosure temperature and load duty. -
Is connecting two modules in parallel sufficient for fault tolerance?
No. Both modules require the correct Dual Mode setting, reciprocal partner assembly and slot, and matching control logic. Otherwise their output tests are not coordinated and faults are reported. -
Can a low-current load always switch completely off?
No. Compare the load guaranteed-off characteristics with the documented off-state leakage and voltage table. Minimum operating load alone does not establish compatible off-state behavior. -
Which output fuse is specified?
The T3481A column specifies one 3 A, 250 V, fast-acting 3AB rectifier fuse per output, identified as Littelfuse 322-003. Replacement requires the same documented rating and type. -
Does disabling the fault LED stop line monitoring?
No. That setting suppresses the front indication only. Load monitoring and blown-fuse detection continue, and the Fault Name variable remains available to the program. -
May a single module be removed without affecting its loads?
No. The manual states that removing a single module disables its outputs. Continued load operation during replacement depends on the documented healthy parallel configuration and an approved maintenance procedure.
