PRODUCT DESCRIPTION
Conformal-coated current-loop outputs for compatible Trusted field equipment

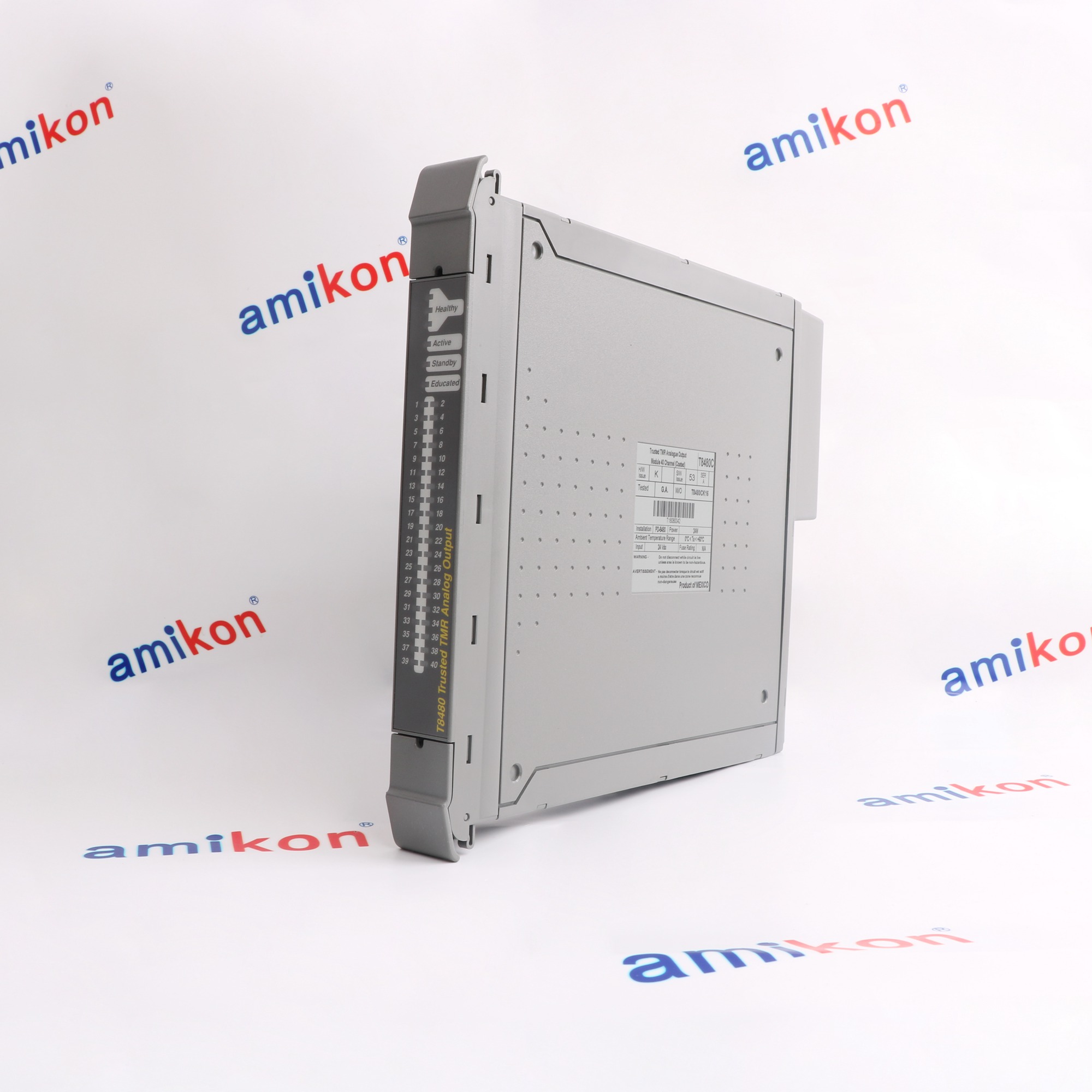

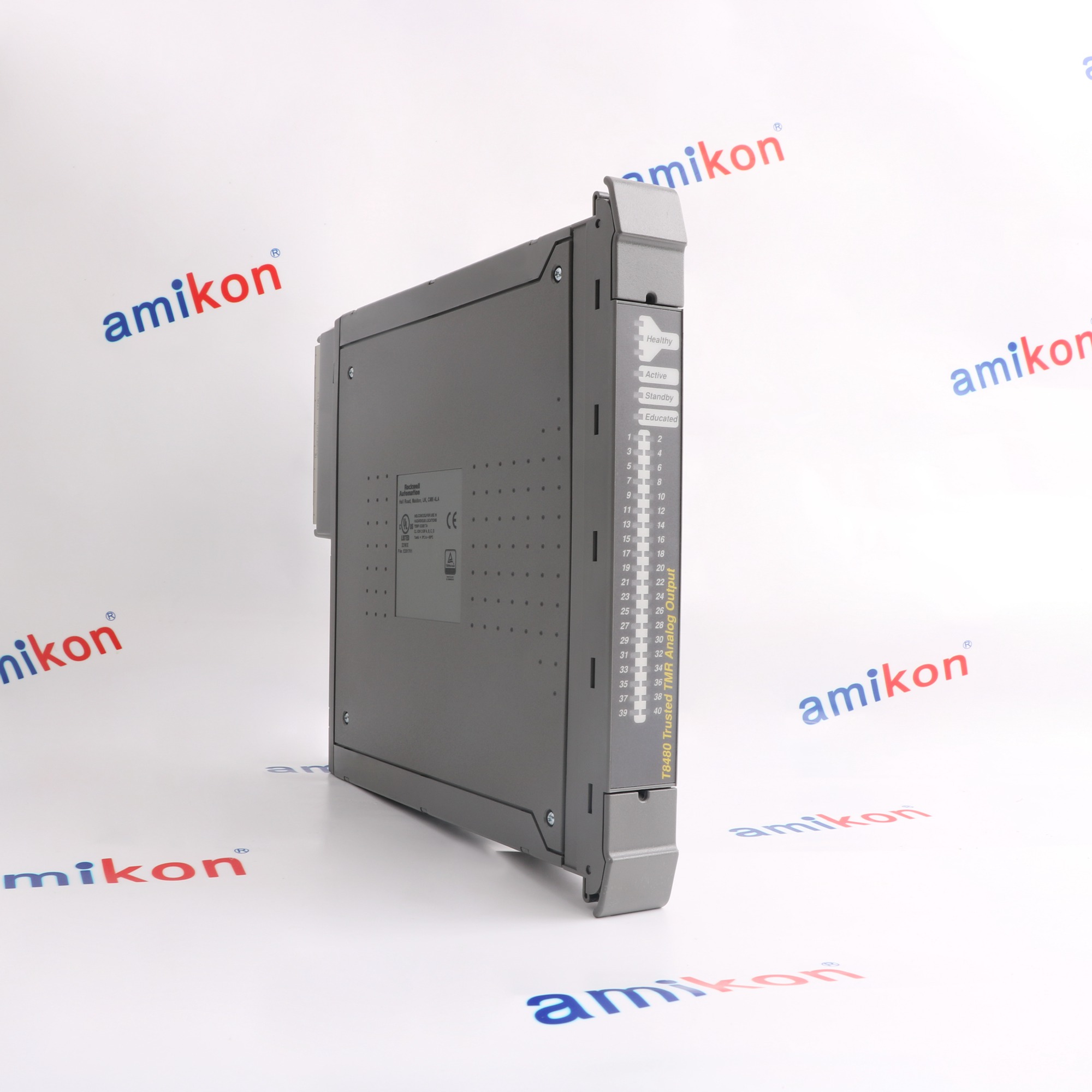

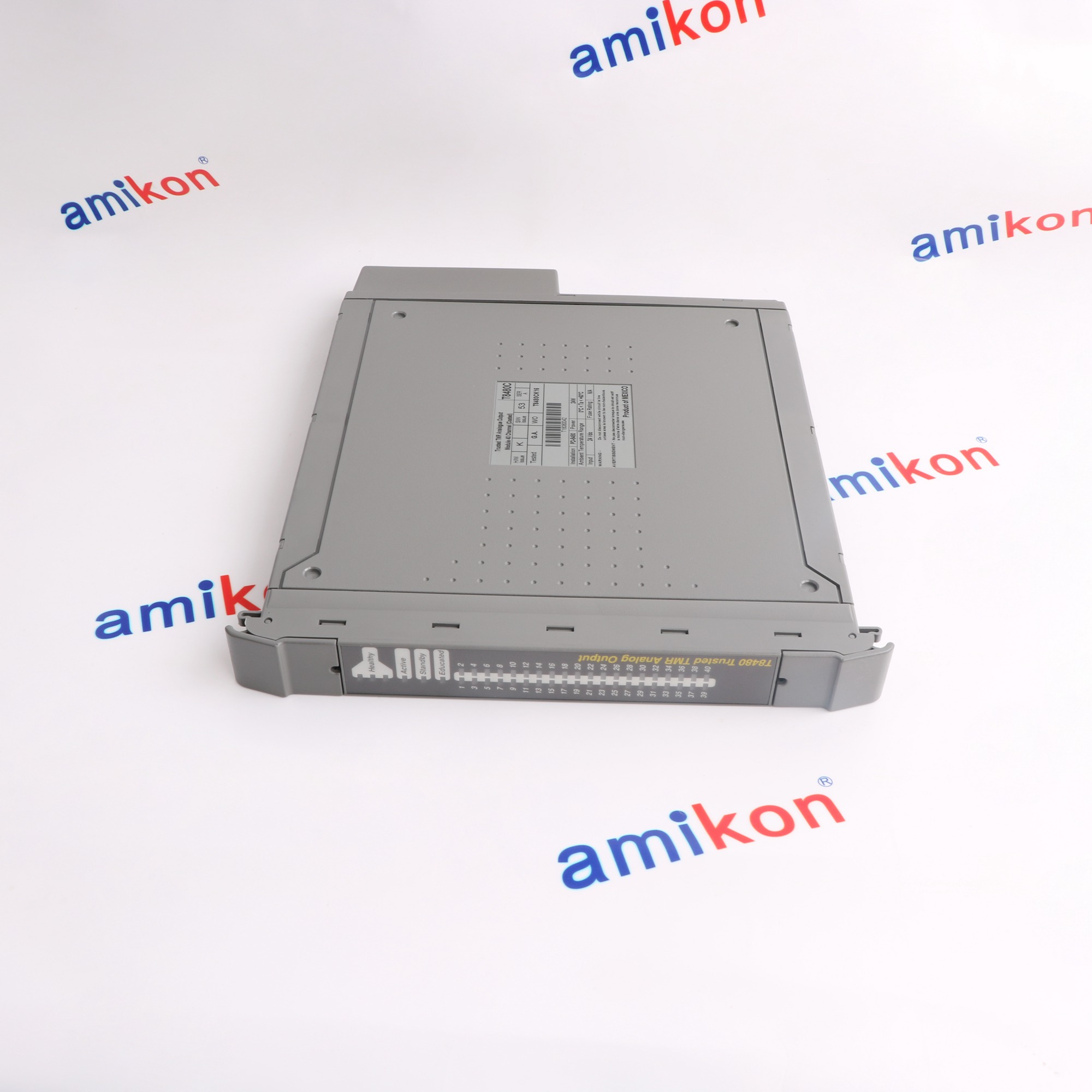

ICS Triplex T8480C is the conformal-coated version of the forty-channel Trusted TMR analog output module. Each output incorporates triplicated circuitry and diagnostic checks that measure voltage and current across the voted channel, helping maintain operation when faults occur.
Continuous line monitoring reports open-circuit conditions and loss of field-supply voltage affecting output channels. The module also checks for stuck outputs and records changes of state at 1 ms resolution. Its documented certification scope is limited to non-interfering applications.
Continuous line monitoring reports open-circuit conditions and loss of field-supply voltage affecting output channels. The module also checks for stuck outputs and records changes of state at 1 ms resolution. Its documented certification scope is limited to non-interfering applications.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8480C Fits in Process Industry Operations
Typical use covers chemical processing, electricity generation and water treatment, with suitability determined by loop requirements and configuration.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Specialty Material Production Equipment
Formulation vessels and process equipment supporting specialty chemical manufacturing.Continuous chemical production units processing raw materials into products. -
02 · POWER GENERATION
Natural Gas Power Plants and Generating Equipment
Natural gas generating plants and associated fuel preparation equipment.Turbine power generation facilities with coordinated plant auxiliary operations. -
03 · WATER & WASTEWATER
Water Treatment Facilities and Drinking Water Distribution
Treatment process equipment supplying drinking water for distribution networks.Water utility pumping equipment serving treatment and distribution facilities.
Technical specifications for T8480C
-
Product ModelT8480C
-
Product ParametersConformal-coated TMR analog output module
-
ManufacturerICS Triplex
-
Analog output channels40
-
Power groups5 groups of 8 channels
-
Backplane supply20 to 32 V DC
-
Backplane power22 W
-
Field-supply voltage18 to 32 V DC
-
Maximum field-supply current0.9 A
-
Recommended current output4 to 20 mA
-
Continuous output range1 to 22 mA
-
Calibration accuracy at +25 degrees C+/-0.1% of full scale
-
Overall accuracy, 0 to +60 degrees C+/-0.25% of full scale
-
Off-state leakage at 24 V350 microamps maximum
-
Step response1 to 20 mA step to within 1% of final value: less than 50 ms
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10 to 95%, non-condensing
View all additional
Alternative Names
Trusted conformal-coated analog output
T8480C 40-channel current output
ICS Triplex 4-20 mA output module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8480C to the documented Trusted configuration
T8480C supplies analog current signals through forty output channels arranged in five power groups. Field equipment must accept the selected current range, and the available loop voltage must support the complete cable and load resistance.
The backplane needs 20 to 32 V DC, while the external field supply is specified separately at 18 to 32 V DC. Check the load-resistance graph rather than applying an assumed resistance limit to every supply voltage.
Use the documented output cable, termination and software definition. The manufacturer identifies non-interfering applications in its safety scope; approval of any safety-related use requires the complete safety manual and project assessment.
Features:
- Current-loop range and resistance checks
- Documented non-interfering safety scope
- Configured channel and power-group wiring
The ICS Triplex T8480C conformal-coated tmr analog output module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Select the complete T8480C identity and verify the actual revision. Conformal coating does not establish interchangeability with digital output modules, analog input modules or an unsuffixed part without project-specific review.
Preserve the configured current scaling, primary and spare positions, cable keying and termination details. Assess field voltage and loop load, then inspect the housing and contacts using the manufacturer static-handling precautions.
Follow the configured Companion Slot or SmartSlot transfer sequence and validate both current output and diagnostics. The original module must no longer be active before removal; verify all affected loops before restoring normal service.
Features:
- C suffix and actual revision retained
- Current scaling and loop load matched
- Controlled transfer and loop validation
The ICS Triplex T8480C conformal-coated tmr analog output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8480C conformal-coated tmr analog output module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8480C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does the C suffix identify on T8480C?
The manufacturer catalog convention identifies C as the conformal-coating option. Preserve this suffix when specifying the module; it does not denote an extra output channel or a measured hardware revision. -
Is the specified output always limited to 4-20 mA?
The recommended output is 4 to 20 mA, while the continuous current specification is 1 to 22 mA. Use the configured loop range and the connected device requirements when assessing suitability. -
Can this analog output be described as an unrestricted SIL 3 output?
No. The product overview identifies certification for non-interfering applications and refers to the safety manual. Do not infer safety-output capability solely from the Trusted platform or its TMR architecture. -
How should the maximum loop resistance be selected?
The specification provides a load-resistance graph rather than one unconditional value. Check the available field voltage, loop wiring and operating current against that graph before approving a field circuit. -
Are neighboring channels galvanically isolated?
The manual lists no channel-to-channel isolation within a power group. Group and field-common insulation ratings have distinct conditions and should not be quoted as isolation for each individual channel. -
What distinguishes output range from output accuracy?
The recommended range is 4 to 20 mA. Calibration accuracy is +/-0.1% of full scale at +25 degrees C, while overall accuracy is +/-0.25% over 0 to +60 degrees C; these are different specifications. -
Which changeover arrangements are documented?
The module supports correctly configured Companion Slot and SmartSlot arrangements. Match the module type, cable and configured pairing, and never remove a module that remains active. -
Is conformal coating sufficient for direct hazardous-area connection?
No. The product overview requires appropriate intrinsic-safety barriers for hazardous-area circuits. Coating does not replace the required field-circuit design, protection or installation verification.
