PRODUCT DESCRIPTION
Forty triplicated analog outputs with automatic field-line diagnostics

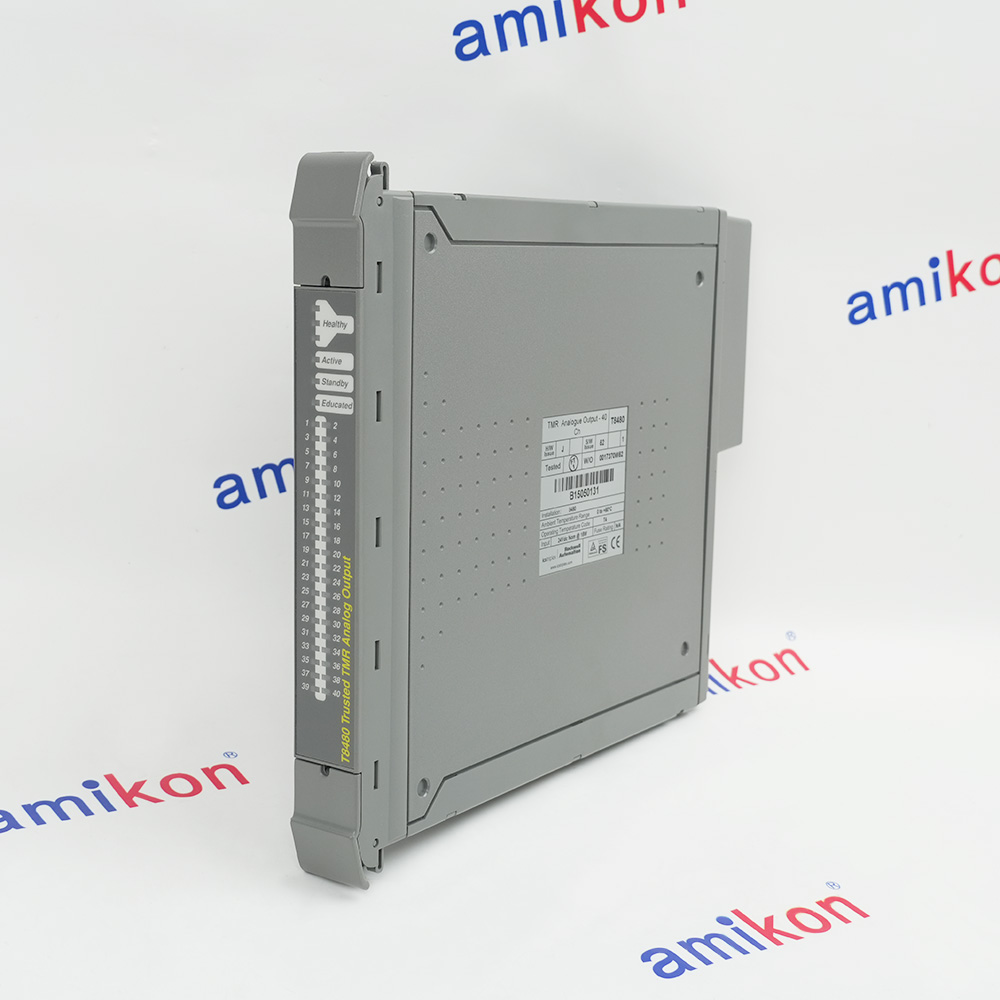

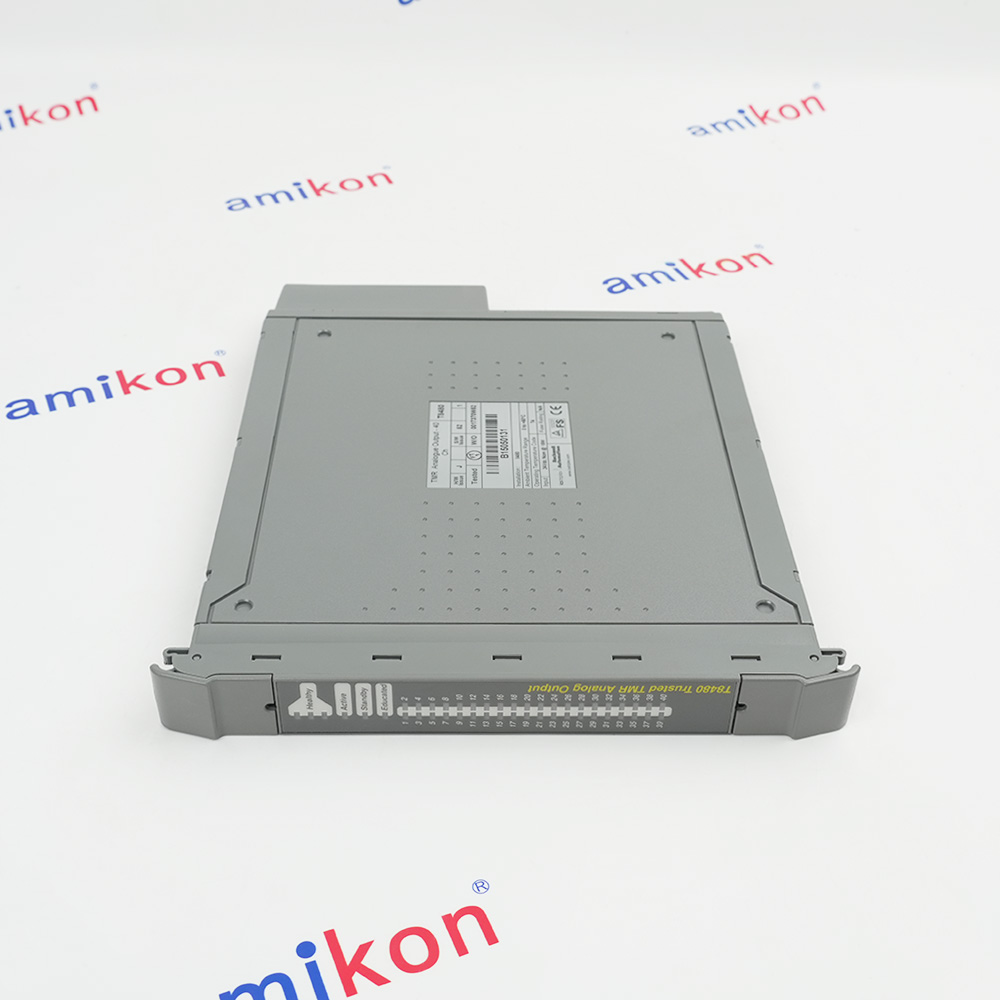

ICS Triplex T8480 connects forty field devices through triplicated analog output channels. Internal diagnostics check current and voltage throughout each voted channel, including stuck-on and stuck-off conditions, while line monitoring reports open-circuit loads and missing field-supply voltage.
The module records output state changes with one-millisecond event resolution and displays channel status, wiring faults and module health on its front panel. Outputs are arranged in five power groups; the manufacturer specifies certification for non-interfering use and requires appropriate barriers for hazardous-area circuits.
The module records output state changes with one-millisecond event resolution and displays channel status, wiring faults and module health on its front panel. Outputs are arranged in five power groups; the manufacturer specifies certification for non-interfering use and requires appropriate barriers for hazardous-area circuits.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8480 fits in industrial process control
Industrial coverage spans chemicals, power generation and hydrocarbons, subject to compatible current loops and approved non-interfering configurations.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing, Blending and Continuous Production Facilities
Chemical blending vessels and batch equipment for specialty manufacturing.Continuous chemical production lines and associated process utility equipment. -
02 · POWER GENERATION
Gas Turbine Power Stations and Generation Auxiliaries
Gas turbine generating units and balance of plant equipment.Natural gas fired power facilities and associated generation auxiliaries. -
03 · OIL & GAS
Petroleum Production, Gas Processing and Refinery Operations
Crude petroleum production facilities and downstream refinery process equipment.Gas processing plants and pipeline stations for fuel transportation.
Technical specifications for T8480
-
Product ModelT8480
-
Product ParametersTrusted TMR analog output module
-
ManufacturerICS Triplex
-
Analog output channels40
-
Power-group arrangement5 groups of 8 channels
-
Backplane voltage20 to 32 V DC
-
Backplane power22 W
-
Field-supply voltage18 to 32 V DC
-
Maximum field-supply current0.9 A
-
Continuous output range1 to 22 mA
-
Recommended output range4 to 20 mA
-
Off-state leakage at 24 V350 microamperes maximum
-
Calibration accuracy at 25 degrees C+/-0.1% of full scale
-
Overall accuracy, 0 to 60 degrees C+/-0.25% of full scale
-
Step response, 1 to 20 mALess than 50 ms to 1% of final value
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10 to 95%, non-condensing
View all additional
Alternative Names
T8480 Trusted analog output module
ICS Triplex 40-channel TMR analog output
Trusted TMR current-output module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8480 to the documented Trusted configuration
T8480 occupies a compatible T8100 or T8300 I/O position. Its forty analog channels are arranged in five power groups, with eight outputs in each group; select the associated cable and field termination from the manufacturer documentation.
Engineering configuration assigns the physical chassis and slot, output variables, channel defaults and diagnostic behaviour. These settings are transferred by the processor; the module does not require physical adjustment of output settings.
Check each current loop against its field voltage, required current and permitted load resistance. Preserve the documented non-interfering-use limitation and provide appropriate barriers wherever the approved field installation requires intrinsic safety.
Features:
- Forty configured analog current loops
- Separate backplane and field-power circuits
- Documented non-interfering operation boundaries
The ICS Triplex T8480 trusted tmr analog output module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the T8480 order identity and actual hardware revision to the installation records. Do not infer compatibility solely from a matching enclosure, forty-channel count or the presence of a Trusted label.
Retain the approved termination, cable polarization and spare-slot arrangement. Inspect the housing and connector pins before insertion; damaged modules or bent pins must not be forced into service.
Use the complete manufacturer changeover procedure for the configured Companion Slot or SmartSlot arrangement. Confirm that control has transferred before removal; opening both module-removal switches requests changeover but is not proof that transfer is complete.
Features:
- Exact model and revision comparison
- Cable, termination and keying verification
- Verified transfer before active-module removal
The ICS Triplex T8480 trusted tmr analog output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8480 trusted tmr analog output module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
