ABB UNITROL

DIODE FAILURE DEFECTION BOARD

FOUNDATION Fieldbus Linking Device
Number of channels :4
Transfer rate:31.25 kbit/s
DIODE FAILURE DEFECTION BOARD

Automatic voltage regulators

VOLTAGE REGULATOR
AUTOMATIC
COMPACT
SERIAL PORT
(UNITROL 1000)

UNITROL CARD

Input Voltage :24 V DC (±20%)
or 48 V DC (±20%)
Analog Inputs:6 channels
Digital Inputs:8 channels
Analog Outputs:4 channels
(0–20 mA / 4–20 mA)
Digital Outputs:6 channels
Processing Speed:32-bit DSP
Communication:RS-485 Modbus RTU, CANopen

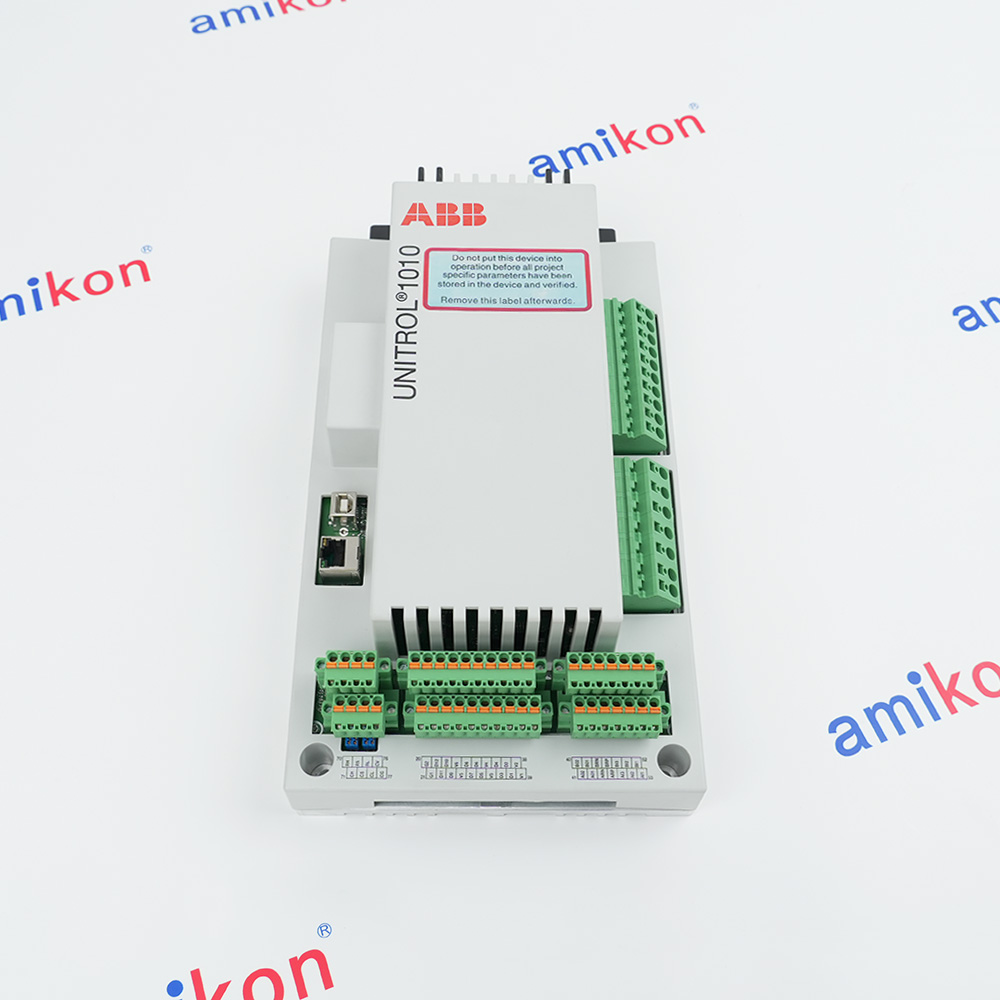

UNITROL 1010 Voltage Regulator

Generator Voltage:100–690V AC (50/60 Hz),
Field Voltage (Output):10–250V DC
Regulation Accuracy:±0.5%
Response Time:<30 ms
Auxiliary Supply:24/48/110/250V
Power Consumption:≤25 W (standby)

Digital Output Module

Channels: 20 single-ended channels
Voltage: ±10 V DC
Current: 0–20 mA, 4–20 mA
Voltage Inputs: >1 MΩ.
Current Inputs: 250 Ω
Noise Rejection: >80 dB (50/60 Hz)
Channel-to-Backplane: 1,500 V AC RMS

Digital I/O card

Input Voltage:24V DC nominal (15-30V range)
Input Current :3-5mA per point
Output Type:Relay (Form C) or Solid State
Output Rating:2A @ 30V DC
Isolation Voltage:1500V AC
Response Time:<1ms (input)

Measuring Interface Unit

Supply Voltage: 24V DC ±10%
Power Consumption: <15W typical
Voltage ranges: ±10V
Current ranges: 0-20mA
Resolution: 16-bit (minimum)
Sampling Rate: Up to 1kS/s per channel
Accuracy: ±0.1% of full scale
Isolation: 1500V AC

Power Supply Module

Input Voltage:230V AC
Range: -15% to +10% of nominal
Frequency: 50/60Hz ±5%
Output Voltages:+24V DC (±1%)
Current Ratings:24V DC
Efficiency: >88% at full load
Ripple: <1% of nominal output voltage

Extension Card I/O

Supply Voltage: Typically 24V DC
Voltage range: 24V DC
Load capacity: Up to 2A per channel
Resolution: 12/16-bit
Signal types: 4–20mA, 0–10V

Converter Electronics

CONVERTER
POWER CONTROL UNIT
UNS 3670A-Z V1
Input Voltage Range: 380-480V AC
DC Link Voltage: 510-650V DC
Output Power Rating: 15-30kW
Frequency Range: 50/60Hz ±10%
Efficiency: >95%
Switching Frequency: 2-8kHz

Conduction Monitoring Coil

Rated Current: 50A to 5000A
Frequency Range: 50/60Hz ±10%
Output Signal: 0-5V or 4-20mA
Accuracy Class: 1% or better
Phase Shift: <3° at rated current

Three-phase voltage relay

Rated Voltage: 100-480V AC
Frequency Range: 45-65Hz
Input Impedance: >100kΩ per phase
Burden: <0.2VA per phase
Measuring Accuracy: ±1% of set value or ±0.5V
Voltage Unbalance: 5-30% of Un
Contact Rating: 5A @ 250V AC/DC

Gate Driver Board

Input Voltage Range: 15-30V DC
Output Drive Voltage: +15V/-8V
Peak Output Current: ±20A
Isolation Voltage: 2500V AC
Propagation Delay: <100ns
Compatible IGBTs: 1200V-1700V
Gate Resistor Range: 1-10Ω
Input Signal: TTL/CMOS compatible

PEC3 controller

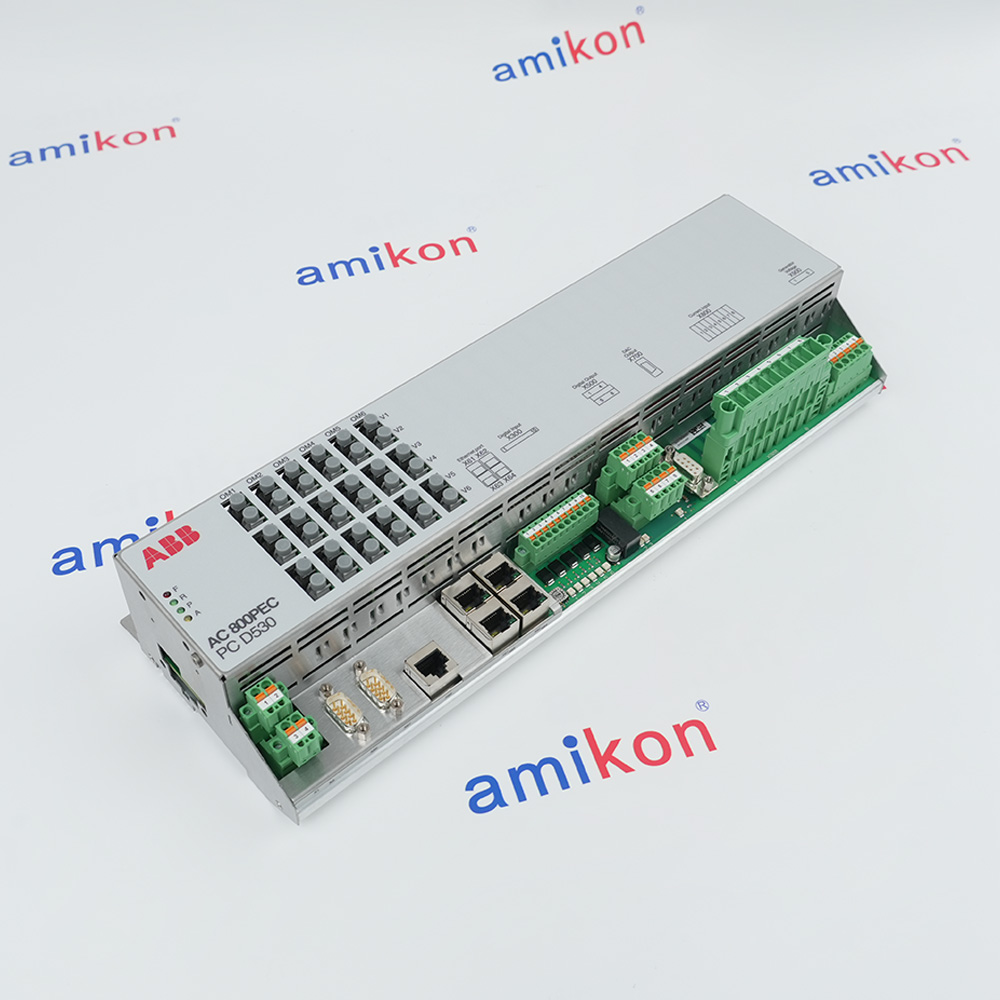

AC 800PEC controller (Modbus RTU,3OM)

AC 800PEC controller (Modbus TCP,3OM)

AC 800PEC controller PPD103-30K

UNC 4674 B,V1_ LBI Local Bus Interface

UA C096 AE01_ AIO Analog I/O interface

AR C093 AE01 Relay Output Card

UC D240 A01: CCM6080

UNS 0891a-P_ EOC

UNS 0890a-P,V3:SCI U1=1350V..1500V

UNS 0890a-P,V2: SCI U1=1080V

UNS 0890a-P,V1: SCI U1=720V
