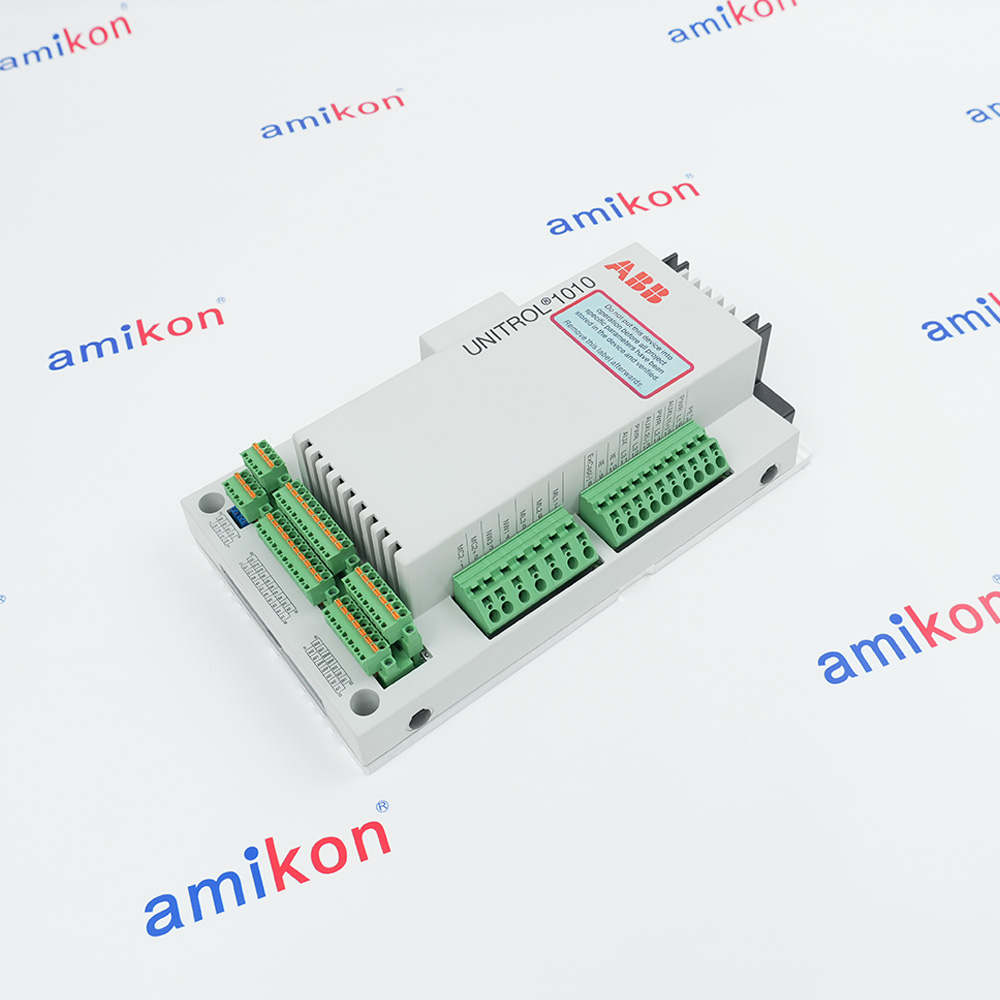

3BHE035301R0410 UNS0121 A-Z,V1
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
3BHE035301R0410
UNITROL 1000 Series
Control Unit
Voltage Regulator
UNITROL 1000 Series
Control Unit
Voltage Regulator
Technical specifications for 3BHE035301R0410 UNS0121 A-Z,V1
-
Product Model3BHE035301R0410 UNS0121 A-Z,V1
-
Product ParametersUNITROL 1010 Voltage Regulator
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size17.3x7.6x8.9cm
-
ManufacturerABB
-
Weight2.8 kg
-
Generator Voltage100–690V AC (50/60 Hz)
-
Field Voltage (Output)10–250V DC
-
Regulation Accuracy±0.5%
-
Response Time<30 ms
-
Auxiliary Supply24/48/110/250V
-
Power Consumption≤25 W (standby)
-
Operating Temperature-25°C to +55°C (derating >40°C)
-
Humidity≤95% RH (non-condensing)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 3BHE035301R0410 UNS0121 A-Z,V1？+The ABB 3BHE035301R0410 (often identified by its hardware code UNS0121) is a high-performance Automatic Voltage Regulator (AVR) from the UNITROL 1010 series. It is designed for the excitation of small to medium-sized synchronous generators and motors up to 80 MVA
-
What is the primary function of this unit?+It regulates the output voltage of synchronous machines by controlling the field current (up to 10 A nominal). It includes built-in limiters (V/Hz, Overexcitation, and Underexcitation) to protect the machine without needing external relays.
-
What communication protocols does it support?+It natively supports Modbus RTU protocols based on RS-485 and Ethernet, and can be easily integrated into DCS, SCADA, or ABB Ability™ platforms for remote monitoring of setpoints and logs.
-
What software is used for configuration?+Commissioning and tuning are typically performed using the CMT 1000 (Commissioning and Maintenance Tool) software, which features an auto-tuning assistant.
Get a quick price fo 3BHE035301R0410 UNS0121 A-Z,V1
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Installation Instructions
Features:
- UNITROL 1010
- Voltage Regulator
- Easy to commission and operate
- Stable and accurate voltage regulation
- Fits a wide range of generator sizes and applications
- Designed for reliability in tough environments
The 3BHE035301R0410 UNS0121 A-Z,V1 ABB UNITROL 1010 Voltage Regulator may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3BHE035301R0410 UNS0121 A-Z,V1 UNITROL 1010 Voltage Regulator Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB UNITROL 1010 is a compact, digital Automatic Voltage Regulator (AVR) designed for controlling synchronous machines, such as generators and motors, in industrial and marine applications. It is highly flexible, supporting various excitation power supplies (shunt, PMG, auxiliary winding, or DC battery) and providing a maximum continuous output current of 10 ADC (distinguished from the 20 ADC capability of the UNITROL 1020)
- Power Generation Plants: Suitable for small hydro, diesel generators, and gas gensets
- Marine Electrical Systems: Used for marine vessel generators and electrical propulsion
- Industrial Applications: Utilized in industrial settings for captive power plants
- Traction and Transport: Applied in diesel-electric locomotives and heavy-duty vehicles
- Crane and Mining: Deployed in harbor cranes and mining trucks
- Backup Power: Used in critical power backup scenarios
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The unit should be attached to an installation plate using suitable hardware to a torque of 10 Nm. Mounting holes are 6.5 mm in diameter.
Grounding: Ensure a high-quality electrical ground connection between the installation plate and the AVR. Connect the AVR to the protective earth (PE) at terminal 17 with a minimum 4 mm² grounding wire.
Cable Management: Separate control (I/O) cables from excitation (power and measurement) cables to prevent electromagnetic interference.
