PRODUCT DESCRIPTION
Forty digital output channels for compatible Trusted field loads

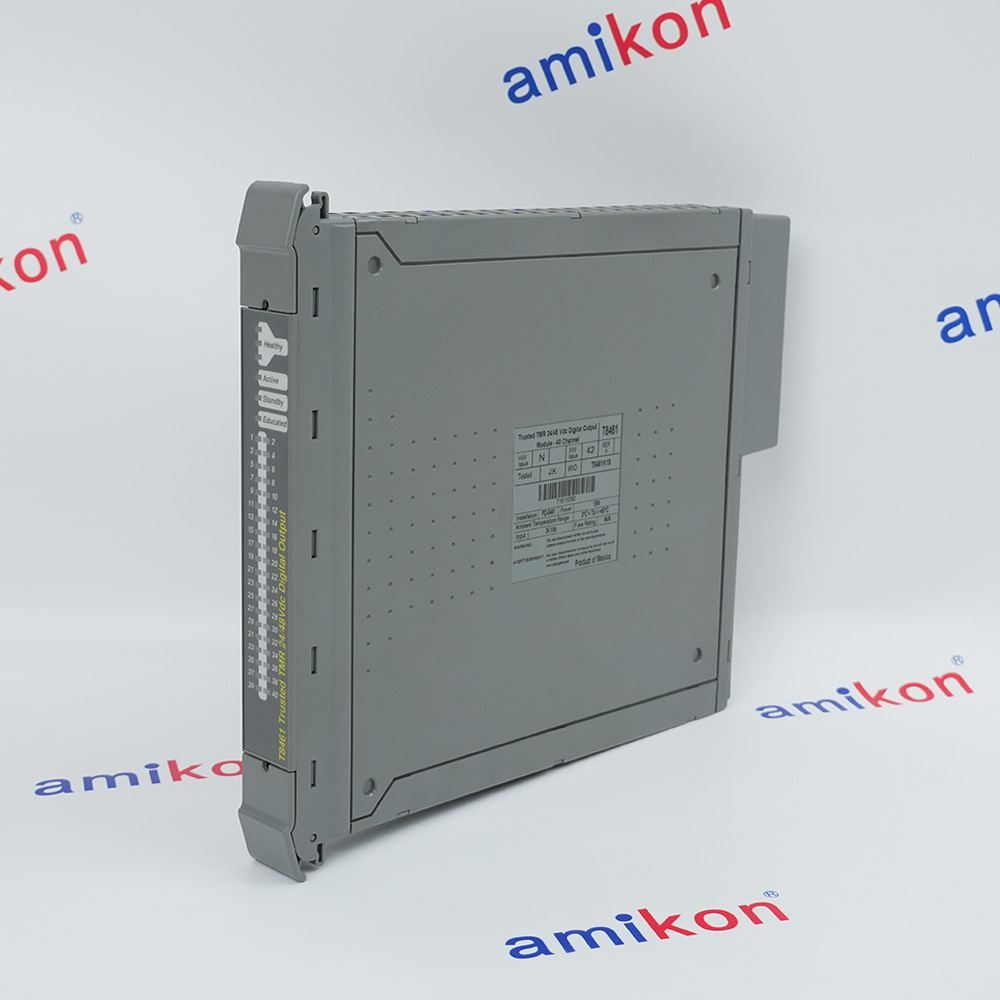

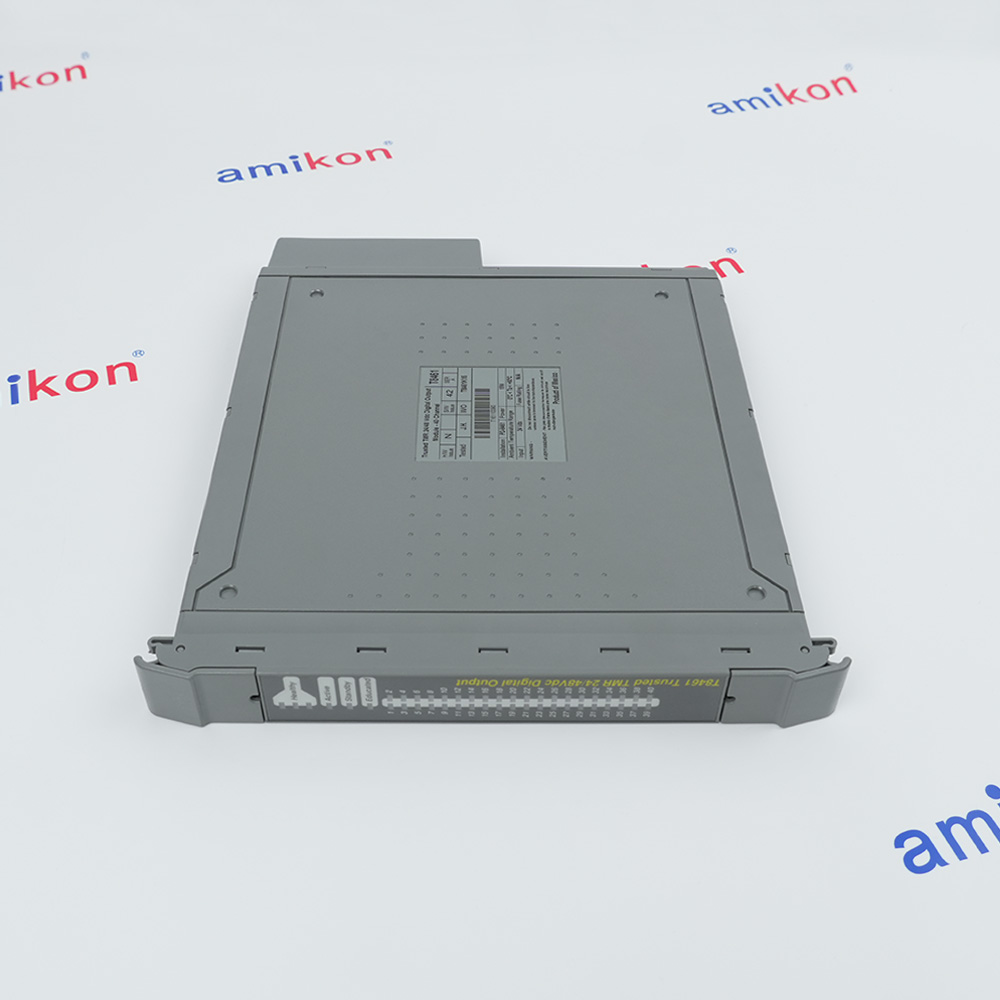

ICS Triplex T8461 connects forty field devices to 24 V DC or 48 V DC digital outputs. Each channel uses a triple modular redundant architecture, with diagnostic measurements of voltage and current across the voted output path to support fault-tolerant operation.
Automatic line monitoring detects open circuits and short circuits in field wiring and connected loads. Additional tests identify outputs stuck on or off, while onboard event recording logs output-state changes with 1 ms resolution using measured channel voltage and current.
Automatic line monitoring detects open circuits and short circuits in field wiring and connected loads. Additional tests identify outputs stuck on or off, while onboard event recording logs output-state changes with 1 ms resolution using measured channel voltage and current.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8461 Fits in Industrial Operating Facilities
Use spans petroleum, water and power facilities, subject to verified field loads and the approved installation configuration.
-
01 · OIL & GAS
Oil Production, Gas Transportation and Refinery Operations
Oilfield production equipment and gas processing trains handling hydrocarbons.Pipeline pumping stations and refinery process units transporting fuels. -
02 · WATER & WASTEWATER
Drinking Water Treatment and Utility Pumping Facilities
Municipal water treatment equipment supplying drinking water distribution services.Utility pumping stations conveying water between treatment and distribution. -
03 · POWER GENERATION
Gas Turbine Generation and Power Plant Auxiliary Equipment
Gas turbine generating units and associated plant auxiliary equipment.Fuel handling equipment serving natural gas electricity generation facilities.
Technical specifications for T8461
-
Product ModelT8461
-
Product ParametersTrusted TMR digital output module
-
ManufacturerICS Triplex
-
Digital output count40 channels
-
Power-group arrangement5 groups of 8 channels
-
Backplane voltage20 to 32 V DC
-
Backplane power26 W
-
Field-supply voltage18 to 58 V DC
-
Maximum field current30 A per module
-
Continuous output current0.75 A per channel
-
Minimum on-state load25 mA
-
On-state output resistance1.6 ohms
-
Maximum load capacitance500 microfarads
-
Short-circuit responseElectronic latching protection
-
SOE resolution1 ms; timestamp accuracy is separately +/-10 ms
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10 to 95%, non-condensing
View all additional
Alternative Names
Trusted TMR 24/48 V DC output module
T8461 40-channel digital output
ICS Triplex Trusted digital output card
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8461 to the documented Trusted configuration
T8461 connects forty digital field loads to the configured Trusted controller. Its five power groups each supply eight output channels; the connected field circuit remains separate from the backplane power required by the module itself.
Select the documented I/O slot, cable and FTA or VFTA. Check the 18 to 58 V DC field supply, channel current and capacitive load against the circuit design, including the required treatment of unused outputs.
The module reports line conditions and output events but does not define a complete safety function on its own. Verify application logic, output state, diagnostics and any external barriers through the controlled commissioning and maintenance process.
Features:
- Separate backplane and field-power design
- Documented output cable and termination
- Load and diagnostic checks before service
The ICS Triplex T8461 trusted tmr digital output module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Compare the T8461 identity, installed revision and project documentation before ordering. A similar Trusted enclosure or output-channel count is not proof of interchangeability with another digital output catalog number.
Preserve the configured slot pairing and verify the existing field-power groups, output loads, cable polarization and termination assembly. Apply ESD precautions and reject damaged housings or connector pins rather than attempting to repair them during fitting.
Use the applicable Companion Slot or SmartSlot transfer procedure. Confirm the replacement is healthy and the original is no longer active before removal, then validate the affected output states and fault reporting before releasing the equipment.
Features:
- Exact digital-output identity and revision
- Confirmed field-load and cable arrangement
- Verified transfer before module removal
The ICS Triplex T8461 trusted tmr digital output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8461 trusted tmr digital output module must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8461
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is T8461 an analog output or a digital output?
It is a 40-channel digital output module for compatible 24/48 V DC field duties. It must not be substituted for a current-loop analog output module simply because the modules share a Trusted chassis. -
Which supply voltage belongs to the backplane?
The backplane rating is 20 to 32 V DC and 26 W. The external field supply has a separate 18 to 58 V DC rating, so a single supply figure does not describe both circuits. -
How much current can one output provide?
The continuous maximum is 0.75 A per channel. The specified minimum on-state load is 25 mA and maximum load capacitance is 500 microfarads; the complete power-group design must also be checked. -
Can unused outputs be left without the specified termination?
The manual instructs that unused outputs be commanded off and wired through a 10 kohm, 0.5 W resistor to zero volts. Use the full wiring procedure and approved drawings, not this summary alone. -
Are all forty channels individually isolated?
No. The specification lists no channel-to-channel isolation. Group and field-common insulation specifications must not be described as separate galvanic isolation for every output. -
What indicates a field wiring problem?
The module measures output current and voltage and reports channel status and line faults. Diagnostic indications must be assessed with the complete manufacturer fault-finding procedure before returning the affected circuit to service. -
May T8461 be removed while its Active indicator is on?
No. Follow the configured Companion Slot or SmartSlot changeover procedure and verify that control has transferred. The manual expressly warns against removing a module while it remains active. -
What must be checked before direct hazardous-area wiring?
The product overview does not approve direct connection to hazardous areas and calls for intrinsic-safety barrier devices as appropriate. A qualified engineer must verify the complete field circuit and installation conditions.
