PRODUCT DESCRIPTION

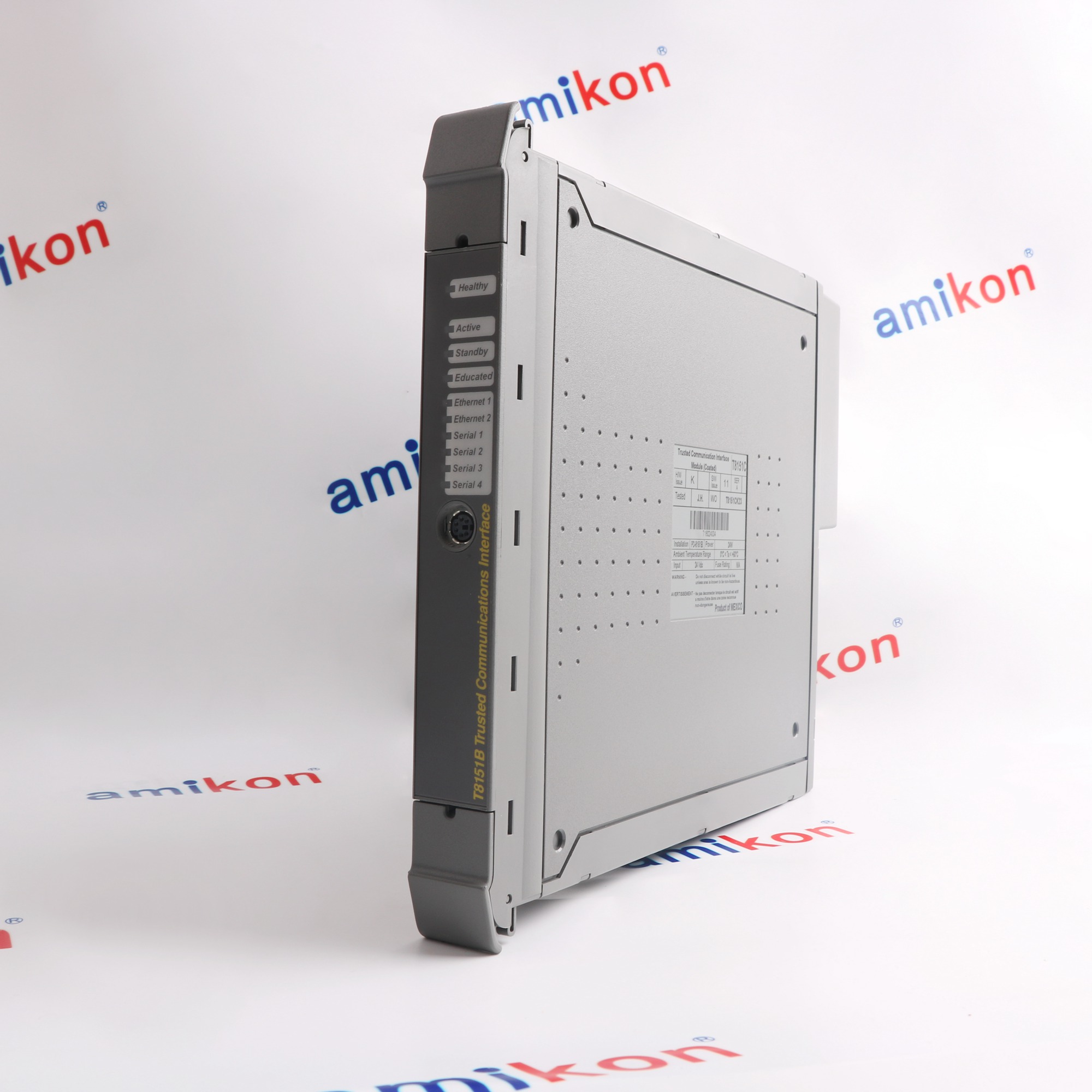

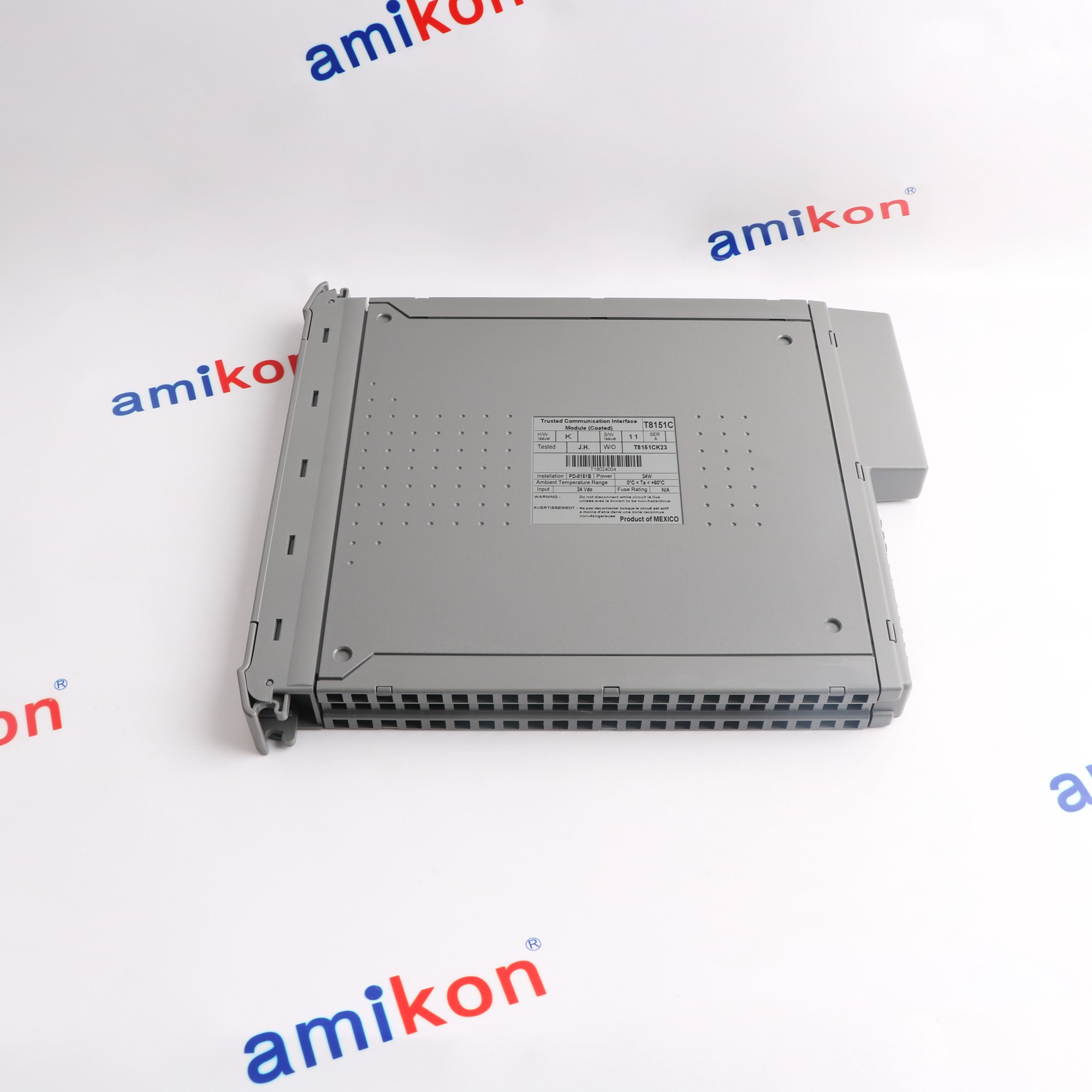

Conformal-coated Trusted interface for Ethernet and serial communications
ICS Triplex T8151C is a conformal-coated communications interface for the Trusted platform. Two Ethernet ports and four isolated rear serial ports provide connections to external equipment, offloading communications tasks from the TMR processor rather than adding process input or output channels.
The current manual distinguishes its 10/100BaseT Ethernet hardware from older communication-interface versions. Match the installed firmware, protocol configuration, chassis position and external adapter before replacement; Modbus master operation requires the documented processor interface adapter, while peer-to-peer use requires a controller-chassis location.
The current manual distinguishes its 10/100BaseT Ethernet hardware from older communication-interface versions. Match the installed firmware, protocol configuration, chassis position and external adapter before replacement; Modbus master operation requires the documented processor interface adapter, while peer-to-peer use requires a controller-chassis location.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8151C Fits Across Industrial Application Areas
Industrial uses span process plants and utilities, subject to compatible interfaces, verified operating conditions and approved safety configurations.
-
01 · OIL & GAS
Petroleum Production, Gas Processing and Pipeline Transportation
Oil production facilities and gas processing plants handling hydrocarbons.Petroleum pipelines and storage terminals serving product transportation operations. -
02 · POWER GENERATION
Natural Gas Generation and Power Station Operations
Natural gas power stations supplying electricity through turbine generation.Gas turbine generating equipment serving utility electricity production facilities. -
03 · CHEMICAL PROCESSING
Chemical Manufacturing and Specialty Batch Production Facilities
Specialty chemical manufacturing plants producing varied batches and formulations.Continuous chemical production facilities handling coordinated industrial processing operations.
Technical specifications for T8151C
-
Product ModelT8151C
-
Product ParametersTrusted communications interface module
-
ManufacturerICS Triplex
-
Backplane supply20 to 32 V DC
-
Power dissipation14 W
-
Ethernet interfaces2 x 10/100BaseT
-
Rear serial interfaces2 x RS-232/422/485 and 2 x RS-422/485
-
Rear serial baud rate1200 to 115200 baud
-
Front diagnostic interface1 x isolated RS-232
-
Diagnostic baud rate19200 baud
-
SOE event buffer4000 events
-
Open Modbus TCP roleSlave only; port 502
-
Modbus master prerequisiteT8122 or T8123 processor interface adapter
-
Maximum interfaces per system4 communications interface modules
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Humidity10 to 95%, non-condensing
-
Module locationT8100 or T8300 I/O slot; peer-to-peer in controller chassis only
View all additional
Alternative Names
T8151C
ICS Triplex T8151C
Trusted T8151C communications interface module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8151C to the documented Trusted configuration
T8151C provides the external communications path for a Trusted system. Use the documented T8153 communications adapter or specified flying-lead cable arrangement; the two Ethernet ports and four serial ports have different electrical and protocol capabilities.
Match the application protocol to the actual interface. Open Modbus TCP is slave-only; RTU master operation requires T8122 or T8123. Confirm firmware coverage before applying configuration examples from the current manual to an older installation.
A controller or expander I/O slot can house the interface, but peer-to-peer operation requires a controller-chassis slot. Record port addressing, serial format and diagnostic status, then validate the engineered communications path before returning the equipment to service.
Features:
- Controller chassis required for peer-to-peer
- Master mode requires the specified adapter
- Verify firmware and each port configuration
The ICS Triplex T8151C trusted communications interface module requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match T8151C and the installed revision before exchange. The manual also discusses T8151 and T8151B, but earlier revisions have different Ethernet hardware; a similar front panel is insufficient evidence for unrestricted interchangeability.
Retain the controlled communications configuration and record the external adapter, cable arrangement, port assignments and chassis slot. Inspect the housing and connector pins, apply ESD precautions and reject damaged hardware rather than attempting connector repair.
Follow the manufacturer replacement procedure within the approved plant maintenance plan. Verify interface health and the configured Ethernet and serial communications after fitting. No undocumented firmware conversion or automatic transfer to another catalog number is specified here.
Features:
- Compare hardware and Ethernet generation
- Retain adapter and protocol configuration
- Confirm operation before return to service
The ICS Triplex T8151C trusted communications interface module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8151C trusted communications interface module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceClassification unconfirmed
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8151C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does T8151C add to a Trusted system?
It provides external Ethernet and serial communications while reducing the communications workload on the Trusted TMR processor. It is not an analog or digital I/O module. -
Does T8151C have the same Ethernet hardware as every T8151?
No. The manual lists 10/100BaseT for T8151C and later T8151B hardware, while earlier interfaces include 10Base2 and 10BaseT. Compare the actual hardware and port arrangement. -
Which rear serial ports support RS-232?
Serial ports 1 and 2 support RS-232 as well as RS-422/485. Ports 3 and 4 use RS-422/485; port 1 has full RS-232 handshaking and port 2 does not. -
Can it operate as an Open Modbus TCP master?
The manual identifies Open Modbus TCP on port 502 as slave-only. Modbus RTU master communication, including its documented Ethernet encapsulation, is a different configuration and requires T8122 or T8123. -
Can peer-to-peer communication use an expander-chassis slot?
No. Although the interface can occupy a controller or expander I/O slot, the manual restricts peer-to-peer use to a controller chassis. -
How is the front diagnostic port used?
The isolated front RS-232 port operates at 19200 baud with the documented maintenance connection. It provides diagnostic access, not an additional general-purpose rear serial channel. -
What should be checked before replacing a communications interface?
Record the complete label, hardware revision, firmware, adapter, cables and protocol settings. Check the current manual and product notices; shared family naming does not establish an unconditional drop-in replacement. -
What does the C suffix identify?
Rockwell identifies T8151C as the conformal-coated Trusted communications interface. The suffix is part of the catalog identity and should not be substituted for the separate hardware revision.
