AC500

Starter kit

CPU:16-bit Renesas RX630 MCU
Memory:256KB RAM
Communication:2 × Ethernet (10/100BASE-T)
I/O Simulation:Virtual D/I and D/O
Power Supply:24V DC
6 × D/O (Transistor Sink: 0.5A @ 24V DC
Power cables :24V DC

Processor module

AC500-eCo Processor module
Memory 4MB
12 DI 24 VDC. 6 DO-Relay
2 DC 24 VDC
Ethernet interface
3 option slots

Analog input module

Function:4 AI: U, I
Number of Analog Configurable I/Os:0
Analog Inputs:4
Input Signal:U, I
Resolution:Analog Input 12 bit
Connection Type:Pluggable
Degree of Protection:Housing IP20
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C

Control Panel 10.4

Memory Size User Data:256 MB
Memory Size User Program:256 MB
Memory Type User Data:Flash Disk
Memory Type User Program:DDR RAM
Power Consumption (@Pcons):24 W
Power Supply:24 (18 ... 30) V DC
Product Main Type:CP651
Product Name:Control Panels
Operation 0 ... +50 °C
Storage -20 ... +70 °C

Control Panel 5.7 TFT touch screen

Memory Size User Data:128 MB
Memory Size User Program:256 MB
Memory Type User Data:Flash Disk
Memory Type User Program:DDR RAM
Power Consumption (@Pcons):16.8 W
Power Supply:24 (18 ... 30) V DC
Product Main Type:CP630
Product Name:Control Panels

Control Panel

Memory Size User Data:256 MB
Memory Type User Data:Flash Disk
Memory Type User Program:DDR RAM
Power Consumption (@Pcons):24 W
Power Supply:24 (18 ... 30) V DC
Product Main Type:CP651
Product Name:Control Panels

Central Processing Unit Module

Processor Type: 32-bit RISC processor
Program Memory: 4 MB
Data Memory: 2 MB
Backup Memory: 512 kB
1 x RJ45 (10/100 Mbps)
Power Supply Voltage: 24 V DC
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)

Prog.Logic Controller

Memory Size:142 kB
Memory Type User Data:RAM
Controller Processing Time:0.00008 ms
Number of Digital Inputs:8
Number of Digital Outputs:6
Number of Digital Configurable I/Os:0
Input Voltage Type:DC
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Control Panel 7 TFT touch screen

Operation 0 +50 °C
Storage -20  +70 °C
Memory Size User Data:128 MB
Memory Size User Program:256 MB
Memory Type User Data:Flash Disk
Memory Type User Program:DDR RAM
Power Consumption (@Pcons):16.8 W
Power Supply:24 (18 ... 30) V DC
Product Main Type:CP635
Product Name:Control Panels

Processor Module

Memory Size:642 kB
Memory Type User Data:RAM
Number of Digital Inputs:8
Number of Digital Outputs:6
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Processor module

Memory Size:1008 kB
Memory Type User Data:RAM
Controller Processing Time:0.0002 ms
Number of Digital Inputs:6
Number of Digital Outputs:4
Number of Digital Configurable I/Os:0
Input Voltage Type:DC
Degree of Protection:IP20
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Analog Input/Output Module

Rated value 24 VDC
Max. ripple 5 %
Rated protection fuse on UP 10 A fast
Number of channels per module 8
nput signal voltage 24 VDC

Processor module

Series: AC500 PLC
Type: Central Processing Unit
Processor: 32-bit RISC processor.
Clock Speed: 400 MHz
RAM: 4 MB.
Flash Memory: 2 MB for user programs.
Backup Memory: 256 kB
Voltage Range: 24 VDC ±20%.
Power Consumption: 5 W

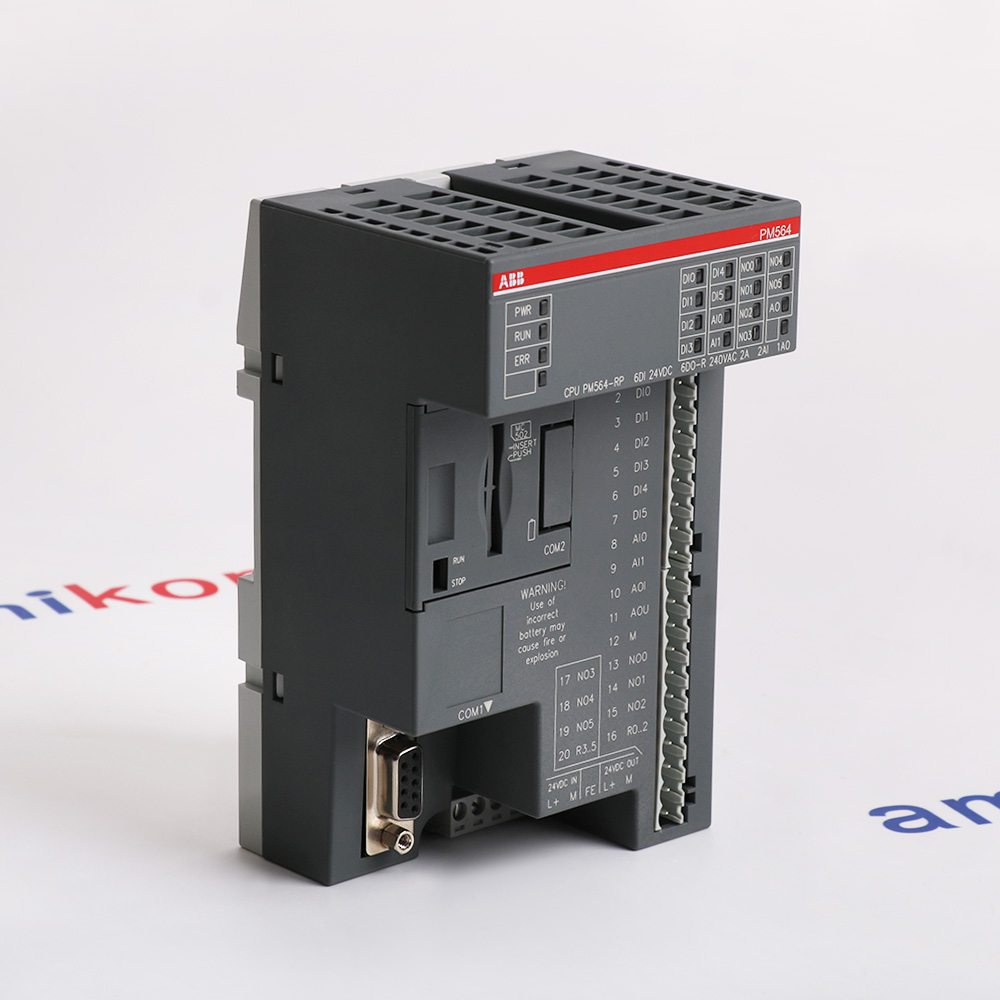

Central Processing Unit

Memory Size:142 kB
Memory Type User Data:RAM
Controller Processing Time:0.00008 ms
Analog Inputs:2
Analog Outputs:1
Number of Digital Inputs:6
Number of Digital Outputs:6
Number of Digital Configurable I/Os:0
Input Voltage Type:DC
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Cessor module

CPU Type: ARM Cortex A9
Clock Frequency: 800 MHz
RAM: 64 MB
Flash Memory: 64 MB
Supported Protocols: Modbus TCP, Ethernet/IP
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)

Analog Input Module

Function:16 AI: U, I, RTD, DI
Number of Analog Configurable I/Os:0
Analog Inputs:16
Input Signal:U, I, RTD, DI
Resolution:Analog Input 13 bit
Degree of Protection:Housing IP20
Supply Voltage:24 V DC
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C

CPU Module

Model:PM590-ETH
Order Code:1SAP150000R0270
Type:Compact PLC Processor with Integrated Ethernet
Series:AC500-eCo
Power Supply:24 V DC (±20%)
Consumption: 6 W (typical)
CPU:32-bit RISC Processor
Isolation :1500 V AC

Communication Module

Communication Interface:RS-232, RS-485
Data Transfer Speed:Up to 115,200 bps
Power Supply:24V DC
Mounting Type:DIN rail mounted
Operating Temperature:-20°C to 60°C (-4°F to 140°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Humidity Tolerance:5% to 95% non-condensing

Circuit Board

Operating Voltage: 24V DC (±10%)
Power Consumption: 15W typical
Signal Isolation: 2500V AC
Switching Frequency: Up to 20kHz
Gate Drive Outputs:±15V gate drive voltage

AC500 Communication module

Function:PROFIBUS master
Communication Protocol:PROFIBUSMaster
Communication Interface:Serial
Number of Hardware Interfaces:RS-485 1
Data Transmission Rate:12000 kbit/s
Degree of Protection:IP20

Central Processing Unit

processor module
128 kBmemory
8 DI, 6 DO-T,24 V DC
onboard Ethernet
with pluggable I/O terminalblocks

PM564-R-ETH CPU Module

Terminal Module Expansion - Analog

Terminal Module Expansion

S500 Bus Termination Unit
