PM860 Processor Unit Kit

3BSE018100R1
(PM860K01)
DISCONTINUED BY MANUFACTURER
PROCESSOR UNIT KIT
BASEPLATE

Processor Unit Kit

3BSE050198R1
(PM866K01)
PROCESSOR UNIT
4 AMP
24 VDC
4 POSITION

High Performance I/O DSP Board

High Performance I/O DSP Board Type
PS861E
1JNL100114‐077

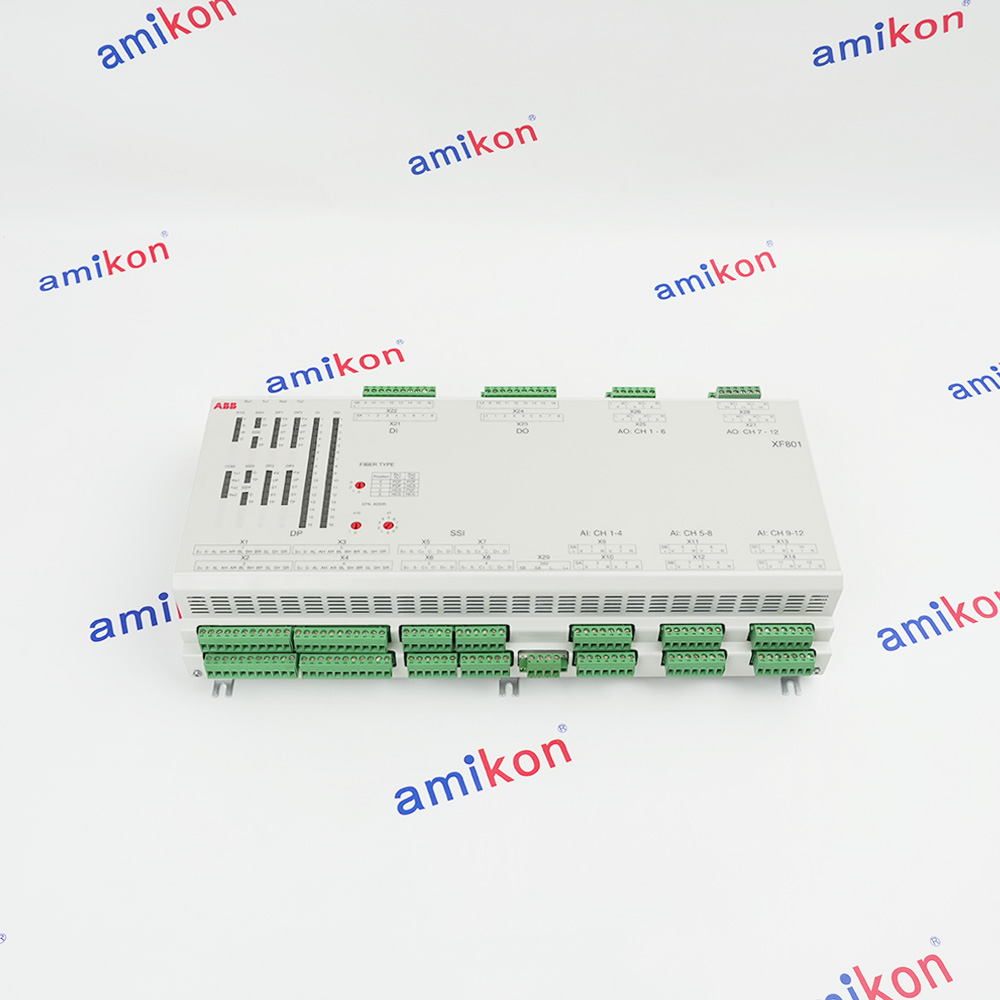

Fast I/O module

XF801
3BSE061579R1
Fast I/O-module to
PEC3 Controllers

Control Module

Series: 800xA
Input Voltage: 24 V DC
Power Consumption: Typically around 10 W
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95%, non-condensing

Control Board

Clock Speed 800 MHz
Memory:128 MB NOR Flash
Backplane Interface:PCI-104
Power Requirements:5V DC @ 3.5A
Vibration: 5g @ 10–500Hz

Modbus TCP Interface Module

CI867AK01
Advant 800xA Modbus
TCP Interface Communication Module

Touchscreen panels

State-of-the-art graphics
Robust and reliable
Truly open platform
Display type:Touch
Display size 15.4"
Brightness:450 cd/m²
Display resolution, ratio:1280 x 800 (16:10)
Processor:ARM9 (1 GHz)
Main memory:1 GB

Redundant Processor Unit

Input Voltage: 24V DC (±10%)
Power Consumption: 20W (typical)
Processor: Dual-core 1.2 GHz PowerPC
RAM: 1GB DDR3
Ethernet: 2x 10/100/1000 Mbps (RJ45)
Execution Speed: 0.1ms Boolean, 1ms PID loop

Baseplate

Base Unit

Base Plate

TK212A Tool cable

TK212 Tool cable

RCU Link Terminator

Optical ModuleBus Port

TB826 Optical Media Converter Single Mode

Optical ModuleBus Port

Power Voting Unit

Input Voltage Range: 18–32 VDC
Output Voltage: 24 VDC
Input Current: Rated for up to 20 A
Efficiency: ≥ 95%
Operating Temperature Range: -25°C to +70°C
Storage Temperature Range: -40°C to +85°C
Humidity: 5% to 95% RH (non-condensing)

Safety CPU Module Kit

CPU Safety Module

Power Supply Module

RTA Communication Kit

Power Supply: 24 VDC (±10%).
Operating Temperature: -25°C to +60°C
2x Ethernet ports (RJ45, 10/100/1000 Mbps)
Optional serial ports (RS-232/485)
Compatible with ABB AC 800M controllers

RTA Communication Box for MB300

Power Supply: 24 VDC (±10%).
Operating Temperature: -25°C to +60°C
2x Ethernet ports (RJ45, 10/100/1000 Mbps)
Optional serial ports (RS-232/485)
Compatible with ABB AC 800M controllers

Processor Unit Kit

3BSE050199R1
DISCONTINUED BY MANUFACTURER
REDUNDANT PROCESSOR UNIT
PM866K02
CONTAINS: 2 PCS PM866K01/TK850 CEX-BUS EXPANSION CABLE/TK851 RCU-LINK CABLE/NO LICENSE INCLUDED
THIS PART IS NOT ROHS 2 2011/65/EU COMPLIANT
