- PM860K01 3BSE018100R1
In Stock
Ships by Sunday, August 9
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for PM860K01 3BSE018100R1
-
Product ModelPM860K01 3BSE018100R1
-
Spare ModelPM860K01
-
Product ParametersPM860 Processor Unit Kit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size19x12x13.8cm
-
ManufacturerABB
-
Weight0.9 kg
-
Clock Frequency48 MHz
-
Memory16 MB
-
RAM available for application10.346
-
Flash memory for storageYes
-
Processor typeMPC860
-
No. of applications per controller32
-
No. of programs per application64
-
No. of diagrams per application128
-
No. of tasks per controller32
-
Number of different cycle times32
-
Power supply24 V DC (19.2-30 V DC)
-
Power consumption+24 V typ/max 180 / 300 mA
-
Power dissipation4.32 W
Description

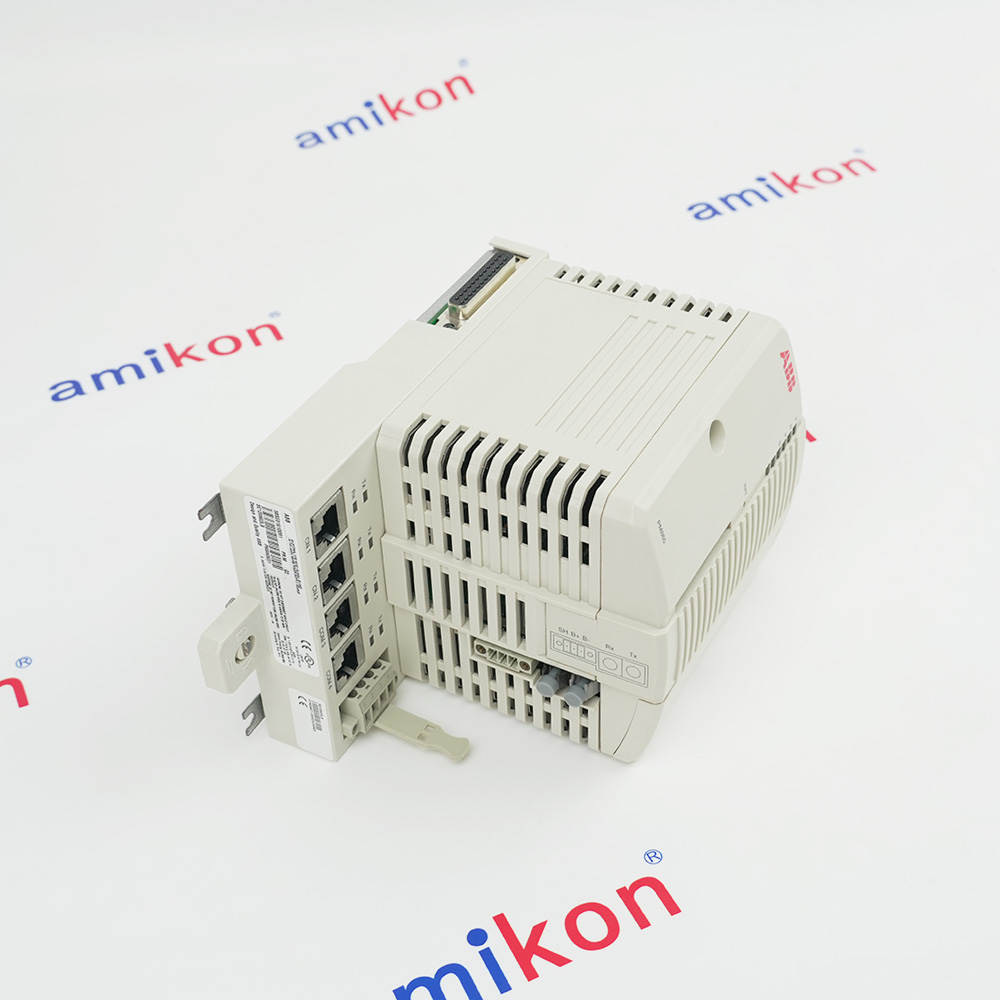

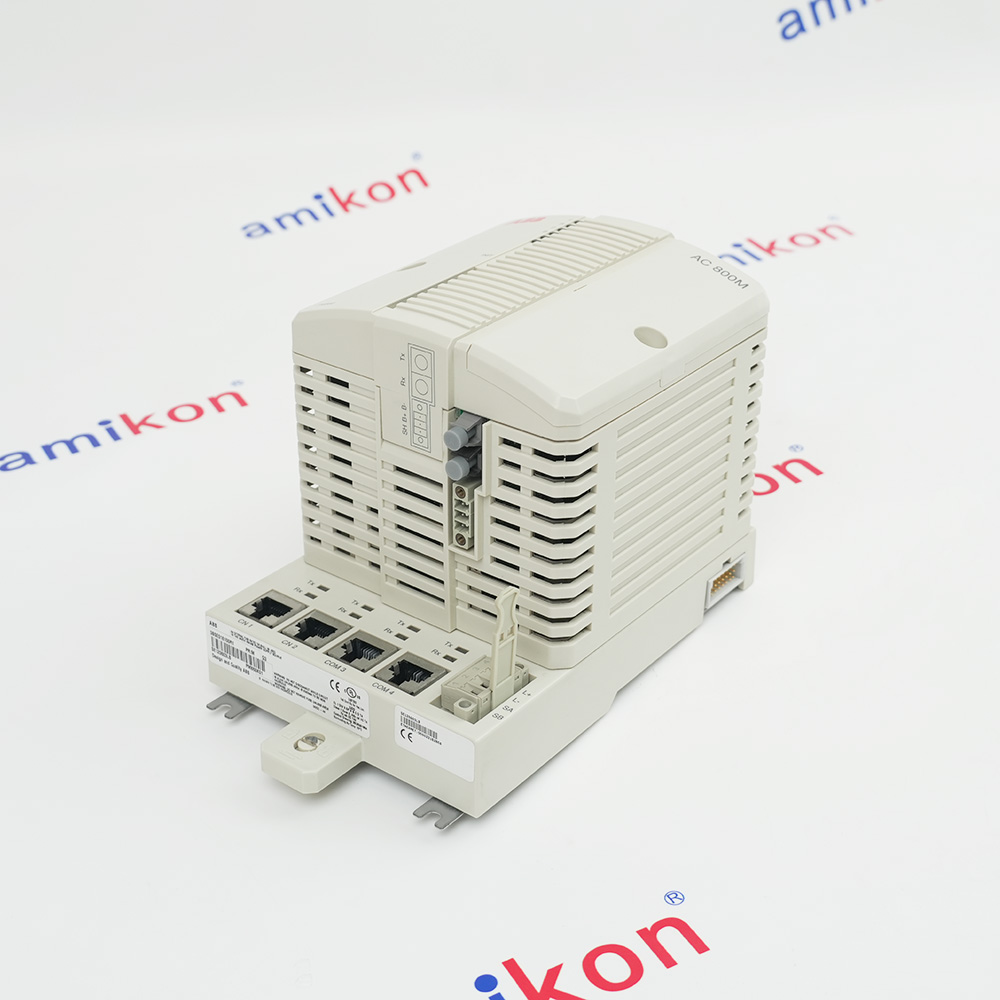

The ABB PM860K01 3BSE018100R1 Processor Unit Kit is a core component of the ABB AC 800M control system family, designed as a complete processor unit package for industrial automation and process control applications. The ABB PM860K01 includes all necessary components for immediate deployment: the PM860 CPU, TP830 baseplate with 115 mm width, TB850 CEX-bus terminator, TB807 ModuleBus terminator, a memory backup battery (4943013-6), and a 4-pin power plug (3BSC840088R4).
The CPU board of the ABB PM860K01 contains the MPC860 microprocessor and RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface. The ABB PM860K01 delivers powerful processing capabilities with 16 MB of RAM (available from 800xA 5.1 FP4 onwards) and 2 MB of Flash PROM for firmware storage, ensuring reliable execution of complex control strategies and real-time data processing.
Communication interfaces on the ABB PM860K01 are comprehensive and versatile. The TP830 baseplate of the ABB PM860K01 features two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, supporting 10 Mbit/s Ethernet with MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols. The ABB PM860K01 also includes two RJ45 serial ports: COM3 is an RS-232C port with modem control signals for remote communication, while COM4 is an isolated port used for the connection of configuration tools such as the 800xA Control Builder.
The CPU board of the ABB PM860K01 contains the MPC860 microprocessor and RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface. The ABB PM860K01 delivers powerful processing capabilities with 16 MB of RAM (available from 800xA 5.1 FP4 onwards) and 2 MB of Flash PROM for firmware storage, ensuring reliable execution of complex control strategies and real-time data processing.
Communication interfaces on the ABB PM860K01 are comprehensive and versatile. The TP830 baseplate of the ABB PM860K01 features two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, supporting 10 Mbit/s Ethernet with MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols. The ABB PM860K01 also includes two RJ45 serial ports: COM3 is an RS-232C port with modem control signals for remote communication, while COM4 is an isolated port used for the connection of configuration tools such as the 800xA Control Builder.
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Mounting Instructions
Features:
- Processor Unit Kit
- Two RJ45 ports (CN1, CN2)
- Includes TB850 (CEX-bus) and TB807 (ModuleBus) terminators.
The PM860K01 3BSE018100R1 ABB Processor Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PM860K01 3BSE018100R1 Processor Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB PM860K01 (3BSE018100R1) is a Processor Unit Kit for the AC 800M control system, designed for high-reliability, redundant, and non-redundant applications. It includes a PM860 CPU (8MB RAM), TP830 baseplate, and terminators. It features 2 Ethernet ports (CN1/CN2), 2 serial ports (COM3/COM4), and supports 1ms task cycles.
- Petrochemical & Chemical Processing:Regulates temperature, pressure, and flow rate for stable production.
- Oil & Gas:Manages complex control loops for extraction and processing facilities.
- Water & Wastewater Treatment:Automates treatment cycles and monitors remote I/O expansions.
- Manufacturing & Automotive:Robotic control and automated production lines for efficiency & quality.
- Marine & Mining:Industrial-grade for high short-circuit current environments like ships & mines.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module is designed for guideway mounting (DIN rail) or within a control cabinet. It uses a slide-and-lock mechanism for easy attachment to the baseplate.
Power Supply: Requires a 24 V DC (±20%) power input. Typical consumption is 5W, but it can reach 10W when powering connected ModuleBus and CEX-Bus components.
Alternative Names
PM860K01 3BSE018100RI
PM860K01 3BSE01810OR1
PM860K01 3BSE018I00R1
PM860K01 3BSE0I8100R1
PM860K01 38SE018100R1
PM860K0I 3BSE018100R1
PM860KO1 3BSE018100R1
PMB60K01 3BSE018100R1
Technical notes
Power supply specifications of the ABB PM860K01 include a 24 V DC operating voltage (with a range of 19.2–30 V DC) and a typical power consumption of 4.32 W. The ABB PM860K01 is designed for reliable operation in industrial environments with an operating temperature range of +5 °C to +55 °C, a storage temperature range of –40 °C to +70 °C, and relative humidity of 5% to 95% (non-condensing). The ABB PM860K01 can operate at altitudes up to 2000 meters above sea level.
FAQs
-
What shipping methods are used for PM860K01 3BSE018100R1?
+Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery. -
What is the warranty period for PM860K01 3BSE018100R1?
+A standard one-year warranty is typically offered for new and original items. -
Do you have PM860K01 3BSE018100R1 in stock?
+Yes, right now we have ABB PM860K01 3BSE018100R1 in stock ready for shipment, we can support video inspection. -
How are the PM860K01 3BSE018100R1 packaged?
+PM860K01 3BSE018100R1 packaging generally involves multiple layers of protection to ensure safe transit.
