PRODUCT DESCRIPTION

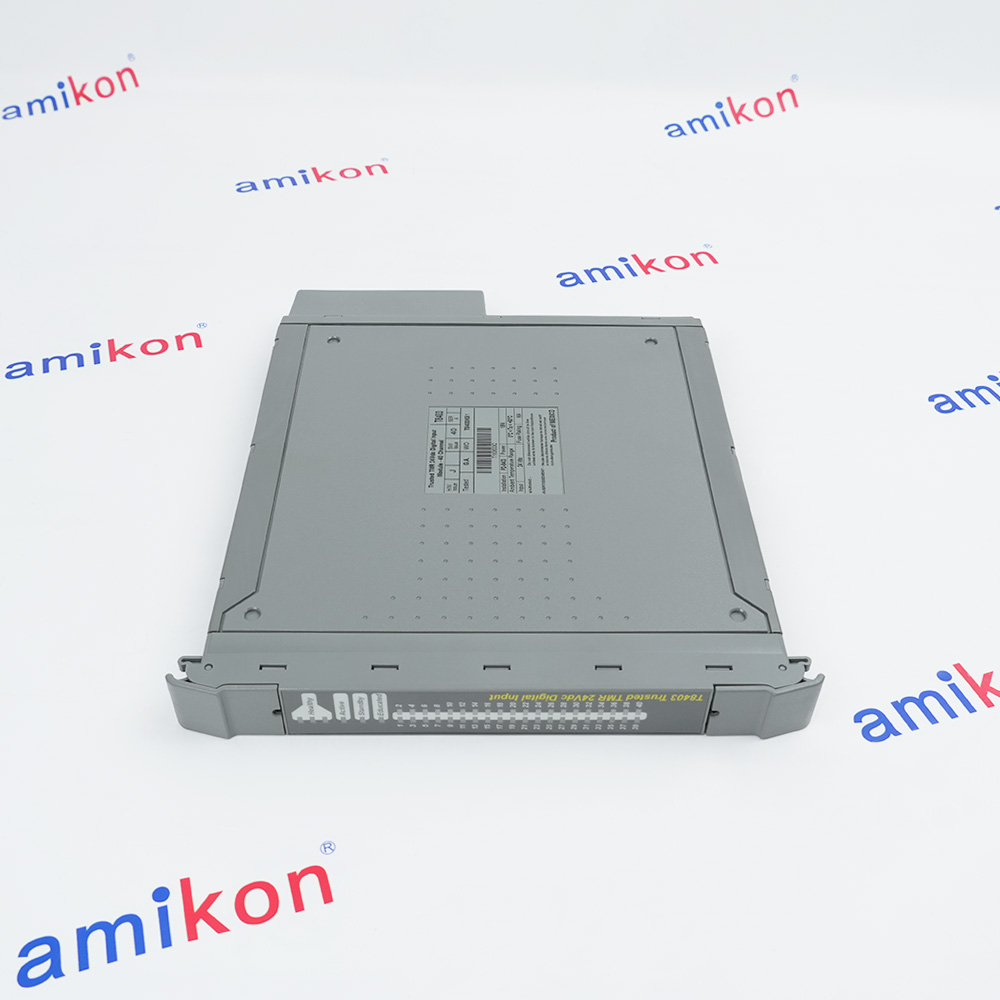

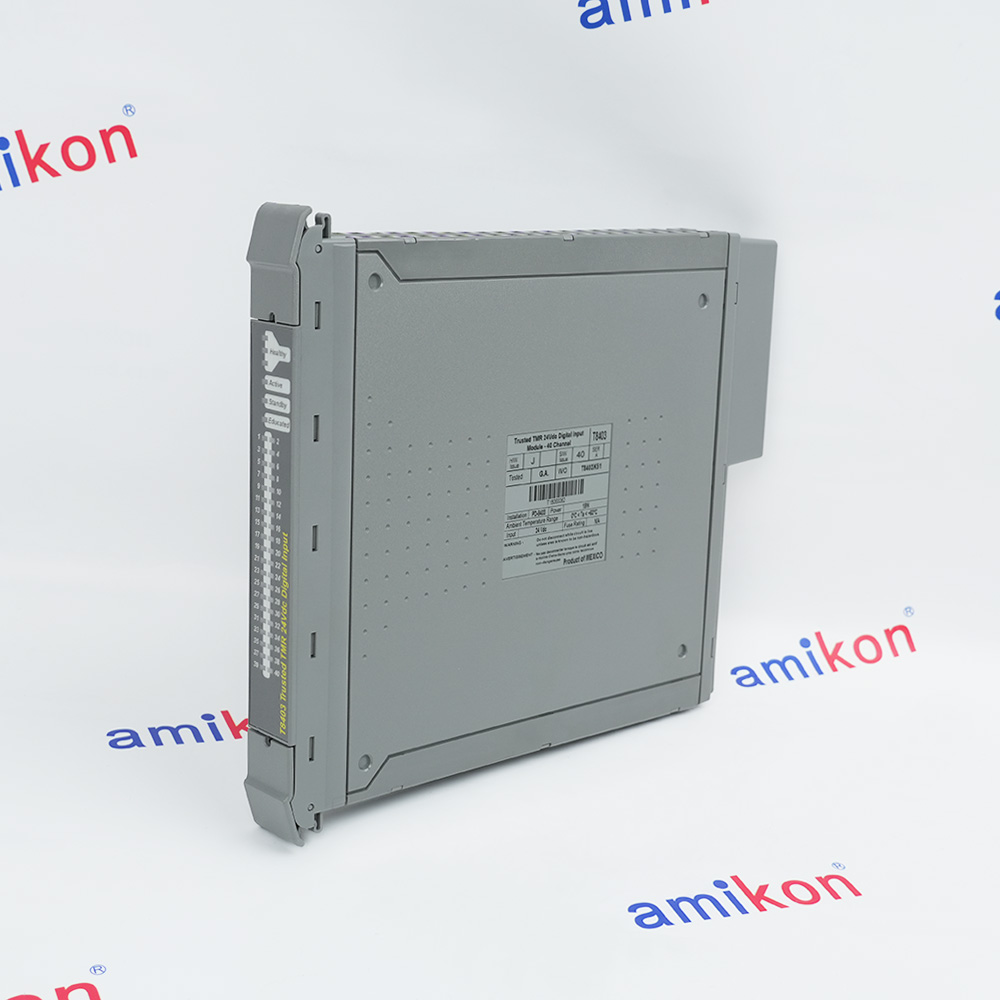

Forty-channel digital input for the Trusted TMR platform
ICS Triplex T8403 provides forty 24 V DC digital inputs within the Trusted TMR platform. Each input is processed through three independent paths, and its measured voltage is compared with configurable thresholds to determine the field contact state.
With suitable monitoring components at the field switch, the module can identify open and shorted field cables. Channel state changes are recorded with one-millisecond event resolution, while automatic diagnostics and front-panel indicators report input conditions and module health.
With suitable monitoring components at the field switch, the module can identify open and shorted field cables. Channel state changes are recorded with one-millisecond event resolution, while automatic diagnostics and front-panel indicators report input conditions and module health.
BEFORE YOU BUY
Confirm the complete TMR digital input module
ACTUAL APPLICATIONS
Where T8403 Fits Across Industrial Operating Environments
Uses include power stations, hydrocarbon facilities and water utilities, with suitability determined by field interfaces and validated configurations.
-
01 · POWER GENERATION
Electricity Generation and Industrial Heat Production Facilities
Boiler plants and turbine halls in thermal generating stations.Combined heat and power facilities serving industrial energy users. -
02 · OIL & GAS
Oilfield Production, Petroleum Refining and Gas Processing
Production wellheads and gathering stations handling oilfield process operations.Refineries and gas terminals supporting petroleum processing and transportation. -
03 · WATER & WASTEWATER
Municipal Water Supply and Wastewater Treatment Facilities
Intake pumping stations and treatment works supplying municipal water.Sewage treatment plants and sludge facilities processing municipal wastewater.
Technical specifications for T8403
-
Product ModelT8403
-
Product ParametersTMR digital input module
-
In stock1 unit
-
ManufacturerICS Triplex
-
Input channels40 TMR digital inputs
-
Nominal signal type24 V DC digital
-
Backplane supply20 to 32 V DC
-
Backplane power20 W
-
Maximum power dissipation29 W
-
Input impedance5 kohms
-
Input measurement range-6 to +36 V DC
-
Safety accuracy0.5 V DC
-
SOE event resolution1 ms
-
SOE timestamp accuracy+/-10 ms
-
Channel-to-channel isolationNone
-
Intrinsic safetyExternal barrier required
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Humidity10 to 95%, non-condensing
View all additional
Alternative Names
T8403
ICS Triplex TMR digital input module
Trusted safety and control systems TMR digital input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match T8403 to the installed Trusted safety and control systems
T8403 occupies an I/O module slot in a T8100 or T8300 chassis. It receives forty field input signals through the selected termination assembly and cable, and communicates input states and diagnostics to the Trusted TMR processor.
Assign the chassis and slot, connect the input and status variables, and configure channel thresholds through the Trusted engineering tools. The processor applies the downloaded configuration and manages the configured active/standby arrangement.
Select the approved FTA or VFTA and Companion Slot or SmartSlot cable from the manufacturer documents. Verify cable keying and field-switch monitoring components. The module provides neither channel-to-channel isolation nor an intrinsic-safety barrier.
Features:
- T8100 or T8300 I/O module slot
- Termination and cable selection require verification
- Field-switch monitoring depends on external components
The ICS Triplex T8403 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete T8403 identity before exchange
Confirm the complete T8403 identification, actual hardware revision, field termination and channel configuration before selecting a replacement. Another forty-channel input module is not an unconditional substitute based on channel count alone.
Use the installed Companion Slot or SmartSlot arrangement and the controlled changeover procedure. Verify that the replacement is active and the original is in standby before removal; a module still indicating Active must not be removed.
ICSTT-RM271Q-EN-P and PD-T8403 Issue 19 identify the reference publication, not the supplied hardware revision. This manual does not establish an exact-order discontinuation date or an unconditional successor; obtain current manufacturer confirmation where required.
Features:
- Match module, revision and field configuration
- Confirm active/standby status before removal
- Manual issue is not hardware revision
The ICS Triplex T8403 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and the manufacturer-hosted manual are listed here. Confirm document applicability; accessories and additional documents are included only when expressly listed in the quotation.Features:
- Technical data prepared for T8403
- Product family: Trusted safety and control systems
- Exact ICS Triplex identity required before service
Documentation for ICS Triplex T8403 must match the installed equipment and complete product identity; confirm document applicability before service.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.2 × 30.5 × 26.5 cm
-
Shipping weight1.18 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8403
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does the T8403 module do?
T8403 is a forty-channel, 24 V DC digital input module for the Trusted TMR platform. It reports field input states and diagnostics to the processor; it is not an output module or a field termination assembly. -
Which supply and signal ranges apply to T8403?
The nominal digital signal type is 24 V DC. The manufacturer specifies a 20 to 32 V DC backplane supply and an input measurement range of -6 to +36 V DC. These are different quantities and should not be interchanged. -
What is required for field-cable fault monitoring?
Suitable line-monitoring components must be installed at the field switch and each channel configured accordingly. The documented design can distinguish open and shorted field wiring. Detection should not be assumed for an unconfigured contact circuit. -
Where can T8403 be installed?
The specification lists an I/O module slot in a T8100 or T8300 chassis. Select the appropriate FTA or VFTA and field cable using ICSTT-RM311 or ICSTT-RM313 and the controlled project design. -
What does the one-millisecond event specification mean?
One millisecond is the sequence-of-events resolution. The specification separately lists timestamp accuracy of plus or minus ten milliseconds. Do not describe event resolution as timestamp accuracy or as the complete safety-function response time. -
Does T8403 include field-loop fuses or intrinsic-safety barriers?
The module specification lists no fusing and requires external barriers for intrinsically safe circuits. Fuses or other components on a separate termination assembly must not be presented as built-in module features. -
How is the module configured?
Use the Trusted engineering tools to assign chassis and slot locations, input variables, channel thresholds and other documented settings. Configuration is loaded through the processor; there is no physical input-module configuration adjustment required. -
Can T8403 be replaced online?
The manufacturer documents Companion Slot and SmartSlot arrangements. Verify the installed arrangement and complete the controlled active/standby changeover before removal. A module still in the Active state must not be removed.
