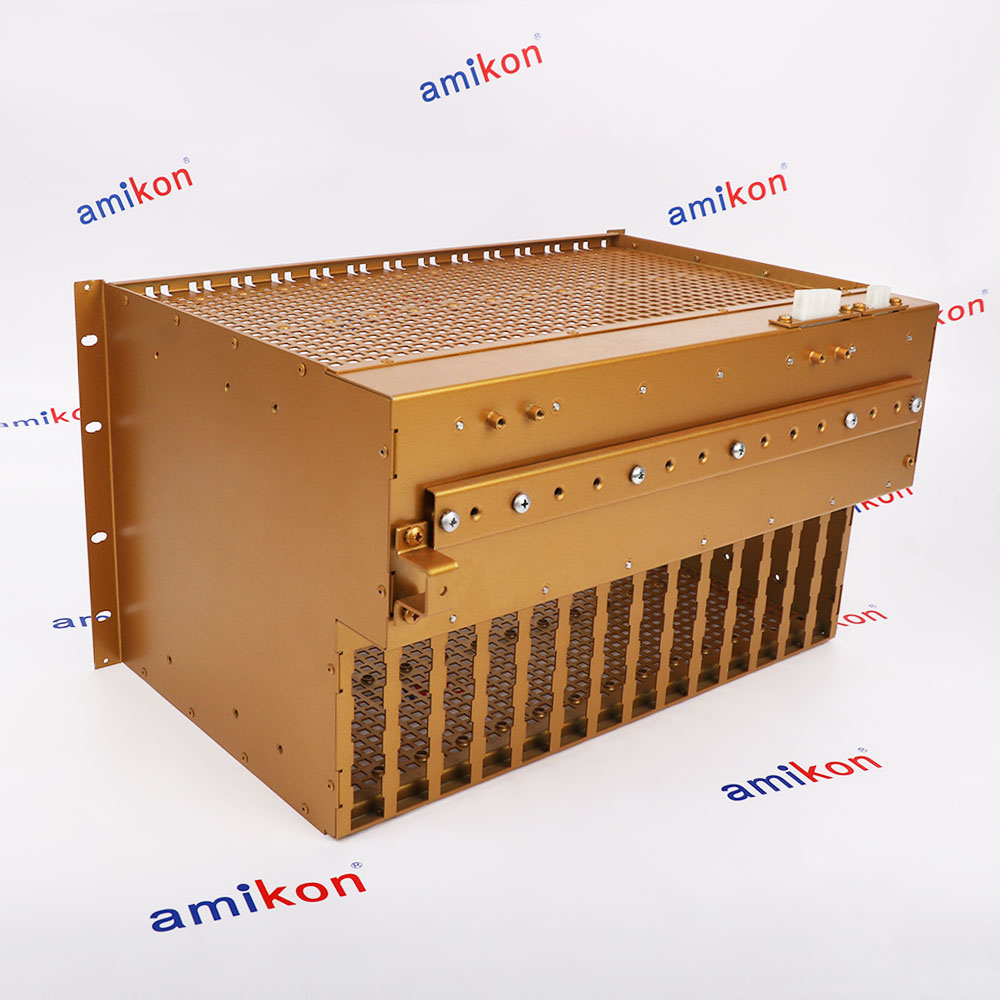

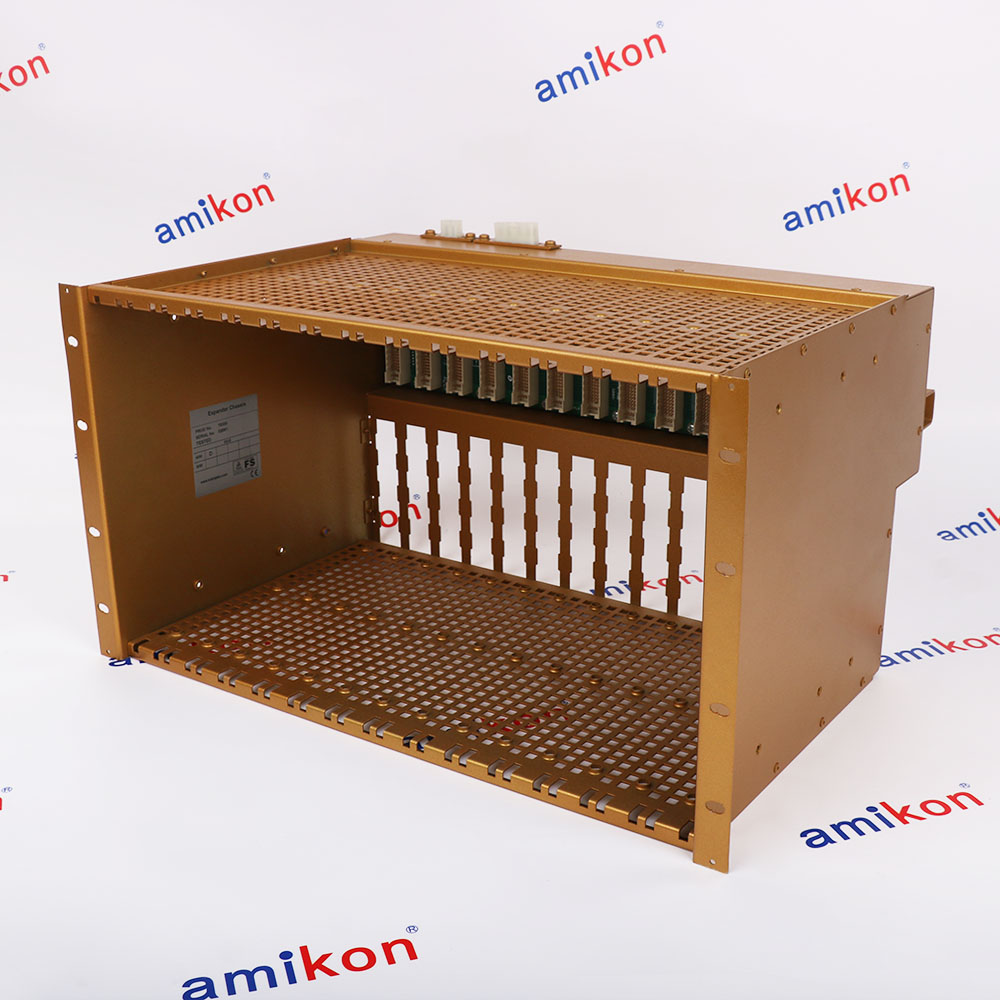

Technical specifications for T8300
-
Product ModelT8300
-
Product ParametersTrusted Expander Chassis
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size48.3x34x26.5cm
-
ManufacturerICS Triplex
-
Weight5.2 kg
-
Voltage20 Vdc to 32 Vdc
-
Power27 W
-
Field Supply Voltage18 Vdc to 32 Vdc
-
Field Supply Current2 A per channel maximum
-
Power Group to Power Group50 V Reinforced (continuous)
-
Field Common50 V Reinforced
-
FusingNot user serviceable
-
Number of Channels40
Description
T8300
Expander Chassis
+24Vdc power
Trusted Expander Chassis
Expander Chassis
+24Vdc power
Trusted Expander Chassis
Information
Overview
Manuals
Technical notes
Product Applications
Key Installation Steps
Features:
- Seamless System Scalability
- Trusted Expander Chassis
- High-Speed Inter-Chassis Bus
- Redundant Power Distribution
- Integrated Environmental Monitoring
The T8300 ICS TriplexTrusted Expander Chassis may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ICS TRIPLEX T8300 Trusted Expander Chassi Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The T8300 is more than just a mounting rack; it is an intelligent extension of the system's backplane. It incorporates a sophisticated "Expander Interface" that bridges the main system bus to the local I/O modules, ensuring that the 2-out-of-3 (2oo3) voting logic and diagnostic functions are applied consistently throughout the entire expanded network. This architecture ensures that the "Trusted" safety philosophy—where no single point of failure can cause a system trip or a failure to trip—is upheld even in highly complex, multi-chassis configurations.
- Automotive Assembly Stations:Pneumatic valves, clamping cylinders & status lights
- Packaging and Bottling Lines:High-speed conveyors, sorting gates & labeling heads
- Material Handling Systems:Warehouse: palletizers, AS/RS & complex conveyors
- Textile and Paper Processing:Precise timing for actuators/tension in textile/paper
- Machine Tools (CNC & Metalworking):Coolant pumps, interlocks & turret positioning indicators
- HVAC Control Skids:Dampers, fans & status indicators for industrial HVAC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The T8300 can be mounted in a swing frame or fixed frame. It uses a DIN rail mount and features a hinged front cover for easy access.
Panel Mounting: For panel mounting, utilize the T8380 panel mounting kit, which includes brackets with rear-facing ears.
Module Installation: Install Trusted I/O modules into the available slots on the backplane. The expander processor module (e.g., T8310) is installed in the dedicated processor slots.
Connections: The chassis connects to the main controller chassis (T8100 or T8400) using the Expander Bus, which consists of Unshielded Twisted Pair (UTP) cables.
FAQs
-
What is T8300?
+The ICS Triplex T8300 is a Trusted Expander Chassis used to house input/output (I/O) modules and processors in a Triple Modular Redundant (TMR) safety system. -
What is the function of the T8300?
+It acts as an expansion chassis for Trusted systems, providing the backplane for I/O modules to interface with the main processor, supporting high-bandwidth Inter-Module Bus (IMB) capabilities. -
What components are used with the T8300?
+It typically houses T8310 Expander Processors, T8311 TMR Expander Interfaces, and various Trusted I/O modules (e.g., T8403, T8431, T8461). -
How should I handle module removal and insertion?
+Modules contain static-sensitive devices. You must use a release key to fully open the ejector tabs before insertion. If a module does not mount easily, do not force it; check for bent pins on the I/O connector.
