SIMPLE ON-LINE RANGE SETTING
USER SETTABLE FULL SCALE FREQUENCY
FROM1 Hz to 25 KHz
FOUR OUTPUT OPERATING RANGES
0 to 5 V, 0 to 10 V, 0 to 20 mA, and 4 to 20 mA
PROGRAMMABLE INPUT CIRCUIT ACCEPTS
OUTPUTS FROM AVARIETY OF SENSORS
85 to 250 VAC and 9 to 32 VDC
POWERED VERSIONSAVAILABLE

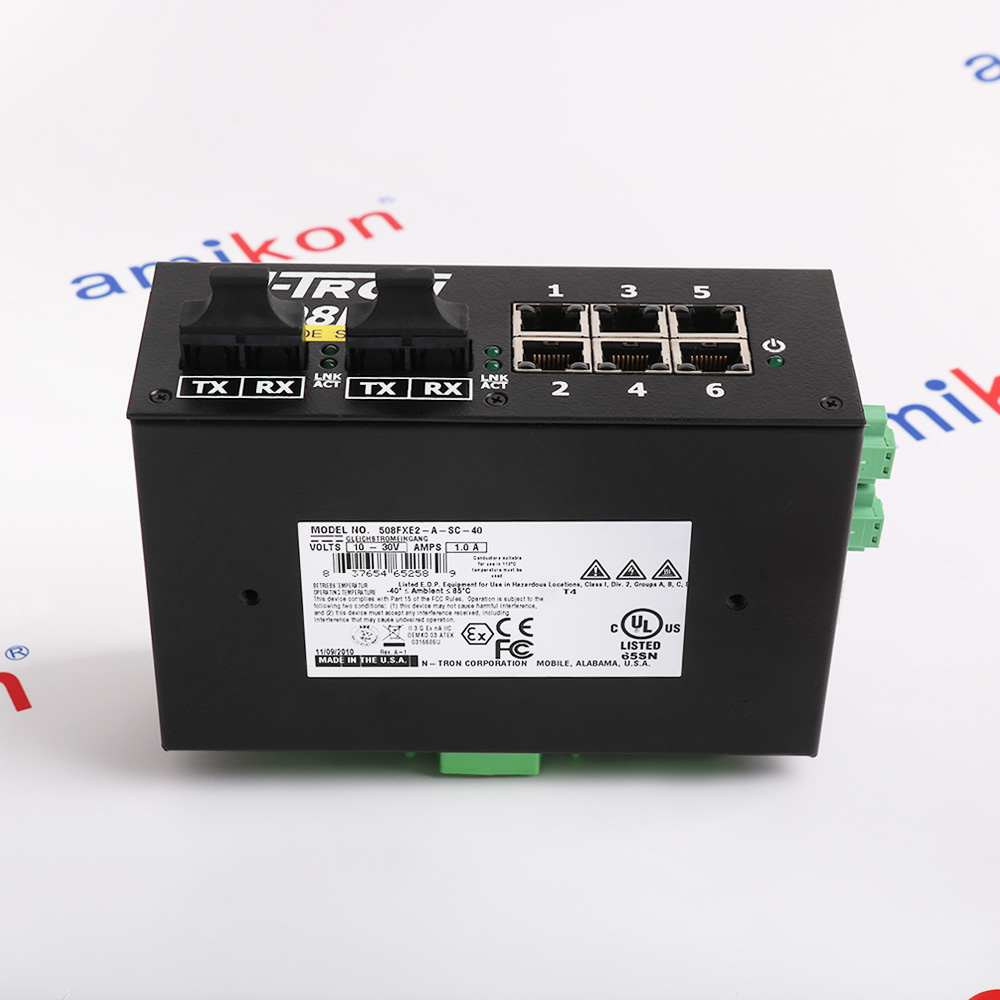

8 Port Industrial Ethernet Switch
Six 10/100 BaseTX RJ-45 Ports
Two 100BaseFX Singlemode 40km Fiber Ports with SC Connectors
IEEE 802.3 Compliance
-40° to 85° C Operating Temperature
Autosensing 10/100BaseTX, Duplex, and MDIX
ESD and Surge Protection on all Built-in Ports
Up to 2.6 Gb/s Throughput
Redundant Power Inputs (10-30 VDC)
Bi-Color LED's For Link, Speed, Activity & Duplex Status
Rugged Industrial Enclosure
Supply Voltage:85-250 VAC V ; 9-32 VDC V
Temperature Operating Range:0 to +50 °C °C
Termination:Screw
Pulse Rate (Frequency) - Analog Converter
Output Type:Current, Voltage
