S7-1200

Communication interface board

Communication interfaces Module
for multi-parallel Circuit
Data Transfer Rate: Up to 12 Mbps
Interface Type: RS-485
Supply Voltage: 24V DC

ANALOG I/O MODULE

SIMATIC S7-1200
ANALOG I/O SM 1234
4 AI/ 2 AO, +/-10V
14 BIT RESOLUTION
OR 0-20 MA
13 BITRESOLUTION

Digital I/O MODULE

SIMATIC S7-1200
Digital I/O SM 1223
16 DI/16 DO, 16 DI 24 V DC
Sink/Source, 16 DO
transistor 0.5 A

ACTIVE LINE MODULE

SINAMICS S120
ACTIVE LINE MODULE
INPUT: 3-PH380-480V, 50/60HZ
OUTPUT: 600 V DC, 549 A,
300KW
INTERNAL AIR COOLING INCL
DRIVE-CLIQCABLE

Memory card

SIMATIC S7
memory cards
for S7-1x 00 CPU
3, 3V Flash, 2 GB

CPU1215C Compact Unit

CSM 1277 Compact Switch Module

Communication Module CM 1242-5

MEMORY CARD

MEMORY CARD
SIMATIC S7
FOR S7-1X 00 CPU/SINAMICS
3
3 V FLASH
4 MB

CM 1241 Communication Module

CPU 1515F-2 PN Processor Module

Single Motor Module

SINAMICS S120
Single Motor Module
input: 600 V DC
output: 400 V 3 AC,
18 A type of construction:
booksize internal air cooling optimized
pulse patterns and support of the extended
Safety Integrated functions
incl. DRIVE-CLiQ cable

Flash Memory Card - 256 MB

SM 1231 Analog Input Module - TC

CPU 1215C Compact CPU Unit

SIMATIC S7-1200
CPU 1215C, compact CPU
DC/DC/DC, 2 PROFINET
ports,onboard I/O: 14 DI 24 V DC
10 DO 24 V DC; 0.5 A; 2 AI 0-10 V DC, 2 AO 0-20 mADC
power supply: DC 20.4-28.8 V DC
program/data memory 200 KB

SB 1232 Analog Output Signal Board

SM1223 Digital I/O Module

SIMATIC S7 MEMORY CARD. 24 MB

CPU 1214C Compact Unit

Memory Module - 12 MB

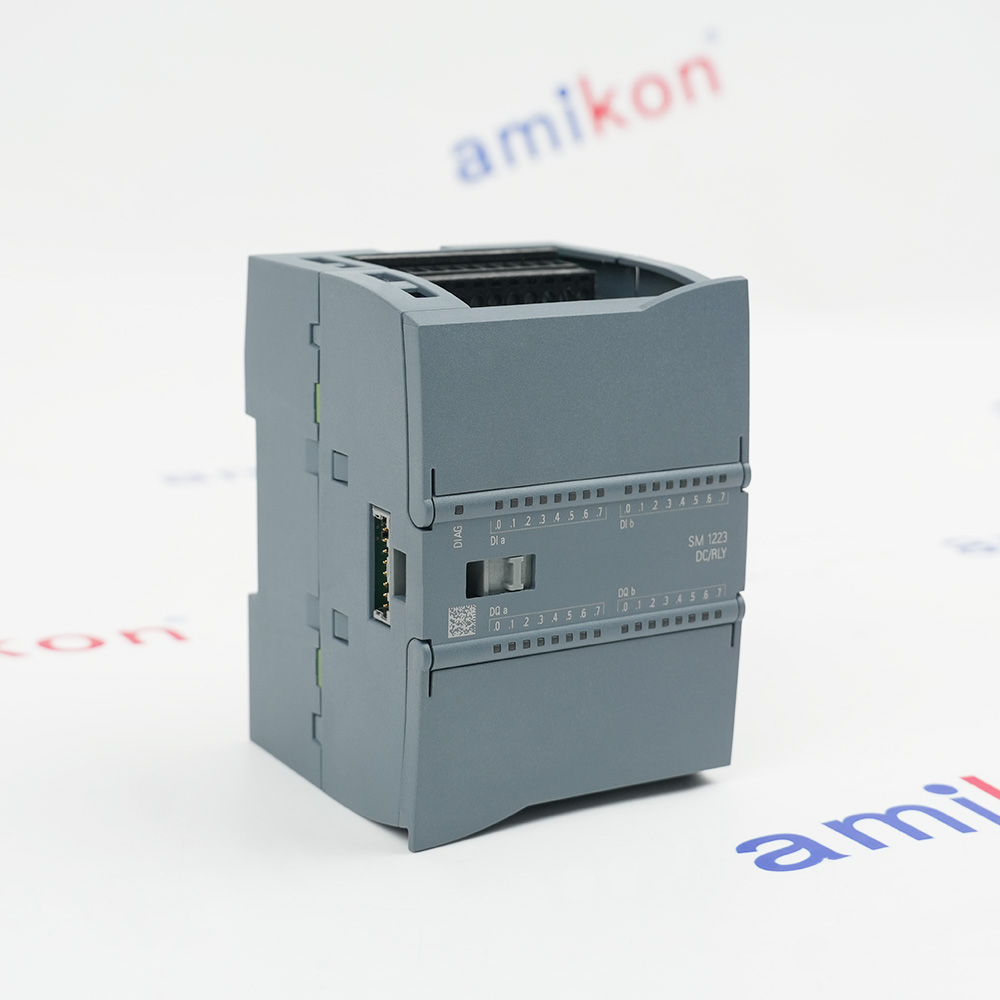

SM 1223 Digital I/O Module

SIMATIC S7-1200
Digital I/O SM 1223
16 DI/16 DO, 16 DI 24 V DC
Sink/Source,16 DO, relay 2 A

CPU 1212C Compact CPU

SIMATIC S7-1200 SM1231 RTD 4 X AI

SM 1221 Digital Input Module

COMMUNICATION MODULE CM 1241 RS422/485

SIMATIC S7-1200
Communication module CM 1241
RS422/485
9-pole D-sub (socket) supports Freeport
